2085mm x 1800mm Cladding Driveway Gate Frame (Internal/External Cladding) (Satin Black Powder Coat)
$305.00
- Bulky Item Shipping costs are calculated during checkout
- 1 Year Warranty
- Brand : Alpha Automation
- Internal Cladding Frame
- External Cladding Frame
- 1800mm Height
In stock
Versatile Driveway Swing Gate Frame for cladding
The versatile design gate frame is suitable for both INTERNAL horizontal cladding (up to 20mm material thickness) or EXTERNAL vertical/Horizontal Cladding of any thickness. The gate features a center 40x20mm vertical support rail which does not interfere with internal cladding. The frame measures 1.8m in height.
The construction is of pre-galvanized steel RHS tubing for the Bottom Rail (80x40mm), SHS tubing (40x40mm Top and Sides) and a Vertical support of 40x20mm in the center, every join on the gate is welded providing the best strength and rigidity unlike flat pack gates.
Key Features
✓ Proper Rigid Steel Gate, 100% Welded (NO flat pack and NO concerns about flex, integrity or assembly)
✓ Pre-Galvanized Steel Tubing
✓ Satin Black Powder Coating (NIGHT SKY COLOUR)
✓ RHS 80×40 Bottom Rails
✓ SHS 40×40 Top and Sides
✓ RHS 40×20 Center Support
Cladding Methods
Internal Cladding Channel System is provided separately as an additional item (See our store), Gate is supplied ready for external Cladding
Internal Cladding Using Channel System
External Cladding Directly to Gate Face

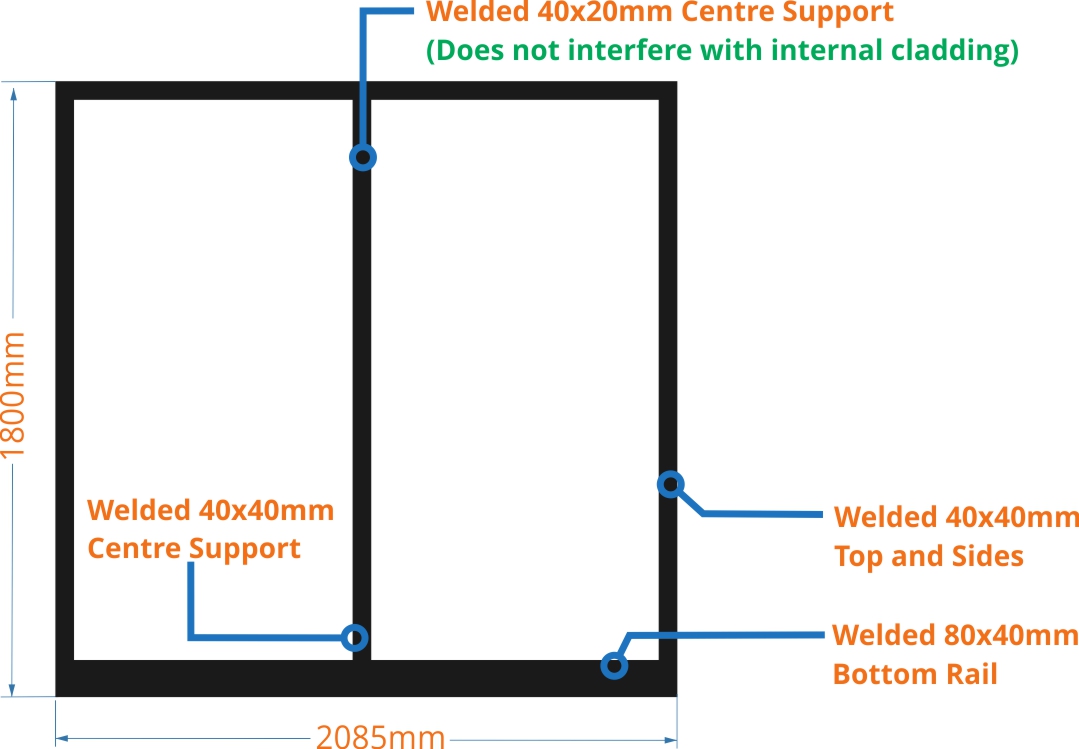

Dimensions
Important Information – Measurement details and Requirements
| Width of Gate Panel | 2085mm EACH |
| Height of Gate Panel | 1800mm |
| Additional Space Requirements | 15-20mm for EACH Hinge Side + 15-20mm Between Gates in Centre (Double Gates)/End of gate (Single Gate) |
