4800mm Double Swing Driveway Gates Opening (1800mm H) 4.8×1.8m Cladding Gate Frames (Internal Cladding) (Satin Black Powder Coat)

SKU: FRAME18-2385-INTCLAD x2+POSTS+HINGES

$895.00

$810.00

Save $85.00

  • Bulky Item Shipping costs are calculated during checkout
  • 1 Year Warranty
  • Brand : Alpha Automation
Internal Cladding Frame
1800mm Height
4.8m Opening (2x 2385mm Gates)
  • Internal Cladding Frame
  • 1800mm Height
  • 4.8m Opening (2x 2385mm Gates)

In stock

Click & Collect

Delivery

In-Store

Same Day Dispatch (Order before 10AM)

Versatile Driveway Swing Gate Frame for cladding

Versatile driveway gate frame for cladding

The versatile design gate frame is suitable for both INTERNAL horizontal cladding (up to 20mm material thickness) or EXTERNAL vertical/Horizontal Cladding of any thickness. The gate features a center 40x20mm vertical support rail which does not interfere with internal cladding. The frame measures 1.8m in height.

The construction is of pre-galvanized steel RHS tubing for the Bottom Rail (80x40mm), SHS tubing (40x40mm Top and Sides) and a Vertical support of 40x20mm in the center, every join on the gate is welded providing the best strength and rigidity unlike flat pack gates.

Key Features

✓ Proper Rigid Steel Gate, 100% Welded (NO flat pack and NO concerns about flex, integrity or assembly)
✓ Pre-Galvanized Steel Tubing
✓ Satin Black Powder Coating (NIGHT SKY COLOUR)
✓ RHS 80×40 Bottom Rails
✓ SHS 40×40 Top and Sides
✓ RHS 40×20 Center Support

Internal Cladding Example

Internal cladding gate

The kit is provided ready for internal cladding within the gate frame (cladding set into the gate) This is achieved by the provided channels. If required an external cladding version is also available.

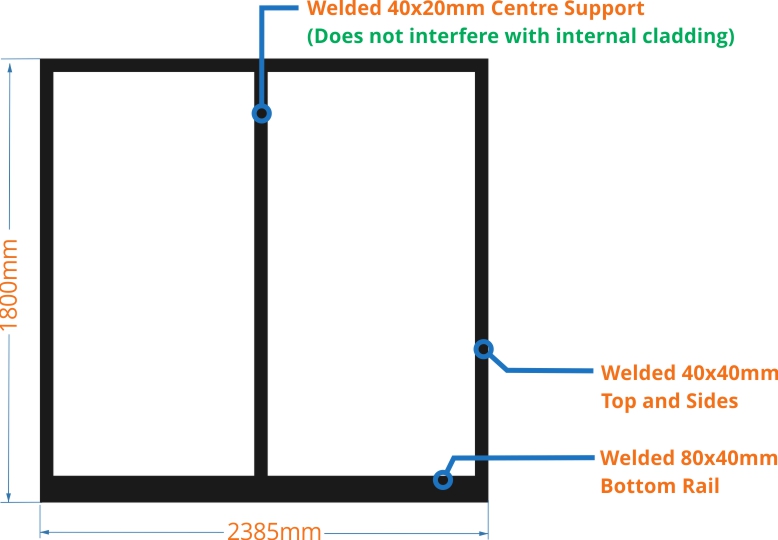

Dimensions

driveway gate for cladding measurements

Important Information – Measurement details and Requirements

Width of Gate Panel 2385mm EACH
Height of Gate Panel 1800mm
Combined Width 2385mm+2385mm= 4770mm
Additional Space Requirements 15-20mm for EACH Hinge Side + 15-20mm Between Gates in Centre
Total Space Requirements Including Mandatory Gaps BETWEEN POSTS MEASURMENT MIN. 4815mm to Max. 4830mm + POSTS

Gate Hinge Options

Multiple hinge options are available to choose from based on two factors gate weight and adjustability/flexibility.

STANDARD Ball bearing Hinge

standard lift off gate hinges

The standard ball bearing hinge is used with light weight gates only and is fixed without adjustability, it is a simple lift off type hinge.

Strap Hing Ball Bearing

200mm strap hinge

Strap hinge (non-adjustable) is used with gates not exceeding 150kg, it is a simple lift off type hinge.

Rising Hinges

rising hinge tilting gate system

Used with gates requiring a tilt as they open, typically for steep driveways, dead weight of the gate should not exceed 150kg.

Adjustable Strap Hinge (300mm/600mm)

extra long strap hinge 300mm 600mm

Used for weightier gates such as cladded gates requiring adjustment back to/away from post to achieve alignment, by far the most adjustable hinge option. Available in both a 300mm and 600mm strap length.

Post Options

  • 75x75x2660mm, Suitable for applications not requiring automation
  • 100x100x2660mm, Suitable for applications with heavier gates (eg. cladded with light timber, colorbond etc.) and automatic applications
  • 150x150x2700mm, Suitable for applications with heavier gates (eg. cladded with Hardwoods) and automatic applications
  • 100x100x2000mm, Bolt down with base plate post only used when unable to concrete a post into the ground, if use with cladded gates consider bracing the post
75x75 concrete in post
100x100 concrete in post
100x100 bolt down post with base plate
150x150 bolt down post with base plate

Kit Contents (See Description Tab for Full In-Depth Details)

  • Bulky item
    Description

    Versatile Driveway Swing Gate Frame for cladding

    Versatile driveway gate frame for cladding
    The versatile design gate frame is suitable for both INTERNAL horizontal cladding (up to 20mm material thickness) or EXTERNAL vertical/Horizontal Cladding of any thickness. The gate features a center 40x20mm vertical support rail which does not interfere with internal cladding. The frame measures 1.8m in height. The construction is of pre-galvanized steel RHS tubing for the Bottom Rail (80x40mm), SHS tubing (40x40mm Top and Sides) and a Vertical support of 40x20mm in the center, every join on the gate is welded providing the best strength and rigidity unlike flat pack gates.

    Key Features

    ✓ Proper Rigid Steel Gate, 100% Welded (NO flat pack and NO concerns about flex, integrity or assembly) ✓ Pre-Galvanized Steel Tubing ✓ Satin Black Powder Coating (NIGHT SKY COLOUR) ✓ RHS 80x40 Bottom Rails ✓ SHS 40x40 Top and Sides ✓ RHS 40x20 Center Support

    Cladding Methods

    Internal Cladding Channel System is provided separately as an additional item (See our store), Gate is supplied ready for external Cladding

    Internal Cladding Using Channel System

    Internal cladding gate

    External Cladding Directly to Gate Face

    external cladding gate

    Dimensions

    driveway gate for cladding measurements

    Important Information - Measurement details and Requirements

    Width of Gate Panel 2385mm EACH
    Height of Gate Panel 1800mm
    Additional Space Requirements 15-20mm for EACH Hinge Side + 15-20mm Between Gates in Centre (Double Gates)/End of gate (Single Gate)
    x

    2385mm x 1800mm Cladding Driveway Gate Frame (Internal/External Cladding) (Satin Black Powder Coat) × 2

    Out Of Stock

  • Bulky item
    Description

    Cladding Channel Set

    cladding channel C for fencing and gate merbau hardwood horizontal

    Designed to be installed within the gate frame to allow for horizontal cladding. Pre-punched with five holes for fixing to the gate frame by metal screw. Additional holes along the back side (inside of property) will be required to fix the cladding in position.

    Key Features

    ✓ 1665mm Long fits within the gate frame without the need to cut ✓ Can also be used for fencing ✓ Pre-Galvanized Steel ✓ Suits up to 20mm cladding material ✓ Satin Black Powder Coating (NIGHT SKY COLOUR)
    x

    Cladding Gate Channel (4 Pack) To Suit 1.8m Frame 25x25x25mm (1.6mm) 1665mm Length Suits Merbau, Hardwood and Slats

    Screws directly into the inside of the frame allowing for horizontal cladding material up to 20mm in thickness.

    Show more

    Screws directly into the inside of the frame allowing for horizontal cladding material up to 20mm in thickness.

    ×
    Out Of Stock

  • No description available...
    x

    Gate Posts × 2

    Select the post size that best suits your clearance area.

    Show more

    Select the post size that best suits your clearance area.

    ×
    Out Of Stock
    Clear
    Out Of Stock

  • No description available...
    x

    Double Swing Gate Gate Hinge Sets

    Out Of Stock
    Clear
    Out Of Stock

Optional Add On's

  • Description

    40mm Galvanized Driveway Gate Stop

    galvanized swing gate ground floor stop
    • Galvanized Steel Construction
    • Will not damage vehicles (no sharp edges)
    • Will not break like rubber stops
    • Bolt down design
    • Can be driven over
    • Supports installations where the gate is no higher than 25mm from driveway level

    Dimensions

    swing gate metal galvanized gate stop
    x

    Strong Swing Gate Stop Galvanized Steel 40mm

    Out Of Stock

  • Bulky item
    Description

    Powder Coated Gate and Fence Post 75x75mm

    75mm gate fence post powder coat black
    ✓ Pre-Galvanized Steel ✓ Powder Coated Black (Night Sky) ✓ 75x75x2660mm(2.66 Meters)- 2.0mm Wall Thickness
    x

    FENCE POST 75x75x2660 (2.7m) Steel Post Powder Coated Night Sky Satin Black

    Out Of Stock

  • Bulky item
    Description

    Powder Coated Gate and Fence Post 50x50mm

    50mm gate fence post powder coat black
    ✓ Pre-Galvanized Steel ✓ Powder Coated Black (Night Sky) ✓ 50x50x2660mm(2.66 Meters)- 1.5mm Wall Thickness
    x

    Optionally used for Pedestrian Gate 50x50x2660 (2.7m) Steel Post Powder Coated Night Sky Satin Black

    Out Of Stock

  • No description available...
    x

    Lock 35mm Kit (Lock + Handle + Cylinder surrounds)

    Out of stock

    Out Of Stock

  • No description available...
    x

    Pedestrian Gate Hinge (Choose a side)

    Out Of Stock

  • Bulky item
    Description

    Versatile Pedestrian Swing Gate Frame for cladding

    Versatile driveway gate frame for cladding

    The versatile design gate frame is suitable for both INTERNAL horizontal cladding (up to 20mm material thickness) or EXTERNAL vertical/Horizontal Cladding of any thickness. The gate features a center 40x20mm vertical support rail which does not interfere with internal cladding. The frame measures 1.8m in height.

    The construction is of pre-galvanized steel RHS tubing for the Bottom Rail (80x40mm), SHS tubing (40x40mm Top and Sides) and a Vertical support of 40x20mm in the center, every join on the gate is welded providing the best strength and rigidity unlike flat pack gates.

    Key Features

    ✓ Proper Rigid Steel Gate, 100% Welded (NO flat pack and NO concerns about flex, integrity or assembly) ✓ Pre-Galvanized Steel Tubing ✓ Satin Black Powder Coating (NIGHT SKY COLOUR) ✓ RHS 80x40 Bottom Rails ✓ SHS 40x40 Top and Sides ✓ RHS 40x20 Center Support

    Cladding Methods

    Internal Cladding Channel System is provided separately as an additional item (See our store), Gate is supplied ready for external Cladding

    Internal Cladding Using Channel System

    Internal cladding gate

    External Cladding Directly to Gate Face

    external cladding gate

    Dimensions

    driveway gate for cladding measurements

    Important Information - Measurement details and Requirements

    Width of Gate Panel 1485mm EACH
    Height of Gate Panel 1800mm
    Additional Space Requirements 15-20mm for EACH Hinge Side + 15-20mm Between Gates in Centre (Double Gates)/End of gate (Single Gate)
    x

    880mm x 1800mm Cladding Pedestrian Gate Frame (Internal/External Cladding) (Satin Black Powder Coat)

    Out of stock
