4K Surveillance System POE NVR 8 Channel Kit 8 Mega Pixel (Turret Dome and Bullet Combo)

SKU: EXO8+NVR8+TD+B

$2,560.00

Freight from $25.00 Calculate Freight
1 Year Warranty
Brand : Prodigy

In stock

Click & Collect

Delivery

In-Store

Introducing the Prodigy EXO 8 series Power Over Ethernet NVR Systems, High Resolution 4K (8MP)Surveillance System with Motion Detection, IR Night Vision + White LED Motion Sensing Lighting.Leave your home or business with peace of mind of recording, monitoring and playback from your iphone, ipad, or android device via the Totally FREE TSEYE APP. Fantastic 4K Clarity in both day and night time. Record on a set schedule/24 Hours or motion detection with H265 compression allowing for up to SIX weeks weeks recoding on a 8TB Maximum HDD (not Included).

8MP DAY/NIGHT POE Cameras with 15FPS Recording allow for clear and concise monitoring and recording.

Night Vision viewing distance of up to 30 meters with White motion LED’s for approaching guest and intruders (LED Illumination duration can be adjust or disabled if required)

Exo 8 Bullet POE Camera Features

✓ Free APP for Mobile Monitoring and Playback
✓ Built in microphone within each camera allow for recording in tandem with the video stream.
✓ WDR setting for high contrast situations
✓ 4K Resolution (3840×2160)
✓ Humanoid Detection for motion recording
✓ 4mm Lens for 78 Degree Field of View
✓ Auto Detecting Connected Cameras + Full IP Configuration and Management
✓ Metal Body with IP66 Rating
✓ Waterproof Locking Connector for RJ45 Cables
✓ Runs on CAT5 and CAT6 Cabling for Power and Data, No extra Cables required (POE, Power Over Ethernet)

Technical Specifications

IR Cut	YES
Power	POE, DC12V 1.2W Max.
Motion Alarm	White LED
Sensor	1/3″ CMOS Sensor (8MP)
Encoding	H264/H265
Frame Rate	8MP 15FPS/5MP 25FPS
Stream Resolution	Main stream: 3840 x 2160, 2880 x 1620, 2560 x 1440, 2304 x 1296, 1920 x 1080； Auxiliary stream: 1280 x 720, 704 x 576, 640 x 480, 352 x 288 Capture stream: 1280720, 704576, 640480, 352288
Audio Format	G.711A
Monitoring Stream	Main stream 25fps;Sub stream 25fps
Playback	18M/25fps(Main stream );8720P/25fps(Sub stream)
Overlay	Channel Name, Date and Time
IP Rating	IP66
Operating Temperature	-10°C to 60°C

Exo 8 Turret Dome POE Camera Features

Technical Specifications

IR Cut	YES
Power	POE, DC12V 1.2W Max.
Motion Alarm	White LED
Sensor	1/3″ CMOS Sensor (8MP)
Encoding	H264/H265
Frame Rate	8MP 15FPS/5MP 25FPS
Stream Resolution	Main stream: 3840 x 2160, 2880 x 1620, 2560 x 1440, 2304 x 1296, 1920 x 1080； Auxiliary stream: 1280 x 720, 704 x 576, 640 x 480, 352 x 288 Capture stream: 1280720, 704576, 640480, 352288
Audio Format	G.711A
Monitoring Stream	Main stream 25fps;Sub stream 25fps
Playback	18M/25fps(Main stream );8720P/25fps(Sub stream)
Overlay	Channel Name, Date and Time
IP Rating	IP66
Operating Temperature	-10°C to 60°C

Exo 8 – EIGHT Channel POE NVR Specifications

Chipset	MC6810
RAM	2GB
Compressed Format	H.264/H.265
OS	Linux
Max Cameras	8x 8MP/25FPS
Monitoring Stream	Main stream 25fps;Sub stream 25fps
Playback	18M/25fps(Main stream );8720P/25fps(Sub stream)
Video Output	HDMI 4K/VGA 1080P
Audio	Input via POE Line x8, Output 1x HDMI
Recording	Scheduled/Motion/Manual
POE Switch Branching	Onboard + Supports External POE Switch
Playback	Individual Main Streams
Playback Search	Calendar Date then selective time, by Event
Video Transfer	USB Stick/External HDD
Video Download Format	AVI/H26X
Remote Access	App: TSEYE (IOS/Android)
HDD Storage	1x Maximum Capacity (Sata) (Not Included)
CONTINUOUS Recording Time	Over 5 days Days per 1TB @ 24Hour Continuous (Max. 8TB)
Backup	USB Stick/External HDD
Network Adapter	RJ45 (Wired) 10/100MBPS
Input Power Supply	48V 2A
Operating Temperature	-10°C to 60°C

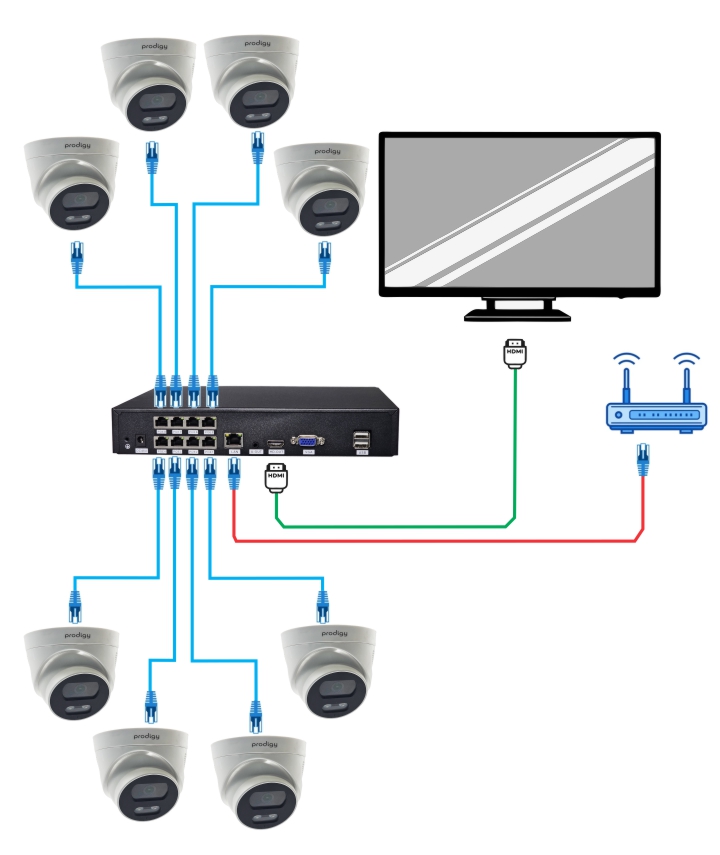

Cabling Structure

Easy installation and effectively plug and play. All cameras connect back to the POE NVR unit via Cat5/Cat6 cabling which delivers both power and the data stream. Internet connection from the modem/router plugs directly into the back of the POE NVR and HDMI TV/Monitor Connection along with a VGA port are also available for setup and local monitoring. The key benefit of a POE NVR is only the NVR itself requires a power supply (via the supplied power adapter) and the feed is distributed to all connected cameras.

In APP Monitoring (TSEYE)

Using the Free Mobile APP TSEYE available for mobiles and tablets, you will be able to monitor all connected cameras individually or as a group, listen to the audio stream of any specific camera and playback recordings on the go. All recordings are stored on the NVR’s Hard Drive (not included) so there is no need to pay for cloud storage or any subscriptions.

Kit Contents (See Description Tab for Full In-Depth Details)

No description available...

x

EXO 8 4K Turret Dome Camera (8 Mega Pixel) × 4

Out Of Stock
No description available...

x

EXO 8 4K Bullet Camera (8 Mega Pixel) × 4

Out Of Stock
No description available...

x

EXO 8 4K (8CH) POE (Power Over Ethernet) NVR Surveillance Recorder

Out Of Stock
No description available...

x

20 Meter Cat 5 Cable (Pre-Crimped) × 8

Out Of Stock
