(5.8m – 6.2m) Complete Residential Sliding Gate Hardware Package Kit suitable for Steel, Aluminum, Spears and Vertically Cladded Gates (5.8m, 5.9m, 6m, 6.1m, 6.2m meter gates)

SKU: SGHK-RES-60-CLAD

$412.00

$368.00

Save $44.00

    In stock

    Click & Collect

    Delivery

    In-Store

    Sliding-gate-on-track-residential cladded

    C Channel Section with Nylon Block

    c channel and nylon block

    The C channel with Nylon Block is fitted to a support post behind the gate on the inside. On the back of the gate the supplied Z section slides through the nylon block. This totally removes the need for rollers operating on an uneven surface such as vertical cladding or any protrusions that may be above the gate frame such as spears.

    The C channel and nylon block also works well for gates on a grade where the guide system must follow UP/DOWN during the gates operation, Suitable for gates where there is overhead protrusions such as spears, suitable for gates with face mounted cladding to the frame.

    The C channel is available in both Steel (with top cap) and Aluminum and the Nylon block is available in both white and black colour options.

    Aluminum Z Profile Angle for Rear Guiding by Nylon Block

    z profile angle for rear guiding of all sliding gates with nylon block
    ✓ Excellent alternative to having an angle welded to the gate
    ✓ Compatible with all gate using 40mm tubing or greater
    ✓ 4mm Aluminum Extrusion Profile Specific for use with sliding gate guiding
    ✓ 34mm Mounting face with 6mm pre punched holes for fixing every 300mm
    ✓ Total offset of 42mm from gate back face to the back of the angle

    Gate Catcher/Receiver Meeting Point

    Multiple options available to choose from based on the gates total thickness including and cladding material if applicable. It is recommended to use a gate catcher that is 10mm greater than the gate thickness. All catchers are available with offset brackets allowing for closing behind a post (as opposed to up to a post).

    Sliding Gate Wheel Options

    Internal Recess/Flush Mount Wheels

    Sliding gate internal recess bearing wheel

    Internal Double bearing wheels allow the gate wheels to be recessed into the bottom of the gate frame (minimum height 78mm tubing), they keep the gate close to the ground track system (normally within 25mm) and provide the neatest aesthetic. The small pocket cut into the bottom of the gate is not greater than the 78mm wheel diameter and allows the flange points to meet with the tubing on either side and screw into place.

    External Surface Mount Wheels

    Sliding gate internal recess bearing wheel

    The easiest to install, these bearing wheels screw directly to the bottom of the gate tubing without any need for cutting, the external surface mounting wheels typically raise the gate 90mm from the ground track system.

    Sliding Gate Ground/Floor Track

    domes r10 sliding gate track round profile bolt down to ground concrete

    The sliding gate ground track is formed from galvanized steel to the R10 profile, this profile is proven to be the smoothest operation for the gate wheels without any negative characteristics like the older v groove designs.

    The track is secured to the driveway using plugs and screws or knock in’s such as anchor nails, its important to use a fixing that does not protrude greater than 3-4mm to prevent contact with the gate wheels.

    ✓ Galvanized Steel
    ✓ Elongated 6mm holes allow for adjustment before final tie down
    ✓ Suits all R10 gate wheels

    Gate Stopper

    Sliding gate stop

    The gate stopper is a crucial part to any sliding gate installation, the stop is installed at the end of the open position to prevent the gate from being opened past the normal open point which prevents the sliding gate from coming off the track (or out of the top guiding system.

    ✓ Rubber Bumper
    ✓ 115mm High
    ✓ 8mm stem and 4mm base steel thickness

    Kit Contents (See Description Tab for Full In-Depth Details)

    • No description available...
      x

      R10 Gal Steel Sliding Gate Track (QTY is Total Meters) × 12

      Galvanized Steel Construction, nailed/anchored down to the concrete for the gate wheels to roll on

      Show more

      Galvanized Steel Construction, nailed/anchored down to the concrete for the gate wheels to roll on

      ×
      Out Of Stock

    • Description

      Aluminum Z Profile Angle for Rear Guiding by Nylon Block

      z profile angle for rear guiding of all sliding gates with nylon block
      ✓ Excellent alternative to having an angle welded to the gate ✓ Compatible with all gate using 40mm tubing or greater ✓ 4mm Aluminum Extrusion Profile Specific for use with sliding gate guiding ✓ 34mm Mounting face with 6mm pre punched holes for fixing every 300mm ✓ Total offset of 42mm from gate back face to the back of the angle Suitable for use with our black and white nylon blocks
      x

      Cladded Gate Screw On Z Profile (QTY is Total Meters)

      Rear Mount Guide System (Works with Nylon Block System)

      Show more

      Rear Mount Guide System (Works with Nylon Block System)

      ×
      Out Of Stock

    • Bundled product placeholder image
      No description available...
      x

      Upper Guide System

      Out Of Stock
      Clear
      Out Of Stock

    • Bundled product placeholder image
      No description available...
      x

      Gate Catcher

      Out Of Stock
      Clear
      Out Of Stock

    • Bundled product placeholder image
      No description available...
      x

      Sliding Gate Wheels

      Out Of Stock
      Clear
      Out Of Stock

    • Description

      120mm Height Sliding Gate Stop

      Sliding gate stop

      The gate stopper is a crucial part to any sliding gate installation, the stop is installed at the end of the open position to prevent the gate from being opened past the normal open point which prevents the sliding gate from coming off the track (or out of the top guiding system.

      ✓ Rubber Bumper ✓ 120mm High ✓ 8mm stem and 4mm base steel thickness

      Dimensions

      sliding gate stop 120mm height
      x

      120mm Height Sliding Gate Stopper Steel Bolt Down

      Out Of Stock

    Optional Add On's

    • Description

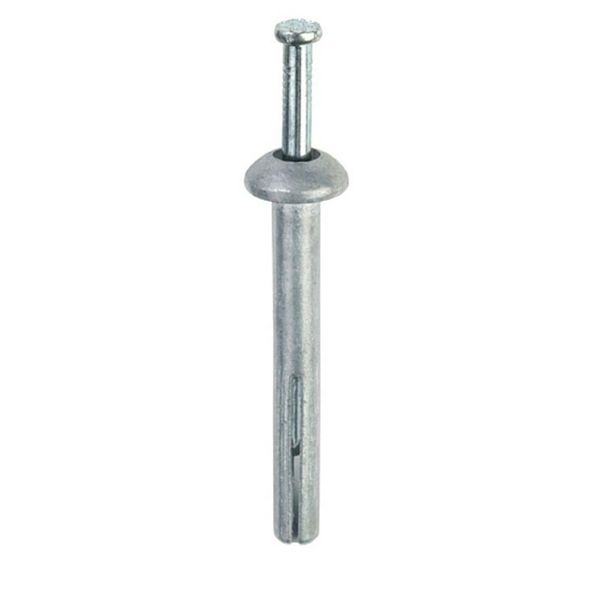

      Pack of 100x 6mm X 38mm Hammer Drive Masonry Anchor Ideal use for tying down sliding gate track. Easy installation: Drill a 6mm Hole into the concrete then hammer down the nail to expand the sleeve
      x

      6mm X 38mm Hammer Drive Masonry Anchor Knock Ins (100 Pack)

      Out Of Stock

    • Description
      Pack of 50x 4mm x 19mm Self drilling wafer head screws Ideal for installation of Z profile. Easy installation: Using a Philips head drill bit, directly screw without the need to pre-drill
      x

      4mm x 19mm Self Drilling Wafer Head Phillips Screws Zinc (50 Pack)

      Out Of Stock

    • Description
      Pack of 50x 6mm x 25mm Self drilling metal tek screws Ideal for installation of gate wheels, brackets, etc. Easy installation: Using a 3/8" nut setter directly screw without the need to pre-drill
      x

      6mm x 25mm Self Drilling Metal Tek Screws Zinc (50 Pack)

      Out Of Stock

    • Description
      Pack of 50x 8mm x 40mm Self drilling metal tek screws Ideal for installation of offset gate catcher, swing gate operators, etc. Easy installation: Using a 12mm socket and adapter directly screw without the need to pre-drill
      x

      8mm x 40mm Self Drilling SUPER Metal Tek Screws Yellow Zinc (50 Pack)

      Out Of Stock
