Apache ARTICULATING Italian Electric 24V Low Voltage Automatic Double Swing Driveway Gate Opener Kit ROBUST Heavy Duty Design BASE KIT

SKU: APACHE-2D-P-BK

$1,685.00

$1,625.00

Save $60.00

Made In Italy
Ultra Fast
Adjustable Limit Stops
All Metal Gears
3 Year Warranty
400KG (2x 200KG)
5 Metre Opening
Digital Display
Optional Battery Backup
  • Made In Italy
  • Ultra Fast
  • Adjustable Limit Stops
  • All Metal Gears
  • 3 Year Warranty
  • 400KG (2x 200KG)
  • 5 Metre Opening
  • Digital Display
  • Optional Battery Backup

On backorder

Click & Collect

Delivery

In-Store

Pre-Order Now - Dispatch Late November

Apache Low Voltage 24 Volt Flexible Articulated Arm Gate Operator

italian swing articulating arm gate motor

The Apache 24 Volt Swing Arm operator is a versatile and flexible operator allowing for connection to gates from flush mounting (0mm) up to 300mm set in away from the mounting point of the operator. Strong and quiet the Apache can operate gates smoothly and with ease with a rated capacity of up to 2.5m per gate (5m opening) and up to a maximum of 200kg per gate.

The oversized ALL METAL GEAR structure inside ensures a seamless operation without breakdowns or premature life unlike plastic and nylon gear sets. Also boasting a robust die-cast alloy case to encapsulate the gearing system all gears, motor and bearings are totally closed in and sealed from any outer elements. Built into the Alloy case we will also find the clever clutch release system (Emergency release) which is keyed to unlock for added security.

The unique Night Light system allows for illumination during operation and whilst the gates open adding a great guidance and a tidy aesthetic to the installation. To use this feature an additional cable (also low voltage) will be required between the gate controller and each Apache operator. With an easy to use (and secure) manual release system in place.

Operations are smooth and efficient using its 24 Volt DC motor driving the articulating arm clockwise/counter-clockwise. The end positions are set using the easiest possible method of adjustable limit stops. Limit stops are fitted to casted grooved positions to adjust both the maximum open and closed positions of the gate, being a mechanical system its a case of set and forget with no further adjustments being required. Typically the open and closed positions will not require and further stops unless higher wind loads are expected (cladded gates).

The Apache operator is 100% Universal Left and Right side meaning the same unit could be installed on EITHER side of the driveway.

The Apache is able to be installed with just a 40mm clear height available making it an easy choice when it comes to ground clearance, the Apache requires 450mm clear area from the edge of the driveway when the gate is open at 90° which makes it suited for the majority of installations where the gate is spaced away from neighboring feces and retaining walls.

NO NEED FOR GATE STOPS, the on-body limit stops are totally adjustable in there positioning for both the open and closed positions.

The connection for cable join between the Apache and the gate controller is made underneath the plastic cover and the wall/post/pillar mounting bracket allows for a conduit directly into the operator if desired.

Key Features

✓ Designed, Engineered and Manufactured in Italy
✓ Fast and Efficient 24 Volt Operation
✓ LED Light System
✓ Full metal Gearbox
✓ Die-Cast Housing and Arm
✓ Quiet and discreet
✓ Open and Closed Position ADJUSTABLE without the need for a gate stop (adjustable limit stops)
✓ Flexible installation

Easy to Adjust Open and Close Position Limit Stops

no gate stop swing gate opener motor

LED Light

when optionally connected to the control board (additional low voltage two core cable is used).
Whilst in operation the LED Light will illuminate
Apache led light

An Overview of the Apache Series Operator

high quality strong automatic articulating folding arm gate motor

Manual Release System

Apache gate opener manual release Italian swing gate motor

Driveway Gate Motor Specifications

Operating Voltage 24V DC
Duty Cycle 90%
Torque 180 Nm
Limit Stops Yes, Open and Closed Positions (Adjustable)
Gearing All metal Gears
Case Material Die-Cast Inner Housing Structure, ABS Top Cover
Maximum Gate Weight 2.5 Meters EACH
Maximum Gate Weight 200KG EACH
Cabling 2 Wire to Control Box (DC MOTOR), Additional 2 Wires for LED Light (optional)
Apache automatic gate motor specifications



“Pull to Open”/”Push to Open” Installation Geometry

apache gate system opening inwards or outwards

STX4K Keyring High Range Remote

Automation systems Australia keyring remote control for driveway gate
The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).

Key Features

✓ Up to 100 metres distance in open air
✓ Keeloq rolling code security
✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
✓ Clear visibility red LED indicator which will illuminate upon a button press
✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
✓ Slimline and modern ergonomic design
✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

Premier SW24 Advanced Digital Automatic Gate Controller

Automatic electric 24 volt driveway gate control box

The Premier SW24 Automatic gate system controller comes standard with a state of the art feature set catering for all types of installations, whether only requiring ordinary residential operation to all the way up to a full fledged setup requiring advanced logic principals taking advantage of the 70% duty cycle.

The on-board display makes easy work of any settings changes if desired and is easily visible in the outdoors being the advantage of LED displays. With multiple Inputs and outputs just about any accessory is compatible with the Premier SW24 system (see the complete list below).

Also boasting multiple safety inputs along with its precise on-board detection it allows safety to remain prioritized for any application. with the optional plug and play battery back-up system you will be sure not to ever be locked out of your property.

The installation process is always kept in mind allowing up to 7 cable inputs into the outdoor weatherproof gate control box using IP68 cable glands, you will never run out of space or provisions for more.

The genius automatic learning system, hold one key to enable and begin the automatic learning of the gate system and automatic definition of the ramp up and slow down points, its as easy as it gets suiting all skill levels from DIY once off installs to professional installers.

Ready to plug into an ordinary power point there is NO high voltage wiring required, All connections are Low Voltage and safe for all installers regardless of the skill level without the concern of electrical shock.



Automatic Gate System Features

Features as Standard

✓ Easy to use Single Button Mode of Opening-Stop-Closing including the “Stay open” feature
✓ Open one gate Pedestrian Mode Feature
✓ Automatic Closing Timer Adjustable in one second increments up to 5 minutes
✓ Automatic learning of the gate + Fine tunable operating Times
✓ Soft Start (Ramp UP) and Soft Stop/Slowdown (Ramp DOWN)
✓ Adjustable Slow Down Speed and Time
✓ Optional Plug and Play Battery Backup System
✓ Fortress Series Electric and Magnetic Lock Support
✓ Low Voltage Power for all accessories directly through the gate controller
✓ Warning Light Output

Normal Modes allow for the “STAY Open” feature to cancel the automatic closing timer by remote Handy when expecting guest, backing in a trailer etc.





Multiple Configurable Safety Inputs

✓ Obstacle Detection by load This feature is always running and detecting if the gate is stalled under load by an obstacle during its travel.
✓ Typical Photocell Input Terminal to prevent gate from closing on vehicle, reverts gate if a vehicle passes through during closing, restarts the Automatic closing timer after each interruption.
✓ Photostop Input, Same as the typical photocell input with an added feature of preventing the gate from opening if the photocell is blocked. Handy for short driveways and also opening outwards installations.
✓ Special Detector Input to tell the gate to close two seconds after the vehicle passes, perfect for higher security applications (and also escaping dogs).
✓ Safety Edge Input Installed on to the gate, safety edges allow for a return to open if the edge of gate is to touch an obstacle.
✓ Emergency Stop Button This feature allows for a manned button to immediately stop the system open pressing.

Wired and Wireless Access Control Support

✓ Keypads Wired or Wireless Secure PIN Number access (Tekno K1/Dex4)
✓ Press Button Simple button operation
✓ Mobile APP Control Cloud based and operatable anywhere in the world (Tekno WF)
✓ Doorbell Intercom Systems
✓ Exit Wands and Induction Loops To automatically operate the gate upon vehicle presence
✓ GSM 4G Technology Operate the gate by phone call (or intercom phone call) (Tekno 4/Tekno S1)
✓ Weekly Schedule Timer To automatically operate the gate based on a programmed daily/weekly operating times

Residential, Commercial and Complex Working Modes Options

✓ Normal Remote Operation (Open-Stop-Close)
✓ Normal Remote Operation (Open-Stop-Close) with Automatic Closing Timer and “Stay Open” feature (299 Seconds/5 Minutes)
✓ Typical Complex – Individual Open and Close Command Inputs
✓ Typical Complex – Individual Open and Close Command Inputs with Automatic Closing Timer “Stay Open” feature by wired input (299 Seconds/5 Minutes)
✓ Secure Complex – Open Only Command Inputs with Automatic Closing Timer (299 Seconds/5 Minutes) “Stay Open” feature by wired input

OPTIONAL Uninterrupted Battery Backup System

backup uninterrupted battery swing gate

The optional uninterrupted battery backup system allows for continued use in the case of power loss without the need for any user intervention, it will continue to allow system operation including any system accessories for 24 hours OR until the power is restored. The batteries are automatically recharged when power is restored and trickle whilst power is available Directly fitting into the systems compartment there is no need for any additional storage boxes.

If the optional battery system is not desired the system can still be manually release using the secure override system when applicable.

Automatic Gate System Controller Specifications

Operating Voltage 24V
Duty Cycle 70%
Standby Consumption 20mA
Supports Battery Backup Yes, 24V DC
Automatic Gate Lock Support Yes, 24V DC
Light Support Yes, 24V DC
Accessories Voltage Yes, 12V DC
Safety Inputs Photocells, Safety edges, Induction Loops, Edge Sensors, Emergency Stop Button
Operating Temperature -10°-60°C
Maximum Remotes 192

Control Box Dimensions

Automatic Driveway Gate System Control Box

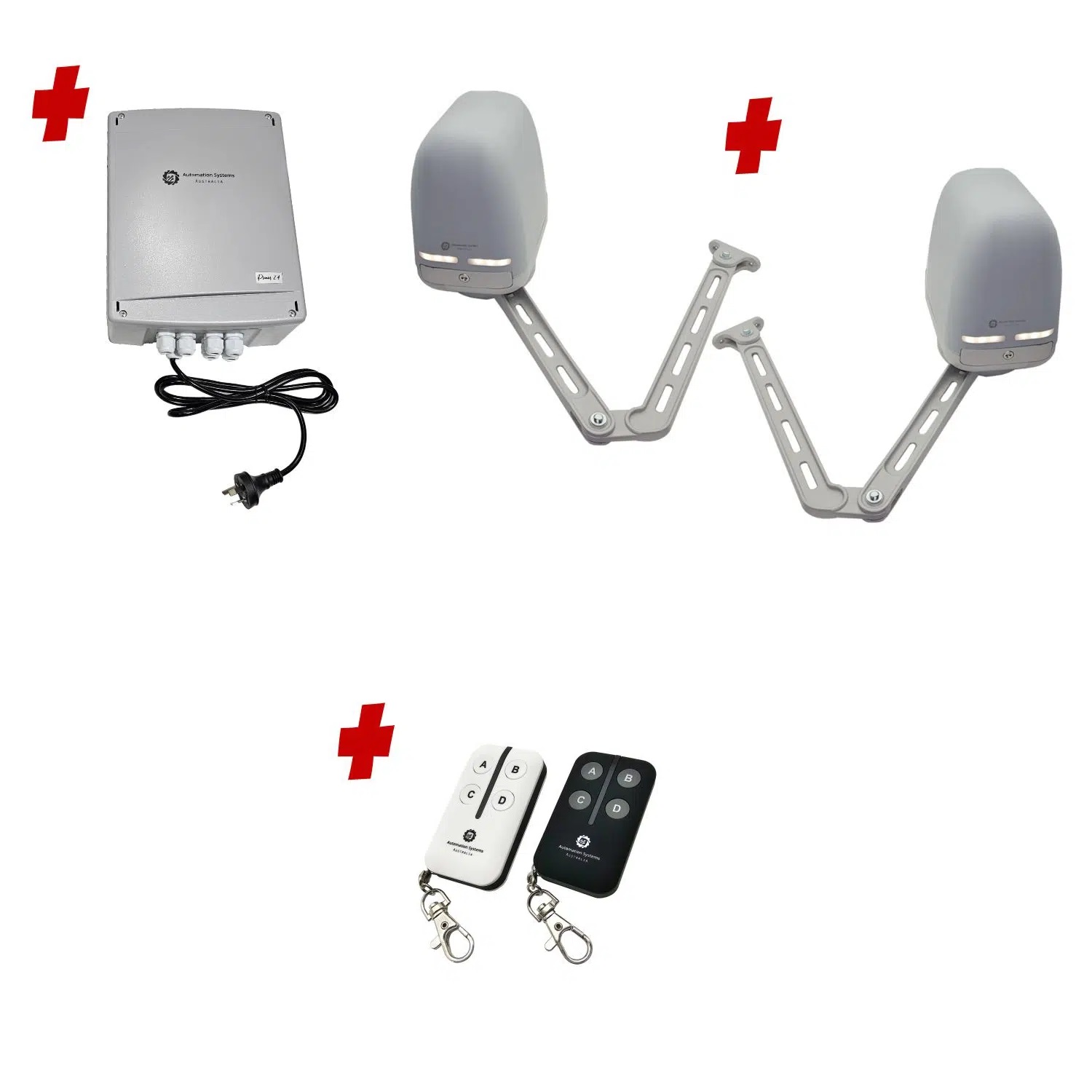

Kit Contents (See Description Tab for Full In-Depth Details)
