BKV 1500 Super Duty 36V Sliding Gate Opener 1500KG (with Keypad) Limit Switches and Encoder Made in Italy

Name: BKV 1500 Super Duty 36V Sliding Gate Opener 1500KG (with Keypad) Limit Switches and Encoder Made in Italy
SKU: BKV1500-P-AS
Price: 1942 AUD
Availability: InStock

SKU: BKV1500-P-AS

$1,978.00

$1,942.00

Save $36.00

Freight from $30.00 Calculate Freight
2 Year Warranty
Brand : CAME x ASA

2 Year Warranty

20 Metre Gate

1500KG Max.

Made In Italy

BKV

Adjustable Limit Switch

2 Year Warranty
20 Metre Gate
1500KG Max.
Made In Italy
BKV
Adjustable Limit Switch

In stock

Click & Collect

Delivery

In-Store

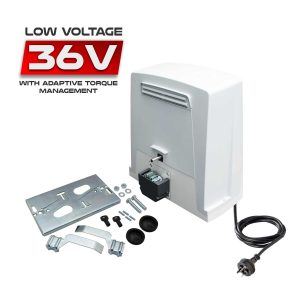

Super Duty 36V Sliding Gate Motor with Encoder and Limit Switches

36v electric sliding gate opener strongest low voltage external overview adaptive torque

The BKV range is the pinnacle of the sliding gate automation industry. Still low voltage but at the leading power range of 36V this adaptive torque designed sliding gate system is suited for any gate weight, slope, and length.

Suitable for commercial, industrial and Residential Installation of all weights and sizes whether a 20m long commercial gate or a heavy merbau cladded gate at home the BKV makes easy work of it with the ability to run at 100% duty cycle (24HR operation) where required with a maximum capacity of 1500KG weight or a 20 Meter Long Gate.

Still carrying the CAME typical top of the line features such as three stage speed control all adjustable, precise encoder travel DC motor, reliable spring limit system PLUS the option of a plug in weekly timer (no wiring bulky hard to program timers) and all still with the easy to use an intuitive LCD interface.

Both 2000KG and 2500KG versions are also available if required for heavier project and custom applications.

All-in-One and Feature Packed

For ease of configuration the cutting edge digital control board with backlit LCD screen is housed at the top of the unit allowing for easy changes to any one of the numerous features of the system.

Further key benefits of the BKV system is the motor is controlled by an encoder giving precise and accurate operation along with its slowdowns, all completely adjustable including the High speed, low speed and approach points with the ability to have a soft start enabled where required.

The stopping point at each end is controlled by an easy to setup and durable spring limit system not affected by the Australian climate (unlike magnetic limits).

36v electric sliding gate opener strongest low voltage overview inside adaptive torque

Four point adjustment

36v electric sliding gate opener strongest low voltage adjustable tilt level system for concrete adaptive torque

As is often the case concreting is never perfect and is more apparent once a motor is installed, this is remedied by the FOUR point adjustment system of the BKV.

Simply adjust each corner of the motor chassis up/down to return the unit to level in both directions. This will allow for easy gear rack installation to the gate since alignment is set to suit

Manual Release

Easy to use manual release incase of power outage. Insert the supplied key and turn to unlock the manual release lever. To release turn the manual release lever and now the gate can be opened and closed manually. If required an internal battery backup system is available for completely uninterrupted operation. The system is completely housed within the unit and allows for continued use at a 24V level.

Specifications

Maximum Gate Width	20M
Maximum Gate Weight	1500KG Each
Speed (M/Min)	12M/Min
Encoder	Yes
Motor Power (Volts)	24V DC
Power (Watts)	200W
IP Rating	54
Operating Temperature	-20° to +55° C
Thrust (Nm)	1200N
Duty Cycle	100%

Dimensions

Digital Control Board

By default the control board will be pre-configured for the best typical settings for most users however with the onboard digital display and easy to use scroll buttons the configuration options are almost endless. Out of the box it will be configured for Both Full Gate OPEN/CLOSE + Partial Opening Function (a set amount of the gates travel) typically you would start an automatic calibration, set the automatic close time and connect any accessories to the system to complete the installation.

Power Inputs and Outputs

Typical input and outputs to power the system and any wired in accessories

36V Power Input

24V Power Output For Accessories

Automatic Weekly Timer

Completely configurable times to open and close the gate automatically and also switch the relay output (great for garden lights).

Selective choice of the 7 Days of the week settings, or the entire week

12/24 Hour Format

EACH timer event can be configured to Open the gate, Partial Opening or B1-2 Output Activated
* Plug in clock Module Required from the add on’s

Configurable Methods Of Operation

Along with the on board weekly timer wireless and Wired equipment can be configured in a number of different ways to support the best suited operation for the site, by default the system is configured for typical usage being full gate operation and pedestrian opening however as seen below it can be dynamically set according to specific requirements.

ON BOARD WEEKLY TIMER Set the days and times in which you want the gate to open and close EASILY by the LCD screen *Plug In Clock Module Required from add on’s required

Full Gate Operation by remote

Partial by remote (Opens the gate partially)

Open Only by remote

Close Only by remote

Open/Close Input by Wired Accessories

Open only Input by Wired Accessories (loop Detector)

Close only Input by Wired Accessories (loop Detector)

Wired Emergency STOP Button

Remote Operation

The remote buttons can individually be programmed to work in any of the below settings for each button.

OPEN-CLOSE (Reverting action if pressed part way through a cycle)

OPEN-CLOSE (Sequential action if pressed part way through a cycle it will STOP)

Partial Operation

RELAY OUTPUT/STAY OPEN Feature (Pause automatic close)

Motor Specifics

Default configurations are already set however, if required further adjustment can be made to suit all installations

Adaptive Torque

ENCODER Control

Automatic Calibration

Motor Test (used for checking your directions prior to calibration)

Adjustable Thrust

Adjustable Travel Speed

Adjustable Sensitivity

Adjustable Slowdown Speed

Adjustable Slowdown Position (Two Stages)

Safety Devices

Plenty of support to protect occupants, visitors and there vehicles with FOUR Safety Inputs completely configurable in there functionality and method of operation with 11 different Logic settings.

Supports Photocell Sensors

Supports Reflective Sensors

Supports Safety Edge

Supports Induction Loops for Safety

Supports STOP Button

Supports Maintained Action (Hold to OPEN/CLOSE)

Light Control

Multiple options for visible safety alerts, illuminating the driveway OR Both

Flashing/Static Illuminated Light from OPEN til CLOSED

Additional Output for Flashing During Opening

Operational Control

Infinite support for accessories and methods of operation

Remote Controls

Wireless Keypads

Wired Keypads

Wired Button

Induction Loops

Intercom Systems

Relay Output B

Default Can be set to work on a remote button and/or by the weekly timer

Set to a latching ON/OFF Circuit

Can be used to trigger an alarm, garage door or another gate

Can be used to enable/disable an accessory at set times/days such as an entry or exit loop or a wired button and keypad

Can be used to keep as a STAY OPEN function in the case of an automatic close timer, this is great for trailer and truck access, a time when multiple visitors may be using the gate, etc.

Control Board Security

A secure password can be set on the control board to prevent unauthorized users from accessing and adjusting its functions. This is an excellent feature in even low risk settings preventing unauthorized users from being able to operate the gate from the menu.

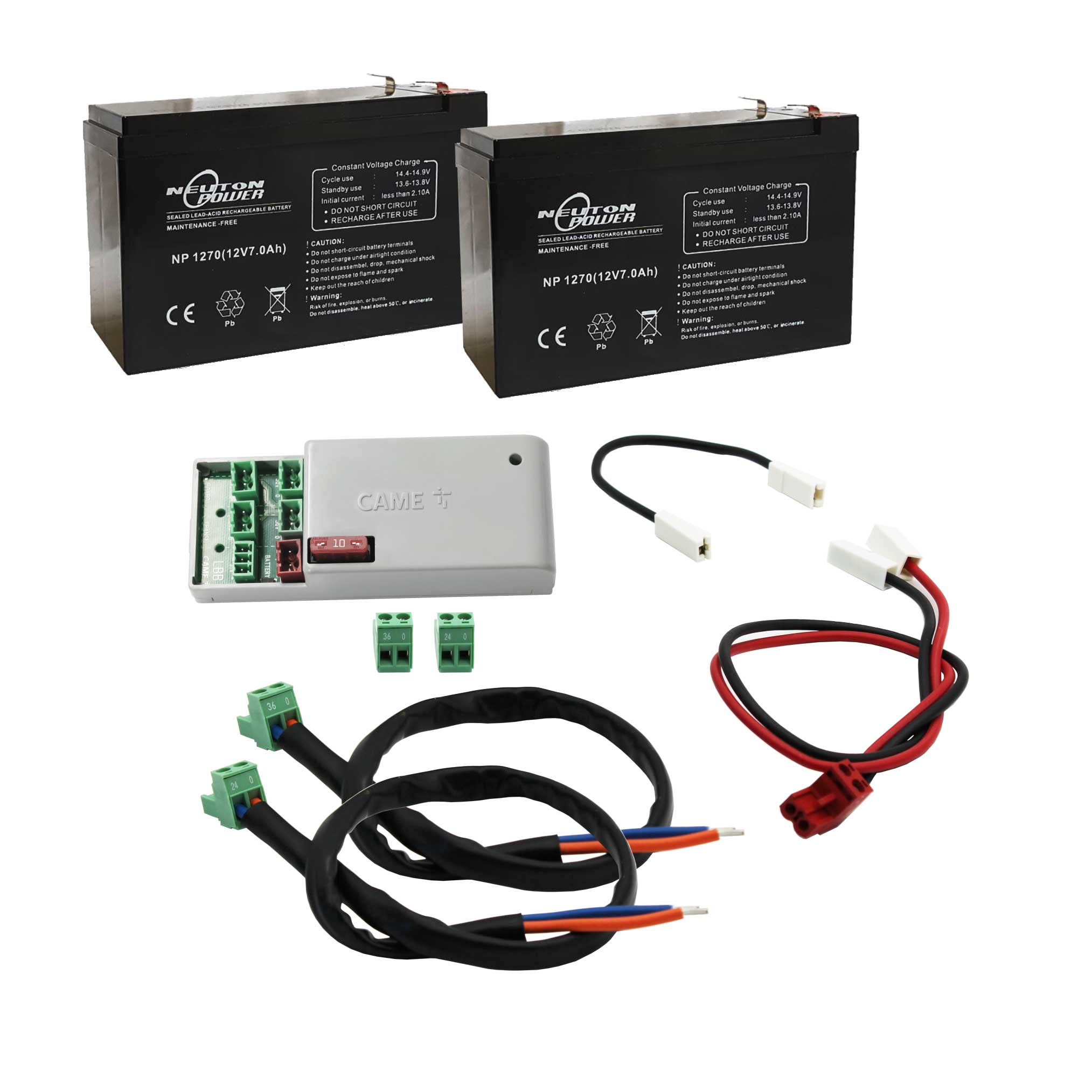

Optional Battery Backup Kit

Particularly handy for those unexpected power outages or storms. This system is a must to keep your gates operational when the powers out. The battery backup module and both 7aH batteries fit directly into the BKV system.

System operation will remain uninterrupted including any wired or wireless accessories on a reduced 24V Operation.

Charging of the batteries will automatically take place once the power to the system is restored.

Also a great solution when its not possible to reach the manual release system be it due to the design of the gate or no other access into the property.

STX4K Keyring High Range Remote

Automation systems Australia keyring remote control for driveway gate

The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).

Key Features

✓ Up to 100 metres distance in open air
✓ Keeloq rolling code security
✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
✓ Clear visibility red LED indicator which will illuminate upon a button press
✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
✓ Slimline and modern ergonomic design
✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

Dukie X 32KHZ Anti-Interference Professional Photocell Kit

Dukie X Automatic gate and garage door photocell

The Dukie X series photocell kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Both the photocells are wired back to the control box with low voltage.

Added benefits of the X series photocell is its Anti Interference Infrared frequency (32KHZ) making it best suited for ultra high capacity electric motors.

Key Features

✓ Ultra modern and neat appearance
✓ Compact design fits almost anywhere at 81(L)x65(W)x29(D)mm
✓ NO and NC Relay Settings
✓ Excellent range characteristics of up to 10 meter distance between each photocell
✓ Multiple sets can be installed on each system for added protective layers (with Synchronization setting)

Dex 4 Wireless Keypad

The Dex 4 Wireless Keypad can communicate directly to the gate system using the same Keeloq secure rolling code signal as the remotes allowing for an easy installation process without the need for wiring.

Due to its high quality chipset the open air signal strength can exceed an astounding 80 meters. This makes the Dex 4 not only suited to controlling the gate but could actually be used to control the garage door, another gate etc. providing they have the compatible receiver installed, Up to FOUR devices/features could be used with individual pin codes for each due to its four independent output channel designs.

Key Features

✓ Three colour options are available: Classic White, Subtle Grey and Deep black
✓ Compact design fits almost anywhere at 90(L)x77(W)x35(D)mm
✓ Control Up to four systems or four features on different pin codes
✓ Astounding open air distance of 80 metres
✓ Works on 2x AAA batteries (supplied)
✓ Audible and LED indicators
✓ Totally wireless (wire free) easy installation

Kit Contents (See Description Tab for Full In-Depth Details)

36v electric sliding gate opener strongest low voltage

Please note this is a replacement operator and is not supplied with gear rack, remotes or receiver card.
