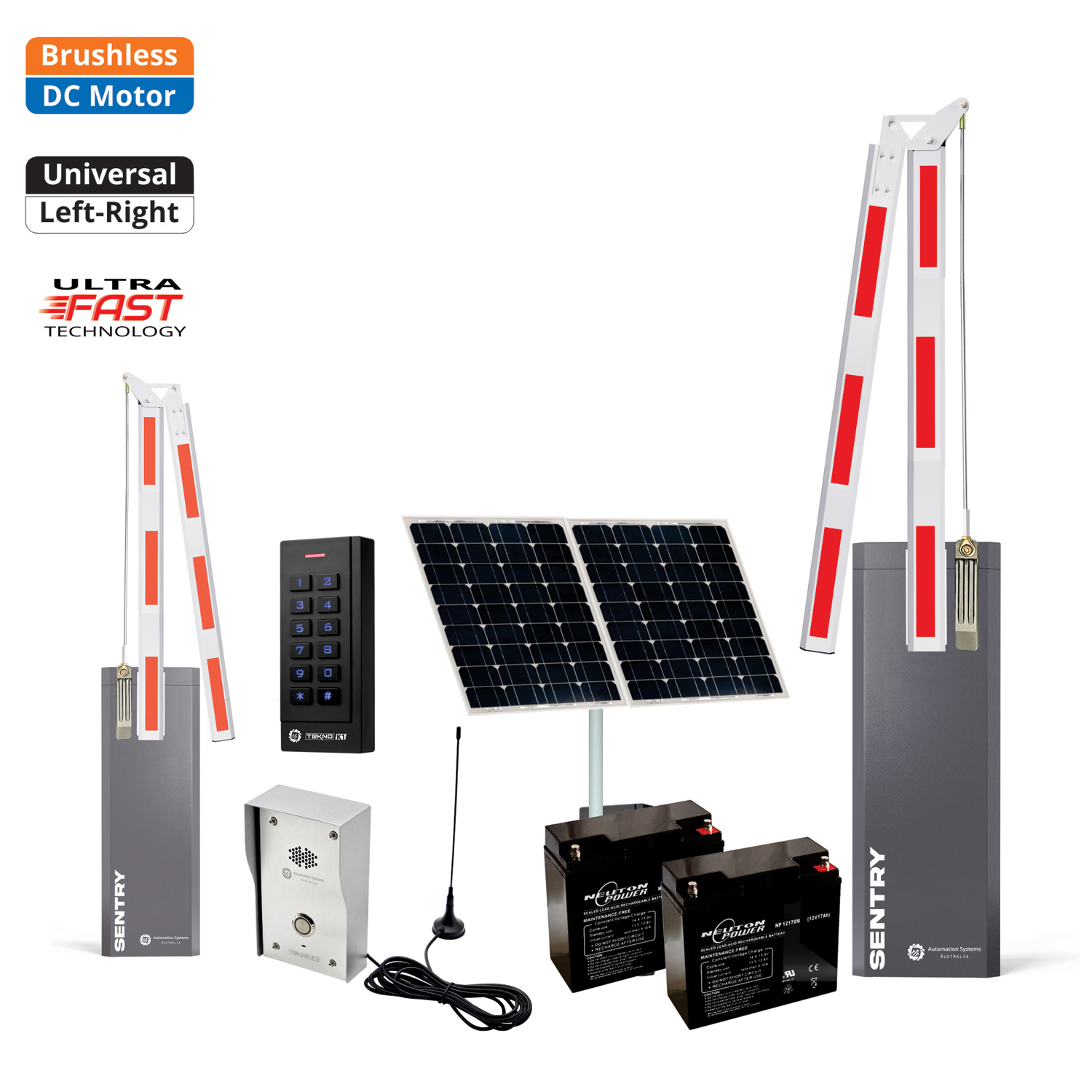

SENTRY Solar Powered BRUSHLESS Low Voltage Automatic Folding 180 Degree Boom Barrier Gate parking underground garage offices with Intercom System

SKU: SENTRY-A180-SOLAR-T4+SE

$4,076.00

$3,771.00

Save $305.00

  • Bulky Item Shipping costs are calculated during checkout
  • 1 Year Warranty
  • Brand : Automation Systems Australia
Max. 4.5m Arm Span
Ultra Fast
High Duty Cycle
Brushless Motor
Digital Display
  • Max. 4.5m Arm Span
  • Ultra Fast
  • High Duty Cycle
  • Brushless Motor
  • Digital Display

In stock

Click & Collect

Delivery

In-Store

SENTRY 180 Degree Articulate Brushless 24 Volt DC Boom Gate

folding 180 degree boom gate for carparks

The Sentry low voltage 24 Volts Boom Arm Barrier Gate is the latest in cutting edge technology. Within the boom gates powder coated steel casing lies the heart of the system the brushless 24V 150 Watts motor, tested for over 5 million total cycles the dynamic brushless motor can run at 80% duty cycle suiting almost every application from large scale parking structures, commercial environments, down to small scale entry management such as caravan parks.

The boom gate kit is supplied with an Articulating aluminum arm set ready to cut to the required size, the length is adjustable from the supplied 4.5 metres maximum to a minimum of 2.0 metres Please note to choose the intended arm length correctly as each kit is supplied with the balancing spring pack to suit.

The system is equipped with a multi-speed adjustment allowing for total tuning of speed of operation from 2.4 seconds with short arms to 4 seconds at fastest on long arms. If required the system can be slowed to an 8 second operation speed.

The versatile brushless logic controller (control board) will control the accessories inputs and there power supply, lights output, up and down position relays and a number of setting changes for speed, arm positions and much more. The brushless motors hall effect sensor is also connected to the controller proving the best possible arm accuracy as there is no dependence on limit switches or alike.



Key Features

✓ Tested for OVER 5 Million individual cycles brushless motor
✓ Hall effect sensor for the best accuracy
✓ Incredible 80% Duty Cycle
✓ Universal LEFT or RIGHT side installation, easy switch over in-case of installation change
✓ Robust powder coated steel casing
✓ Automatic closing timer
✓ Traffic light compatible

✓ Light bar Compatible
✓ Weekly scheduled timer compatible
✓ Induction Loop Compatible
✓ Keypad (Standalone and Wiegand) compatible
✓ Parking, booking system and ticket machine compatible
✓ Din rail mounting system for modules

A quick look at the Sentry BRUSHLESS Super Duty Boom Gate System

Unlimited Driveway compatibility

Robust Design Overview

brushless boom gate super duty

One boom gate can work with either side

Universal left and right side boom gate

Intelligent Brushless Logic Controller and Solar Regulator

Sentry solar brushless boom gate control board

Boom Gate System Specifications

Operating Voltage 24V DC
Motor Type BRUSHLESS 24V 150W
Duty Cycle 80%
Speed 2.4-8s Adjustable
Accessories Power 24V DC
Safety Inputs Photocell, Detector, Induction Loop, Stop Button
Light Outputs Light bar and Traffic Light
Remotes Yes, Up to 16 ADMIN remotes with wireless expander
Dimensions 945x335x230mm

22aH and 26aH Battery Options

22aH (Low Intensity Usage)

solar boom gate battery system 17aH



Battery System 2x 22aH (24v/22ah)
Standby Time/Occasional Usage 50mA (Without consumption accessories such as press button) Up to 14 Days WITHOUT Solar Input
Standby Time/Occasional Usage 150mA (With TWO consumption accessories such as Keypad/Loop or Intercom) up to 5 Days WITHOUT solar Input
25% Duty Cycle 1100mA (With TWO consumption accessories such as Keypad/Loop or Intercom MAX. 2 Days WITHOUT solar Input

Note: Solar input is typically near to continuous by average however the above example provides an example/insight when continuous poor weather may prevent charge from the solar panel.

26aH (High Intensity Usage)

solar boom gate battery system 26aH



Battery System 2x 26aH (24v/26ah)
Standby Time/Occasional Usage 50mA (Without consumption accessories such as press button) Up to 22 Days WITHOUT Solar Input
Standby Time/Occasional Usage 150mA (With TWO consumption accessories such as Keypad/Loop or Intercom) up to 7 Days WITHOUT solar Input
25% Duty Cycle 1100mA (With TWO consumption accessories such as Keypad/Loop or Intercom MAX. 4 Days WITHOUT solar Input
50% Duty Cycle 1100mA (With TWO consumption accessories such as Keypad/Loop or Intercom MAX. 2 Days WITHOUT solar Input

Note: Solar input is typically near to continuous by average however the above example provides an example/insight when continuous poor weather may prevent charge from the solar panel.

High Wattage PREMIUM Monocrystalline Solar Panel (Aluminum Frame)

gate solar panel high wattage 60 watt

Solar Panel can be installed vertically or horizontally.



Key Features

✓ PREMIUM QUALITY Monocrystalline 24V Solar Panel
✓ Anodized Silver Aluminum Frame
✓ IP66 Outdoor Rated Design
✓ 97% or greater power tolerance
✓ Long 10 Metre Cable (or cut to required size)

Specifications

Maximum Power(Pmax) 60W/120W/180W
Operating Voltage(Vmp) 36V
Operating Current(Isc) 1.8A(60W)/3.6A(120W)/5.4A(180W)
Open Circuit Voltage(Voc) 41V

Adjustable Solar Fence Post (Vertical/Horizontal Orientation)

gate solar fence post adjustable
✓ Powder Coated 30mm Diameter Steel Mounting Pole, Adapter and Plate
✓ Allows for Panel installation in a Vertical or Horizontal Orientation
✓ Pre-Set Fixed Angle best suited for the southern hemisphere
✓ Mounts to Fence, Wall or Post by supplied saddles to suit all installations

Tekno 4 4G 3G LTE GSM Intercom

3G 4G LTE GSM Control mobile phone Automatic gate and garage door

The Tekno 4 is the solution for gates and entry ways that are unable to have a hard wired or Wi-Fi intercom. It can be used in just about all locations with a 98% network coverage of Australia.

The Tekno 4 can be powered by the automatic gate system OR by a separate 12V adapter, It will allow for a guest to press the call button, at this time the Tekno 4 will begin calling its enrolled admin users in sequence (can be a mobile or landline, individual person or an office).

Once the call is answered the admin user and the guest have two-way handsfree communication at which point a command can be given by the admin user to operate the system. If a call was not answered by the admin user the Tekno 4 will call the second admin then the third admin. Cleverly designed the Tekno 4 has an adjustable maximum ringing time to avoid being answered by voice mails.

Key Features

✓ Communication with guest using mobile network (4G/3G)
✓ Automatically chooses the best service connection based on mobile reception
✓ Integrates and connects directly into the automation system for system power and control
✓ Three admin users called in sequence til answered
✓ Configurable Maximum ringing time (Avoids voice mails) and Configurable Maximum talking time
✓ Unlock during a call or anytime by SMS
✓ Nano Sim using any network provider with best coverage in your area

Tekno K1 Weatherproof Wired Keypad

APP Control entry keypad mobile phone Automatic gate and garage door

The Tekno K1 is a versatile and feature packed standalone keypad unit with APP Control by mobile phone allowing for the ability to operate from anywhere in the world along with local operations by PIN code or EM card/Tag. Its intuitive design allows for adding administering users directly into the keypad or by the APP.

The free mobile APP allows for adding temporary PIN codes with expiry dates (or one time use) making it ideal for deliveries, Airbnb and other applications requiring temporary user access with out the need to add the users on-site.

General Mobile APP users can also be managed in via the app (add/delete) if and when required.



Key Features

✓ FREE APP Control available in Apple App Store and Google Play Store (Highly rated and reliable with over 5 million users worldwide)
✓ Control your gate ANYWHERE in the world
✓ Voice control and scene control compatible with Google assistant, Alexa and Siri
✓ Up to 10,000 Users by PIN code, EM Card and EM Tags
✓ Unlimited APP Users
✓ Add in expiring PIN codes by APP
✓ Add in normal users by APP
✓ Wires directly into the system
✓ Simple connection and simple setup
✓ Up to 10 meter Wi-Fi range with basic entry level routers (typically what’s supplied by the internet provider), Substantially boosted using good quality routers or mesh networks.

Kit Contents (See Description Tab for Full In-Depth Details)

  • Bulky item
    Description

    SENTRY 180 Degree Articulate Brushless 24 Volt DC Boom Gate

    folding 180 degree boom gate for carparks

    The Sentry low voltage 24 Volts Boom Arm Barrier Gate is the latest in cutting edge technology. Within the boom gates powder coated steel casing lies the heart of the system the brushless 24V 150 Watts motor, tested for over 5 million total cycles the dynamic brushless motor can run at 80% duty cycle suiting almost every application from large scale parking structures, commercial environments, down to small scale entry management such as caravan parks.

    The boom gate kit is supplied with an Articulating aluminum arm set ready to cut to the required size, the length is adjustable from the supplied 4.5 metres maximum to a minimum of 2.0 metres Please note to choose the intended arm length correctly as each kit is supplied with the balancing spring pack to suit.

    The system is equipped with a multi-speed adjustment allowing for total tuning of speed of operation from 2.4 seconds with short arms to 4 seconds at fastest on long arms. If required the system can be slowed to an 8 second operation speed.

    The versatile brushless logic controller (control board) will control the accessories inputs and there power supply, lights output, up and down position relays and a number of setting changes for speed, arm positions and much more. The brushless motors hall effect sensor is also connected to the controller proving the best possible arm accuracy as there is no dependence on limit switches or alike.



    Key Features

    ✓ Tested for OVER 5 Million individual cycles brushless motor
    ✓ Hall effect sensor for the best accuracy
    ✓ Incredible 80% Duty Cycle
    ✓ Universal LEFT or RIGHT side installation, easy switch over in-case of installation change
    ✓ Robust powder coated steel casing
    ✓ Automatic closing timer
    ✓ Traffic light compatible

    ✓ Light bar Compatible
    ✓ Weekly scheduled timer compatible
    ✓ Induction Loop Compatible
    ✓ Keypad (Standalone and Wiegand) compatible
    ✓ Parking, booking system and ticket machine compatible
    ✓ Din rail mounting system for modules

    A quick look at the Sentry BRUSHLESS Super Duty Boom Gate System

    Unlimited Driveway compatibility

    Robust Design Overview

    brushless boom gate super duty

    One boom gate can work with either side

    Universal left and right side boom gate

    Intelligent Brushless Logic Controller

    Sentry brushless boom gate control board

    Built In Switch Mode Power Transformer (240V to 24V)

    Switch mode power supply

    Supplied with an efficient switch mode power supply rated up to 10A the power supply steps down and converts the voltage to 24V DC to suit both the brushless low voltage motor, controller and accessories.

    Boom Gate System Specifications

    Operating Voltage 24V DC
    Motor Type BRUSHLESS 24V 150W
    Duty Cycle 80%
    Speed 2.4-8s Adjustable
    Accessories Power 24V DC
    Safety Inputs Photocell, Detector, Induction Loop, Stop Button
    Light Outputs Light bar and Traffic Light
    Remotes Yes, Up to 16 ADMIN remotes with wireless expander
    Dimensions 945x335x230mm
    x

    SENTRY BRUSHLESS Electric 24V Low Voltage Folding 90 Degree Boom Barrier Gate High Duty Cycle Suitable for parking underground garage offices low Clearence

    Out Of Stock
    Clear
    Out Of Stock

  • Description

    High Wattage PREMIUM Monocrystalline Solar Panel + Adjustable 30mm Fence Mounting Post


    Solar Panel can be installed vertically or horizontally.


    ✓ PREMIUM QUALITY Monocrystalline 24V Solar Panel
    ✓ True IP67 Rating
    ✓ 97% or greater power tolerance
    ✓ Anodized Silver Aluminum Frame
    ✓ Long 10 Metre Cable (or cut to required size)
    ✓ Three Solar System Arrangement (1x 60W, 120W (2x60W Panels) or 180W (3x 60W Panels)) Each panel is supplied with its own post
    Maximum Power(Pmax)60W/120W/180W
    Optimum Operating Voltage(Vmp)35.5V
    Optimum Operating Current(Imp)1.13A
    Open Circuit Voltage(Voc)43.1V
    Short Circuit Current(Isc) 40/80/120W3.4A/6.8A/10.2A
    Power Tolerance-1%~+3%
    Operating Module Temperature40 C to +85 C

    Heavy Duty ADJUSTABLE Solar Pole



    ✓ Powder Coated 30mm Diameter Steel Mounting Pole, Adapter and Plate
    ✓ Allows for Panel installation in a Vertical or Horizontal Orientation
    ✓ Pre-Set Fixed Angle best suited for the southern hemisphere
    ✓ Mounts to Fence, Wall or Post by supplied saddles to suit all installations
    x

    24V Solar Panel and Heavy Duty Post Installation System

    Out Of Stock
    10m Cable

  • Description

    Cero 24V PWM Solar Regulator

    12v 24v solar regulator
    The Cero Solar Regulator is PWM type suited for Gel, Sealed and Flooded batteries. It operates in a 3 stage charging control to ensure optimal performance to the batteries and provide the greatest longevity. The Cero is has protections in place in case of errors and failures in the solar panel installation or battery installation and will shut down in the case of short circuit and overload, then restart once clear. The LCD display provides accurate data on the current input voltage from the solar panel, the current stage of charging and also the current battery voltage making it easy to check the status on the fly. ✓ Large copper input terminals (12-28AWG) ✓ Ribbed metal heat sink across the entire back side ✓ LCD Display ✓ 3 Stage PWM Management (Bulk, Boost, Float) ✓ Supports Sealed, Gel and Flooded Batteries ✓ Short Circuit, Open Circuit ,Overload Protection along with multiple other protections ✓ Allows for a total of 10 Amps Inputs ✓ High Efficiency ✓ USB Terminal ✓ Temperature Compensation ✓ Low voltage disconnect and reconnect

    Specifications

    Rated Voltage 24V ONLY
    Rated Current 10A
    Max. PV Voltage 50V
    Max PV Input Power 260W(24V)
    x

    Cero Solar Regulator System (Installed Inside the Boom Gate)

    Out Of Stock

  • Bundled product placeholder image
    No description available...
    x

    Boom Gate Battery System (Installed inside the Boom Gate)

    Out Of Stock
    Clear
    Out Of Stock

  • Description

    Tekno K1 Weatherproof Wired Keypad

    APP Control entry keypad mobile phone Automatic gate and garage door

    The Tekno K1 is a versatile and feature packed standalone keypad unit with APP Control by mobile phone allowing for the ability to operate from anywhere in the world along with local operations by PIN code or EM card/Tag. Its intuitive design allows for adding administering users directly into the keypad or by the APP.

    The free mobile APP allows for adding temporary PIN codes with expiry dates (or one time use) making it ideal for deliveries, Airbnb and other applications requiring temporary user access with out the need to add the users on-site.

    General Mobile APP users can also be managed in via the app (add/delete) if and when required.



    Key Features

    ✓ FREE APP Control available in Apple App Store and Google Play Store (Highly rated and reliable with over 5 million users worldwide)
    ✓ Control your gate ANYWHERE in the world
    ✓ Voice control and scene control compatible with Google assistant, Alexa and Siri
    ✓ Up to 10,000 Users by PIN code, EM Card and EM Tags
    ✓ Unlimited APP Users
    ✓ Add in expiring PIN codes by APP
    ✓ Add in normal users by APP
    ✓ Wires directly into the system
    ✓ Simple connection and simple setup
    ✓ Up to 10 meter Wi-Fi range with basic entry level routers (typically what’s supplied by the internet provider), Substantially boosted using good quality routers or mesh networks.

    Specifications

    Power 12V DC
    Standby Current ≤35mA
    Maximum Users 10,000 Users
    Operating Temperature -40°C - +60°C
    Operating Methods PIN CODE, RFID,MOBILE APP
    Wi-Fi Distance Up to 10m on basic ISP routers (entry level basic) Substantially boosted on a good quality router or mesh network
    x

    Access Control Keypad with EM Tag Reader and mobile APP

    Wired keypad allowing for pin code access control, em cards and tags operation, along with mobile APP control.

    Show more

    Wired keypad allowing for pin code access control, em cards and tags operation, along with mobile APP control.

    ×
    Out Of Stock
    Clear
    Out Of Stock

  • Description

    Tekno 4 4G VOLTE Intercom

    3G 4G LTE GSM Control mobile phone Automatic gate and garage door
    The Tekno 4V is the solution for gates and entry ways that are unable to have a hard wired or Wi-Fi intercom. It uses Voice over LTE (VOLTE) which is the required standard to use a 4G based device in Australia. It can be used in just about all locations with a 98% network coverage of Australia. The Tekno 4V is powered by 12V DC (adapted supplied) it will allow for a guest to press the call button, at this time the Tekno 4V will begin calling its enrolled admin users in sequence (can be a mobile or landline, individual person or an office). Once the call is answered the admin user and the guest have two-way handsfree communication at which point a command can be given by the admin user to operate the system. If a call was not answered by the admin user the Tekno 4V will call the second admin then the third admin. Cleverly designed the Tekno 4V has an adjustable maximum ringing time to avoid being answered by voice mails.

    Key Features

    ✓ No distance limitations unlike traditional intercom systems ✓ Communication with guest (Two-Way) using mobile network (4G VOLTE) ✓ Automatically chooses the best 4G VOLTE service connection based on mobile reception ✓ Can operate any access control system (Automatic gates, boom gates, garage doors, electric strikers, magnetic locks etc.) with ADJUSTABLE relay time ✓ Three admin users called in sequence til answered/end of list is reached ✓ Configurable Maximum ringing time (Avoids voice mails) and Configurable Maximum talking time ✓ Enable and Disable the LED ring around the call button ✓ Unlock during a call or anytime by SMS ✓ No computers or APPs needed, configured easily by SMS commands ✓ Nano Sim using any network provider with best coverage in your area

    Tekno 4V VOLTE Intercom Dimensions

    small size gsm intercom solution

    Specifications

    Operating Voltage 12V DC
    Power Consumption 45mA Standby/<130mA Initialization and calling
    IP Rating IP54
    Sim Card Size Nano Sim
    VOLTE YES
    4G Network TDD: 2300(B40)>FDD 2100(B1)/1800(B3)/2600(B7)/900(B8)/1900 (B2)/1700(B4)/850 (B5)/700APT(B28)
    3G Network 2100(B1)/1900(B2)/850(B5)/90038)

    Electric Striker (Fail-Safe and Fail-Secure)

    3G 4G LTE GSM Control electric striker and electric lock</span >

    Automation Systems (Automatic Gates, Boom Gates, etc)

    3G 4G LTE GSM Control mobile phone Automatic gate and garage door</span >
    x

    Tekno 4V 4G VOLTE Intercom System by Sim Card works in Rural Properties and Commercial Industrial Gate intercom

    Out Of Stock

  • Description

    Power Convertor Module for AC to DC Stepdown Conversion and DC to DC Stepdown

    stepdown low voltage convertor ac to dc and dc to dc
    This handy little device is great for accessories requiring 12V DC only, it will take the voltage feed in of 16-28V AC or DC and provide a stable 12V DC output to power accessories not exceeding a maximum of 500mA (0.5A).

    Specifications

    Input Voltage 16-28V AC/DC
    Output Voltage 12V DC
    Maximum Output Current 500mA
    Dimensions 73x40x23mm
    x

    Access Control 24V DC to 12V DC Power Transformer

    Step down power transformer to allow for accessories to be powered from the boom gate controller

    Show more

    Step down power transformer to allow for accessories to be powered from the boom gate controller

    ×
    Out Of Stock

Optional Add On's

  • Description

    SENTRY Boom Gate Resting Point

    boom gate resting point keeper support

    The resting point for Sentry series operators (can also universally work with others) is a clever and simple system that allows for adjustable height to match the boom gate arms final height regardless if it is installed on the same plane, the boom gate is installed on a traffic island or there is a camber in the driveway (providing the boom gate is on the higher side).

    The resting point can also double as a post for photocells making it perfect for all installations.



    Key Features

    ✓ Takes the load away from the boom gate ✓ Doubles as a mounting point for a photoelectric sensor ✓ Powder Coated Grey to Match the Sentry Series Operators ✓ Adjustable height to suit all installations including boom gates installed on a traffic island ✓ Catch design allows arm to be guided in high winds

    Specifications

    Minimum Height to Catch 760mm
    Minimum Height to Catch 1020mm
    Tubing Size and Material 40x40 Steel Powder coated Grey
    x

    Arm Support Resting Point for Sentry Series Boom Gate Operators

    • Must be used for Arm length 4m or greater
    • Doubles as a mounting point for a photoelectric sensor
    • Powder Coated Grey
    • Catch design allows arm to fall slide in high winds
    Show more
    • Must be used for Arm length 4m or greater
    • Doubles as a mounting point for a photoelectric sensor
    • Powder Coated Grey
    • Catch design allows arm to fall slide in high winds
    ×
    Out Of Stock

  • Description

    Commercial Double Mount Gooseneck Pedestal Bollard for Driveways (Car's and Truck's)

    Commercial Double Mount Gooseneck Pedestal Bollard for Driveways Car and Truck
    Suitable for all commercial applications requiring a DOUBLE keypad or intercom post the gooseneck pedestal is designed for residential use whilst retaining an extremely strong from factor. Built from pre-galvanized 100x100mm SHS tube welded to a 200x200mm base plate it allows for a simple bolt down installation to a concrete footing, curb or traffic island.

    Key Features

    ✓ Spacious rain hood to suit most access controllers/intercoms ALSO REVERSABLE and can be used as a backing plate for very large and very small access controllers/intercoms ✓ Easy four bolt installation to join the top and bottom sections ✓ Anti deformation with 200x200x5mm thick base plate (pre-punched for dynabolts/masonry anchors) ✓ Rigid and durable ✓ Pre-Galvanized Steel (100x100mm) ✓ Minimized risk with the perfect amount of extension (220mm from back of post to back of rain hood) ✓ Safety Yellow Powder Coating

    Rain hood internal dimensions 115mm (H) x 65mm (W), Top Depth 65mm/Bottom Depth 40mm, The rain hood can also be installed in reverse to be used as a backing plate for your own rain hood.

    This product is manufactured as two pieces for freight and transport. The top half slides into the bottom half and they form one complete unit, supplied with Allen fasteners to ensure a secure fit.

    x

    Truck and Car Double pedestal Gooseneck Bollard 100x100 Steel Safety Yellow Powder Coat (commercial/industrial)

    Out Of Stock

  • Description

    Gooseneck Pedestal Bollard for Driveways

    Gooseneck bollard for intercom, keypad door bell
    Suitable for all applications requiring a keypad or intercom post the gooseneck pedestal is designed for residential use whilst retaining an extremely strong from factor. Built from pre-galvanized 75x75mm SHS tube welded to a 150x150mm base plate it allows for a simple bolt down installation to a concrete footing, curb or traffic island.

    Key Features

    ✓ Spacious rain hood to suit most access controllers/intercoms ALSO REVERSABLE and can be used as a backing plate for very large and very small access controllers/intercoms ✓ Easy four bolt installation to join the top and bottom sections ✓ Anti deformation with 175x175x5mm thick base plate (pre-punched for dynabolts/masonry anchors) ✓ Rigid and durable ✓ Pre-Galvanized Steel (75x75mm) ✓ Minimized risk with the perfect amount of extension (220mm from back of post to back of rain hood) ✓ Satin Black Powder Coating (NIGHT SKY COLOUR)

    Rain hood internal dimensions 115mm (H) x 65mm (W), Top Depth 65mm/Bottom Depth 40mm, The rain hood can also be installed in reverse to be used as a backing plate for your own rain hood.

    This product is manufactured as two pieces for freight and transport. The top half slides into the bottom half and they form one complete unit, supplied with Allen fasteners to ensure a secure fit.

    x

    Gooseneck pedestal bollard for intercom, keypad door bell 75x75 Steel Satin Black Powder Coat (residential)

    Out Of Stock

  • Description

    Dukie Photocell Kit

    Dukie Automatic gate and garage door photocell
    The Dukie series photocell kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Both the photocells are wired back to the control box with low voltage wiring however the optional upgrade to Dukie+ photocell allows for battery operation on the further photocell from the gate control box meaning only one of the photocells is wired.

    Key Features

    ✓ 45° Adjustable in each direction, suited for inline and out of line posts ✓ Ultra modern and neat appearance ✓ Compact design fits almost anywhere at 100(L)x45(W)x35(D)mm ✓ NO and NC Relay Settings ✓ Excellent range characteristics of up to 10 meter distance between each photocell ✓ Unlimited sets can be installed on each system for added protective layers ✓ OPTIONAL Dukie+ upgrade for a battery operated transmitter cell on the far side
    x

    Dukie OR Dukie + Photocells

    Protects the vehicles in the path of the infrared beam. Each photocell can be turned 45° left or right to align with the other allowing for extremely flexible installation. Unlimited amount can be installed on each installation.

    Show more

    Protects the vehicles in the path of the infrared beam. Each photocell can be turned 45° left or right to align with the other allowing for extremely flexible installation. Unlimited amount can be installed on each installation.

    ×
    Out Of Stock

  • Description

    EM Tag

    125khz em card tag
    • Slimline Design
    • Fits on to a keyring
    • 125KHZ
    x

    EM 125KHZ Proximity Tag and Card Reader

    • Slimline Design
    • Fits on keyrings
    • 125KHZ
    Show more
    • Slimline Design
    • Fits on keyrings
    • 125KHZ
    ×
    Out Of Stock

  • Description

    Induction Loop Detector

    induction loop detector for open close gates and boom gate barriers
    The Single channel loop can be used for either a pulse to command operation (upon detection latches the relay) or a presence command (typically as a safety device to hold the relay til clear). With four adjustable sensitivity setting + sensitivity boost feature the loop detector can be fine tuned to suit the installation. The frequency is also adjustable to prevent cross talk between multiple loops in close proximity to one another.

    Key Features

    ✓ Pulse and Presence Modes (5 min MAX. presence/Permanent presence) ✓ Four sensitivity settings ✓ Four frequency settings ✓ Normally Open and Normally Closed Contacts ✓ Automatic Sensitivity Boost Upon detection (Ideal for large ground to chassis vehicles like trucks) ✓ Filter mode setting for interference prone environments ✓ Loop inductance: Total loop plus connection wiring:50 to 1000μH.Ideal is 100 to 300μH

    Specifications

    Operating Voltage 24V DC
    Tuning Auto:10uH to 1500uH
    Sensitivity Four Settings
    Frequency 12-80kHz (based on actual loop and setting switch)
    Relay Circuits N/O and N/C
    Configurations Pulse or Presence
    Wiring 11 Pin Screw Terminal Base
    Mounting Din Rail or Shelf
    x

    Automatic Opening/Closing Induction Loop Detector 24V AC/DC Presence and Pulse Relay (24 Volt Version)

    • 24V DC
    • Pulse and Presence Modes (5 min MAX. presence/Permanent presence)
    • Four sensitivity settings
    • Four frequency settings
    • Normally Open and Normally Closed Contacts
    Show more
    • 24V DC
    • Pulse and Presence Modes (5 min MAX. presence/Permanent presence)
    • Four sensitivity settings
    • Four frequency settings
    • Normally Open and Normally Closed Contacts
    ×
    Out Of Stock

  • Description

    Teflon Insulated Induction Loop Detector Cable

    The correct cable to use induction loop installations, provides superior insulation, temperature and deterioration resistance due to Teflon insulation, perfect thickness for all saw cuts.

    Induction loop cable for loop detectors and saw cut loops

    Specifications

    Length 50m
    Insulation Single Insulated (Teflon)
    Conductor Tinned Copper
    Strands 19
    Strand Thickness .040mm
    x

    50 Metre Roll Teflon Insulated Induction Loop Cable

    Out Of Stock

  • Description

    Please be aware this product is only compatible with Automation Systems Australia Control Boards and Remote Receivers, it will NOT work with other brand products.

    Sentry STX Remote Control

    Remote control for Sentry Boom Gates
    The Sentry STX Keyring Remote is a high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

    The multi button design allows for independent feature usage of UP, STOP and DOWN to command and control the Sentry Boom Gate System.

    Key Features

    ✓ Keeloq rolling code security ✓ Clear visibility LED indicator which will illuminate upon a button press ✓ Sliding cover to prevent accidental operation of the system ✓ Slimline and modern ergonomic design

    The Sentry system must have a Sentry RX Wireless Expanded installed to use remotes, available as a separate item in or store.

    x

    Admin Remote Control for Sentry Series Boom Gates

    Out Of Stock

  • Description

    Weekly Schedule Automatic Gate Timer

    Automatic timer for opening and closing a driveway gate residential and commercial

    The weekly timer allows for scheduling open time cycles to operate the gate, simple set the open time and once lapsed the gate would automatically close (automatic close timer must be enabled).

    The timer allows for independent 5 day business week, INDEPENDENT days configurations OR a full 7 day week configuration along with other modes. Up to 8 different On/Off schedules can be set.



    Key Features

    ✓ Automatic Opening and Closing at the Set times
    ✓ LCD Display
    ✓ Built in Battery to retain schedules, replaced every 2-3 years
    ✓ Simple setting by: independent days schedule, Common time 5 day working week (MON-FRI), Weekends Combined (SAT+SUN) or Common time 7 day week (MON-SUN)

    Specifications

    Operating Voltage 24V DC
    Power Consumption 50mA
    Display LCD
    Load Capacity 10A/250V
    Programs 8
    Relay NO/NC
    x

    Weekly Schedule Automatic Gate Timer Auto Open-Close (24V Version) Multi-Schedules (619 Timer)

    Programable timer with numerous configurations options on when to open and close the gate.

    Show more

    Programable timer with numerous configurations options on when to open and close the gate.

    ×
    Out Of Stock

  • Description

    Push/Press Button

    push press button for automation machinery access control
    The push button is the simplest of all access control devices, a simple press of the button allows the automation to begin its working. Generally installed on the inside of the property within close proximity to the user (driver side when exiting) allows for the easiest method of working.

    Key Features


    ✓ Weatherproof for outdoor use and can be used indoors ✓ Supports NO and NC circuits (when used as a wired button) ✓ 2 Wire connection or Wireless Option (Automation Systems Australia ONLY) ✓ Easy to operate
    x

    Weatherproof Press Button

    Typical press button for foot traffic, suitable for outdoor and indoor installations.

    Show more

    Typical press button for foot traffic, suitable for outdoor and indoor installations.

    ×
    Out Of Stock

  • Description

    Big Head (Mushroom) Push/Press Button

    big mushroom palm push press button for automation machinery access control
    The push button is the simplest of all access control devices, a simple press of the button allows the automation to begin its working. Generally installed on the inside of the property within close proximity to the user (driver side when exiting) allows for the easiest method of working.

    Key Features


    ✓ Weatherproof for outdoor use and can be used indoors ✓ Supports NO and NC circuits (when used as a wired button) ✓ 2 Wire connection or Wireless Option (Automation Systems Australia ONLY) ✓ Easy to operate
    x

    Weatherproof Push Button (Mushroom Head)

    Typical press button for vehicles mounted to a bollard, suitable for outdoor and indoor installations.

    Show more

    Typical press button for vehicles mounted to a bollard, suitable for outdoor and indoor installations.

    ×
    Out Of Stock

  • Description

    Emergency Stop Push/Press Button

    emergency stop push press button for automation machinery access control
    The emergency stop button is a one push latching button, when pressed in it will remain in the IN position halting or stopping the controlled system. To release just twist the knob. Ideal for commercial and industrial automation and machinery.

    Key Features


    ✓ Weatherproof for outdoor use and can be used indoors ✓ One Push Latching ✓ Supports NO and NC circuits ✓ 2 Wire connection ✓ Easy to operate
    x

    Weatherproof Emergency Stop Latching Push Button for Automatic Gates, Boom Barriers, Garage Doors, Machinery NO and NC Circuit

    Typical emergency stop button for halting or stopping a system, suitable for outdoor and indoor installations.

    Show more

    Typical emergency stop button for halting or stopping a system, suitable for outdoor and indoor installations.

    ×
    Out Of Stock

Videos

SENTRY Solar Powered BRUSHLESS Low Voltage Automatic Folding 180 Degree Boom Barrier Gate parking underground garage offices with Intercom System

$4,076.00

$3,771.00

Save $305.00

x

Register

Shipping To

Add company name

Australia

Add apartment, unit, building, floor, etc.

Billing To

Add company name

Australia

Add apartment, unit, building, floor, etc.


Close
