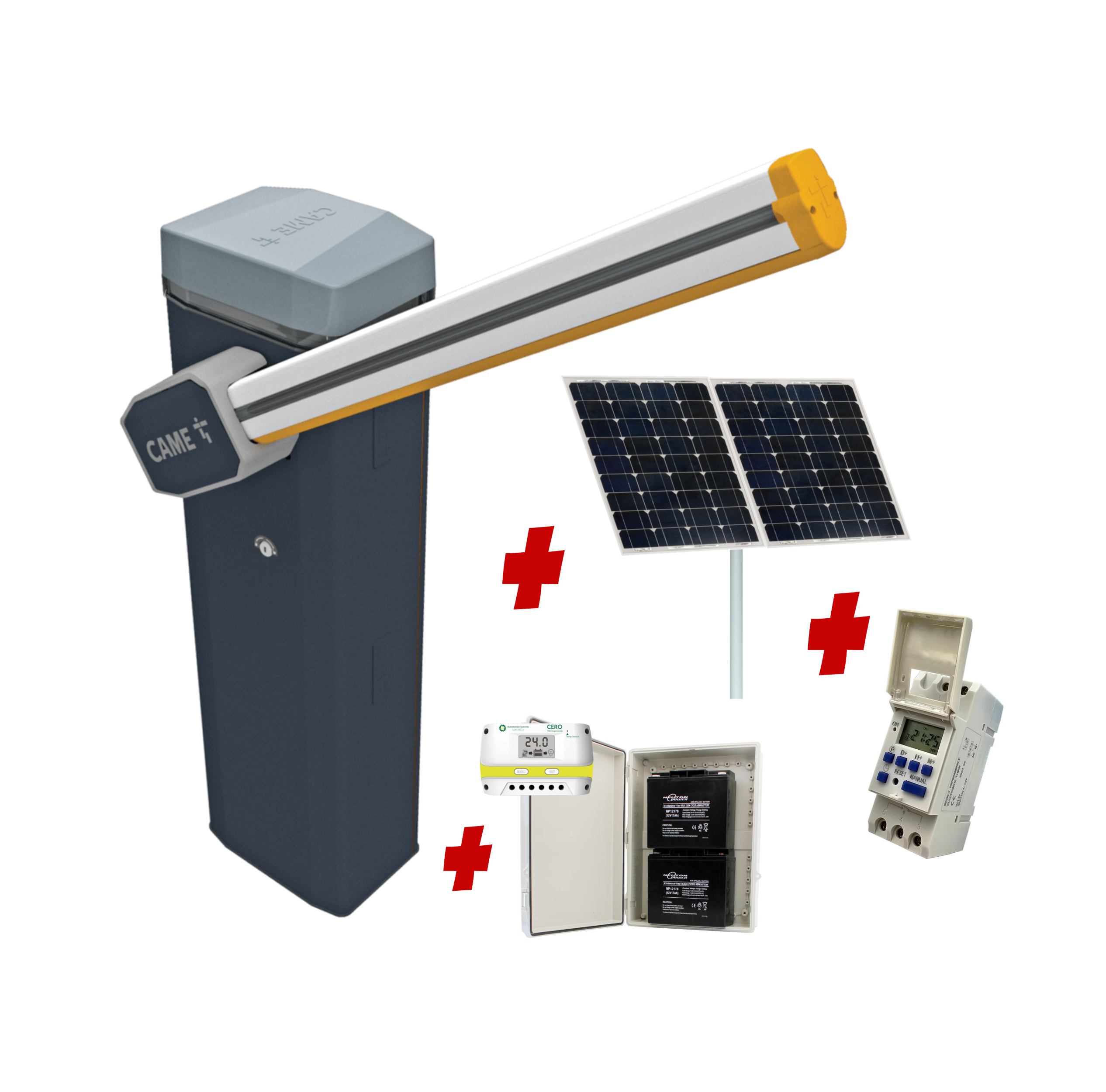

CAME Gard 4m Solar Powered Low Voltage Automatic Boom Barrier Gate High Duty Cycle Parking Depot Yards Caravan Park offices with Weekly Timer

SKU: CAME-GT4-SA-SOLAR-WT

$3,864.00

  • Bulky Item Shipping costs are calculated during checkout
  • 2 Year Warranty
  • Brand : CAME
2 Year Warranty
4 Metre Opening
Made In Italy
Standalone Solar Powered
High Duty Cycle
ENCODER Technology
  • 2 Year Warranty
  • 4 Metre Opening
  • Made In Italy
  • Standalone Solar Powered
  • High Duty Cycle
  • ENCODER Technology

In stock

Click & Collect

Delivery

In-Store

Special Order- 48HR Dispatch*

High Duty Cycle Italian Boom Gate System

4m gt4 boom operator 24v commercial industrial caravan park boom and parking security

At a Glance

Universal Left OR Right Side Installation

24V DC SOLAR System

190 KM/H Wind Rating

Galvanized Steel and Powder coated

Tested for 350 Cycles/Hour with over 3 million cycles

Ultra Fast Operation from 2 to 6 seconds

Easy to work on Control Board placement under the TOP cover

Rubber Edging on the Bottom Side of the Arm

Compatibility and Features

Supports Loop Detectors
Supports WIRED and WIRELESS Keypads
Supports Egress Press Buttons
Supports Opening and Safety Detector Combo
Self Supporting for Up To 4 Metres (optional resting point available if required)
Digital Display for easy parameter and settings configuration
Supports Skirt System to prevent unauthorized foot traffic
Dual Voltage Feed for ultimate precision, control and braking function
Supports Opening, closing and Safety Detectors
Supports Battery Backup system (all internal)
advance boom gate control unit
Adjustable Automatic Close Time
Internal Anti Tamper System (can also support a N/C Contact from alternative switch)
Supports Open Only, Close Only, Open/Close and Stop Command inputs (Each are individual circuits)
Supports status warning, flashing lights and general area lighting systems
Supports one or MULTIPLE Photocells, reflective sensors or induction loops as safety devices with 8 different logic configurations
Supports hold to operate mode
Supports one or MULTIPLE Photocells, reflective sensors or induction loops as safety devices with 8 different logic configurations
Supports synchronization module to allow connection of a master and slave unit (RSE Cards) allowing for all accessories connection directly to the master
Maximum Arm Length4m (Standard)
Minimum Arm Length1m (Cut Down)
Operating Time2S-6S
Motor Power (Volts)24V DC
Torque (NM)300
Average Life by Cycles3,000,000
Maximum cycles per HOUR350
Maximum cycles per DAY5400
Operating Temperature-20°C to +50°C

Operators Overview

high duty cycle boom gate operator

Manual Release

Manual Release Gard GT Boom Gate




Simple to use Manual Release system, simply insert the key and turn to the unlock position. Now you can push the arm up to the open position and turn the key to the lock position.

Aluminum Arm

4m boom gate arm

Operator Dimensions

4m boom gate dimensions 24v commercial industrial caravan park boom and parking security

Battery System

17ah 26ah battery box system

Supplied with an external dual battery 24V 17aH system as standard in a IP67 Waterproof and Dust Proof Rated Enclosure (IP67 Cable Gland Supplied), there are a total of TWO battery capacity options available.

Option 1 (Alpha 17B): The 17B setup allows for well over three weeks in usage of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). Please see the table below for accessory usage and high duty usage consumptions.

Option 2 (Alpha 26B): The 26B setup allows for well over six weeks in usage of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). Please see the table below for accessory usage and high duty usage consumptions.

The allowances are general in nature and typically factor for a continuous period taking into account overcast and other poor weather conditions along with wet seasons that will contribute to a no charge/minimal charge result from the solar system. These allowances do not take into account shade on the solar panel which will effect the overall charging.

These allowances DO NOT take into account WiFi, Bluetooth Modules, Loop Detectors, Keypads etc. as system consumption will increase using these devices. See Trim Level per accessory below.

Alpha 17BAlpha 26B
IP RatingIP67 WaterproofIP66 Weatherproof
Battery2x 17aH2x 26aH
Enclosure Dimensions (L x W x D)390x290x100mm400x300x200mm
Recommended UsageLight CommercialRegular Commercial
Consecutive usage at 100% Duty Cycle (No accessories or charging, continuous UP/DOWN operation)30 Hours Maximum.52 Hours Maximum.
Light usage Max. prolonged usage (No charging, no wired accessories & 10 Cycles per day)3 Weeks6 Weeks
Trim level based on each Wired keypad, Bluetooth/WiFi, Loop Detector-20% per wired accessory-20% per wired accessory
Cable Inlet/Outlet (Weatherproof)1x Supplied1x Supplied
Mounting MethodExternal Mounting Bracket (supplied)Through Box

High Wattage PREMIUM Monocrystalline Solar Panel (Aluminum Frame)

gate solar panel high wattage 60 watt

Solar Panel can be installed vertically or horizontally.



Key Features

✓ PREMIUM QUALITY Monocrystalline 24V Solar Panel
✓ Anodized Silver Aluminum Frame
✓ IP66 Outdoor Rated Design
✓ 97% or greater power tolerance
✓ Long 10 Metre Cable (or cut to required size)

Specifications

Maximum Power(Pmax) 60W/120W/180W
Operating Voltage(Vmp) 36V
Operating Current(Isc) 1.8A(60W)/3.6A(120W)/5.4A(180W)
Open Circuit Voltage(Voc) 41V

Adjustable Solar Fence Post (Vertical/Horizontal Orientation)

gate solar fence post adjustable
✓ Powder Coated 30mm Diameter Steel Mounting Pole, Adapter and Plate
✓ Allows for Panel installation in a Vertical or Horizontal Orientation
✓ Pre-Set Fixed Angle best suited for the southern hemisphere
✓ Mounts to Fence, Wall or Post by supplied saddles to suit all installations


Weekly Schedule Automatic Gate Timer

Automatic timer for opening and closing a driveway gate residential and commercial

The weekly timer allows for scheduling open time cycles to operate the gate, simple set the open time and once lapsed the gate would automatically close (automatic close timer must be enabled).

The timer allows for independent 5 day business week, INDEPENDENT days configurations OR a full 7 day week configuration along with other modes. Up to 8 different On/Off schedules can be set.



Key Features

✓ Automatic Opening and Closing at the Set times
✓ LCD Display
✓ Built in Battery to retain schedules, replaced every 2-3 years
✓ Simple setting by: independent days schedule, Common time 5 day working week (MON-FRI), Weekends Combined (SAT+SUN) or Common time 7 day week (MON-SUN)

Kit Contents (See Description Tab for Full In-Depth Details)

  • Bulky item
    gard gt boom gate system 24v commercial industrial caravan park boom and parking security
    Description

    Please note this is a replacement operator and is not supplied with remotes or receiver card.



    High Duty Cycle Italian Boom Gate System

    4m gt4 boom operator 24v commercial industrial caravan park boom and parking security

    At a Glance

    Universal Left OR Right Side Installation

    24V DC System

    190 KM/H Wind Rating

    Galvanized Steel and Powder coated

    Tested for 350 Cycles/Hour with over 3 million cycles

    Ultra Fast Operation from 2 to 6 seconds

    Easy to work on Control Board placement under the TOP cover

    Rubber Edging on the Bottom Side of the Arm

    Compatibility and Features

    Supports Loop Detectors
    Supports WIRED and WIRELESS Keypads
    Supports Egress Press Buttons
    Supports Crown Light System
    Supports LED Arm System
    Supports Opening and Safety Detector Combo
    Supports Battery Backup Card (all internal)
    Self Supporting for Up To 4 Metres (optional resting point available if required)
    Digital Display for easy parameter and settings configuration
    Supports Skirt System to prevent unauthorized foot traffic
    Dual Voltage Feed for ultimate precision, control and braking function
    Supports Opening, closing and Safety Detectors
    Supports Battery Backup system (all internal)
    advance boom gate control unit
    Adjustable Automatic Close Time
    Internal Anti Tamper System (can also support a N/C Contact from alternative switch)
    Supports Open Only, Close Only, Open/Close and Stop Command inputs (Each are individual circuits)
    Supports status warning, flashing lights and general area lighting systems
    Supports one or MULTIPLE Photocells, reflective sensors or induction loops as safety devices with 8 different logic configurations
    Supports hold to operate mode
    Supports one or MULTIPLE Photocells, reflective sensors or induction loops as safety devices with 8 different logic configurations
    Supports synchronization module to allow connection of a master and slave unit (RSE Cards) allowing for all accessories connection directly to the master
    Maximum Arm Length4m (Standard)
    Minimum Arm Length1m (Cut Down)
    Operating Time2S-6S
    Motor Power (Volts)24V DC
    Torque (NM)300
    Average Life by Cycles3,000,000
    Maximum cycles per HOUR350
    Maximum cycles per DAY5400
    Operating Temperature-20°C to +50°C

    Operators Overview

    high duty cycle boom gate operator

    Manual Release

    Manual Release Gard GT Boom Gate




    Simple to use Manual Release system, simply insert the key and turn to the unlock position. Now you can push the arm up to the open position and turn the key to the lock position. In a case where uninterrupted use is required see the optional batter backup system below.

    Optional Battery Backup System

    gard boom gate battery backup system


    Direct installation within the operator
    Allows for completely uninterrupted use
    Recharges automatically when power is restored
    All connected accessories continue to operate as per normal
    Supplied batteries are wired in series to create 24V
    Operating time without power can be up to one week on light usage or hours on heavy usage

    Aluminum Arm

    4m boom gate arm

    Optional Lighting

    led lights for automatic barrier carpark boom gate

    There’s no longer a need for traffic lights anymore with the optional completely integrated LED lighting solution with high DAY or NIGHT visibility any user can identify when its safe to pass through (GREEN to Go) or (Red to Stop).

    No confusion, No accidents and No down time.

    Operator Dimensions

    4m boom gate dimensions 24v commercial industrial caravan park boom and parking security
    x

    GT4 Boom Gate Operator with 4m Length Arm

    • Universal Left or Right Side Installation
    • Can be used from 4m down to 1m Length
    • Up to 350 Cycles per HOUR
    • Up to 3 Million Cycle rated
    Show more
    • Universal Left or Right Side Installation
    • Can be used from 4m down to 1m Length
    • Up to 350 Cycles per HOUR
    • Up to 3 Million Cycle rated
    ×
    Out Of Stock

  • Description

    Battery System

    alpha battery boxes 24v

    Supplied with an external Dual DEEP CYCLE battery system 24V 15aH system as standard in a SLIMLINE Waterproof and Dust Proof Rated Enclosure (IP67 Cable Gland Supplied), there are a total of THREE battery capacity options available.

    Option 1 (Premier 24-15B): The 15aH Deep Cycle setup allow for up to a two and a half weeks of usage without any charge from the solar panel in a typical residential installation of 10 cycles per days (whilst factoring in standby power), this is the ideal choice for areas that may see a consistent week of poor weather poor weather through winter without sunlight. This is great choice VIC, NSW, SA, ACT, TAS, QLD, NT and WA.

    Option 2 (Premier 24-22B): The 22aH Deep Cycle setup allows for well over three weeks in a typical residential installation of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). It can also support Light commercial usage.

    Option 3 (Premier 24-26B): The 26aH Deep Cycle setup allows for well over four weeks in a typical residential installation of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). It can also support Medium commercial usage of 10-15 operations per day for a period of approx. 2 weeks.

    Option 4 (Premier 24-55B): The 55aH Deep Cycle setup allows for well over eight to nine weeks in a typical residential installation of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). It can also support higher duty commercial usage of 60 operations per day for a period of approx. 1 weeks. It should be considered in these applications to upgrade the solar panel option to 180 Watts.

    The allowances are general in nature and typically factor for a continuous period taking into account overcast and other poor weather conditions along with wet seasons that will contribute to a no charge/minimal charge result from the solar system. These allowances do not take into account shade on the solar panel which will effect the overall charging.

    These allowances DO NOT take into account WiFi and Bluetooth Modules, as system consumption will increase using one of these devices Always use the next option up from requirment.

        Premier 24-15B Premier 24-22B Premier 24-26B Premier 24-55B
    IP Rating   IP67 Waterproof IP67 Waterproof IP67 Waterproof IP67 Waterproof
    Battery   2x 15aH DEEP CYCLE 2x 22aH DEEP CYCLE 2x 26aH DEEP CYCLE 2x 55aH DEEP CYCLE
    Enclosure Dimensions (L x W x D)   220x290x130mm 400x300x170mm 400x300x170mm 400x300x170mm (x2)
    Recommended Usage by State (General Guideline)   All States All States + Light Commercial All States + Medium Commercial All States + Higher Duty Commercial
    Cable Inlet/Outlet (Weatherproof)   6x Supplied 3x Supplied 3x Supplied 3x Supplied
    Mounting Method   Through Box External Mounting Bracket (supplied) External Mounting Bracket (supplied) External Mounting Bracket (supplied)
    x

    24V Battery System in Enclosure

    Out Of Stock
    Clear
    Out Of Stock

  • Description

    Cero 24V PWM Solar Regulator

    12v 24v solar regulator
    The Cero Solar Regulator is PWM type suited for Gel, Sealed and Flooded batteries. It operates in a 3 stage charging control to ensure optimal performance to the batteries and provide the greatest longevity. The Cero is has protections in place in case of errors and failures in the solar panel installation or battery installation and will shut down in the case of short circuit and overload, then restart once clear. The LCD display provides accurate data on the current input voltage from the solar panel, the current stage of charging and also the current battery voltage making it easy to check the status on the fly. ✓ Large copper input terminals (12-28AWG) ✓ Ribbed metal heat sink across the entire back side ✓ LCD Display ✓ 3 Stage PWM Management (Bulk, Boost, Float) ✓ Supports Sealed, Gel and Flooded Batteries ✓ Short Circuit, Open Circuit ,Overload Protection along with multiple other protections ✓ Allows for a total of 10 Amps Inputs ✓ High Efficiency ✓ USB Terminal ✓ Temperature Compensation ✓ Low voltage disconnect and reconnect

    Specifications

    Rated Voltage 24V ONLY
    Rated Current 10A
    Max. PV Voltage 50V
    Max PV Input Power 260W(24V)
    x

    Cero Solar Regulator System (Installed Inside the Boom Gate)

    Out Of Stock

  • Description

    Weekly Schedule Automatic Gate Timer

    Automatic timer for opening and closing a driveway gate residential and commercial

    The weekly timer allows for scheduling open time cycles to operate the gate, simple set the open time and once lapsed the gate would automatically close (automatic close timer must be enabled).

    The timer allows for independent 5 day business week, INDEPENDENT days configurations OR a full 7 day week configuration along with other modes. Up to 8 different On/Off schedules can be set.



    Key Features

    ✓ Automatic Opening and Closing at the Set times
    ✓ LCD Display
    ✓ Built in Battery to retain schedules, replaced every 2-3 years
    ✓ Simple setting by: independent days schedule, Common time 5 day working week (MON-FRI), Weekends Combined (SAT+SUN) or Common time 7 day week (MON-SUN)

    Specifications

    Operating Voltage 24V DC
    Power Consumption 50mA
    Display LCD
    Load Capacity 10A/250V
    Programs 8
    Relay NO/NC
    x

    Weekly Auto Open/Close Scheduled Timer (Multi-Programs)

    Programable timer with numerous configurations options on when to open and close the gate.

    Show more

    Programable timer with numerous configurations options on when to open and close the gate.

    ×
    Out Of Stock

Optional Add On's

  • Description

    Tekno K1 Weatherproof Wired Keypad

    APP Control entry keypad mobile phone Automatic gate and garage door

    The Tekno K1 is a versatile and feature packed standalone keypad unit with APP Control by mobile phone allowing for the ability to operate from anywhere in the world along with local operations by PIN code or EM card/Tag. Its intuitive design allows for adding administering users directly into the keypad or by the APP.

    The free mobile APP allows for adding temporary PIN codes with expiry dates (or one time use) making it ideal for deliveries, Airbnb and other applications requiring temporary user access with out the need to add the users on-site.

    General Mobile APP users can also be managed in via the app (add/delete) if and when required.



    Key Features

    ✓ FREE APP Control available in Apple App Store and Google Play Store (Highly rated and reliable with over 5 million users worldwide)
    ✓ Control your gate ANYWHERE in the world
    ✓ Voice control and scene control compatible with Google assistant, Alexa and Siri
    ✓ Up to 10,000 Users by PIN code, EM Card and EM Tags
    ✓ Unlimited APP Users
    ✓ Add in expiring PIN codes by APP
    ✓ Add in normal users by APP
    ✓ Wires directly into the system
    ✓ Simple connection and simple setup
    ✓ Up to 10 meter Wi-Fi range with basic entry level routers (typically what’s supplied by the internet provider), Substantially boosted using good quality routers or mesh networks.

    Specifications

    Power 12V DC
    Standby Current ≤35mA
    Maximum Users 10,000 Users
    Operating Temperature -40°C - +60°C
    Operating Methods PIN CODE, RFID,MOBILE APP
    Wi-Fi Distance Up to 10m on basic ISP routers (entry level basic) Substantially boosted on a good quality router or mesh network
    x

    Access Control Keypad with EM Tag Reader and mobile APP

    Wired keypad allowing for pin code access control, em cards and tags operation, along with mobile APP control.

    Show more

    Wired keypad allowing for pin code access control, em cards and tags operation, along with mobile APP control.

    ×
    Out Of Stock

  • Description

    Commercial Double Mount Gooseneck Pedestal Bollard for Driveways (Car's and Truck's)

    Commercial Double Mount Gooseneck Pedestal Bollard for Driveways Car and Truck
    Suitable for all commercial applications requiring a DOUBLE keypad or intercom post the gooseneck pedestal is designed for residential use whilst retaining an extremely strong from factor. Built from pre-galvanized 100x100mm SHS tube welded to a 200x200mm base plate it allows for a simple bolt down installation to a concrete footing, curb or traffic island.

    Key Features

    ✓ Spacious rain hood to suit most access controllers/intercoms ALSO REVERSABLE and can be used as a backing plate for very large and very small access controllers/intercoms ✓ Easy four bolt installation to join the top and bottom sections ✓ Anti deformation with 200x200x5mm thick base plate (pre-punched for dynabolts/masonry anchors) ✓ Rigid and durable ✓ Pre-Galvanized Steel (100x100mm) ✓ Minimized risk with the perfect amount of extension (220mm from back of post to back of rain hood) ✓ Safety Yellow Powder Coating

    Rain hood internal dimensions 115mm (H) x 65mm (W), Top Depth 65mm/Bottom Depth 40mm, The rain hood can also be installed in reverse to be used as a backing plate for your own rain hood.

    x

    Truck and Car Double pedestal Gooseneck Bollard 100x100 Steel Safety Yellow Powder Coat (commercial/industrial)

    Out Of Stock

  • Description

    Gooseneck Pedestal Bollard for Driveways

    Gooseneck bollard for intercom, keypad door bell
    Suitable for all applications requiring a keypad or intercom post the gooseneck pedestal is designed for residential use whilst retaining an extremely strong from factor. Built from pre-galvanized 75x75mm SHS tube welded to a 150x150mm base plate it allows for a simple bolt down installation to a concrete footing, curb or traffic island.

    Key Features

    ✓ Spacious rain hood to suit most access controllers/intercoms ALSO REVERSABLE and can be used as a backing plate for very large and very small access controllers/intercoms ✓ Easy four bolt installation to join the top and bottom sections ✓ Anti deformation with 175x175x5mm thick base plate (pre-punched for dynabolts/masonry anchors) ✓ Rigid and durable ✓ Pre-Galvanized Steel (75x75mm) ✓ Minimized risk with the perfect amount of extension (220mm from back of post to back of rain hood) ✓ Satin Black Powder Coating (NIGHT SKY COLOUR)

    Rain hood internal dimensions 115mm (H) x 65mm (W), Top Depth 65mm/Bottom Depth 40mm, The rain hood can also be installed in reverse to be used as a backing plate for your own rain hood.

    x

    Gooseneck pedestal bollard for intercom, keypad door bell 75x75 Steel Satin Black Powder Coat (residential)

    Out Of Stock

  • Description

    Dukie Photocell Kit

    Dukie Automatic gate and garage door photocell
    The Dukie series photocell kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Both the photocells are wired back to the control box with low voltage wiring however the optional upgrade to Dukie+ photocell allows for battery operation on the further photocell from the gate control box meaning only one of the photocells is wired.

    Key Features

    ✓ 45° Adjustable in each direction, suited for inline and out of line posts ✓ Ultra modern and neat appearance ✓ Compact design fits almost anywhere at 100(L)x45(W)x35(D)mm ✓ NO and NC Relay Settings ✓ Excellent range characteristics of up to 10 meter distance between each photocell ✓ Unlimited sets can be installed on each system for added protective layers ✓ OPTIONAL Dukie+ upgrade for a battery operated transmitter cell on the far side
    x

    Dukie OR Dukie + Photocells

    Protects the vehicles in the path of the infrared beam. Each photocell can be turned 45° left or right to align with the other allowing for extremely flexible installation. Unlimited amount can be installed on each installation.

    Show more

    Protects the vehicles in the path of the infrared beam. Each photocell can be turned 45° left or right to align with the other allowing for extremely flexible installation. Unlimited amount can be installed on each installation.

    ×
    Out Of Stock

  • Description

    EM Tag

    125khz em card tag
    • Slimline Design
    • Fits on to a keyring
    • 125KHZ
    x

    EM 125KHZ Proximity Tag and Card Reader

    • Slimline Design
    • Fits on keyrings
    • 125KHZ
    Show more
    • Slimline Design
    • Fits on keyrings
    • 125KHZ
    ×
    Out Of Stock

  • Description

    Induction Loop Detector

    induction loop detector for open close gates and boom gate barriers
    The Single channel loop can be used for either a pulse to command operation (upon detection latches the relay) or a presence command (typically as a safety device to hold the relay til clear). With four adjustable sensitivity setting + sensitivity boost feature the loop detector can be fine tuned to suit the installation. The frequency is also adjustable to prevent cross talk between multiple loops in close proximity to one another.

    Key Features

    ✓ Pulse and Presence Modes (5 min MAX. presence/Permanent presence) ✓ Four sensitivity settings ✓ Four frequency settings ✓ Normally Open and Normally Closed Contacts ✓ Automatic Sensitivity Boost Upon detection (Ideal for large ground to chassis vehicles like trucks) ✓ Filter mode setting for interference prone environments ✓ Loop inductance: Total loop plus connection wiring:50 to 1000μH.Ideal is 100 to 300μH

    Specifications

    Operating Voltage 24V DC
    Tuning Auto:10uH to 1500uH
    Sensitivity Four Settings
    Frequency 12-80kHz (based on actual loop and setting switch)
    Relay Circuits N/O and N/C
    Configurations Pulse or Presence
    Wiring 11 Pin Screw Terminal Base
    Mounting Din Rail or Shelf
    x

    Automatic Opening/Closing Induction Loop Detector 24V AC/DC Presence and Pulse Relay (24 Volt Version)

    • 24V DC
    • Pulse and Presence Modes (5 min MAX. presence/Permanent presence)
    • Four sensitivity settings
    • Four frequency settings
    • Normally Open and Normally Closed Contacts
    Show more
    • 24V DC
    • Pulse and Presence Modes (5 min MAX. presence/Permanent presence)
    • Four sensitivity settings
    • Four frequency settings
    • Normally Open and Normally Closed Contacts
    ×
    Out Of Stock

  • Description

    Teflon Insulated Induction Loop Detector Cable

    The correct cable to use induction loop installations, provides superior insulation, temperature and deterioration resistance due to Teflon insulation, perfect thickness for all saw cuts.

    Induction loop cable for loop detectors and saw cut loops

    Specifications

    Length 50m
    Insulation Single Insulated (Teflon)
    Conductor Tinned Copper
    Strands 19
    Strand Thickness .040mm
    x

    50 Metre Roll Teflon Insulated Induction Loop Cable

    Out Of Stock

  • Description

    Tekno 4 4G VOLTE Intercom

    3G 4G LTE GSM Control mobile phone Automatic gate and garage door
    The Tekno 4V is the solution for gates and entry ways that are unable to have a hard wired or Wi-Fi intercom. It uses Voice over LTE (VOLTE) which is the required standard to use a 4G based device in Australia. It can be used in just about all locations with a 98% network coverage of Australia. The Tekno 4V is powered by 12V DC (adapted supplied) it will allow for a guest to press the call button, at this time the Tekno 4V will begin calling its enrolled admin users in sequence (can be a mobile or landline, individual person or an office). Once the call is answered the admin user and the guest have two-way handsfree communication at which point a command can be given by the admin user to operate the system. If a call was not answered by the admin user the Tekno 4V will call the second admin then the third admin. Cleverly designed the Tekno 4V has an adjustable maximum ringing time to avoid being answered by voice mails.

    Key Features

    ✓ No distance limitations unlike traditional intercom systems ✓ Communication with guest (Two-Way) using mobile network (4G VOLTE) ✓ Automatically chooses the best 4G VOLTE service connection based on mobile reception ✓ Can operate any access control system (Automatic gates, boom gates, garage doors, electric strikers, magnetic locks etc.) with ADJUSTABLE relay time ✓ Three admin users called in sequence til answered/end of list is reached ✓ Configurable Maximum ringing time (Avoids voice mails) and Configurable Maximum talking time ✓ Enable and Disable the LED ring around the call button ✓ Unlock during a call or anytime by SMS ✓ No computers or APPs needed, configured easily by SMS commands ✓ Nano Sim using any network provider with best coverage in your area

    Tekno 4V VOLTE Intercom Dimensions

    small size gsm intercom solution

    Specifications

    Operating Voltage 12V DC
    Power Consumption 45mA Standby/<130mA Initialization and calling
    IP Rating IP54
    Sim Card Size Nano Sim
    VOLTE YES
    4G Network TDD: 2300(B40)>FDD 2100(B1)/1800(B3)/2600(B7)/900(B8)/1900 (B2)/1700(B4)/850 (B5)/700APT(B28)
    3G Network 2100(B1)/1900(B2)/850(B5)/90038)

    Electric Striker (Fail-Safe and Fail-Secure)

    3G 4G LTE GSM Control electric striker and electric lock</span >

    Automation Systems (Automatic Gates, Boom Gates, etc)

    3G 4G LTE GSM Control mobile phone Automatic gate and garage door</span >
    x

    Tekno 4V 4G VOLTE Intercom System by Sim Card works in Rural Properties and Commercial Industrial Gate intercom

    Out Of Stock

  • Description

    Tekno S1 4G VOLTE GSM Switch

    3G 4G LTE GSM Control mobile phone Automatic gate and garage door
    The Tekno S1 is a 4G VOLTE flexible control device allowing for connection to the gate system and operation from anywhere in the world by a simple phone call. Easy to install and configure it is the best solution when no Wi-Fi or internet connection is available and a great alternative to APP based control. The requirement is good 4G Network at the gate position and a sim card that can accept voice calls (not data specific sims).

    Key Features

    ✓ Call your gate from ANYWHERE in the world
    ✓ Control by SMS
    ✓ Can be configured to allow for Authorized users (Telephone numbers allowed to operate the S1) or Public Mode (Anyone)
    ✓ Fits directly into the system, no extras required
    ✓ Simple connection and simple setup
    ✓ 999 Users Allowance
    ✓ SMS Notifications to Admin per operation even (can be disabled)

    The Tekno S1 can work with all 4G Telco providers however please note the recommended network of choice is Telstra providing the strongest 4G coverage.

    Product Overview

    3G 4G LTE GSM Control mobile phone Automatic gate and garage door

    Specifications

    Operating Voltage 9-36V DC
    Power Consumption 45mA Standby/<130mA Initialization and calling
    Sim Card Size Length Nano Sim
    4G Network TDD: 2300(B40)>FDD 2100(B1)/1800(B3)/2600(B7)/900(B8)/1900 (B2)/1700(B4)/850 (B5)/700APT(B28)
    3G Network 2100(B1)/1900(B2)/850(B5)/90038)
    x

    Tekno S1 4G VOLTE GSM Controller Sim Card Gate Controller 4G

    Out Of Stock

  • Description

    Please be aware this product is only compatible with Automation Systems Australia Control Boards and Remote Receivers, it will NOT work with other brand products.

    Sentry STX Remote Control

    Remote control for Sentry Boom Gates
    The Sentry STX Keyring Remote is a high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

    The multi button design allows for independent feature usage of UP, STOP and DOWN to command and control the Sentry Boom Gate System.

    Key Features

    ✓ Keeloq rolling code security ✓ Clear visibility LED indicator which will illuminate upon a button press ✓ Sliding cover to prevent accidental operation of the system ✓ Slimline and modern ergonomic design

    The Sentry system must have a Sentry RX Wireless Expanded installed to use remotes, available as a separate item in or store.

    x

    Admin Remote Control for Sentry Series Boom Gates

    Out Of Stock

  • Description

    Push/Press Button

    push press button for automation machinery access control
    The push button is the simplest of all access control devices, a simple press of the button allows the automation to begin its working. Generally installed on the inside of the property within close proximity to the user (driver side when exiting) allows for the easiest method of working.

    Key Features


    ✓ Weatherproof for outdoor use and can be used indoors ✓ Supports NO and NC circuits (when used as a wired button) ✓ 2 Wire connection or Wireless Option (Automation Systems Australia ONLY) ✓ Easy to operate
    x

    Weatherproof Press Button

    Typical press button for foot traffic, suitable for outdoor and indoor installations.

    Show more

    Typical press button for foot traffic, suitable for outdoor and indoor installations.

    ×
    Out Of Stock

  • Description

    Big Head (Mushroom) Push/Press Button

    big mushroom palm push press button for automation machinery access control
    The push button is the simplest of all access control devices, a simple press of the button allows the automation to begin its working. Generally installed on the inside of the property within close proximity to the user (driver side when exiting) allows for the easiest method of working.

    Key Features


    ✓ Weatherproof for outdoor use and can be used indoors ✓ Supports NO and NC circuits (when used as a wired button) ✓ 2 Wire connection or Wireless Option (Automation Systems Australia ONLY) ✓ Easy to operate
    x

    Weatherproof Push Button (Mushroom Head)

    Typical press button for vehicles mounted to a bollard, suitable for outdoor and indoor installations.

    Show more

    Typical press button for vehicles mounted to a bollard, suitable for outdoor and indoor installations.

    ×
    Out Of Stock

  • Description

    Emergency Stop Push/Press Button

    emergency stop push press button for automation machinery access control
    The emergency stop button is a one push latching button, when pressed in it will remain in the IN position halting or stopping the controlled system. To release just twist the knob. Ideal for commercial and industrial automation and machinery.

    Key Features


    ✓ Weatherproof for outdoor use and can be used indoors ✓ One Push Latching ✓ Supports NO and NC circuits ✓ 2 Wire connection ✓ Easy to operate
    x

    Weatherproof Emergency Stop Latching Push Button for Automatic Gates, Boom Barriers, Garage Doors, Machinery NO and NC Circuit

    Typical emergency stop button for halting or stopping a system, suitable for outdoor and indoor installations.

    Show more

    Typical emergency stop button for halting or stopping a system, suitable for outdoor and indoor installations.

    ×
    Out Of Stock

  • Description

    Power Convertor Module for AC to DC Stepdown Conversion and DC to DC Stepdown

    stepdown low voltage convertor ac to dc and dc to dc
    This handy little device is great for accessories requiring 12V DC only, it will take the voltage feed in of 16-28V AC or DC and provide a stable 12V DC output to power accessories not exceeding a maximum of 500mA (0.5A).

    Specifications

    Input Voltage 16-28V AC/DC
    Output Voltage 12V DC
    Maximum Output Current 500mA
    Dimensions 73x40x23mm
    x

    Access Control 24V DC to 12V DC Power Transformer

    Step down power transformer to allow for accessories to be powered from the boom gate controller

    Show more

    Step down power transformer to allow for accessories to be powered from the boom gate controller

    ×
    Out Of Stock

  • boom operator resting point for arm
    Description

    Boom Gate Resting Point

    boom gate resting point keeper support
    • Doubles as a mounting point for a wired photoelectric sensor
    • Powder Coated Black
    • Adjustable Stop Point
    • V Catch design allows arm to be guided in high winds
    x

    Arm Support Resting Point for GT Series Operators

    • Doubles as a mounting point for a wired photoelectric sensor
    • Powder Coated Black
    • Adjustable Stop Point
    • V Catch design allows arm to fall slide in high winds
    Show more
    • Doubles as a mounting point for a wired photoelectric sensor
    • Powder Coated Black
    • Adjustable Stop Point
    • V Catch design allows arm to fall slide in high winds
    ×
    Out Of Stock

Videos

CAME Gard 4m Solar Powered Low Voltage Automatic Boom Barrier Gate High Duty Cycle Parking Depot Yards Caravan Park offices with Weekly Timer

$3,864.00

x

Register

Shipping To

Add company name

Australia

Add apartment, unit, building, floor, etc.

Billing To

Add company name

Australia

Add apartment, unit, building, floor, etc.


Close
