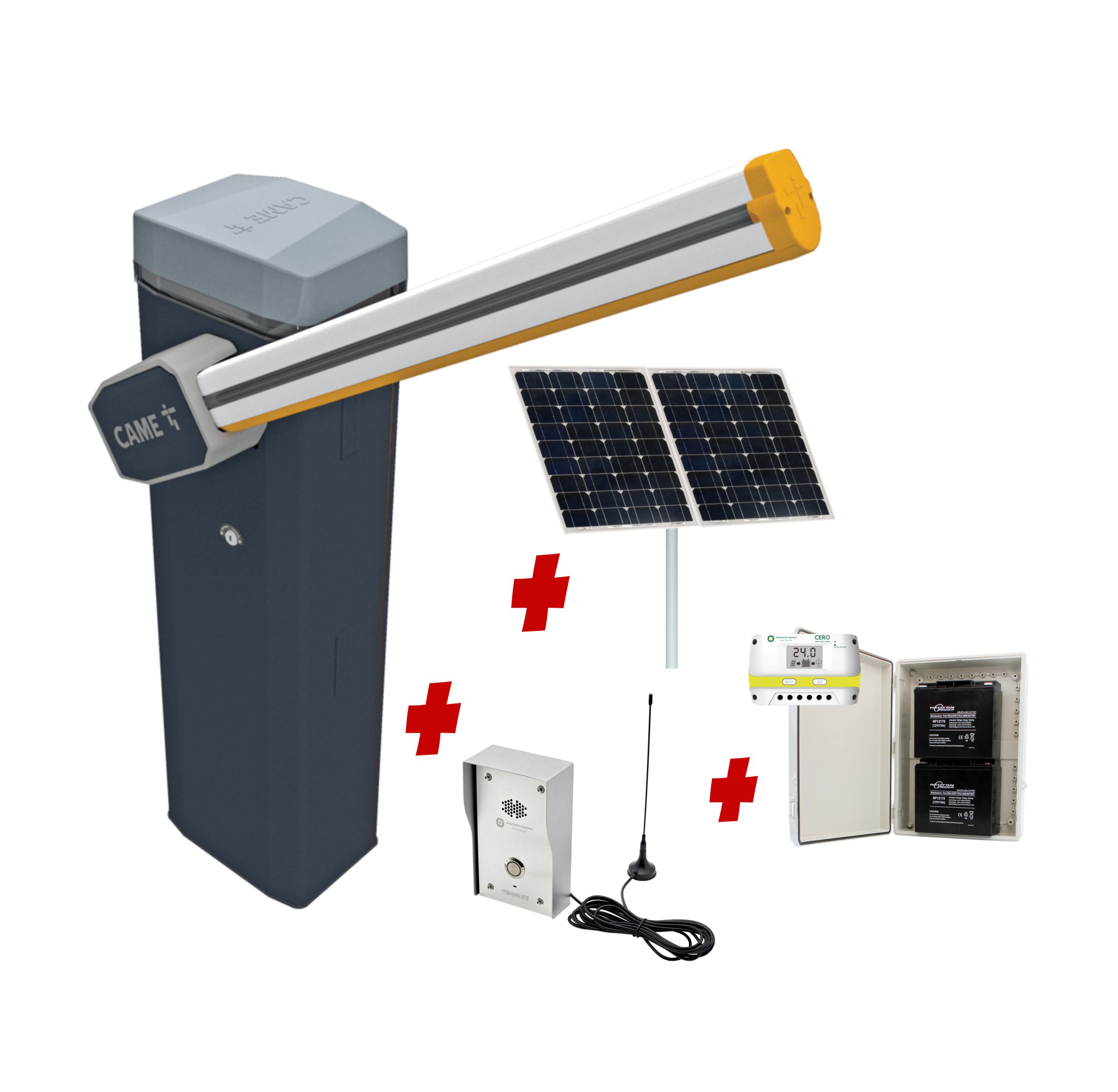

CAME Gard 4m Solar Powered Low Voltage Automatic Boom Barrier Gate High Duty Suitable Depot Yards Caravan Park offices with Keypad Intercom System 4G

Name: CAME Gard 4m Solar Powered Low Voltage Automatic Boom Barrier Gate High Duty Suitable Depot Yards Caravan Park offices with Keypad Intercom System 4G
SKU: CAME-GT4-SA-SOLAR-T4
Price: 4515 AUD
Availability: InStock

SKU: CAME-GT4-SA-SOLAR-T4

$4,670.00

$4,515.00

Save $155.00

Bulky Item Shipping costs are calculated during checkout
2 Year Warranty
Brand : CAME

2 Year Warranty

4 Metre Opening

Made In Italy

Standalone Solar Powered

High Duty Cycle

ENCODER Technology

2 Year Warranty
4 Metre Opening
Made In Italy
Standalone Solar Powered
High Duty Cycle
ENCODER Technology

In stock

Click & Collect

Delivery

In-Store

Special Order- 48HR Dispatch*

High Duty Cycle Italian Boom Gate System

4m gt4 boom operator 24v commercial industrial caravan park boom and parking security

At a Glance

Universal Left OR Right Side Installation

24V DC SOLAR System

190 KM/H Wind Rating

Galvanized Steel and Powder coated

Tested for 350 Cycles/Hour with over 3 million cycles

Ultra Fast Operation from 2 to 6 seconds

Easy to work on Control Board placement under the TOP cover

Rubber Edging on the Bottom Side of the Arm

Compatibility and Features

Supports Loop Detectors

Supports WIRED and WIRELESS Keypads

Supports Egress Press Buttons

Supports Opening and Safety Detector Combo

Self Supporting for Up To 4 Metres (optional resting point available if required)

Digital Display for easy parameter and settings configuration

Supports Skirt System to prevent unauthorized foot traffic

Dual Voltage Feed for ultimate precision, control and braking function

Supports Opening, closing and Safety Detectors

Supports Battery Backup system (all internal)

Adjustable Automatic Close Time

Internal Anti Tamper System (can also support a N/C Contact from alternative switch)

Supports Open Only, Close Only, Open/Close and Stop Command inputs (Each are individual circuits)

Supports status warning, flashing lights and general area lighting systems

Supports one or MULTIPLE Photocells, reflective sensors or induction loops as safety devices with 8 different logic configurations

Supports hold to operate mode

Supports one or MULTIPLE Photocells, reflective sensors or induction loops as safety devices with 8 different logic configurations

Supports synchronization module to allow connection of a master and slave unit (RSE Cards) allowing for all accessories connection directly to the master

Maximum Arm Length	4m (Standard)
Minimum Arm Length	1m (Cut Down)
Operating Time	2S-6S
Motor Power (Volts)	24V DC
Torque (NM)	300
Average Life by Cycles	3,000,000
Maximum cycles per HOUR	350
Maximum cycles per DAY	5400
Operating Temperature	-20°C to +50°C

Operators Overview

Manual Release

Simple to use Manual Release system, simply insert the key and turn to the unlock position. Now you can push the arm up to the open position and turn the key to the lock position.

Aluminum Arm

Operator Dimensions

4m boom gate dimensions 24v commercial industrial caravan park boom and parking security

Battery System

Supplied with an external dual battery 24V 17aH system as standard in a IP67 Waterproof and Dust Proof Rated Enclosure (IP67 Cable Gland Supplied), there are a total of TWO battery capacity options available.

Option 1 (Alpha 17B): The 17B setup allows for well over three weeks in usage of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). Please see the table below for accessory usage and high duty usage consumptions.

Option 2 (Alpha 26B): The 26B setup allows for well over six weeks in usage of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). Please see the table below for accessory usage and high duty usage consumptions.

The allowances are general in nature and typically factor for a continuous period taking into account overcast and other poor weather conditions along with wet seasons that will contribute to a no charge/minimal charge result from the solar system. These allowances do not take into account shade on the solar panel which will effect the overall charging.

These allowances DO NOT take into account WiFi, Bluetooth Modules, Loop Detectors, Keypads etc. as system consumption will increase using these devices. See Trim Level per accessory below.

	Alpha 17B	Alpha 26B
IP Rating	IP67 Waterproof	IP66 Weatherproof
Battery	2x 17aH	2x 26aH
Enclosure Dimensions (L x W x D)	390x290x100mm	400x300x200mm
Recommended Usage	Light Commercial	Regular Commercial
Consecutive usage at 100% Duty Cycle (No accessories or charging, continuous UP/DOWN operation)	30 Hours Maximum.	52 Hours Maximum.
Light usage Max. prolonged usage (No charging, no wired accessories & 10 Cycles per day)	3 Weeks	6 Weeks
Trim level based on each Wired keypad, Bluetooth/WiFi, Loop Detector	-20% per wired accessory	-20% per wired accessory
Cable Inlet/Outlet (Weatherproof)	1x Supplied	1x Supplied
Mounting Method	External Mounting Bracket (supplied)	Through Box

High Wattage PREMIUM Monocrystalline Solar Panel (Aluminum Frame)

Solar Panel can be installed vertically or horizontally.

Key Features

✓ PREMIUM QUALITY Monocrystalline 24V Solar Panel
✓ Anodized Silver Aluminum Frame
✓ IP66 Outdoor Rated Design
✓ 97% or greater power tolerance
✓ Long 10 Metre Cable (or cut to required size)

Specifications

Maximum Power(Pmax)	60W/120W/180W
Operating Voltage(Vmp)	36V
Operating Current(Isc)	1.8A(60W)/3.6A(120W)/5.4A(180W)
Open Circuit Voltage(Voc)	41V

Adjustable Solar Fence Post (Vertical/Horizontal Orientation)

✓ Powder Coated 30mm Diameter Steel Mounting Pole, Adapter and Plate
✓ Allows for Panel installation in a Vertical or Horizontal Orientation
✓ Pre-Set Fixed Angle best suited for the southern hemisphere
✓ Mounts to Fence, Wall or Post by supplied saddles to suit all installations

Tekno 4 4G 3G LTE GSM Intercom

3G 4G LTE GSM Control mobile phone Automatic gate and garage door

The Tekno 4 is the solution for gates and entry ways that are unable to have a hard wired or Wi-Fi intercom. It can be used in just about all locations with a 98% network coverage of Australia.

The Tekno 4 can be powered by the automatic gate system OR by a separate 12V adapter, It will allow for a guest to press the call button, at this time the Tekno 4 will begin calling its enrolled admin users in sequence (can be a mobile or landline, individual person or an office).

Once the call is answered the admin user and the guest have two-way handsfree communication at which point a command can be given by the admin user to operate the system. If a call was not answered by the admin user the Tekno 4 will call the second admin then the third admin. Cleverly designed the Tekno 4 has an adjustable maximum ringing time to avoid being answered by voice mails.

Key Features

✓ Communication with guest using mobile network (4G/3G)
✓ Automatically chooses the best service connection based on mobile reception
✓ Integrates and connects directly into the automation system for system power and control
✓ Three admin users called in sequence til answered
✓ Configurable Maximum ringing time (Avoids voice mails) and Configurable Maximum talking time
✓ Unlock during a call or anytime by SMS
✓ Nano Sim using any network provider with best coverage in your area

Tekno K1 Weatherproof Wired Keypad

APP Control entry keypad mobile phone Automatic gate and garage door

The Tekno K1 is a versatile and feature packed standalone keypad unit with APP Control by mobile phone allowing for the ability to operate from anywhere in the world along with local operations by PIN code or EM card/Tag. Its intuitive design allows for adding administering users directly into the keypad or by the APP.

The free mobile APP allows for adding temporary PIN codes with expiry dates (or one time use) making it ideal for deliveries, Airbnb and other applications requiring temporary user access with out the need to add the users on-site.

General Mobile APP users can also be managed in via the app (add/delete) if and when required.

Key Features

✓ FREE APP Control available in Apple App Store and Google Play Store (Highly rated and reliable with over 5 million users worldwide)
✓ Control your gate ANYWHERE in the world
✓ Voice control and scene control compatible with Google assistant, Alexa and Siri
✓ Up to 10,000 Users by PIN code, EM Card and EM Tags
✓ Unlimited APP Users
✓ Add in expiring PIN codes by APP
✓ Add in normal users by APP
✓ Wires directly into the system
✓ Simple connection and simple setup
✓ Up to 10 meter Wi-Fi range with basic entry level routers (typically what’s supplied by the internet provider), Substantially boosted using good quality routers or mesh networks.

Kit Contents (See Description Tab for Full In-Depth Details)

Bulky item

gard gt boom gate system 24v commercial industrial caravan park boom and parking security

Please note this is a replacement operator and is not supplied with remotes or receiver card.

High Duty Cycle Italian Boom Gate System

At a Glance

Universal Left OR Right Side Installation

24V DC System

190 KM/H Wind Rating

Galvanized Steel and Powder coated

Tested for 350 Cycles/Hour with over 3 million cycles

Ultra Fast Operation from 2 to 6 seconds

Easy to work on Control Board placement under the TOP cover

Rubber Edging on the Bottom Side of the Arm

Compatibility and Features

Supports Loop Detectors

Supports WIRED and WIRELESS Keypads

Supports Egress Press Buttons

Supports Crown Light System

Supports LED Arm System

Supports Opening and Safety Detector Combo

Supports Battery Backup Card (all internal)

Self Supporting for Up To 4 Metres (optional resting point available if required)

Digital Display for easy parameter and settings configuration

Supports Skirt System to prevent unauthorized foot traffic

Dual Voltage Feed for ultimate precision, control and braking function

Supports Opening, closing and Safety Detectors

Supports Battery Backup system (all internal)

Adjustable Automatic Close Time

Internal Anti Tamper System (can also support a N/C Contact from alternative switch)

Supports Open Only, Close Only, Open/Close and Stop Command inputs (Each are individual circuits)

Supports status warning, flashing lights and general area lighting systems

Supports one or MULTIPLE Photocells, reflective sensors or induction loops as safety devices with 8 different logic configurations

Supports hold to operate mode

Supports one or MULTIPLE Photocells, reflective sensors or induction loops as safety devices with 8 different logic configurations

Supports synchronization module to allow connection of a master and slave unit (RSE Cards) allowing for all accessories connection directly to the master

Maximum Arm Length	4m (Standard)
Minimum Arm Length	1m (Cut Down)
Operating Time	2S-6S
Motor Power (Volts)	24V DC
Torque (NM)	300
Average Life by Cycles	3,000,000
Maximum cycles per HOUR	350
Maximum cycles per DAY	5400
Operating Temperature	-20°C to +50°C

Operators Overview

Manual Release

Simple to use Manual Release system, simply insert the key and turn to the unlock position. Now you can push the arm up to the open position and turn the key to the lock position. In a case where uninterrupted use is required see the optional batter backup system below.

Optional Battery Backup System

Direct installation within the operator

Allows for completely uninterrupted use

Recharges automatically when power is restored

All connected accessories continue to operate as per normal

Supplied batteries are wired in series to create 24V

Operating time without power can be up to one week on light usage or hours on heavy usage

Aluminum Arm

Optional Lighting

led lights for automatic barrier carpark boom gate

There’s no longer a need for traffic lights anymore with the optional completely integrated LED lighting solution with high DAY or NIGHT visibility any user can identify when its safe to pass through (GREEN to Go) or (Red to Stop).

No confusion, No accidents and No down time.

Operator Dimensions

GT4 Boom Gate Operator with 4m Length Arm

Universal Left or Right Side Installation
Can be used from 4m down to 1m Length
Up to 350 Cycles per HOUR
Up to 3 Million Cycle rated

Out Of Stock

Battery System

Supplied with an external Dual DEEP CYCLE battery system 24V 15aH system as standard in a SLIMLINE Waterproof and Dust Proof Rated Enclosure (IP67 Cable Gland Supplied), there are a total of THREE battery capacity options available.

Option 1 (Premier 24-15B): The 15aH Deep Cycle setup allow for up to a two and a half weeks of usage without any charge from the solar panel in a typical residential installation of 10 cycles per days (whilst factoring in standby power), this is the ideal choice for areas that may see a consistent week of poor weather poor weather through winter without sunlight. This is great choice VIC, NSW, SA, ACT, TAS, QLD, NT and WA.

Option 2 (Premier 24-22B): The 22aH Deep Cycle setup allows for well over three weeks in a typical residential installation of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). It can also support Light commercial usage.

Option 3 (Premier 24-26B): The 26aH Deep Cycle setup allows for well over four weeks in a typical residential installation of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). It can also support Medium commercial usage of 10-15 operations per day for a period of approx. 2 weeks.

Option 4 (Premier 24-55B): The 55aH Deep Cycle setup allows for well over eight to nine weeks in a typical residential installation of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). It can also support higher duty commercial usage of 60 operations per day for a period of approx. 1 weeks. It should be considered in these applications to upgrade the solar panel option to 180 Watts.

These allowances DO NOT take into account WiFi and Bluetooth Modules, as system consumption will increase using one of these devices Always use the next option up from requirment.

	Premier 24-15B	Premier 24-22B	Premier 24-26B	Premier 24-55B
IP Rating	IP67 Waterproof	IP67 Waterproof	IP67 Waterproof	IP67 Waterproof
Battery	2x 15aH DEEP CYCLE	2x 22aH DEEP CYCLE	2x 26aH DEEP CYCLE	2x 55aH DEEP CYCLE
Enclosure Dimensions (L x W x D)	220x290x130mm	400x300x170mm	400x300x170mm	400x300x170mm (x2)
Recommended Usage by State (General Guideline)	All States	All States + Light Commercial	All States + Medium Commercial	All States + Higher Duty Commercial
Cable Inlet/Outlet (Weatherproof)	6x Supplied	3x Supplied	3x Supplied	3x Supplied
Mounting Method	Through Box	External Mounting Bracket (supplied)	External Mounting Bracket (supplied)	External Mounting Bracket (supplied)

24V Battery System in Enclosure

Out Of Stock

Battery System *
Battery Box Cable Length *	Clear Out Of Stock

Description

Cero 24V PWM Solar Regulator

The Cero Solar Regulator is PWM type suited for Gel, Sealed and Flooded batteries. It operates in a 3 stage charging control to ensure optimal performance to the batteries and provide the greatest longevity. The Cero is has protections in place in case of errors and failures in the solar panel installation or battery installation and will shut down in the case of short circuit and overload, then restart once clear. The LCD display provides accurate data on the current input voltage from the solar panel, the current stage of charging and also the current battery voltage making it easy to check the status on the fly. ✓ Large copper input terminals (12-28AWG) ✓ Ribbed metal heat sink across the entire back side ✓ LCD Display ✓ 3 Stage PWM Management (Bulk, Boost, Float) ✓ Supports Sealed, Gel and Flooded Batteries ✓ Short Circuit, Open Circuit ,Overload Protection along with multiple other protections ✓ Allows for a total of 10 Amps Inputs ✓ High Efficiency ✓ USB Terminal ✓ Temperature Compensation ✓ Low voltage disconnect and reconnect

Specifications

Rated Voltage 24V ONLY

Rated Current 10A

Max. PV Voltage 50V

Max PV Input Power 260W(24V)

x

Cero Solar Regulator System (Installed Inside the Boom Gate)

Out Of Stock

Tekno 4 4G VOLTE Intercom

The Tekno 4V is the solution for gates and entry ways that are unable to have a hard wired or Wi-Fi intercom. It uses Voice over LTE (VOLTE) which is the required standard to use a 4G based device in Australia. It can be used in just about all locations with a 98% network coverage of Australia. The Tekno 4V is powered by 12V DC (adapted supplied) it will allow for a guest to press the call button, at this time the Tekno 4V will begin calling its enrolled admin users in sequence (can be a mobile or landline, individual person or an office). Once the call is answered the admin user and the guest have two-way handsfree communication at which point a command can be given by the admin user to operate the system. If a call was not answered by the admin user the Tekno 4V will call the second admin then the third admin. Cleverly designed the Tekno 4V has an adjustable maximum ringing time to avoid being answered by voice mails.

Key Features

✓ No distance limitations unlike traditional intercom systems ✓ Communication with guest (Two-Way) using mobile network (4G VOLTE) ✓ Automatically chooses the best 4G VOLTE service connection based on mobile reception ✓ Can operate any access control system (Automatic gates, boom gates, garage doors, electric strikers, magnetic locks etc.) with ADJUSTABLE relay time ✓ Three admin users called in sequence til answered/end of list is reached ✓ Configurable Maximum ringing time (Avoids voice mails) and Configurable Maximum talking time ✓ Enable and Disable the LED ring around the call button ✓ Unlock during a call or anytime by SMS ✓ No computers or APPs needed, configured easily by SMS commands ✓ Nano Sim using any network provider with best coverage in your area

Tekno 4V VOLTE Intercom Dimensions

Specifications

Operating Voltage	12V DC
Power Consumption	45mA Standby/<130mA Initialization and calling
IP Rating	IP54
Sim Card Size	Nano Sim
VOLTE	YES
4G Network	TDD: 2300(B40)>FDD 2100(B1)/1800(B3)/2600(B7)/900(B8)/1900 (B2)/1700(B4)/850 (B5)/700APT(B28)
3G Network	2100(B1)/1900(B2)/850(B5)/90038)

Electric Striker (Fail-Safe and Fail-Secure)

3G 4G LTE GSM Control electric striker and electric lock

</span >

Automation Systems (Automatic Gates, Boom Gates, etc)

</span >

Tekno 4V 4G VOLTE Intercom System by Sim Card works in Rural Properties and Commercial Industrial Gate intercom

Out Of Stock

Description

Power Convertor Module for AC to DC Stepdown Conversion and DC to DC Stepdown

This handy little device is great for accessories requiring 12V DC only, it will take the voltage feed in of 16-28V AC or DC and provide a stable 12V DC output to power accessories not exceeding a maximum of 500mA (0.5A).

Specifications

Input Voltage 16-28V AC/DC

Output Voltage 12V DC

Maximum Output Current 500mA

Dimensions 73x40x23mm

x

Access Control 24V DC to 12V DC Power Transformer

Step down power transformer to allow for accessories to be powered from the boom gate controller

Show more

Step down power transformer to allow for accessories to be powered from the boom gate controller

×

Out Of Stock

Manuals

Videos

CAME Gard 4m Solar Powered Low Voltage Automatic Boom Barrier Gate High Duty Suitable Depot Yards Caravan Park offices with Keypad Intercom System 4G

$4,670.00

$4,515.00

Save $155.00

Power	12V DC
Standby Current	≤35mA
Maximum Users	10,000 Users
Operating Temperature	-40°C - +60°C
Operating Methods	PIN CODE, RFID,MOBILE APP
Wi-Fi Distance	Up to 10m on basic ISP routers (entry level basic) Substantially boosted on a good quality router or mesh network

Operating Voltage	24V DC
Tuning	Auto:10uH to 1500uH
Sensitivity	Four Settings
Frequency	12-80kHz (based on actual loop and setting switch)
Relay Circuits	N/O and N/C
Configurations	Pulse or Presence
Wiring	11 Pin Screw Terminal Base
Mounting	Din Rail or Shelf

Length	50m
Insulation	Single Insulated (Teflon)
Conductor	Tinned Copper
Strands	19
Strand Thickness	.040mm

Operating Voltage	24V DC
Power Consumption	50mA
Display	LCD
Load Capacity	10A/250V
Programs	8
Relay	NO/NC

Input Voltage	16-28V AC/DC
Output Voltage	12V DC
Maximum Output Current	500mA
Dimensions	73x40x23mm

CAME Gard 4m Solar Powered Low Voltage Automatic Boom Barrier Gate High Duty Suitable Depot Yards Caravan Park offices with Keypad Intercom System 4G

High Duty Cycle Italian Boom Gate System

At a Glance

Compatibility and Features

Operators Overview

Manual Release

Aluminum Arm

Operator Dimensions

Battery System

High Wattage PREMIUM Monocrystalline Solar Panel (Aluminum Frame)

Key Features

Specifications

Adjustable Solar Fence Post (Vertical/Horizontal Orientation)

Tekno 4 4G 3G LTE GSM Intercom

Key Features

Tekno K1 Weatherproof Wired Keypad

Key Features

Kit Contents (See Description Tab for Full In-Depth Details)

Description

Please note this is a replacement operator and is not supplied with remotes or receiver card.

High Duty Cycle Italian Boom Gate System

At a Glance

Compatibility and Features

Operators Overview

Manual Release

Optional Battery Backup System

Aluminum Arm

Optional Lighting

Operator Dimensions

GT4 Boom Gate Operator with 4m Length Arm

Description

Battery System

24V Battery System in Enclosure

Description

Cero 24V PWM Solar Regulator

Specifications

Cero Solar Regulator System (Installed Inside the Boom Gate)

Description

Tekno 4 4G VOLTE Intercom

Key Features

Tekno 4V VOLTE Intercom Dimensions

Specifications

Electric Striker (Fail-Safe and Fail-Secure)

Automation Systems (Automatic Gates, Boom Gates, etc)

Tekno 4V 4G VOLTE Intercom System by Sim Card works in Rural Properties and Commercial Industrial Gate intercom

Description

Power Convertor Module for AC to DC Stepdown Conversion and DC to DC Stepdown

Specifications

Access Control 24V DC to 12V DC Power Transformer

Optional Add On's

Description

Commercial Double Mount Gooseneck Pedestal Bollard for Driveways (Car's and Truck's)

Key Features

Truck and Car Double pedestal Gooseneck Bollard 100x100 Steel Safety Yellow Powder Coat (commercial/industrial)

Description

Gooseneck Pedestal Bollard for Driveways

Key Features

Gooseneck pedestal bollard for intercom, keypad door bell 75x75 Steel Satin Black Powder Coat (residential)

Description

Tekno K1 Weatherproof Wired Keypad

Key Features

Specifications

Access Control Keypad with EM Tag Reader and mobile APP

Description

Dukie Photocell Kit

Key Features

Dukie OR Dukie + Photocells

Description

EM Tag

EM 125KHZ Proximity Tag and Card Reader

Description

Induction Loop Detector

Key Features

Specifications

Automatic Opening/Closing Induction Loop Detector 24V AC/DC Presence and Pulse Relay (24 Volt Version)

Description

Teflon Insulated Induction Loop Detector Cable

Specifications

50 Metre Roll Teflon Insulated Induction Loop Cable

Description
