Bulky Item
Add to Cart To Get a Personalised Freight Quote

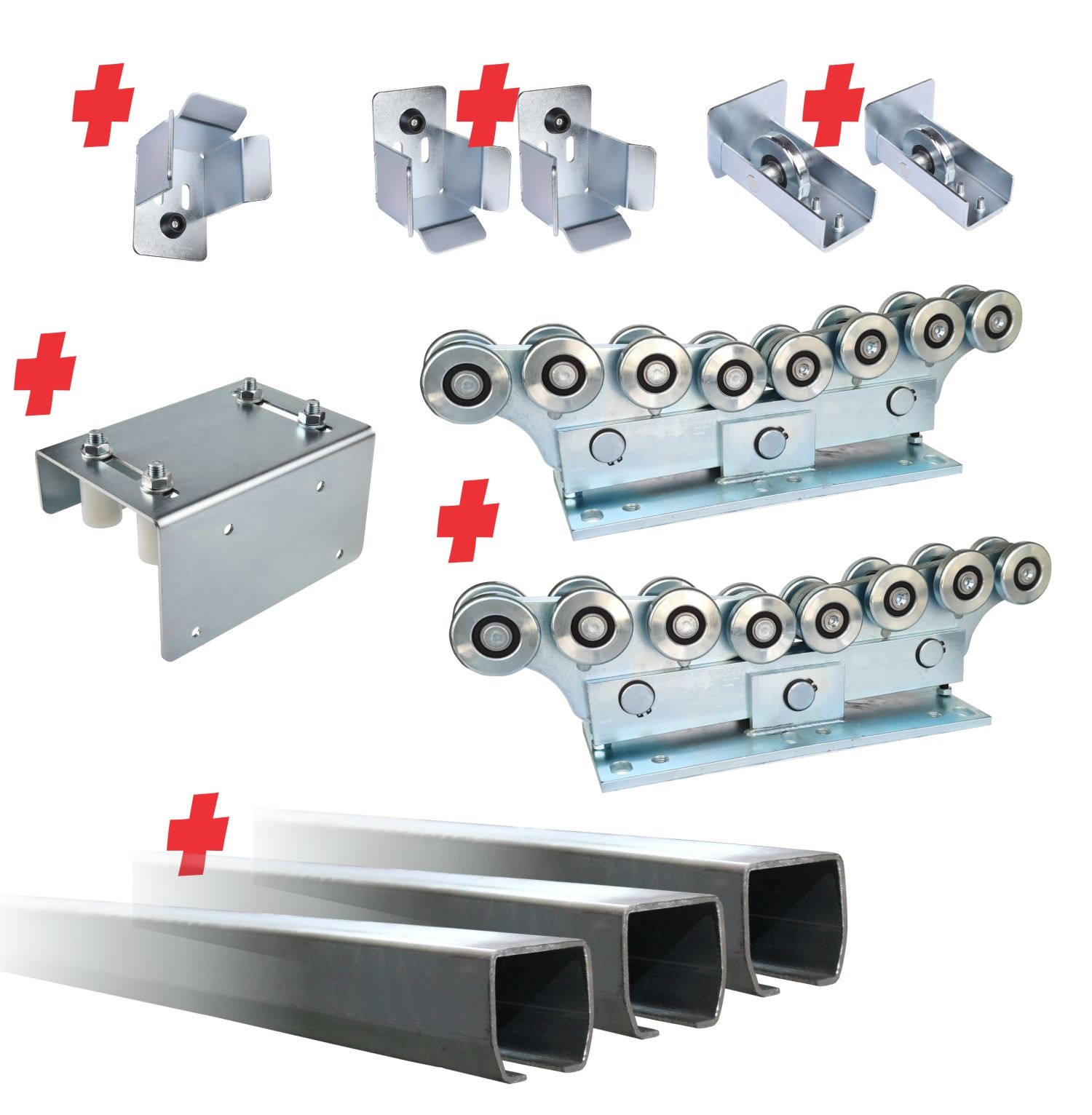

Complete COMMERCIAL GRADE Automatic Extra Heavy Duty Cantilever System With BKV1500 Solar Powered Sliding Gate Motor Kit (900KG/8M MAX Opening)

SKU: CANTI-C16M-BKV1500-SOLAR-I

$5,087.00

$4,769.00

Save $318.00

  • Bulky Item Shipping costs are calculated during checkout
  • 1 Year Warranty
  • Brand : Automation Systems Australia

    In stock

    Click & Collect

    Delivery

    In-Store

    Please note a fabricated base is required for the gate motor to raise its level to suit the cantilever assembly assembly height of 170mm.

    The default allowance for the package is for a 5.8 meter gate opening (9m total gate), this can be adjusted in the kit contents to cater for your requirements.

    16 Wheel Cantilever Gate System

    Floating Cantilever Sliding Gate for residential and commercial

    The heavy duty cantilever sliding gate system allows for a balanced operation of a gate without the need for a typical ground track system and wheels, this is ideal for commercial setups that the ground track can be damaged by machinery or even residential setups where it may not be plausible to have a concrete strip footing across the driveway to levels or driveway finishing’s.

    The 16 wheel cantilever system is capable of a maximum driveway opening size of 8 meters (Total gate length Approx. 12 meters when including the tail) or 900KG gate weight (whichever comes first).

    Typical guidelines

    ✓ The cantilever gate tail is 30% of the opening + an additional 1300mm
    ✓ Ideal Height Should not exceed 1.8m on a 16 Wheel System
    ✓ A receiver resting point is installed on the post in the closed position for the gate to rest on whilst closed
    ✓An additional receiver resting point is installed at the end of the open position for the gate to also rest on

    Installation Layout

    8 wheel floating sliding cantilever gate carriage

    Calculations

    8 wheel floating sliding cantilever gate carriage

    Four Point Roller System

    cantilever gate top guide roller system
    ✓ FOUR 60x40mm White Nylon Roller rollers adjustable for gate thickness up to 110mm
    ✓ 3mm Galvanized steel bracket
    ✓ Ultra Wide 300mm wide fixing bracket
    ✓ Option to fix secondary plate (if used) by welding or drilling and screwing to post in tunnel style installations

    Guide Wheel for C8MN and C16M Channel

    front wheel for cantilever gate 8 wheel channel
    ✓ Rests on the resting bottom catcher in the closed position
    ✓ Additional can be used for the open position (requires additional resting point bottom catcher)
    ✓ Clamps in place by tightening the bottom bolts

    16 Wheel Cantilever Carriage

    8 wheel floating sliding cantilever gate carriage
    ✓ 16 Bearing Wheels
    ✓ Supports up to 900KG Max. Weight Gate
    ✓ 12mm Base Plate

    Resting Point/Catcher

    bottom catcher for cantilever front wheel
    ✓ Resting point for Guide Wheel
    ✓ Used as the Top catcher position
    ✓ If using an additional guide wheel for the open position an additional rest point will also be required

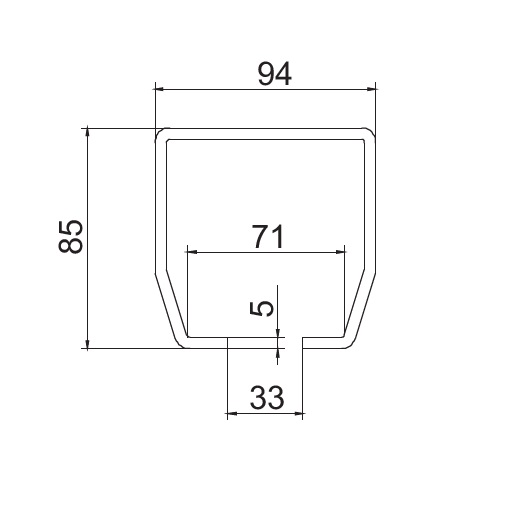

    Galvanized Cantilever Channel for C8MN and C16M Cantilever System

    bottom catcher for cantilever front wheel
    ✓ 5mm Wall Thickness
    ✓ Suitable for welding to the gate, screwing to the gate and other attachment methods

    Super Duty Full Time 24V Sliding Gate Motor with Encoder and Limit Switches




    The BKV range is the pinnacle of the sliding gate automation industry. Still low voltage but at the leading power range and with adaptive torque design this sliding gate system is suited for almost any gate weight, slope, and length.

    Suitable for commercial, industrial and Residential Installation of all weights and sizes whether a 20m long commercial gate or a heavy merbau cladded gate at home the BKV makes easy work of it with the ability to run at 100% duty cycle (24HR operation) where required with a maximum capacity of 1500KG weight or a 20 Meter Long Gate.

    Still carrying the CAME typical top of the line features such as three stage speed control all adjustable, precise encoder travel DC motor, reliable spring limit system PLUS the option of a plug in weekly timer (no wiring bulky hard to program timers) and all still with the easy to use an intuitive LCD interface.

    All-in-One and Feature Packed





    For ease of configuration the cutting edge digital control board with backlit LCD screen is housed at the top of the unit allowing for easy changes to any one of the numerous features of the system.

    Further key benefits of the BKV system is the motor is controlled by an encoder giving precise and accurate operation along with its slowdowns, all completely adjustable including the High speed, low speed and approach points with the ability to have a soft start enabled where required.

    The stopping point at each end is controlled by an easy to setup and durable spring limit system not affected by the Australian climate (unlike magnetic limits).



    Four point adjustment

    36v electric sliding gate opener strongest low voltage adjustable tilt level system for concrete adaptive torque










    As is often the case concreting is never perfect and is more apparent once a motor is installed, this is remedied by the FOUR point adjustment system of the BKV.

    Simply adjust each corner of the motor chassis up/down to return the unit to level in both directions. This will allow for easy gear rack installation to the gate since alignment is set to suit

    Manual Release

    36v electric sliding gate opener strongest low voltage manual release adaptive torque



    Easy to use manual release incase of power outage. Insert the supplied key and turn to unlock the manual release lever. To release turn the manual release lever and now the gate can be opened and closed manually. If required an internal battery backup system is available for completely uninterrupted operation. The system is completely housed within the unit and allows for continued use at a 24V level.



    Specifications

    Maximum Gate Width 20M
    Maximum Gate Weight 1500KG Each
    Speed (M/Min) 8M/Min
    Encoder Yes
    Motor Power (Volts) 24V DC
    Power (Watts) 200W
    IP Rating 54
    Operating Temperature -20° to +55° C
    Thrust (Nm) 1200N
    Duty Cycle 100%

    Dimensions

    36v electric sliding gate opener strongest low voltage dimensions adaptive torque

    Digital Control Board


    By default the control board will be pre-configured for the best typical settings for most users however with the onboard digital display and easy to use scroll buttons the configuration options are almost endless. Out of the box it will be configured for Both Full Gate OPEN/CLOSE + Partial Opening Function (a set amount of the gates travel) typically you would start an automatic calibration, set the automatic close time and connect any accessories to the system to complete the installation.



    Power Inputs and Outputs

    Typical input and outputs to power the system and any wired in accessories

    Power Input Running on Full Time 24V
    24V Power Output For Accessories

    Automatic Weekly Timer

    Completely configurable times to open and close the gate automatically and also switch the relay output (great for garden lights).

    Selective choice of the 7 Days of the week settings, or the entire week
    12/24 Hour Format
    EACH timer event can be configured to Open the gate, Partial Opening or B1-2 Output Activated

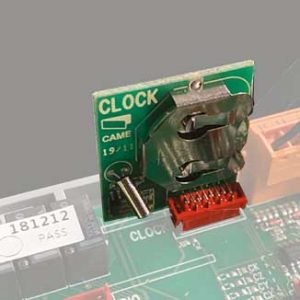

    * Plug in clock Module Required from the add on’s

    Configurable Methods Of Operation

    Along with the on board weekly timer wireless and Wired equipment can be configured in a number of different ways to support the best suited operation for the site, by default the system is configured for typical usage being full gate operation and pedestrian opening however as seen below it can be dynamically set according to specific requirements.

    ON BOARD WEEKLY TIMER Set the days and times in which you want the gate to open and close EASILY by the LCD screen *Plug In Clock Module Required from add on’s required
    Full Gate Operation by remote
    Partial by remote (Opens the gate partially)
    Open Only by remote
    Close Only by remote
    Open/Close Input by Wired Accessories
    Open only Input by Wired Accessories (loop Detector)
    Close only Input by Wired Accessories (loop Detector)
    Wired Emergency STOP Button

    Remote Operation

    The remote buttons can individually be programmed to work in any of the below settings for each button.

    OPEN-CLOSE (Reverting action if pressed part way through a cycle)
    OPEN-CLOSE (Sequential action if pressed part way through a cycle it will STOP)
    Partial Operation
    RELAY OUTPUT/STAY OPEN Feature (Pause automatic close)

    Motor Specifics

    Default configurations are already set however, if required further adjustment can be made to suit all installations

    Adaptive Torque
    ENCODER Control
    Automatic Calibration
    Motor Test (used for checking your directions prior to calibration)
    Adjustable Thrust
    Adjustable Travel Speed
    Adjustable Sensitivity
    Adjustable Slowdown Speed
    Adjustable Slowdown Position (Two Stages)


    36v automatic sliding gate motor

    Safety Devices

    Plenty of support to protect occupants, visitors and there vehicles with FOUR Safety Inputs completely configurable in there functionality and method of operation with 11 different Logic settings.

    Supports Photocell Sensors
    Supports Reflective Sensors
    Supports Safety Edge
    Supports Induction Loops for Safety
    Supports STOP Button
    Supports Maintained Action (Hold to OPEN/CLOSE)

    Light Control

    Multiple options for visible safety alerts, illuminating the driveway OR Both

    Flashing/Static Illuminated Light from OPEN til CLOSED
    Additional Output for Flashing During Opening

    Operational Control

    Infinite support for accessories and methods of operation

    Remote Controls
    Wireless Keypads
    Wired Keypads
    Wired Button
    Induction Loops
    Intercom Systems

    Relay Output B

    Default Can be set to work on a remote button and/or by the weekly timer

    Set to a latching ON/OFF Circuit
    Can be used to trigger an alarm, garage door or another gate
    Can be used to enable/disable an accessory at set times/days such as an entry or exit loop or a wired button and keypad
    Can be used to keep as a STAY OPEN function in the case of an automatic close timer, this is great for trailer and truck access, a time when multiple visitors may be using the gate, etc.

    Control Board Security

    A secure password can be set on the control board to prevent unauthorized users from accessing and adjusting its functions. This is an excellent feature in even low risk settings preventing unauthorized users from being able to operate the gate from the menu.





    STX4K Keyring High Range Remote

    Automation systems Australia keyring remote control for driveway gate
    The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

    The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).

    Key Features

    ✓ Up to 100 metres distance in open air
    ✓ Keeloq rolling code security
    ✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
    ✓ Clear visibility red LED indicator which will illuminate upon a button press
    ✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
    ✓ Slimline and modern ergonomic design
    ✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module


    High Wattage PREMIUM Monocrystalline Solar Panel + Adjustable 30mm Fence Mounting Post


    Solar Panel can be installed vertically or horizontally.


    ✓ PREMIUM QUALITY Monocrystalline 24V Solar Panel
    ✓ True IP67 Rating
    ✓ 97% or greater power tolerance
    ✓ Anodized Silver Aluminum Frame
    ✓ Long 10 Metre Cable (or cut to required size)
    ✓ Three Solar System Arrangement (1x 60W, 120W (2x60W Panels) or 180W (3x 60W Panels)) Each panel is supplied with its own post
    Maximum Power(Pmax)60W/120W/180W
    Optimum Operating Voltage(Vmp)35.5V
    Optimum Operating Current(Imp)1.13A
    Open Circuit Voltage(Voc)43.1V
    Short Circuit Current(Isc)3.4A/6.8A/10.2A
    Power Tolerance-1%~+3%
    Operating Module Temperature40 C to +85 C

    Heavy Duty Solar Pole


    ✓ Powder Coated 30mm Diameter Steel Mounting Pole, Adapter and Plate
    ✓ Allows for Panel installation in a Vertical or Horizontal Orientation
    ✓ Pre-Set Fixed Angle best suited for the southern hemisphere
    ✓ Mounts to Fence, Wall or Post by supplied saddles to suit all installations

    CERO Built IN ready to go PWM Solar Regulator

    Cero pwm solar regulator

    The Cero Solar Regulator is PWM type suited for Gel, Sealed and Flooded batteries. It operates in a 3 stage charging control to ensure optimal performance to the batteries and provide the greatest longevity. The Cero is has protections in place in case of errors and failures in the solar panel installation or battery installation and will shut down in the case of short circuit and overload, then restart once clear.

    The LCD display provides accurate data on the current input voltage from the solar panel, the current stage of charging and also the current battery voltage making it easy to check the status on the fly.

    ✓ Large copper input terminals (12-28AWG)
    ✓ Ribbed metal heat sink across the entire back side
    ✓ LCD Display
    ✓ 3 Stage PWM Management (Bulk, Boost, Float)
    ✓ Supports Sealed, Gel and Flooded Batteries
    ✓ Short Circuit, Open Circuit ,Overload Protection along with multiple other protections
    ✓ Allows for a total of 10 Amps Inputs
    ✓ High Efficiency
    ✓ USB Terminal
    ✓ Temperature Compensation
    ✓ Low voltage disconnect and reconnect

    Battery System

    alpha battery boxes 24v

    Supplied with an external Dual DEEP CYCLE battery system 24V 15aH system as standard in a SLIMLINE Waterproof and Dust Proof Rated Enclosure (IP67 Cable Gland Supplied), there are a total of THREE battery capacity options available.

    Option 1 (Premier 24-15B): The 15aH Deep Cycle setup allow for up to a two and a half weeks of usage without any charge from the solar panel in a typical residential installation of 10 cycles per days (whilst factoring in standby power), this is the ideal choice for areas that may see a consistent week of poor weather poor weather through winter without sunlight. This is great choice VIC, NSW, SA, ACT, TAS, QLD, NT and WA.

    Option 2 (Premier 24-22B): The 22aH Deep Cycle setup allows for well over three weeks in a typical residential installation of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). It can also support Light commercial usage.

    Option 3 (Premier 24-26B): The 26aH Deep Cycle setup allows for well over four weeks in a typical residential installation of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). It can also support Medium commercial usage of 10-15 operations per day for a period of approx. 2 weeks.

    Option 4 (Premier 24-55B): The 55aH Deep Cycle setup allows for well over eight to nine weeks in a typical residential installation of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). It can also support higher duty commercial usage of 60 operations per day for a period of approx. 1 weeks. It should be considered in these applications to upgrade the solar panel option to 180 Watts.

    The allowances are general in nature and typically factor for a continuous period taking into account overcast and other poor weather conditions along with wet seasons that will contribute to a no charge/minimal charge result from the solar system. These allowances do not take into account shade on the solar panel which will effect the overall charging.

    These allowances DO NOT take into account WiFi and Bluetooth Modules, as system consumption will increase using one of these devices Always use the next option up from requirment.

        Premier 24-15B Premier 24-22B Premier 24-26B Premier 24-55B
    IP Rating   IP67 Waterproof IP67 Waterproof IP67 Waterproof IP67 Waterproof
    Battery   2x 15aH DEEP CYCLE 2x 22aH DEEP CYCLE 2x 26aH DEEP CYCLE 2x 55aH DEEP CYCLE
    Enclosure Dimensions (L x W x D)   220x290x130mm 400x300x170mm 400x300x170mm 400x300x170mm (x2)
    Recommended Usage by State (General Guideline)   All States All States + Light Commercial All States + Medium Commercial All States + Higher Duty Commercial
    Cable Inlet/Outlet (Weatherproof)   6x Supplied 3x Supplied 3x Supplied 3x Supplied
    Mounting Method   Through Box External Mounting Bracket (supplied) External Mounting Bracket (supplied) External Mounting Bracket (supplied)

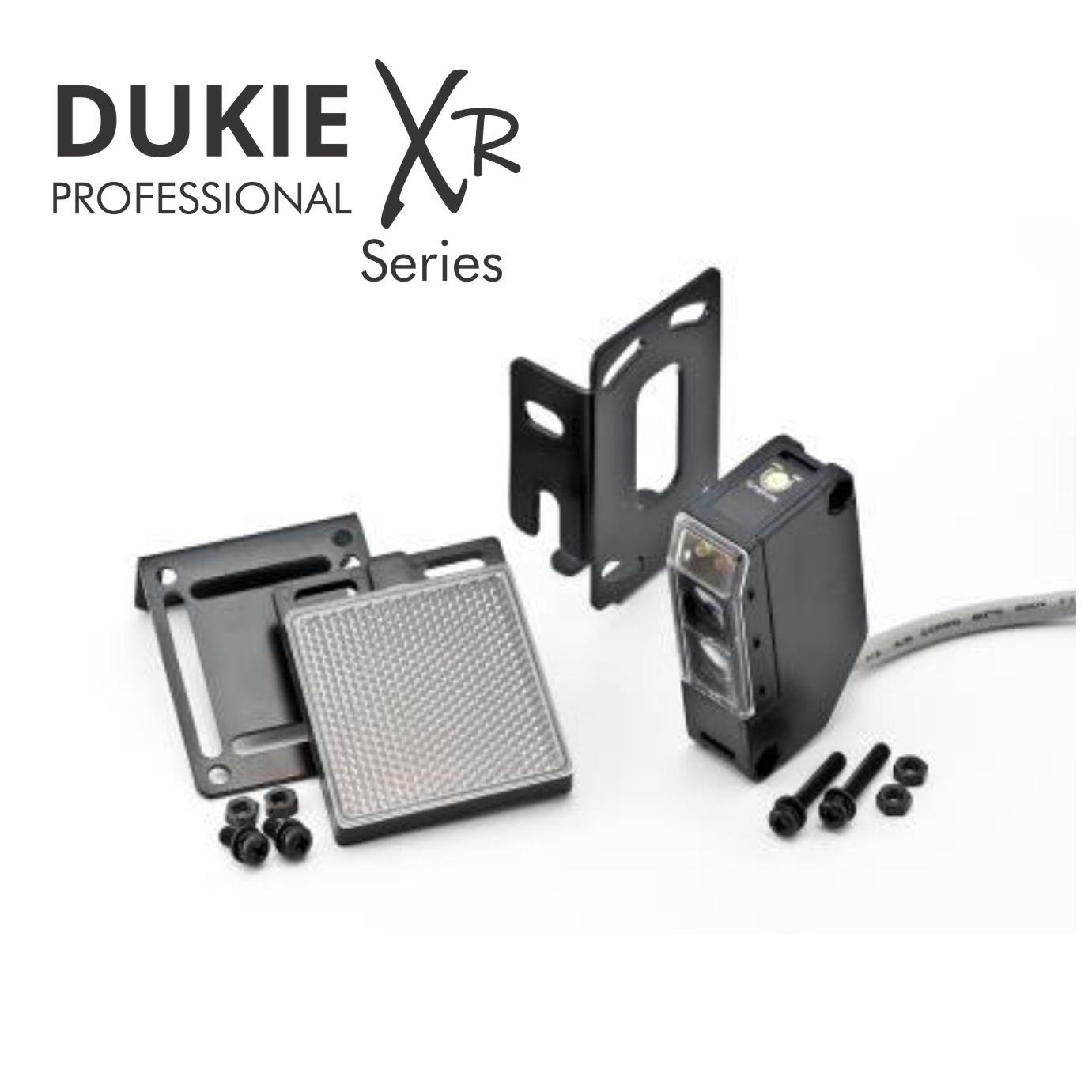

    Dukie XR Retro-Reflective Sensor

    Dukie XR Reflective Sensor Automatic gate and garage door photocell

    The Dukie XR series retro-reflective sensor kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Only the sensor requires wiring back to the gate controller as the sensor bounces its own beam back via the reflector installed on the far side of the driveway.

    Added benefits of the XR series photocell is its Anti Interference Infrared characteristics making it best suited for ultra high capacity electric motors.



    Key Features

    ✓ No wiring needed across the driveway (reflector)
    ✓ Narrow Sensor only 20mm width

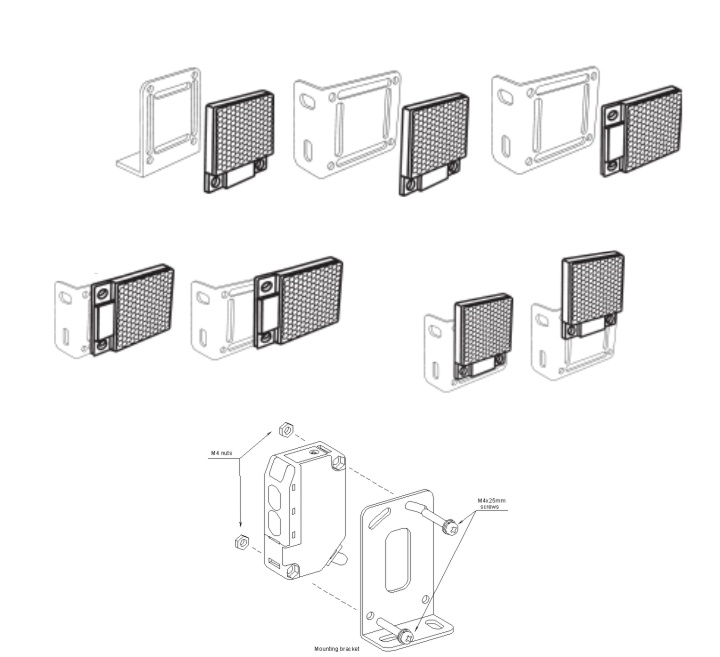

    ✓ Flexible with multiple different mounting methods
    ✓ NO and NC Relay Options
    ✓ Excellent range characteristics of up to 11 meter distance in clear conditions (-40% in adverse conditions)

    Kit Contents (See Description Tab for Full In-Depth Details)

    • Bulky item
      Description

      Galvanized Cantilever Channel for C8MN and C16M Cantilever System

      bottom catcher for cantilever front wheel
      ✓ 5mm Wall Thickness ✓ Suitable for welding to the gate, screwing to the gate and other attachment methods
      x

      Cantilever Galvanized Steel Channel 3 Meter Length (8/16 Wheel Type) for C8MN C16M

      Out Of Stock

    • Description

      16 Wheel Cantilever Carriage

      8 wheel floating sliding cantilever gate carriage
      ✓ 16 Bearing Wheels ✓ Supports up to 900KG Max. Weight Gate ✓ 12mm Base Plate
      x

      16 Wheel Cantilever Carriage System for C16M System × 2

      Out Of Stock

    • Bundled product placeholder image
      No description available...
      x

      Upper Guide System

      Out Of Stock
      Four Point Roller System B (ZERO-110mm)

    • Description

      Resting Point/Catcher

      bottom catcher for cantilever front wheel
      ✓ Resting point for Guide Wheel ✓ Used as the Top catcher position ✓ If using an additional guide wheel for the open position an additional rest point will also be required
      x

      100mm Cantilever Sliding Gate TOP/BOTTOM Catcher Receiver U Guide C8MN C16M

      Out Of Stock

    • Description

      Guide Wheel for C8MN and C16M Channel

      front wheel for cantilever gate 8 wheel channel
      ✓ Rests on the resting bottom catcher in the closed position ✓ Additional can be used for the open position (requires additional resting point bottom catcher) ✓ Clamps in place by tightening the bottom bolts
      x

      Front Wheel for 8 and 16 Wheel Cantilever Carriage Channel C8MN C16M

      Out Of Stock

    • 36v electric sliding gate opener strongest low voltage
      Description

      Please note this is a replacement operator and is not supplied with gear rack, remotes or receiver card.

      Super Duty 36V Sliding Gate Motor with Encoder and Limit Switches

      36v electric sliding gate opener strongest low voltage external overview adaptive torque



      The BKV range is the pinnacle of the sliding gate automation industry. Still low voltage but at the leading power range of 36V this adaptive torque designed sliding gate system is suited for any gate weight, slope, and length.

      Suitable for commercial, industrial and Residential Installation of all weights and sizes whether a 20m long commercial gate or a heavy merbau cladded gate at home the BKV makes easy work of it with the ability to run at 100% duty cycle (24HR operation) where required with a maximum capacity of 1500KG weight or a 20 Meter Long Gate.

      Still carrying the CAME typical top of the line features such as three stage speed control all adjustable, precise encoder travel DC motor, reliable spring limit system PLUS the option of a plug in weekly timer (no wiring bulky hard to program timers) and all still with the easy to use an intuitive LCD interface.

      Both 2000KG and 2500KG versions are also available if required for heavier project and custom applications.

      All-in-One and Feature Packed



      For ease of configuration the cutting edge digital control board with backlit LCD screen is housed at the top of the unit allowing for easy changes to any one of the numerous features of the system.

      Further key benefits of the BKV system is the motor is controlled by an encoder giving precise and accurate operation along with its slowdowns, all completely adjustable including the High speed, low speed and approach points with the ability to have a soft start enabled where required.

      The stopping point at each end is controlled by an easy to setup and durable spring limit system not affected by the Australian climate (unlike magnetic limits).

      36v electric sliding gate opener strongest low voltage overview inside adaptive torque

      Four point adjustment

      36v electric sliding gate opener strongest low voltage adjustable tilt level system for concrete adaptive torque




      As is often the case concreting is never perfect and is more apparent once a motor is installed, this is remedied by the FOUR point adjustment system of the BKV.

      Simply adjust each corner of the motor chassis up/down to return the unit to level in both directions. This will allow for easy gear rack installation to the gate since alignment is set to suit

      Manual Release

      36v electric sliding gate opener strongest low voltage manual release adaptive torque



      Easy to use manual release incase of power outage. Insert the supplied key and turn to unlock the manual release lever. To release turn the manual release lever and now the gate can be opened and closed manually. If required an internal battery backup system is available for completely uninterrupted operation. The system is completely housed within the unit and allows for continued use at a 24V level.

      Specifications

      36v electric sliding gate opener strongest low voltage specifications adaptive torque
      Maximum Gate Width20M
      Maximum Gate Weight1500KG Each
      Speed (M/Min)12M/Min
      EncoderYes
      Motor Power (Volts)24V DC
      Power (Watts)200W
      IP Rating54
      Operating Temperature-20° to +55° C
      Thrust (Nm)1200N
      Duty Cycle100%

      Dimensions

      36v electric sliding gate opener strongest low voltage dimensions adaptive torque

      Digital Control Board


      By default the control board will be pre-configured for the best typical settings for most users however with the onboard digital display and easy to use scroll buttons the configuration options are almost endless. Out of the box it will be configured for Both Full Gate OPEN/CLOSE + Partial Opening Function (a set amount of the gates travel) typically you would start an automatic calibration, set the automatic close time and connect any accessories to the system to complete the installation.

      Power Inputs and Outputs

      Typical input and outputs to power the system and any wired in accessories

      36V Power Input
      24V Power Output For Accessories

      Automatic Weekly Timer

      Completely configurable times to open and close the gate automatically and also switch the relay output (great for garden lights).

      Selective choice of the 7 Days of the week settings, or the entire week
      12/24 Hour Format
      EACH timer event can be configured to Open the gate, Partial Opening or B1-2 Output Activated
      * Plug in clock Module Required from the add on’s

      Configurable Methods Of Operation

      Along with the on board weekly timer wireless and Wired equipment can be configured in a number of different ways to support the best suited operation for the site, by default the system is configured for typical usage being full gate operation and pedestrian opening however as seen below it can be dynamically set according to specific requirements.

      ON BOARD WEEKLY TIMER Set the days and times in which you want the gate to open and close EASILY by the LCD screen *Plug In Clock Module Required from add on’s required
      Full Gate Operation by remote
      Partial by remote (Opens the gate partially)
      Open Only by remote
      Close Only by remote
      Open/Close Input by Wired Accessories
      Open only Input by Wired Accessories (loop Detector)
      Close only Input by Wired Accessories (loop Detector)
      Wired Emergency STOP Button

      Remote Operation

      The remote buttons can individually be programmed to work in any of the below settings for each button.

      OPEN-CLOSE (Reverting action if pressed part way through a cycle)
      OPEN-CLOSE (Sequential action if pressed part way through a cycle it will STOP)
      Partial Operation
      RELAY OUTPUT/STAY OPEN Feature (Pause automatic close)

      Motor Specifics

      Default configurations are already set however, if required further adjustment can be made to suit all installations

      Adaptive Torque
      ENCODER Control
      Automatic Calibration
      Motor Test (used for checking your directions prior to calibration)
      Adjustable Thrust
      Adjustable Travel Speed
      Adjustable Sensitivity
      Adjustable Slowdown Speed
      Adjustable Slowdown Position (Two Stages)


      36v automatic sliding gate motor

      Safety Devices

      Plenty of support to protect occupants, visitors and there vehicles with FOUR Safety Inputs completely configurable in there functionality and method of operation with 11 different Logic settings.

      Supports Photocell Sensors
      Supports Reflective Sensors
      Supports Safety Edge
      Supports Induction Loops for Safety
      Supports STOP Button
      Supports Maintained Action (Hold to OPEN/CLOSE)

      Light Control

      Multiple options for visible safety alerts, illuminating the driveway OR Both

      Flashing/Static Illuminated Light from OPEN til CLOSED
      Additional Output for Flashing During Opening

      Operational Control

      Infinite support for accessories and methods of operation

      Remote Controls
      Wireless Keypads
      Wired Keypads
      Wired Button
      Induction Loops
      Intercom Systems

      Relay Output B

      Default Can be set to work on a remote button and/or by the weekly timer

      Set to a latching ON/OFF Circuit
      Can be used to trigger an alarm, garage door or another gate
      Can be used to enable/disable an accessory at set times/days such as an entry or exit loop or a wired button and keypad
      Can be used to keep as a STAY OPEN function in the case of an automatic close timer, this is great for trailer and truck access, a time when multiple visitors may be using the gate, etc.

      Control Board Security

      A secure password can be set on the control board to prevent unauthorized users from accessing and adjusting its functions. This is an excellent feature in even low risk settings preventing unauthorized users from being able to operate the gate from the menu.

      x

      1500 KG 24V Low Voltage Super Duty Sliding Gate Motor

      • Ultimate Power
      • 1500KG /20 Mtr Capacity
      • Internal Stepdown Transformer
      • Prewired with Power Cord (1.2m)
      • 3 Stage Speed
      • Encoder Control
      Show more
      • Ultimate Power
      • 1500KG /20 Mtr Capacity
      • Internal Stepdown Transformer
      • Prewired with Power Cord (1.2m)
      • 3 Stage Speed
      • Encoder Control
      ×
      Out Of Stock

    • Description

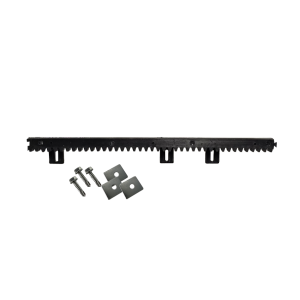

      Extra Heavy Duty Sliding Gate Gear Rack

      • 520mm Lengths
      • Black Nylon
      • Steel Core
      • Interlocking with Key on one end, Keyway on the other for precise alignment
      • 3 Lug fixing facing downwards
      x

      QUIET 520mm (Clip In Key - Keyway) Sliding Gate Gear Rack Nylon Coated over Steel Reinforced

      Out Of Stock

    • Description

      Please be aware this product is only compatible with Automation Systems Australia Control Boards and Remote Receivers, it will NOT work with other brand products.

      STX4K Keyring High Range Remote

      Automation systems Australia keyring remote control for driveway gate
      The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

      The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).

      Key Features

      ✓ Up to 100 metres distance in open air
      ✓ Keeloq rolling code security
      ✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
      ✓ Clear visibility red LED indicator which will illuminate upon a button press
      ✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
      ✓ Slimline and modern ergonomic design
      ✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

      x

      Four Button Keyring Remote Control (White)

      • Up to 100 Metre Open Air Distance
      • High Security Rolling Code
      • Slimline and Ergonomic
      Show more
      • Up to 100 Metre Open Air Distance
      • High Security Rolling Code
      • Slimline and Ergonomic
      ×
      Out Of Stock
      Clear
      Out Of Stock

    • Description

      Please be aware this product is only compatible with Automation Systems Australia Control Boards and Remote Receivers, it will NOT work with other brand products.

      STX4K Keyring High Range Remote

      Automation systems Australia keyring remote control for driveway gate
      The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

      The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).

      Key Features

      ✓ Up to 100 metres distance in open air
      ✓ Keeloq rolling code security
      ✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
      ✓ Clear visibility red LED indicator which will illuminate upon a button press
      ✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
      ✓ Slimline and modern ergonomic design
      ✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

      x

      Four Button Keyring Remote Control (Black)

      • Up to 100 Metre Open Air Distance
      • High Security Rolling Code
      • Slimline and Ergonomic
      Show more
      • Up to 100 Metre Open Air Distance
      • High Security Rolling Code
      • Slimline and Ergonomic
      ×
      Out Of Stock
      Clear
      Out Of Stock

    • Description

      Dual Channel Remote Control Receiver

      two channel receiver for garage door automatic gate alarm system
      Working with the STX4K, STX4L and Dex4 Wireless equipment the Two Channel receiver offers the ability to control up to two individual devices/systems separately such as automatic gate systems, garage doors, alarm systems and almost any device with the requiring a momentary pulse OR latching circuit to operate.

      The RX-2-UNI-DW has factory connected wiring on the receiver allowing for faster integration into the host system saving time and unnecessary tedious wiring. The wiring for the two relays is a common ground meaning only one reciever to one host system with a maximum of two functions. If one receiver is to be connected into TWO host systems consider the RX-2-UNI which has two separate relay commons.



      Specifications

      Operating Voltage 12-30VDC/12-24VAC
      Operating Current 9mA standby
      Relay Switching Current Capacity 3A Momentary/500mA Latching
      Frequency 433mhz
      Compatible Transmitters (tX) STX4L, STX4K, Dex4,PB-WIRELESS-TOUCH1,WPB-PRESS-WIRELESS,WPB-MHEAD-WIRELESS
      Wire Length 27CM
      x

      Receiver for Remote Control Operation

      Operate your garage door from a different button on the remote using this expander module.

      Show more

      Operate your garage door from a different button on the remote using this expander module.

      ×
      Out Of Stock

    • Description

      High Wattage PREMIUM Monocrystalline Solar Panel + Adjustable 30mm Fence Mounting Post


      Solar Panel can be installed vertically or horizontally.


      ✓ PREMIUM QUALITY Monocrystalline 24V Solar Panel
      ✓ True IP67 Rating
      ✓ 97% or greater power tolerance
      ✓ Anodized Silver Aluminum Frame
      ✓ Long 10 Metre Cable (or cut to required size)
      ✓ Three Solar System Arrangement (1x 60W, 120W (2x60W Panels) or 180W (3x 60W Panels)) Each panel is supplied with its own post
      Maximum Power(Pmax)60W/120W/180W
      Optimum Operating Voltage(Vmp)35.5V
      Optimum Operating Current(Imp)1.13A
      Open Circuit Voltage(Voc)43.1V
      Short Circuit Current(Isc) 40/80/120W3.4A/6.8A/10.2A
      Power Tolerance-1%~+3%
      Operating Module Temperature40 C to +85 C

      Heavy Duty ADJUSTABLE Solar Pole



      ✓ Powder Coated 30mm Diameter Steel Mounting Pole, Adapter and Plate
      ✓ Allows for Panel installation in a Vertical or Horizontal Orientation
      ✓ Pre-Set Fixed Angle best suited for the southern hemisphere
      ✓ Mounts to Fence, Wall or Post by supplied saddles to suit all installations
      x

      24V Solar Panel and Heavy Duty Post Installation System

      Out Of Stock
      10m Cable

    • Description

      Battery System

      alpha battery boxes 24v

      Supplied with an external Dual DEEP CYCLE battery system 24V 15aH system as standard in a SLIMLINE Waterproof and Dust Proof Rated Enclosure (IP67 Cable Gland Supplied), there are a total of THREE battery capacity options available.

      Option 1 (Premier 24-15B): The 15aH Deep Cycle setup allow for up to a two and a half weeks of usage without any charge from the solar panel in a typical residential installation of 10 cycles per days (whilst factoring in standby power), this is the ideal choice for areas that may see a consistent week of poor weather poor weather through winter without sunlight. This is great choice VIC, NSW, SA, ACT, TAS, QLD, NT and WA.

      Option 2 (Premier 24-22B): The 22aH Deep Cycle setup allows for well over three weeks in a typical residential installation of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). It can also support Light commercial usage.

      Option 3 (Premier 24-26B): The 26aH Deep Cycle setup allows for well over four weeks in a typical residential installation of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). It can also support Medium commercial usage of 10-15 operations per day for a period of approx. 2 weeks.

      Option 4 (Premier 24-55B): The 55aH Deep Cycle setup allows for well over eight to nine weeks in a typical residential installation of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). It can also support higher duty commercial usage of 60 operations per day for a period of approx. 1 weeks. It should be considered in these applications to upgrade the solar panel option to 180 Watts.

      The allowances are general in nature and typically factor for a continuous period taking into account overcast and other poor weather conditions along with wet seasons that will contribute to a no charge/minimal charge result from the solar system. These allowances do not take into account shade on the solar panel which will effect the overall charging.

      These allowances DO NOT take into account WiFi and Bluetooth Modules, as system consumption will increase using one of these devices Always use the next option up from requirment.

          Premier 24-15B Premier 24-22B Premier 24-26B Premier 24-55B
      IP Rating   IP67 Waterproof IP67 Waterproof IP67 Waterproof IP67 Waterproof
      Battery   2x 15aH DEEP CYCLE 2x 22aH DEEP CYCLE 2x 26aH DEEP CYCLE 2x 55aH DEEP CYCLE
      Enclosure Dimensions (L x W x D)   220x290x130mm 400x300x170mm 400x300x170mm 400x300x170mm (x2)
      Recommended Usage by State (General Guideline)   All States All States + Light Commercial All States + Medium Commercial All States + Higher Duty Commercial
      Cable Inlet/Outlet (Weatherproof)   6x Supplied 3x Supplied 3x Supplied 3x Supplied
      Mounting Method   Through Box External Mounting Bracket (supplied) External Mounting Bracket (supplied) External Mounting Bracket (supplied)
      x

      24V DEEP CYCLE Battery System in Enclosure

      Out Of Stock
      Clear
      Out Of Stock

    • Description

      Dukie XR Retro-Reflective Sensor

      Dukie XR Reflective Sensor Automatic gate and garage door photocell

      The Dukie XR series retro-reflective sensor kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Only the sensor requires wiring back to the gate controller as the sensor bounces its own beam back via the reflector installed on the far side of the driveway.

      Added benefits of the XR series photocell is its Anti Interference Infrared characteristics making it best suited for ultra high capacity electric motors.



      Key Features

      ✓ No wiring needed across the driveway (reflector)
      ✓ Narrow Sensor only 20mm width
      ✓ Flexible with multiple different mounting methods
      ✓ NO and NC Relay Options
      ✓ Excellent range characteristics of up to 11 meter distance in clear conditions (-40% in adverse conditions)

      Sliding Gate Layout

      Dukie XR Reflective Sensor Automatic gate and garage door photocell

      Swing Gate Layout

      Dukie XR Reflective Sensor Automatic gate and garage door photocell

      General Assembly

      Dukie XR Reflective Sensor Automatic gate and garage door photocell

      Specifications

      Voltage DC: 12-240V AC:24-240V
      Consumption ~30mA
      Relay NO/NC (1A)
      Range 11m Max. (-40%) Poor Conditions
      IP Rating IP66
      Operating Temperature -12°C-55°C
      x

      Dukie XR Series Reflective Sensor Kit

      Wired on both sides Protects the vehicles in the path of the infrared beam. Functioning on a 32KHZ frequency providing the best anti-interference operation for high power motors.

      Show more

      Wired on both sides Protects the vehicles in the path of the infrared beam. Functioning on a 32KHZ frequency providing the best anti-interference operation for high power motors.

      ×
      Out Of Stock

    Optional Add On's

    • Description

      End Cap for C8MN Channel

      end cap for 8 wheel cantilever channel
      ✓ Used to encase the open positions end of channel when not using an additional wheel ✓ Clamps in place by tightening the two bolts
      x

      End Cap for 8 and 16 Wheel Cantilever Carriage Channel C8MN C16M

      Out Of Stock

    • Description

      Please be aware this product is only compatible with Automation Systems Australia Control Boards and Remote Receivers, it will NOT work with other brand products.

      STX4L Ultra Long Distance Remote

      Automation systems Australia Long Distance remote control for driveway gate
      The STX4L Long distance remote is a class leader in Ultra long distance (up to 800 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

      The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).

      The long distance remote is most useful around larger properties able to operate the gate from sheds, buildings and the home where a typical remote would not be able to achieve the same operating distance.

      Key Features

      ✓ Up to 800 metres distance in open air
      ✓ Keeloq rolling code security
      ✓ Easy to Use buttons
      ✓ ON/OFF switch to prevent accidental operation
      ✓ Clear visibility LED indicator which will illuminate upon a button press
      ✓ Narrow handheld design
      ✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

      x

      Automatic Gate Long Distance Remote Control (Long Range Remote)

      • Up to 800 Metre Open Air Distance
      • High Security Rolling Code
      • Side Switch Prevents Accidental Operations
      Show more
      • Up to 800 Metre Open Air Distance
      • High Security Rolling Code
      • Side Switch Prevents Accidental Operations
      ×
      Out Of Stock

    • Description

      Please be aware this product is only compatible with Automation Systems Australia Control Boards and Remote Receivers, it will NOT work with other brand products.

      Dex 4 Wireless Keypad

      wireless automatic gate keypad

      The Dex 4 Wireless Keypad can communicate directly to the gate system using the same Keeloq secure rolling code signal as the remotes allowing for an easy installation process without the need for wiring.

      Due to its high quality chipset the open air signal strength can exceed an astounding 80 meters. This makes the Dex 4 not only suited to controlling the gate but could actually be used to control the garage door, another gate etc. providing they have the compatible receiver installed, Up to FOUR devices/features could be used with individual pin codes for each due to its four independent output channel designs.

      Key Features

      ✓ Three colour options are available: Classic White, Subtle Grey and Deep black
      ✓ Compact design fits almost anywhere at 90(L)x77(W)x35(D)mm
      ✓ Control Up to four systems or four features on different pin codes
      ✓ Astounding open air distance of 80 metres
      ✓ Works on 2x AAA batteries (supplied)
      ✓ Audible and LED indicators
      ✓ Totally wireless (wire free) easy installation

      Power 2xAAA Batteries (Supplied)
      Operating Distance 80 Meters Open Air
      Frequency Secure Rolling Code 433MHZ
      Operating Channels 4
      Transmitting Time 1.5s
      x

      Wireless Keypad (Three colour options)

      Four channel wireless keypad allowing for full control of all automatic gate features without the need for wiring.

      Show more

      Four channel wireless keypad allowing for full control of all automatic gate features without the need for wiring.

      ×
      Out Of Stock

    • Description

      Tekno 4 4G VOLTE Intercom

      3G 4G LTE GSM Control mobile phone Automatic gate and garage door
      The Tekno 4V is the solution for gates and entry ways that are unable to have a hard wired or Wi-Fi intercom. It uses Voice over LTE (VOLTE) which is the required standard to use a 4G based device in Australia. It can be used in just about all locations with a 98% network coverage of Australia. The Tekno 4V is powered by 12V DC (adapted supplied) it will allow for a guest to press the call button, at this time the Tekno 4V will begin calling its enrolled admin users in sequence (can be a mobile or landline, individual person or an office). Once the call is answered the admin user and the guest have two-way handsfree communication at which point a command can be given by the admin user to operate the system. If a call was not answered by the admin user the Tekno 4V will call the second admin then the third admin. Cleverly designed the Tekno 4V has an adjustable maximum ringing time to avoid being answered by voice mails.

      Key Features

      ✓ No distance limitations unlike traditional intercom systems ✓ Communication with guest (Two-Way) using mobile network (4G VOLTE) ✓ Automatically chooses the best 4G VOLTE service connection based on mobile reception ✓ Can operate any access control system (Automatic gates, boom gates, garage doors, electric strikers, magnetic locks etc.) with ADJUSTABLE relay time ✓ Three admin users called in sequence til answered/end of list is reached ✓ Configurable Maximum ringing time (Avoids voice mails) and Configurable Maximum talking time ✓ Enable and Disable the LED ring around the call button ✓ Unlock during a call or anytime by SMS ✓ No computers or APPs needed, configured easily by SMS commands ✓ Nano Sim using any network provider with best coverage in your area

      Tekno 4V VOLTE Intercom Dimensions

      small size gsm intercom solution

      Specifications

      Operating Voltage 12V DC
      Power Consumption 45mA Standby/<130mA Initialization and calling
      IP Rating IP54
      Sim Card Size Nano Sim
      VOLTE YES
      4G Network TDD: 2300(B40)>FDD 2100(B1)/1800(B3)/2600(B7)/900(B8)/1900 (B2)/1700(B4)/850 (B5)/700APT(B28)
      3G Network 2100(B1)/1900(B2)/850(B5)/90038)

      Electric Striker (Fail-Safe and Fail-Secure)

      3G 4G LTE GSM Control electric striker and electric lock</span >

      Automation Systems (Automatic Gates, Boom Gates, etc)

      3G 4G LTE GSM Control mobile phone Automatic gate and garage door</span >
      x

      Tekno 4V 4G VOLTE Intercom System by Sim Card works in Rural Properties and Commercial Industrial Gate intercom

      Out Of Stock

    • Description

      Tekno S1 4G VOLTE GSM Switch

      3G 4G LTE GSM Control mobile phone Automatic gate and garage door
      The Tekno S1 is a 4G VOLTE flexible control device allowing for connection to the gate system and operation from anywhere in the world by a simple phone call. Easy to install and configure it is the best solution when no Wi-Fi or internet connection is available and a great alternative to APP based control. The requirement is good 4G Network at the gate position and a sim card that can accept voice calls (not data specific sims).

      Key Features

      ✓ Call your gate from ANYWHERE in the world
      ✓ Control by SMS
      ✓ Can be configured to allow for Authorized users (Telephone numbers allowed to operate the S1) or Public Mode (Anyone)
      ✓ Fits directly into the system, no extras required
      ✓ Simple connection and simple setup
      ✓ 999 Users Allowance
      ✓ SMS Notifications to Admin per operation even (can be disabled)

      The Tekno S1 can work with all 4G Telco providers however please note the recommended network of choice is Telstra providing the strongest 4G coverage.

      Product Overview

      3G 4G LTE GSM Control mobile phone Automatic gate and garage door

      Specifications

      Operating Voltage 9-36V DC
      Power Consumption 45mA Standby/<130mA Initialization and calling
      Sim Card Size Length Nano Sim
      4G Network TDD: 2300(B40)>FDD 2100(B1)/1800(B3)/2600(B7)/900(B8)/1900 (B2)/1700(B4)/850 (B5)/700APT(B28)
      3G Network 2100(B1)/1900(B2)/850(B5)/90038)
      x

      Tekno S1 4G VOLTE GSM Controller Sim Card Gate Controller 4G

      Out Of Stock

    • Description

      Commercial Double Mount Gooseneck Pedestal Bollard for Driveways (Car's and Truck's)

      Commercial Double Mount Gooseneck Pedestal Bollard for Driveways Car and Truck
      Suitable for all commercial applications requiring a DOUBLE keypad or intercom post the gooseneck pedestal is designed for residential use whilst retaining an extremely strong from factor. Built from pre-galvanized 100x100mm SHS tube welded to a 200x200mm base plate it allows for a simple bolt down installation to a concrete footing, curb or traffic island.

      Key Features

      ✓ Spacious rain hood to suit most access controllers/intercoms ALSO REVERSABLE and can be used as a backing plate for very large and very small access controllers/intercoms ✓ Easy four bolt installation to join the top and bottom sections ✓ Anti deformation with 200x200x5mm thick base plate (pre-punched for dynabolts/masonry anchors) ✓ Rigid and durable ✓ Pre-Galvanized Steel (100x100mm) ✓ Minimized risk with the perfect amount of extension (220mm from back of post to back of rain hood) ✓ Safety Yellow Powder Coating

      Rain hood internal dimensions 115mm (H) x 65mm (W), Top Depth 65mm/Bottom Depth 40mm, The rain hood can also be installed in reverse to be used as a backing plate for your own rain hood.

      x

      Truck and Car Double pedestal Gooseneck Bollard 100x100 Steel Safety Yellow Powder Coat (commercial/industrial)

      Out Of Stock

    • Description

      Gooseneck Pedestal Bollard for Driveways

      Gooseneck bollard for intercom, keypad door bell
      Suitable for all applications requiring a keypad or intercom post the gooseneck pedestal is designed for residential use whilst retaining an extremely strong from factor. Built from pre-galvanized 75x75mm SHS tube welded to a 150x150mm base plate it allows for a simple bolt down installation to a concrete footing, curb or traffic island.

      Key Features

      ✓ Spacious rain hood to suit most access controllers/intercoms ALSO REVERSABLE and can be used as a backing plate for very large and very small access controllers/intercoms ✓ Easy four bolt installation to join the top and bottom sections ✓ Anti deformation with 175x175x5mm thick base plate (pre-punched for dynabolts/masonry anchors) ✓ Rigid and durable ✓ Pre-Galvanized Steel (75x75mm) ✓ Minimized risk with the perfect amount of extension (220mm from back of post to back of rain hood) ✓ Satin Black Powder Coating (NIGHT SKY COLOUR)

      Rain hood internal dimensions 115mm (H) x 65mm (W), Top Depth 65mm/Bottom Depth 40mm, The rain hood can also be installed in reverse to be used as a backing plate for your own rain hood.

      x

      Gooseneck pedestal bollard for intercom, keypad door bell 75x75 Steel Satin Black Powder Coat (residential)

      Out Of Stock

    • Description

      WIRELESS Automatic Vehicle Detection Sensor – for Automatic Opening of gate

      wireless automatic driveway gate exit sensor

      An easy to install WIRELESS AUTOMATIC OPENING driveway vehicle detection system

      Multiple hours saved, materials saved and frustrations gone

      Long gone are the days of cutting concrete, chasing wires and configuring induction loop detectors (ground loop). Finally, a simple WIRELESS solution to streamline the installation process.
      The WIRELESS loop detector SIMPLY BOLT DOWN to a concrete driveway (or concrete pad in gravel driveways) and wirelessly communicate back with the gate system using the supplied high security (128 Bit) transceiver for two way communication between the New Generation wireless loops.

      The wireless exit “loop” is maintenance free and installed with 2x AA Lithium batteries for a THREE YEAR use period before a battery replacement is required (regular usage), to replace the batteries simply remove the top cover and fit the new Lithium AA batteries.

      How does it work and what happens if I accidently drive over it?
      The wireless loop is designed for a vehicle to drive over and will detect the undercarriage of the vehicle, if its accidently driven over it presents no issue whatsoever as its casing carries a static load capacity of 2500kg.

      How far can i have it from the gate?
      Thanks to its high transmission range capabilities it has a maximum wireless operating distance of 50 meters.

      How big is it?
      Its compact form factor allows for a discreet installation measuring only 120x120mm Length and Width and only 30mm in height.

      Will it work with my system?
      Typically, YES, it will work with any gate system that has an open command input and an accessories voltage output of 12-24V DC

      Which installations does this suit?
      Any domestic installations which fit the following criteria:
      ✓A concrete pad or driveway is available for the device to be installed on to
      ✓When a vehicle is parked it does not sit within 3 meters of the device
      ✓The device does not sit in a recess and pool water, snow or any debris
      ✓Not nearby to high voltage cables

      How is it installed?
      1. Connect the transceiver to the gates control board, this must be installed within the gate controller or any enclosure
      2. Power on the transceiver and have the loop touching the antenna of the transceiver.
      3. Once the transceiver flashes its blue led and the loop flashes its yellow led they are now paired together.
      4. Remove backing plate from the loop and install to concrete using the supplied concrete screw bolts, ensure the arrow faces the direction of travel for exit (faces towards the gate).
      5. Install the wireless loop to the backing plate and allow 3 minutes for calibration
      Test to confirm operation, job done!

      Supplied With

      ✓1x Wireless Loop (with 2x AA Lithium Batteries Installed)
      ✓1x Transceiver
      ✓2x Concrete Screw Bolts

      Detection Area

      Replaceable Battery Life

      x

      Automatic Opening WIRELESS Automatic Vehicle Detection Sensor

      This WIRELESS system can automatically open the gate as your vehicle passes over it. Installed up to 50 metres away from the gate!

      Show more

      This WIRELESS system can automatically open the gate as your vehicle passes over it. Installed up to 50 metres away from the gate!

      ×
      Out Of Stock

    • Description

      Induction Loop Detector

      induction loop detector for open close gates and boom gate barriers
      The Single channel loop can be used for either a pulse to command operation (upon detection latches the relay) or a presence command (typically as a safety device to hold the relay til clear). With four adjustable sensitivity setting + sensitivity boost feature the loop detector can be fine tuned to suit the installation. The frequency is also adjustable to prevent cross talk between multiple loops in close proximity to one another.

      Key Features

      ✓ Pulse and Presence Modes (5 min MAX. presence/Permanent presence) ✓ Four sensitivity settings ✓ Four frequency settings ✓ Normally Open and Normally Closed Contacts ✓ Automatic Sensitivity Boost Upon detection (Ideal for large ground to chassis vehicles like trucks) ✓ Filter mode setting for interference prone environments ✓ Loop inductance: Total loop plus connection wiring:50 to 1000μH.Ideal is 100 to 300μH

      Specifications

      Operating Voltage 12V DC
      Tuning Auto:10uH to 1500uH
      Sensitivity Four Settings
      Frequency 12-80kHz (based on actual loop and setting switch)
      Relay Circuits N/O and N/C
      Configurations Pulse or Presence
      Wiring 11 Pin Screw Terminal Base
      Mounting Din Rail or Shelf
      x

      Automatic Opening/Closing Induction Loop Detector 12V DC Presence and Pulse Relay (12 Volt Version)

      • 12V DC
      • Pulse and Presence Modes (5 min MAX. presence/Permanent presence)
      • Four sensitivity settings
      • Four frequency settings
      • Normally Open and Normally Closed Contacts
      Show more
      • 12V DC
      • Pulse and Presence Modes (5 min MAX. presence/Permanent presence)
      • Four sensitivity settings
      • Four frequency settings
      • Normally Open and Normally Closed Contacts
      ×
      Out Of Stock

    • Description

      Push/Press Button

      push press button for automation machinery access control
      The push button is the simplest of all access control devices, a simple press of the button allows the automation to begin its working. Generally installed on the inside of the property within close proximity to the user (driver side when exiting) allows for the easiest method of working.

      Key Features


      ✓ Weatherproof for outdoor use and can be used indoors ✓ Supports NO and NC circuits (when used as a wired button) ✓ 2 Wire connection or Wireless Option (Automation Systems Australia ONLY) ✓ Easy to operate
      x

      Weatherproof Press Button

      Typical press button for foot traffic, suitable for outdoor and indoor installations.

      Show more

      Typical press button for foot traffic, suitable for outdoor and indoor installations.

      ×
      Out Of Stock

    • Description

      Big Head (Mushroom) Push/Press Button

      big mushroom palm push press button for automation machinery access control
      The push button is the simplest of all access control devices, a simple press of the button allows the automation to begin its working. Generally installed on the inside of the property within close proximity to the user (driver side when exiting) allows for the easiest method of working.

      Key Features


      ✓ Weatherproof for outdoor use and can be used indoors ✓ Supports NO and NC circuits (when used as a wired button) ✓ 2 Wire connection or Wireless Option (Automation Systems Australia ONLY) ✓ Easy to operate
      x

      Weatherproof Push Button (Mushroom Head)

      Typical press button for vehicles mounted to a bollard, suitable for outdoor and indoor installations.

      Show more

      Typical press button for vehicles mounted to a bollard, suitable for outdoor and indoor installations.

      ×
      Out Of Stock

    • Description

      Emergency Stop Push/Press Button

      emergency stop push press button for automation machinery access control
      The emergency stop button is a one push latching button, when pressed in it will remain in the IN position halting or stopping the controlled system. To release just twist the knob. Ideal for commercial and industrial automation and machinery.

      Key Features


      ✓ Weatherproof for outdoor use and can be used indoors ✓ One Push Latching ✓ Supports NO and NC circuits ✓ 2 Wire connection ✓ Easy to operate
      x

      Weatherproof Emergency Stop Latching Push Button for Automatic Gates, Boom Barriers, Garage Doors, Machinery NO and NC Circuit

      Typical emergency stop button for halting or stopping a system, suitable for outdoor and indoor installations.

      Show more

      Typical emergency stop button for halting or stopping a system, suitable for outdoor and indoor installations.

      ×
      Out Of Stock

    • Description
      • Allows for the input of set operating times
      • Supports Individual Days and Times
      • Direct Plug In Connection to ZN8 Control Board (BKV Models)
      • Access Programs Direct from Control Board Menu
      x

      Weekly Scheduled Timer Clock Module

      • Allows for the input of set operating times
      • Supports Individual Days and Times
      • Direct Plug In Connection to ZN8 Control Board (BKV Models)
      • Access Programs Direct from Control Board Menu
      Show more
      • Allows for the input of set operating times
      • Supports Individual Days and Times
      • Direct Plug In Connection to ZN8 Control Board (BKV Models)
      • Access Programs Direct from Control Board Menu
      ×
      Out Of Stock

    Videos

    Complete COMMERCIAL GRADE Automatic Extra Heavy Duty Cantilever System With BKV1500 Solar Powered Sliding Gate Motor Kit (900KG/8M MAX Opening)

    $5,087.00

    $4,769.00

    Save $318.00

    x

    Register

    Shipping To

    Add company name

    Australia

    Add apartment, unit, building, floor, etc.

    Billing To

    Add company name

    Australia

    Add apartment, unit, building, floor, etc.


    Close
