Complete Automatic Telescopic Sliding Gate System (Master and Trailing Sliding Gates) With Hardware Kit and Titan Low Voltage Sliding Gate Motor

SKU: TELESCOPIC500+SGHK-CLAD+TITAN2410-E-I

$1,785.00

$1,555.00

Save $230.00

  • Freight from $30.00 Calculate Freight
  • 1 Year Warranty
  • Brand : Automation Systems Australia

    Out of stock

    Click & Collect

    Delivery

    In-Store

    Same Day Dispatch (Order before 10AM)

    The default allowance for the package is 3.5 meters per gate, this can be adjusted in the kit contents to cater for your requirements.

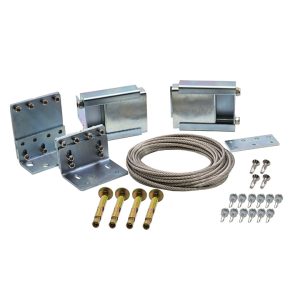

    Telescopic Sliding Gate Pulley System (Master and Trailing Sliding Gates) Maximum 4.5m/500KG EACH

    Telescopic Master and Trailing Sliding Gate System pulley following gate

    The heavy duty telescopic gate allows for a primary and trailing gate configuration to eliminate the amount of space requirement in which the sliding gate opens to. The kit will create an interconnection between the primary gate (back gate) and the secondary gate (front gate).

    The primary gate (closest to inside the property) will incorporate both the adjustable pulley systems in which both operate on sealed bearings, the secondary gate will have its own exclusive bracket fitted directly to it (supplied) in which it will connect to the primary gates stainless steel pulley wire.

    When the primary gate is moved the secondary will follow, when the secondary is moved the primary will follow (manual operations). If automated using a sliding gate motor, all movements are initiated by the connected primary gate

    The telescopic gate system can work with all sliding gate wheels thanks to the supplied low and high base plate system thus supporting IRM wheels (Internal recess mount) and EFM wheel (external flat mount wheels and in terms of the guiding system it can work with roller and bracket arrangements as well as nylon block and angle arrangements.

    The cleverly designed pulley system allows for up to 25mm (1 inch) of adjustment from either end of the primary gate to allow for a correctly tensioned system in turn allowing for smooth operation, The system is capable of 4500mm (4.5 Meters) per gate and a maximum of 250kg per gate, typically the tail section of the sliding gate is 350mm minimum thus allowing for an absolute maximum opening of 8300mm (8.3m).

    Typical guidelines

    Gate Size
    ✓ Primary gate width is half the opening +350mm minimum
    ✓Secondary gate width is also half the opening +350mm minimum
    Ground Track
    ✓Primary gate requires floor track double its width
    ✓Secondary gate requires floor track double its width + half the driveway

    Wheels
    ✓A pair of wheels for each gate is required (total 4 wheels)
    Support
    ✓A support post on the inside BEHIND the primary gate is required
    ✓A guiding system per gate is required (rollers and bracket OR nylon block and channel)

    Facts about a telescopic sliding gate system

    The secondary gate will move at twice the speed of the primary gate, essentially the load is at minimum doubled to tripled when automating, always use a higher specification DC motor such as the Titan 2410 (1000kg Capacity) DC sliding gate motor is strongly suggested for automation due to adjustable speed characteristics and slowdown smoothness and adjustment.

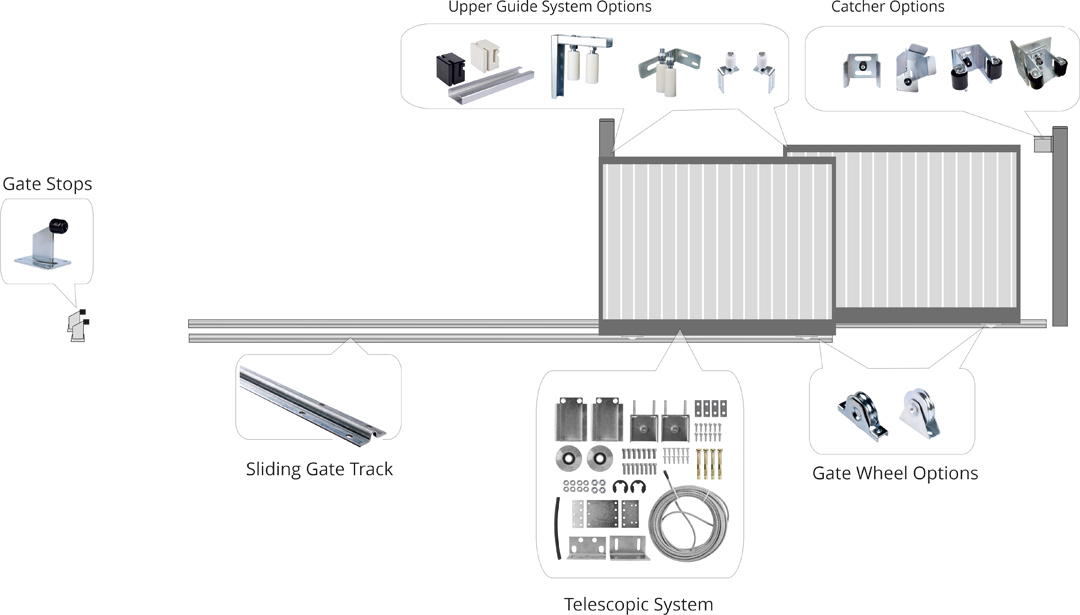

    Typical Layout

    Telescopic Master and Trailing Sliding Gate System general installation layout

    Sliding-gate-on-track-residential cladded

    C Channel Section with Nylon Block

    c channel and nylon block

    The C channel with Nylon Block is fitted to a support post behind the gate on the inside. On the back of the gate the supplied Z section slides through the nylon block. This totally removes the need for rollers operating on an uneven surface such as vertical cladding or any protrusions that may be above the gate frame such as spears.

    The C channel and nylon block also works well for gates on a grade where the guide system must follow UP/DOWN during the gates operation, Suitable for gates where there is overhead protrusions such as spears, suitable for gates with face mounted cladding to the frame.

    The C channel is available in both Steel (with top cap) and Aluminum and the Nylon block is available in both white and black colour options.

    Aluminum Z Profile Angle for Rear Guiding by Nylon Block

    z profile angle for rear guiding of all sliding gates with nylon block
    ✓ Excellent alternative to having an angle welded to the gate
    ✓ Compatible with all gate using 40mm tubing or greater
    ✓ 4mm Aluminum Extrusion Profile Specific for use with sliding gate guiding
    ✓ 34mm Mounting face with 6mm pre punched holes for fixing every 300mm
    ✓ Total offset of 42mm from gate back face to the back of the angle

    Gate Catcher/Receiver Meeting Point

    Multiple options available to choose from based on the gates total thickness including and cladding material if applicable. It is recommended to use a gate catcher that is 10mm greater than the gate thickness.

    50mm Catcher Option

    50mm gate catcher with Anti-Lift top cap

    50mm Catcher is used with gates not exceeding 40mm (typically 40×40 tubing gates)

    60mm Catcher Option (with Anti-Lift Top Cap)

    60mm gate catcher with Anti-Lift top cap

    60mm Catcher is used with gates not exceeding 50mm (typically 50×50 tubing gates). It has a top cap to prevent the gate from being lifted when in the closed position.

    80mm Catcher Option (with Anti-Lift Top Cap)

    80mm gate catcher with Anti-Lift top cap

    80mm Catcher is used with gates not exceeding 70mm (typically externally face cladded gates). It has a top cap to prevent the gate from being lifted when in the closed position.

    55-90mm Adjustable Catcher Option

    55-90mm adjustable gate catcher

    55-90mm Adjustable entry catcher, suitable for gates from 40mm to 80mm total thickness requiring a roller entry point due to wind loading or otherwise). Highly effective option for cladded gates prone to wind loading.

    55-90mm Adjustable Catcher Option + OFFSET bracket

    55-90mm adjustable gate catcher with Anti-Lift top cap and adjustable offset bracket
    55-90mm Adjustable entry catcher, suitable for gates from 40mm to 80mm total thickness requiring a roller entry point due to wind loading or otherwise). Highly effective option for cladded gates prone to wind loading. The key additional feature of this catcher is the ability to adjust its alignment with the offset bracket making it perfect for when the posts side face does not align with the gate.

    Sliding Gate Wheel Options

    Internal Recess/Flush Mount Wheels

    Sliding gate internal recess bearing wheel

    Internal Double bearing wheels allow the gate wheels to be recessed into the bottom of the gate frame (minimum height 78mm tubing), they keep the gate close to the ground track system (normally within 25mm) and provide the neatest aesthetic. The small pocket cut into the bottom of the gate is not greater than the 78mm wheel diameter and allows the flange points to meet with the tubing on either side and screw into place.

    External Surface Mount Wheels

    Sliding gate internal recess bearing wheel

    The easiest to install, these bearing wheels screw directly to the bottom of the gate tubing without any need for cutting, the external surface mounting wheels typically raise the gate 90mm from the ground track system.

    Sliding Gate Ground/Floor Track

    domes r10 sliding gate track round profile bolt down to ground concrete

    The sliding gate ground track is formed from galvanized steel to the R10 profile, this profile is proven to be the smoothest operation for the gate wheels without any negative characteristics like the older v groove designs.

    The track is secured to the driveway using plugs and screws or knock in’s such as anchor nails, its important to use a fixing that does not protrude greater than 3-4mm to prevent contact with the gate wheels.

    ✓ Galvanized Steel
    ✓ Elongated 6mm holes allow for adjustment before final tie down
    ✓ Suits all R10 gate wheels

    Gate Stopper

    Sliding gate stop

    The gate stopper is a crucial part to any sliding gate installation, the stop is installed at the end of the open position to prevent the gate from being opened past the normal open point which prevents the sliding gate from coming off the track (or out of the top guiding system.

    ✓ Rubber Bumper
    ✓ 115mm High
    ✓ 8mm stem and 4mm base steel thickness

    Titan 2410 Ultra Fast 24 Volt Sliding Gate Gate Motor

    The Titan 2410 Sliding Gate System is built around a compact form factor yet utilizing the space for a large 180 Watt 24V DC motor delivering an unparalleled capacity of up to 1000KG gate or up to 8 Meters in length (package is supplied with 4 Metres of gear rack which is adjustable in the kit contents tab).

    Clever engineering allows for the system to work in a Ultra Fast and controlled operating speed with the allowance to be reduced to a normal or even slow running speed if required. The housing is formed from die-cast alloy with a steel pinion gear and all internal mountings are of steel to provide the best physical strength both inside and outside and the peace of mind of a long service life.

    Keeping it reliable and dependable the Titan series operator uses trusty micro switch limit system allowing for the added bonus of a simple (and effective) installation. Housed within the Titan system the Premier SL24 Automatic gate system controller comes standard with a state of the art feature set catering for all types of installations, whether only requiring ordinary residential operation to all the way up to a full fledged commercial setups requiring advanced logic principals taking advantage of the high 90% duty cycle ability.

    The on-board display makes easy work of any settings changes if desired and is easily visible in the outdoors being the advantage of LED displays. With multiple Inputs and outputs just about any accessory is compatible with the Premier SL24 system (see the complete list below).

    Also boasting multiple safety inputs along with its precise on-board detection it allows safety to remain prioritized for any application. with the optional plug and play battery back-up system you will be sure not to ever be locked out of your property.

    The installation process is always kept in mind allowing up to 4 cable inputs into gate motor housing using IP68 cable glands, this allows for the best weather proofing and assists in insect proofing.

    The genius automatic learning system, hold one key to enable and begin the automatic learning of the gate system and automatic definition of the ramp up and slow down points, its as easy as it gets suiting all skill levels from DIY once off installs to professional installers.

    The premier controller also supports all installations with an intelligent light control system with three output options (traffic light control, driveway light control and alert strobe/courtesy light)

    All connections are Low Voltage and safe for all installers regardless of the skill level without the concern of electrical shock.

    Key Features



    ✓ Fast and Efficient 24 Volt Operation
    ✓ Die-Cast Alloy Housing
    ✓ Compact Footprint
    ✓ Multiple Cable entries by IP68 rated Glands
    ✓ Steel Pinion Gear
    ✓ Open and Closed Position Easy Micro-Switch Limits
    ✓ Flexible size and weight capacities

    A peak inside the Titan Series Operator

    Tough 180 Watt DC Motor and Digital Logic Controller

    high quality strong automatic low voltage sliding gate motor

    Steel Pinion and Easy Limit Switches

    Secure yet Easy Manual Release



    Automatic Gate System Logic Controller Features

    Features as Standard

    ✓ Easy to use Single Button Mode of Opening-Stop-Closing including the “Stay open” feature
    ✓ Open partially Pedestrian Mode Feature (adjustable distance)
    ✓ Automatic Closing Timer Adjustable in one second increments up to 5 minutes
    ✓ Automatic learning of the gate + Fine tunable operating Times
    ✓ Soft Start (Ramp UP) and Soft Stop/Slowdown (Ramp DOWN)
    ✓ Adjustable Slow Down Speed and Time
    ✓ Optional Plug and Play Battery Backup System
    ✓ Low Voltage Power for all accessories directly through the gate controller
    ✓ Warning Light Output
    ✓ Traffic Light Output
    ✓ Driveway Light Output

    Normal Modes allow for the “STAY Open” feature to cancel the automatic closing timer by remote Handy when expecting guest, backing in a trailer etc.





    Multiple Configurable Safety Inputs

    ✓ Obstacle Detection by load This feature is always running and detecting if the gate is stalled under load by an obstacle during its travel.
    ✓ Typical Photocell Input Terminal to prevent gate from closing on vehicle, reverts gate if a vehicle passes through during closing, restarts the Automatic closing timer after each interruption.
    ✓ Photostop Input, Same as the typical photocell input with an added feature of preventing the gate from opening if the photocell is blocked. Handy for sliding gates that open towards an obstacle such as a pedestrian gate..
    ✓ Special Detector Input to tell the gate to close two seconds after the vehicle passes, perfect for higher security applications (and also escaping dogs).
    ✓ Safety Edge Input Installed on to the gate, safety edges allow for a return to open if the edge of gate is to touch an obstacle.
    ✓ Emergency Stop Button This feature allows for a manned button to immediately stop the system open pressing.

    Wired and Wireless Access Control Support

    ✓ Keypads Wired or Wireless Secure PIN Number access (Tekno K1/Dex4)
    ✓ Press Button Simple button operation
    ✓ Mobile APP Control Cloud based and operatable anywhere in the world (Tekno WF)
    ✓ Doorbell Intercom Systems
    ✓ Exit Wands and Induction Loops To automatically operate the gate upon vehicle presence
    ✓ GSM 4G Technology Operate the gate by phone call (or intercom phone call) (Tekno 4/Tekno S1)
    ✓ Weekly Schedule Timer To automatically operate the gate based on a programmed daily/weekly operating times

    Residential, Commercial and Complex Working Modes Options

    ✓ Normal Remote Operation (Open-Stop-Close)
    ✓ Normal Remote Operation (Open-Stop-Close) with Automatic Closing Timer and “Stay Open” feature (299 Seconds/5 Minutes)
    ✓ Typical Complex – Individual Open and Close Command Inputs
    ✓ Typical Complex – Individual Open and Close Command Inputs with Automatic Closing Timer “Stay Open” feature by wired input (299 Seconds/5 Minutes)
    ✓ Secure Complex – Open Only Command Inputs with Automatic Closing Timer (299 Seconds/5 Minutes) “Stay Open” feature by wired input

    OPTIONAL Uninterrupted Battery Backup System

    backup uninterrupted battery sliding gate

    The optional uninterrupted battery backup system allows for continued use in the case of power loss without the need for any user intervention, it will continue to allow system operation including any system accessories for 24 hours OR until the power is restored. The batteries are automatically recharged when power is restored and trickle whilst power is available Directly fitting into the systems compartment there is no need for any additional storage boxes.

    If the optional battery system is not desired the system can still be manually release using the secure override system.

    Dimensions

    compact small sliding gate motor dimensions

    Automatic Sliding Gate System Specifications

    Operating Voltage 24V
    Maximum Gate Size 8 Meters (package is supplied with 4 Metres of gear rack which is adjustable in the kit contents tab)
    Maximum Gate Weight 1000KG
    Duty Cycle 90%
    Thrust 27nM
    Speed Adjustable up to 36cm/s (21 Meters per minute)
    Standby Consumption 40mA
    Supports Battery Backup Yes, 24V DC
    Light Support Yes, Traffic Light/Driveway Light/Strobe
    Accessories Voltage Yes, 12V DC
    Safety Inputs Photocells, Safety edges, Induction Loops, Edge Sensors, Emergency Stop Button
    Operating Temperature -10°-60°C
    Maximum Remotes 250
    automatic sliding gate motor specifications



    24V Low Voltage External Transformer

    gate low voltage power transformer
    The External 24V Transformer is designed to be installed outdoors or in a garage/carport. The transformer will plug into an ordinary power point and output a safe LOW VOLTAGE supply to the gate system. Being built to an uncompromised and higher specification unit it is capable of a low voltage run of up to 120 meters making it suitable for most installations that do not have a power point nearby to the gate.

    Key Features

    ✓ IP66 Outdoor Rated Design
    ✓ Can work up to 120 meters low voltage cabling distance
    ✓ Multiple cable roll options or use your own cable

    STX4K Keyring High Range Remote

    Automation systems Australia keyring remote control for driveway gate
    The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

    The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).

    Key Features

    ✓ Up to 100 metres distance in open air
    ✓ Keeloq rolling code security
    ✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
    ✓ Clear visibility red LED indicator which will illuminate upon a button press
    ✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
    ✓ Slimline and modern ergonomic design
    ✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

    Dukie X 32KHZ Anti-Interference Professional Photocell Kit

    Dukie X Automatic gate and garage door photocell

    The Dukie X series photocell kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Both the photocells are wired back to the control box with low voltage.

    Added benefits of the X series photocell is its Anti Interference Infrared frequency (32KHZ) making it best suited for ultra high capacity electric motors.



    Key Features

    ✓ Ultra modern and neat appearance
    ✓ Compact design fits almost anywhere at 81(L)x65(W)x29(D)mm
    ✓ NO and NC Relay Settings
    ✓ Excellent range characteristics of up to 10 meter distance between each photocell
    ✓ Multiple sets can be installed on each system for added protective layers (with Synchronization setting)

    Kit Contents (See Description Tab for Full In-Depth Details)

    • Description

      Telescopic Sliding Gate Pulley System (Master and Trailing Sliding Gates) Maximum 4.5m/500KG EACH

      Telescopic Master and Trailing Sliding Gate System pulley following gate

      The heavy duty telescopic gate allows for a primary and trailing gate configuration to eliminate the amount of space requirement in which the sliding gate opens to. The kit will create an interconnection between the primary gate (back gate) and the secondary gate (front gate).

      The primary gate (closest to inside the property) will incorporate both the adjustable pulley systems in which both operate on sealed bearings, the secondary gate will have its own exclusive bracket fitted directly to it (supplied) in which it will connect to the primary gates stainless steel pulley wire.

      When the primary gate is moved the secondary will follow, when the secondary is moved the primary will follow (manual operations). If automated using a sliding gate motor, all movements are initiated by the connected primary gate

      The telescopic gate system can work with all sliding gate wheels thanks to the supplied low and high base plate system thus supporting IRM wheels (Internal recess mount) and EFM wheel (external flat mount wheels and in terms of the guiding system it can work with roller and bracket arrangements as well as nylon block and angle arrangements.

      The cleverly designed pulley system allows for up to 25mm (1 inch) of adjustment from either end of the primary gate to allow for a correctly tensioned system in turn allowing for smooth operation, The system is capable of 4500mm (4.5 Meters) per gate and a maximum of 250kg per gate, typically the tail section of the sliding gate is 350mm minimum thus allowing for an absolute maximum opening of 8300mm (8.3m).

      Typical guidelines

      Gate Size ✓ Primary gate width is half the opening +350mm minimum ✓Secondary gate width is also half the opening +350mm minimum Ground Track ✓Primary gate requires floor track double its width ✓Secondary gate requires floor track double its width + half the driveway
      Wheels ✓A pair of wheels for each gate is required (total 4 wheels) Support ✓A support post on the inside BEHIND the primary gate is required ✓A guiding system per gate is required (rollers and bracket OR nylon block and channel)

      Facts about a telescopic sliding gate system

      The secondary gate will move at twice the speed of the primary gate, essentially the load is at minimum doubled to tripled when automating, always use a higher specification DC motor such as the Titan 2410 (1000kg Capacity) DC sliding gate motor is strongly suggested for automation due to adjustable speed characteristics and slowdown smoothness and adjustment.

      Typical Layout

      Telescopic Master and Trailing Sliding Gate System general installation layout
      x

      Telescopic Sliding Gate Pulley System (Master and Trailing Sliding Gates) Maximum 4.5m/500KG EACH

      Out Of Stock

    • No description available...
      x

      R10 Gal Steel Sliding Gate Track (QTY is Total Meters)

      Galvanized Steel Construction, nailed/anchored down to the concrete for the gate wheels to roll on

      Show more

      Galvanized Steel Construction, nailed/anchored down to the concrete for the gate wheels to roll on

      ×
      Out Of Stock

    • Description

      Aluminum Z Profile Angle for Rear Guiding by Nylon Block

      z profile angle for rear guiding of all sliding gates with nylon block
      ✓ Excellent alternative to having an angle welded to the gate ✓ Compatible with all gate using 40mm tubing or greater ✓ 4mm Aluminum Extrusion Profile Specific for use with sliding gate guiding ✓ 34mm Mounting face with 6mm pre punched holes for fixing every 300mm ✓ Total offset of 42mm from gate back face to the back of the angle Suitable for use with our black and white nylon blocks
      x

      Cladded Gate Screw On Z Profile (QTY is Total Meters)

      Rear Mount Guide System (Works with Nylon Block System)

      Show more

      Rear Mount Guide System (Works with Nylon Block System)

      ×
      Out Of Stock

    • Bundled product placeholder image
      No description available...
      x

      Upper Guide System × 2

      Out Of Stock
      Clear
      Out Of Stock

    • Bundled product placeholder image
      No description available...
      x

      Gate Catcher

      Out Of Stock
      Clear
      Out Of Stock

    • Bundled product placeholder image
      No description available...
      x

      Sliding Gate Wheels × 2

      Out Of Stock
      Clear
      Out Of Stock

    • Description

      115mm Height Sliding Gate Stop in Anotec Silver

      Sliding gate stop

      The gate stopper is a crucial part to any sliding gate installation, the stop is installed at the end of the open position to prevent the gate from being opened past the normal open point which prevents the sliding gate from coming off the track (or out of the top guiding system.

      ✓ Rubber Bumper ✓ 115mm High ✓ 8mm stem and 4mm base steel thickness

      Dimensions

      sliding gate stop 115mm height
      x

      115mm Height Sliding Gate Stopper (Anotec Silver) Steel Bolt Down × 2

      Out Of Stock

    • Description

      Titan 2410 Ultra Fast 24 Volt Sliding Gate Gate Motor

      The Titan 2410 Sliding Gate System is built around a compact form factor yet utilizing the space for a large 180 Watt 24V DC motor delivering an unparalleled capacity of up to 1000KG gate or up to 8 Meters in length. Clever engineering allows for the system to work in a Ultra Fast and controlled operating speed with the allowance to be reduced to a normal or even slow running speed if required. The housing is formed from die-cast alloy with a steel pinion gear and all internal mountings are of steel to provide the best physical strength both inside and outside and the peace of mind of a long service life. Keeping it reliable and dependable the Titan series operator uses trusty micro switch limit system allowing for the added bonus of a simple (and effective) installation. Housed within the Titan system the Premier SL24 Automatic gate system controller comes standard with a state of the art feature set catering for all types of installations, whether only requiring ordinary residential operation to all the way up to a full fledged commercial setups requiring advanced logic principals taking advantage of the high 90% duty cycle ability. The on-board display makes easy work of any settings changes if desired and is easily visible in the outdoors being the advantage of LED displays. With multiple Inputs and outputs just about any accessory is compatible with the Premier SL24 system (see the complete list below).
      Also boasting multiple safety inputs along with its precise on-board detection it allows safety to remain prioritized for any application. with the optional plug and play battery back-up system you will be sure not to ever be locked out of your property. The installation process is always kept in mind allowing up to 4 cable inputs into gate motor housing using IP68 cable glands, this allows for the best weather proofing and assists in insect proofing. The genius automatic learning system, hold one key to enable and begin the automatic learning of the gate system and automatic definition of the ramp up and slow down points, its as easy as it gets suiting all skill levels from DIY once off installs to professional installers. The premier controller also supports all installations with an intelligent light control system with three output options (traffic light control, driveway light control and alert strobe/courtesy light) All connections are Low Voltage and safe for all installers regardless of the skill level without the concern of electrical shock.

      Key Features


      ✓ Fast and Efficient 24 Volt Operation ✓ Die-Cast Alloy Housing ✓ Compact Footprint ✓ Multiple Cable entries by IP68 rated Glands
      ✓ Steel Pinion Gear ✓ Open and Closed Position Easy Micro-Switch Limits ✓ Flexible size and weight capacities

      A peak inside the Titan Series Operator

      Tough 180 Watt DC Motor and Digital Logic Controller

      high quality strong automatic low voltage sliding gate motor

      Steel Pinion and Easy Limit Switches

      Secure yet Easy Manual Release



      Automatic Gate System Logic Controller Features

      Features as Standard

      ✓ Easy to use Single Button Mode of Opening-Stop-Closing including the "Stay open" feature ✓ Open partially Pedestrian Mode Feature (adjustable distance) ✓ Automatic Closing Timer Adjustable in one second increments up to 5 minutes ✓ Automatic learning of the gate + Fine tunable operating Times ✓ Soft Start (Ramp UP) and Soft Stop/Slowdown (Ramp DOWN) ✓ Adjustable Slow Down Speed and Time ✓ Optional Plug and Play Battery Backup System ✓ Low Voltage Power for all accessories directly through the gate controller ✓ Warning Light Output ✓ Traffic Light Output ✓ Driveway Light Output
      Normal Modes allow for the "STAY Open" feature to cancel the automatic closing timer by remote Handy when expecting guest, backing in a trailer etc.


      Multiple Configurable Safety Inputs

      ✓ Obstacle Detection by load This feature is always running and detecting if the gate is stalled under load by an obstacle during its travel. ✓ Typical Photocell Input Terminal to prevent gate from closing on vehicle, reverts gate if a vehicle passes through during closing, restarts the Automatic closing timer after each interruption. ✓ Photostop Input, Same as the typical photocell input with an added feature of preventing the gate from opening if the photocell is blocked. Handy for sliding gates that open towards an obstacle such as a pedestrian gate.. ✓ Special Detector Input to tell the gate to close two seconds after the vehicle passes, perfect for higher security applications (and also escaping dogs). ✓ Safety Edge Input Installed on to the gate, safety edges allow for a return to open if the edge of gate is to touch an obstacle. ✓ Emergency Stop Button This feature allows for a manned button to immediately stop the system open pressing.

      Wired and Wireless Access Control Support

      ✓ Keypads Wired or Wireless Secure PIN Number access (Tekno K1/Dex4) ✓ Press Button Simple button operation ✓ Mobile APP Control Cloud based and operatable anywhere in the world (Tekno WF) ✓ Doorbell Intercom Systems ✓ Exit Wands and Induction Loops To automatically operate the gate upon vehicle presence ✓ GSM 4G Technology Operate the gate by phone call (or intercom phone call) (Tekno 4/Tekno S1) ✓ Weekly Schedule Timer To automatically operate the gate based on a programmed daily/weekly operating times

      Residential, Commercial and Complex Working Modes Options

      ✓ Normal Remote Operation (Open-Stop-Close) ✓ Normal Remote Operation (Open-Stop-Close) with Automatic Closing Timer and "Stay Open" feature (299 Seconds/5 Minutes) ✓ Typical Complex - Individual Open and Close Command Inputs ✓ Typical Complex - Individual Open and Close Command Inputs with Automatic Closing Timer "Stay Open" feature by wired input (299 Seconds/5 Minutes) ✓ Secure Complex - Open Only Command Inputs with Automatic Closing Timer (299 Seconds/5 Minutes) "Stay Open" feature by wired input

      OPTIONAL Uninterrupted Battery Backup System

      backup uninterrupted battery sliding gate
      The optional uninterrupted battery backup system allows for continued use in the case of power loss without the need for any user intervention, it will continue to allow system operation including any system accessories for 24 hours OR until the power is restored. The batteries are automatically recharged when power is restored and trickle whilst power is available Directly fitting into the systems compartment there is no need for any additional storage boxes. If the optional battery system is not desired the system can still be manually release using the secure override system.

      Dimensions

      compact small sliding gate motor dimensions

      Automatic Sliding Gate System Specifications

      Operating Voltage 24V
      Maximum Gate Size 8 Meters
      Maximum Gate Weight 1000KG
      Duty Cycle 90%
      Thrust 27nM
      Speed Adjustable up to 36cm/s (21 Meters per minute)
      Standby Consumption 40mA
      Supports Battery Backup Yes, 24V DC
      Light Support Yes, Traffic Light/Driveway Light/Strobe
      Accessories Voltage Yes, 12V DC
      Safety Inputs Photocells, Safety edges, Induction Loops, Edge Sensors, Emergency Stop Button
      Operating Temperature -10°-60°C
      Maximum Remotes 250
      automatic sliding gate motor specifications
      x

      Titan 2410 1000KG 24V Low Voltage Sliding Gate Motor

      • Ultra Fast
      • Maximum 8m Gate Length
      • Maximum 1000KG Weight
      • Adjustable Open & Closed Limit Switches
      • Advanced Digital Control Board
      Show more
      • Ultra Fast
      • Maximum 8m Gate Length
      • Maximum 1000KG Weight
      • Adjustable Open & Closed Limit Switches
      • Advanced Digital Control Board
      ×
      Out Of Stock

    • Description

      Extra Heavy Duty Sliding Gate Gear Rack

      • 520mm Lengths
      • Black Nylon
      • Steel Core
      • Interlocking with Key on one end, Keyway on the other for precise alignment
      • 3 Lug fixing facing downwards
      x

      QUIET 520mm (Clip In Key - Keyway) Sliding Gate Gear Rack Nylon Coated over Steel Reinforced

      Out Of Stock
      Clear
      Out Of Stock

    • Description

      Please be aware this product is only compatible with Automation Systems Australia Control Boards and Remote Receivers, it will NOT work with other brand products.

      STX4K Keyring High Range Remote

      Automation systems Australia keyring remote control for driveway gate
      The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

      The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).

      Key Features

      ✓ Up to 100 metres distance in open air
      ✓ Keeloq rolling code security
      ✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
      ✓ Clear visibility red LED indicator which will illuminate upon a button press
      ✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
      ✓ Slimline and modern ergonomic design
      ✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

      x

      Four Button Keyring Remote Control (White)

      • Up to 100 Metre Open Air Distance
      • High Security Rolling Code
      • Slimline and Ergonomic
      Show more
      • Up to 100 Metre Open Air Distance
      • High Security Rolling Code
      • Slimline and Ergonomic
      ×
      Out Of Stock
      Clear
      Out Of Stock

    • Description

      Please be aware this product is only compatible with Automation Systems Australia Control Boards and Remote Receivers, it will NOT work with other brand products.

      STX4K Keyring High Range Remote

      Automation systems Australia keyring remote control for driveway gate
      The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

      The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).

      Key Features

      ✓ Up to 100 metres distance in open air
      ✓ Keeloq rolling code security
      ✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
      ✓ Clear visibility red LED indicator which will illuminate upon a button press
      ✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
      ✓ Slimline and modern ergonomic design
      ✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

      x

      Four Button Keyring Remote Control (Black)

      • Up to 100 Metre Open Air Distance
      • High Security Rolling Code
      • Slimline and Ergonomic
      Show more
      • Up to 100 Metre Open Air Distance
      • High Security Rolling Code
      • Slimline and Ergonomic
      ×
      Out Of Stock
      Clear
      Out Of Stock

    • Description

      Dukie XR Retro-Reflective Sensor

      Dukie XR Reflective Sensor Automatic gate and garage door photocell

      The Dukie XR series retro-reflective sensor kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Only the sensor requires wiring back to the gate controller as the sensor bounces its own beam back via the reflector installed on the far side of the driveway.

      Added benefits of the XR series photocell is its Anti Interference Infrared characteristics making it best suited for ultra high capacity electric motors.



      Key Features

      ✓ No wiring needed across the driveway (reflector)
      ✓ Narrow Sensor only 20mm width
      ✓ Flexible with multiple different mounting methods
      ✓ NO and NC Relay Options
      ✓ Excellent range characteristics of up to 11 meter distance in clear conditions (-40% in adverse conditions)

      x

      Dukie X OR Dukie XR Photocells

      Choose from Photocell wired to both sides OR a Reflective sensor Wired only on the one side (1.9m Pre-Connected)

      Show more

      Choose from Photocell wired to both sides OR a Reflective sensor Wired only on the one side (1.9m Pre-Connected)

      ×
      Out Of Stock
      Clear
      Out Of Stock

    • Description

      24V Low Voltage External Transformer

      gate low voltage power transformer
      The External 24V Transformer is designed to be installed outdoors or in a garage/carport. The transformer will plug into an ordinary power point and output a safe LOW VOLTAGE supply to the gate system. Being built to an uncompromised and higher specification unit it is capable of a low voltage run of up to 120 meters making it suitable for most installations that do not have a power point nearby to the gate.

      Key Features

      ✓ IP66 Outdoor Rated Design ✓ Can work up to 120 meters low voltage cabling distance ✓ Multiple cable roll options or use your own cable

      Specifications

      Input Power 240V AC
      Output Power 24V AC
      Rated Current 10A
      IP Rating IP66
      x

      Weatherproof 24V Low Voltage Transformer

      Out Of Stock
      Clear
      Out Of Stock

    Optional Add On's

    • Description

      Please be aware this product is only compatible with Automation Systems Australia Control Boards and Remote Receivers, it will NOT work with other brand products.

      STX4L Ultra Long Distance Remote

      Automation systems Australia Long Distance remote control for driveway gate
      The STX4L Long distance remote is a class leader in Ultra long distance (up to 800 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

      The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).

      The long distance remote is most useful around larger properties able to operate the gate from sheds, buildings and the home where a typical remote would not be able to achieve the same operating distance.

      Key Features

      ✓ Up to 800 metres distance in open air
      ✓ Keeloq rolling code security
      ✓ Easy to Use buttons
      ✓ ON/OFF switch to prevent accidental operation
      ✓ Clear visibility LED indicator which will illuminate upon a button press
      ✓ Narrow handheld design
      ✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

      x

      Automatic Gate Long Distance Remote Control (Long Range Remote)

      • Up to 800 Metre Open Air Distance
      • High Security Rolling Code
      • Side Switch Prevents Accidental Operations
      Show more
      • Up to 800 Metre Open Air Distance
      • High Security Rolling Code
      • Side Switch Prevents Accidental Operations
      ×
      Out Of Stock

    • Description

      Dual Channel Remote Control Receiver

      two channel receiver for garage door automatic gate alarm system
      Working with the STX4K, STX4L and Dex4 Wireless equipment the Two Channel receiver offers the ability to control up to two individual devices/systems separately such as automatic gate systems, garage doors, alarm systems and almost any device with the requiring a momentary pulse OR latching circuit to operate.

      Specifications

      Operating Voltage 12-30VDC/12-24VAC
      Operating Current 9mA standby
      Relay Switching Current Capacity 3A Momentary/500mA Latching
      Frequency 433mhz
      Compatible Transmitters (tX) STX4L, STX4K, Dex4
      x

      Receiver for Garage Doors

      Operate your garage door from a different button on the remote using this expander module.

      Show more

      Operate your garage door from a different button on the remote using this expander module.

      ×
      Out Of Stock

    • Description

      Please be aware this product is only compatible with Automation Systems Australia Control Boards and Remote Receivers, it will NOT work with other brand products.

      Dex 4 Wireless Keypad

      wireless automatic gate keypad

      The Dex 4 Wireless Keypad can communicate directly to the gate system using the same Keeloq secure rolling code signal as the remotes allowing for an easy installation process without the need for wiring.

      Due to its high quality chipset the open air signal strength can exceed an astounding 80 meters. This makes the Dex 4 not only suited to controlling the gate but could actually be used to control the garage door, another gate etc. providing they have the compatible receiver installed, Up to FOUR devices/features could be used with individual pin codes for each due to its four independent output channel designs.

      Key Features

      ✓ Three colour options are available: Classic White, Subtle Grey and Deep black
      ✓ Compact design fits almost anywhere at 90(L)x77(W)x35(D)mm
      ✓ Control Up to four systems or four features on different pin codes
      ✓ Astounding open air distance of 80 metres
      ✓ Works on 2x AAA batteries (supplied)
      ✓ Audible and LED indicators
      ✓ Totally wireless (wire free) easy installation

      Power 2xAAA Batteries (Supplied)
      Operating Distance 80 Meters Open Air
      Frequency Secure Rolling Code 433MHZ
      Operating Channels 4
      Transmitting Time 1.5s
      x

      Wireless Keypad (Three colour options)

      Four channel wireless keypad allowing for full control of all automatic gate features without the need for wiring.

      Show more

      Four channel wireless keypad allowing for full control of all automatic gate features without the need for wiring.

      ×
      Out Of Stock

    • Description

      Push/Press Button

      push press button for automation machinery access control
      The push button is the simplest of all access control devices, a simple press of the button allows the automation to begin its working. Generally installed on the inside of the property within close proximity to the user (driver side when exiting) allows for the easiest method of working.

      Key Features


      ✓ Weatherproof for outdoor use and can be used indoors ✓ Supports NO and NC circuits (when used as a wired button) ✓ 2 Wire connection or Wireless Option (Automation Systems Australia ONLY) ✓ Easy to operate
      x

      Weatherproof Press Button

      Typical press button for foot traffic, suitable for outdoor and indoor installations.

      Show more

      Typical press button for foot traffic, suitable for outdoor and indoor installations.

      ×
      Out Of Stock

    • Description

      Big Head (Mushroom) Push/Press Button

      big mushroom palm push press button for automation machinery access control
      The push button is the simplest of all access control devices, a simple press of the button allows the automation to begin its working. Generally installed on the inside of the property within close proximity to the user (driver side when exiting) allows for the easiest method of working.

      Key Features


      ✓ Weatherproof for outdoor use and can be used indoors ✓ Supports NO and NC circuits (when used as a wired button) ✓ 2 Wire connection or Wireless Option (Automation Systems Australia ONLY) ✓ Easy to operate
      x

      Weatherproof Push Button (Mushroom Head)

      Typical press button for vehicles mounted to a bollard, suitable for outdoor and indoor installations.

      Show more

      Typical press button for vehicles mounted to a bollard, suitable for outdoor and indoor installations.

      ×
      Out Of Stock

    • Description

      Weekly Schedule Automatic Gate Timer

      Automatic timer for opening and closing a driveway gate residential and commercial

      The weekly timer allows for scheduling open time cycles to operate the gate, simple set the open time and once lapsed the gate would automatically close (automatic close timer must be enabled).

      The timer allows for independent 5 day business week, INDEPENDENT days configurations OR a full 7 day week configuration along with other modes. Up to 8 different On/Off schedules can be set.



      Key Features

      ✓ Automatic Opening and Closing at the Set times
      ✓ LCD Display
      ✓ Built in Battery to retain schedules, replaced every 2-3 years
      ✓ Simple setting by: independent days schedule, Common time 5 day working week (MON-FRI), Weekends Combined (SAT+SUN) or Common time 7 day week (MON-SUN)

      Specifications

      Operating Voltage 12V DC
      Power Consumption 50mA
      Display LCD
      Load Capacity 10A/250V
      Programs 8
      Relay NO/NC
      x

      Weekly Auto Open/Close Scheduled Timer

      Programable timer with numerous configurations options on when to open and close the gate.

      Show more

      Programable timer with numerous configurations options on when to open and close the gate.

      ×
      Out Of Stock

    • Description

      WIRELESS Automatic Vehicle Detection Sensor – for Automatic Opening of gate

      wireless automatic driveway gate exit sensor

      An easy to install WIRELESS AUTOMATIC OPENING driveway vehicle detection system

      Multiple hours saved, materials saved and frustrations gone

      Long gone are the days of cutting concrete, chasing wires and configuring induction loop detectors (ground loop). Finally, a simple WIRELESS solution to streamline the installation process.
      The WIRELESS loop detector SIMPLY BOLT DOWN to a concrete driveway (or concrete pad in gravel driveways) and wirelessly communicate back with the gate system using the supplied high security (128 Bit) transceiver for two way communication between the New Generation wireless loops.

      The wireless exit “loop” is maintenance free and installed with 2x AA Lithium batteries for a THREE YEAR use period before a battery replacement is required (regular usage), to replace the batteries simply remove the top cover and fit the new Lithium AA batteries.

      How does it work and what happens if I accidently drive over it?
      The wireless loop is designed for a vehicle to drive over and will detect the undercarriage of the vehicle, if its accidently driven over it presents no issue whatsoever as its casing carries a static load capacity of 2500kg.

      How far can i have it from the gate?
      Thanks to its high transmission range capabilities it has a maximum wireless operating distance of 50 meters.

      How big is it?
      Its compact form factor allows for a discreet installation measuring only 120x120mm Length and Width and only 30mm in height.

      Will it work with my system?
      Typically, YES, it will work with any gate system that has an open command input and an accessories voltage output of 12-24V DC

      Which installations does this suit?
      Any domestic installations which fit the following criteria:
      ✓A concrete pad or driveway is available for the device to be installed on to
      ✓When a vehicle is parked it does not sit within 3 meters of the device
      ✓The device does not sit in a recess and pool water, snow or any debris
      ✓Not nearby to high voltage cables

      How is it installed?
      1. Connect the transceiver to the gates control board, this must be installed within the gate controller or any enclosure
      2. Power on the transceiver and have the loop touching the antenna of the transceiver.
      3. Once the transceiver flashes its blue led and the loop flashes its yellow led they are now paired together.
      4. Remove backing plate from the loop and install to concrete using the supplied concrete screw bolts, ensure the arrow faces the direction of travel for exit (faces towards the gate).
      5. Install the wireless loop to the backing plate and allow 3 minutes for calibration
      Test to confirm operation, job done!

      Supplied With

      ✓1x Wireless Loop (with 2x AA Lithium Batteries Installed)
      ✓1x Transceiver
      ✓2x Concrete Screw Bolts

      Detection Area

      Replaceable Battery Life

      x

      Automatic Opening WIRELESS Automatic Vehicle Detection Sensor

      This WIRELESS system can automatically open the gate as your vehicle passes over it. Installed up to 50 metres away from the gate!

      Show more

      This WIRELESS system can automatically open the gate as your vehicle passes over it. Installed up to 50 metres away from the gate!

      ×
      Out Of Stock

    • Description

      Tekno K1 Weatherproof Wired Keypad

      APP Control entry keypad mobile phone Automatic gate and garage door

      The Tekno K1 is a versatile and feature packed standalone keypad unit with APP Control by mobile phone allowing for the ability to operate from anywhere in the world along with local operations by PIN code or EM card/Tag. Its intuitive design allows for adding administering users directly into the keypad or by the APP.

      The free mobile APP allows for adding temporary PIN codes with expiry dates (or one time use) making it ideal for deliveries, Airbnb and other applications requiring temporary user access with out the need to add the users on-site.

      General Mobile APP users can also be managed in via the app (add/delete) if and when required.



      Key Features

      ✓ FREE APP Control available in Apple App Store and Google Play Store (Highly rated and reliable with over 5 million users worldwide)
      ✓ Control your gate ANYWHERE in the world
      ✓ Voice control and scene control compatible with Google assistant, Alexa and Siri
      ✓ Up to 10,000 Users by PIN code, EM Card and EM Tags
      ✓ Unlimited APP Users
      ✓ Add in expiring PIN codes by APP
      ✓ Add in normal users by APP
      ✓ Wires directly into the system
      ✓ Simple connection and simple setup
      ✓ Up to 10 meter Wi-Fi range with basic entry level routers (typically what’s supplied by the internet provider), Substantially boosted using good quality routers or mesh networks.

      Specifications

      Power 12V DC
      Standby Current ≤35mA
      Maximum Users 10,000 Users
      Operating Temperature -40°C - +60°C
      Operating Methods PIN CODE, RFID,MOBILE APP
      Wi-Fi Distance Up to 10m on basic ISP routers (entry level basic) Substantially boosted on a good quality router or mesh network
      x

      Access Control Keypad with EM Tag Reader and mobile APP

      Wired keypad allowing for pin code access control, em cards and tags operation, along with mobile APP control.

      Show more

      Wired keypad allowing for pin code access control, em cards and tags operation, along with mobile APP control.

      ×
      Out Of Stock

    • Description

      Tekno WF APP Control Switch

      APP Control mobile phone Automatic gate and garage door
      The Tekno WF is a versatile control device allowing for connection to the gate system to bridge from a locally controlled installation to also allow for Mobile APP based automatic gate control from anywhere in the world. Its mini design allows for mounting inside the system without the need for any additional boxes.



      Key Features

      ✓ FREE APP Control available in Apple App Store and Google Play Store (Highly rated and reliable with over 5 million users worldwide)
      ✓ Control your gate ANYWHERE in the world
      ✓ Voice control and scene control compatible with Google assistant, Alexa and Siri
      ✓ Can configure opening/closing schedules by Day and Time
      ✓ Fits directly into the system, no extras required
      ✓ Simple connection and simple setup
      ✓ Up to 10 meter Wi-Fi range with basic entry level routers (typically what’s supplied by the internet provider), Substantially boosted using good quality routers or mesh networks.

      Specifications

      Operating Voltage 5-24V DC
      Consumption ≤35mA Standby/≤100mA Operation
      Smart Assistant Support YES
      Operating Methods Mobile APP
      Wi-Fi Distance Up to 10m on basic ISP routers (entry level basic) Substantially boosted on a good quality router or mesh network
      x

      Mobile App Control Wi-Fi Connection Module

      Control the gate from anywhere in the world with your mobile phone using the Tekno WF module.

      Show more

      Control the gate from anywhere in the world with your mobile phone using the Tekno WF module.

      ×
      Out Of Stock

    • Description

      Uninterrupted Battery Backup System for Titan 2410/Premier SL24 Sliding Gate System

      backup uninterrupted battery sliding gate
      The optional uninterrupted battery backup system allows for continued use in the case of power loss without the need for any user intervention, it will continue to allow system operation including any system accessories for 24 hours OR until the power is restored. The batteries are automatically recharged when power is restored and trickle whilst power is available Directly fitting into the systems compartment there is no need for any additional storage boxes.
      x

      Titian 2410 Uninterrupted Battery Backup System

      Fits directly inside the sliding gate motor, supplied with the plug in harness. Allows for uninterrupted operation during power outage.

      Show more

      Fits directly inside the sliding gate motor, supplied with the plug in harness. Allows for uninterrupted operation during power outage.

      ×
      Out Of Stock

    Videos

    Complete Automatic Telescopic Sliding Gate System (Master and Trailing Sliding Gates) With Hardware Kit and Titan Low Voltage Sliding Gate Motor

    $1,785.00

    $1,555.00

    Save $230.00

    Insufficient stock

    x

    Register

    Shipping To

    Add company name

    Australia

    Add apartment, unit, building, floor, etc.

    Billing To

    Add company name

    Australia

    Add apartment, unit, building, floor, etc.


    Close
