Complete Radius Turning Sectional Sliding Gate Hardware Package Kit

SKU: SGHK-TURNV2-KIT

$523.00

$507.00

Save $16.00

  • Freight from $65.00 Calculate Freight
  • 1 Year Warranty
  • Brand : Automation Systems Australia

    In stock

    Click & Collect

    Delivery

    In-Store

    Please view the “Kit contents” tab to selectively adjust the configuration according to your requirements. The default configuration of this package is 1x SLM panel and 3x SLS panels (total four panels) with a total of 8 meters of track.

    The solution to your sliding gate space problems The radius sliding gate kits resolve the issue when there is no space for a traditional sliding gate to open completely, The radius sliding gate package allows for the sliding gate panels (multiple sections) to turn and run in the same direction as the driveway.

    With a pair of wheels on the first panel and a singular wheel on all other panels (linked together by the radius hinge) the sliding gate panels can be sized from 500mm each to a maximum of 1800mm each, it would be recommended to work on set panel lengths of 500/1000/1500mm to best suit nylon gear rack (if automating).

    Perpendicular Sliding Gate Motor Installation Example

    Radius sliding gate drawing

    Parallel Sliding Gate Motor Installation Example

    Radius sliding gate drawing

    Radius turning sliding gate wheels

    60 degree turning wheel for sliding gate around the corner

    ✓ 360° Turning Design with Ball Bearing

    ✓ R10 Track Compatibility

    ✓ Screw On Installation to the bottom of gate (No Welding)

    Radius Gate Hinges

    360 degree turning wheel for sliding gate around the corner
    ✓ Screw on directly to rear of gate panels
    ✓ Universal Left and Right direction hinge

    Radius 340 Sliding Gate Track for turning sliding gate

    turning gate track dome r10 sliding gate track round profile bolt down to ground concrete

    ✓ Ready to go around the corner, turning sliding gate track

    ✓ Elongated 6mm holes allow for adjustment before final tie down
    ✓ R10 Profile

    Four Point Roller System

    cantilever gate top guide roller system
    ✓ FOUR 100x40mm White Nylon Roller rollers adjustable for gate thickness up to 110mm
    ✓ 3mm Galvanized steel bracket
    ✓ Ultra Wide 300mm wide fixing bracket
    ✓ Option to fix secondary plate (if used) by welding or drilling and screwing to post in tunnel style installations

    145mm Height Sliding Gate Stop

    Sliding gate stop

    The gate stopper is a crucial part to any sliding gate installation, the stop is installed at the end of the open position to prevent the gate from being opened past the normal open point which prevents the sliding gate from coming off the track (or out of the top guiding system.

    ✓ Rubber Bumper
    ✓ 145mm High
    ✓ 10mm stem and 6mm base steel thickness

    Kit Contents (See Description Tab for Full In-Depth Details)

    • Description

      Radius turning sliding gate wheels

      60 degree turning wheel for sliding gate around the corner
      ✓ 360° Turning Design with Ball Bearing ✓ R10 Track Compatibility ✓ Screw On Installation to the bottom of gate (No Welding)
      x

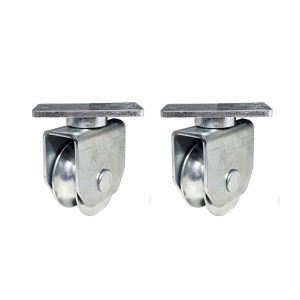

      Pair of (SLM Panel) Screw On 360 Degree TURNING TYPE Radius/Sectional Sliding Gate Wheel R10 U Groove

      Out Of Stock

    • Description

      Radius turning sliding gate wheels

      60 degree turning wheel for sliding gate around the corner
      ✓ 360° Turning Design with Ball Bearing ✓ R10 Track Compatibility ✓ Screw On Installation to the bottom of gate (No Welding)
      x

      (SLS/E Panel) Screw On Surface Mount TURNING TYPE 360 Degree Radius/Sectional Sliding Gate Wheel R10 U Groove

      Out Of Stock

    • Description

      Radius Gate Hinges

      360 degree turning wheel for sliding gate around the corner
      ✓ Screw on directly to rear of gate panels ✓ Universal Left and Right direction hinge
      x

      Radius Gate Hinge (Pair)

      Out Of Stock

    • No description available...
      x

      R10 Gal Steel Sliding Gate Track (QTY is Total Meters)

      Galvanized Steel Construction, nailed/anchored down to the concrete for the gate wheels to roll on

      Show more

      Galvanized Steel Construction, nailed/anchored down to the concrete for the gate wheels to roll on

      ×
      Out Of Stock

    • Description

      Radius 340 Sliding Gate Track for turning sliding gate

      turning gate track dome r10 sliding gate track round profile bolt down to ground concrete
      ✓ Ready to go around the corner, turning sliding gate track ✓ Elongated 6mm holes allow for adjustment before final tie down ✓ R10 Profile
      x

      Radius Turning Corner Sliding Gate Floor Ground Track R10 Profile Bolt Down Type

      Out Of Stock

    • Bundled product placeholder image
      No description available...
      x

      Upper Guide System

      Out Of Stock
      Four Point Roller System B (ZERO-110mm)

    • Bundled product placeholder image
      No description available...
      x

      Gate Catcher

      Out Of Stock
      Clear
      Out Of Stock

    • Description

      145mm Height Sliding Gate Stop

      Sliding gate stop
      The gate stopper is a crucial part to any sliding gate installation, the stop is installed at the end of the open position to prevent the gate from being opened past the normal open point which prevents the sliding gate from coming off the track (or out of the top guiding system. ✓ Rubber Bumper ✓ 145mm High ✓ 10mm stem and 6mm base steel thickness

      Dimensions

      sliding gate stop 145mm height
      x

      145mm Height Sliding Gate Stopper Steel Bolt Down

      Out Of Stock
