Double Swing Gate Automation Access Secure Kit Super Duty Linear Actuator with Limit Stops and Encoder Made in Italy

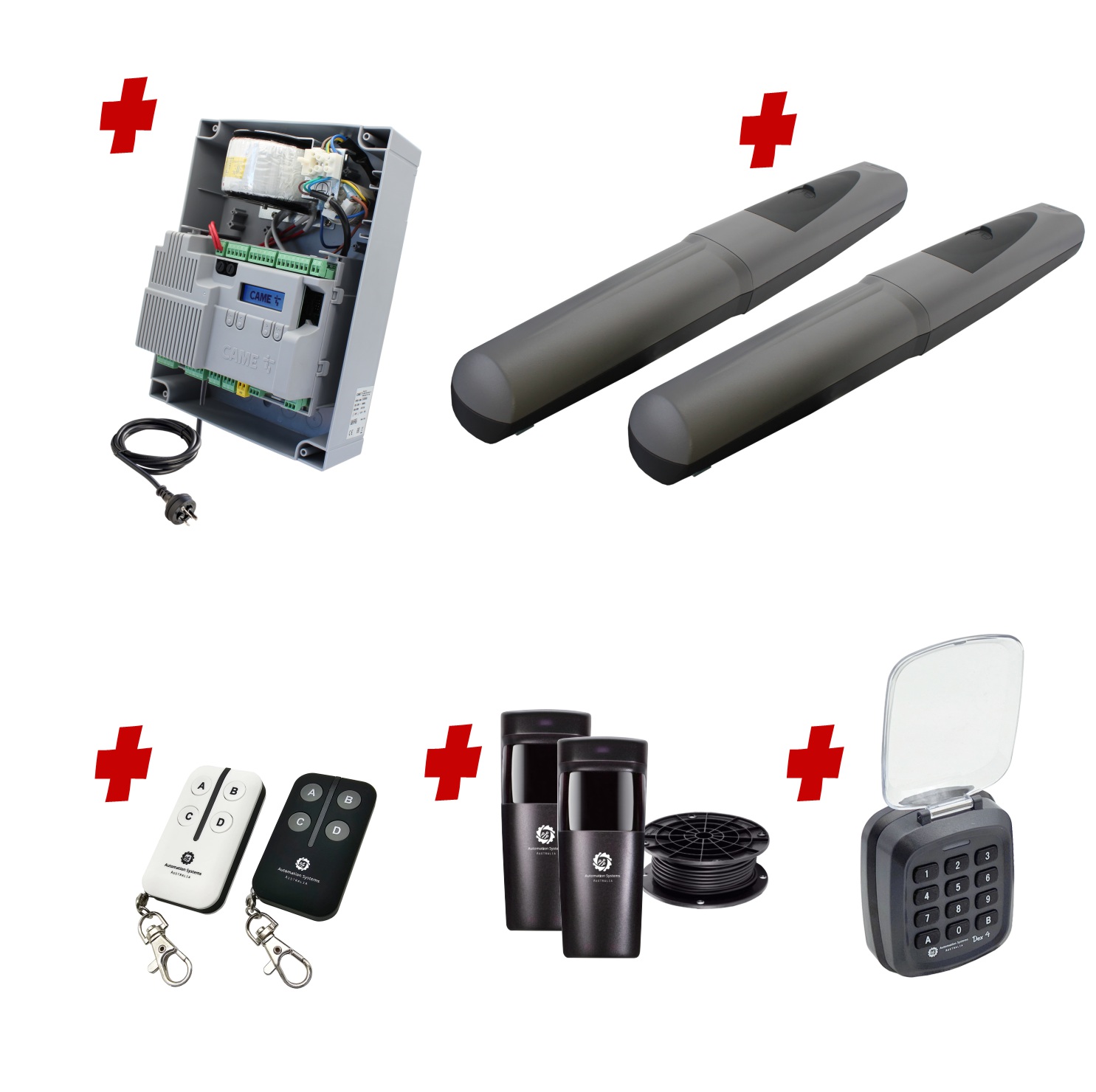

Kit Contents (See Description Tab for Full In-Depth Details)

•

  Description

  Super Duty High Torque Linear Actuator with Encoder and Limit Stops








  The Axo series Linear Actuator is a high torque, high duty cycle encoder controlled motor. Extremely strong it can be used from short gate installations as well as a complete driveway gate up to 3m in length/800KG in weight (long stroke version is available for up to 5m). With the Axo’s wind tolerance and higher torque it can even be used with clad/covered gates in conjunction with an electric lock.

  Furthermore the AXO 3024 is a compact design of only 100mm in width, 123mm in height and an overall length of 880mm keeping it discreet.

  The versatile swivel tail system allows for flexible mobility in the gates travel which is seldom seen in the design of the actuator and the bracketing system is supplied at full size ready to cut down and weld to suit most installation geometries.

  Adjustable Limit Stops








  With the built in and adjustable open and close position stops allow for the simplest and easiest setting of the open and close swing angles, completely adjustable they allow for forward/back slide movement and are tightened with a spanner to lock against the cast in bite points.

  Complete Alloy bodied with a stainless steel lead screw allows for its superior high torque delivery.

  Built In Encoder

  Undisputedly the best technology the encoder motor is standard and will feedback to the system where the gate motor and effectively the gate is in its travel through the entire cycle.

  Allowing for reliable operation regardless of any changes in operation be it due to temperature, wind or other factors. This is the technology you can rely on for constancy and peace of mind.



  Swivel System








  Typically a linear actuator is a rigid unit and has very little tolerance for up-down movement in the gate however with the swivel system there is now some allowance, typical scenarios that would utilize the swivel would be gates with a support wheel, gates with a slight sag or gates with misaligned hinges. Note that this will not support rising gates.

  Conduit Feed






  Supplied with a 20mm corrugate conduit gland this allows for the best protection of the actuators cable without any modifications required to the structure. If required it could be replaced with a typical cable gland.



  Manual Release System







  In the case of a power outage, simply slide open the cover and using the supplied key you can release the actuator. Once release you can open and close the gate by hand until ready to re-lock.

  If required there is an optional battery backup system available which will fit directly into the systems control box allowing for uninterrupted operation.

  Installation Geometry



  Actuator Dimensions



  Specifications



  Maximum Gate Length	3m
  Maximum Gate Weight	800KG
  Maximum Opening Angle	110°
  Encoder	Yes
  Motor Power (Volts)	24V DC
  Power (Watts)	120W
  Operating Temperature	-20° to +55° C
  Stroke	300mm
  Thrust (N)	4500N Max
  Duty Cycle	100%



  x

  AXO 3 Super Duty High Torque Linear Actuator

  • 3m / 12ft Farm Gate / 800KG Capacity
  • Left OR Right Side
  • Limit Stops
  • Encoder Control
  • High Torque
  • Flexible Swivel End

  Show more

  • 3m / 12ft Farm Gate / 800KG Capacity
  • Left OR Right Side
  • Limit Stops
  • Encoder Control
  • High Torque
  • Flexible Swivel End

  ×

  Out Of Stock

  Cable Length *

  Choose an optionNo Cable (BYO)3m Cable5m Cable10m Cable7m Cable Clear Out Of Stock

•

  Description

  Super Duty High Torque Linear Actuator with Encoder and Limit Stops








  The Axo series Linear Actuator is a high torque, high duty cycle encoder controlled motor. Extremely strong it can be used from short gate installations as well as a complete driveway gate up to 3m in length/800KG in weight (long stroke version is available for up to 5m). With the Axo’s wind tolerance and higher torque it can even be used with clad/covered gates in conjunction with an electric lock.

  Furthermore the AXO 3024 is a compact design of only 100mm in width, 123mm in height and an overall length of 880mm keeping it discreet.

  The versatile swivel tail system allows for flexible mobility in the gates travel which is seldom seen in the design of the actuator and the bracketing system is supplied at full size ready to cut down and weld to suit most installation geometries.

  Adjustable Limit Stops








  With the built in and adjustable open and close position stops allow for the simplest and easiest setting of the open and close swing angles, completely adjustable they allow for forward/back slide movement and are tightened with a spanner to lock against the cast in bite points.

  Complete Alloy bodied with a stainless steel lead screw allows for its superior high torque delivery.

  Built In Encoder

  Undisputedly the best technology the encoder motor is standard and will feedback to the system where the gate motor and effectively the gate is in its travel through the entire cycle.

  Allowing for reliable operation regardless of any changes in operation be it due to temperature, wind or other factors. This is the technology you can rely on for constancy and peace of mind.



  Swivel System








  Typically a linear actuator is a rigid unit and has very little tolerance for up-down movement in the gate however with the swivel system there is now some allowance, typical scenarios that would utilize the swivel would be gates with a support wheel, gates with a slight sag or gates with misaligned hinges. Note that this will not support rising gates.

  Conduit Feed






  Supplied with a 20mm corrugate conduit gland this allows for the best protection of the actuators cable without any modifications required to the structure. If required it could be replaced with a typical cable gland.



  Manual Release System







  In the case of a power outage, simply slide open the cover and using the supplied key you can release the actuator. Once release you can open and close the gate by hand until ready to re-lock.

  If required there is an optional battery backup system available which will fit directly into the systems control box allowing for uninterrupted operation.

  Installation Geometry



  Actuator Dimensions



  Specifications



  Maximum Gate Length	3m
  Maximum Gate Weight	800KG
  Maximum Opening Angle	110°
  Encoder	Yes
  Motor Power (Volts)	24V DC
  Power (Watts)	120W
  Operating Temperature	-20° to +55° C
  Stroke	300mm
  Thrust (N)	4500N Max
  Duty Cycle	100%



  x

  AXO 3 Super Duty High Torque Linear Actuator

  • 3m / 12ft Farm Gate / 800KG Capacity
  • Left OR Right Side
  • Limit Stops
  • Encoder Control
  • High Torque
  • Flexible Swivel End

  Show more

  • 3m / 12ft Farm Gate / 800KG Capacity
  • Left OR Right Side
  • Limit Stops
  • Encoder Control
  • High Torque
  • Flexible Swivel End

  ×

  Out Of Stock

  Cable Length *

  Choose an optionNo Cable (BYO)3m Cable5m Cable10m Cable7m Cable Clear Out Of Stock

•

  Description

  Please note this is a replacement operator and is not supplied with remotes or receiver card.



  Top of the Line ADVANCED Digital Control Box








  The most ADVANCED AND EASY to use control board in the gate automation industry, the ZLX24 features an endless option list and configurability.

  Starting with the casing the ZLX24 control box itself has 8 cable entry point four from the rear and four from the bottom side. The box can be fixed to the wall in a traditional manor being a fixing screw in each corner, or alternatively a DIN rail is supplied for its direct to DIN mounting system.

  The control board itself is encased in a complete housing within the box to prevent short circuit and accidental touching of components, during the installation the control board easily unclips revealing its module storage and cable management routes, this simplifies the installation for feeding wiring through without any chance of damage.

  Overview of the Features




  Power Inputs and Outputs

  Typical input and outputs to power the system and any wired in accessories

  24V Power Input
  24V Power Output For Accessories



  Automatic Weekly Timer

  Completely configurable times to open and close the gate automatically and also switch the relay output (great for garden lights).

  Selective choice of the 7 Days of the week settings, or the entire week
  12/24 Hour Format
  EACH timer event can be configured to Open gates, Partial Opening or B1-2 Output Activated



  Configurable Methods Of Operation

  Along with the on onboard weekly timer wireless and Wired equipment can be configured in a number of different ways to support the best suited operation for the site, by default the system is configured for typical usage being full gate operation and pedestrian opening however as seen below it can be dynamically set according to specific requirements.

  ON BOARD WEEKLY TIMER Set the days and times in which you want the gate to open and close EASILY by the LCD screen
  Full Gate Operation by remote
  Partial by remote (Opens one gate partially) OR Pedestrian by remote (Opens ONE gate completely)
  Open Only by remote
  Close Only by remote
  Open/Close Input by Wired Accessories
  Open only Input by Wired Accessories (loop Detector)
  Close only Input by Wired Accessories (loop Detector)
  Wired Emergency STOP Button



  Remote Operation

  The remote buttons can individually be programmed to work in any of the below settings for each button.

  OPEN-CLOSE (Reverting action if pressed part way through a cycle)
  OPEN-CLOSE (Sequential action if pressed part way through a cycle it will STOP)
  Partial-Pedestrian Operation
  RELAY OUTPUT/STAY OPEN Feature (Pause automatic close)



  Motor Specifics

  Default configurations are already set however, if required further adjustment can be made to suit all installations

  ENCODER Control
  Automatic Calibration (with Adjustable Calibration Speed)
  Motor Test (used for checking your directions prior to calibration)
  Adjustable Thrust
  Adjustable Travel Speed
  Adjustable Sensitivity
  Adjustable Slowdown Speed
  Adjustable Slowdown Position (Two Stages)
  Delay Time Between Motors for Opening
  Delay Time Between Motors for Closing



  Safety Devices

  Plenty of support to protect occupants, visitors and there vehicles with FOUR Safety Inputs completely configurable in there functionality and method of operation with 11 different Logic settings.

  Supports Photocell Sensors
  Supports Reflective Sensors
  Supports Safety Edge
  Supports Induction Loops for Safety
  Supports STOP Button
  Supports Maintained Action (Hold to OPEN/CLOSE)



  Added Electric Lock Security

  Added protection for the gates and gate system if wind is a factor or in a high risk setting

  Automatic Electric Lock (Adjustable Time) with Reverse Thrust Feature
  TWO Electric Lock Outputs, Allows you to use ONE or TWO electric Locks to secure depending on the gate/lock arrangement (with adjustable logic on how they operate).



  Control Board Security

  A secure password can be set on the control board to prevent unauthorized users from accessing and adjusting its functions. This is an excellent feature in even low risk settings preventing unauthorized users from being able to operate the gate from the ZLX24 menu.

  Light Control

  Multiple options for visible safety alerts, illuminating the driveway OR Both

  Flashing/Static Illuminated Light from OPEN til CLOSED
  Additional Output for Flashing During Opening



  Operational Control

  Infinite support for accessories and methods of operation

  Remote Controls
  Wireless Keypads
  Wired Keypads
  Wired Button
  Induction Loops
  Intercom Systems



  Relay Output B

  Default Can be set to work on a remote button and/or by the weekly timer

  Set to a latching ON/OFF Circuit
  Can be used to trigger an alarm, garage door or another gate
  Can be used to enable/disable an accessory at set times/days such as an entry or exit loop or a wired button and keypad
  Can be used to keep as a STAY OPEN function in the case of an automatic close timer, this is great for trailer and truck access, a time when multiple visitors may be using the gate, etc.



  Dimensions



  x

  24V ADVANCED Powered Swing Gate Control Panel

  • Backlit LCD Display (Auto Standby)
  • Multiple lights and safety sensor inputs
  • 3 Stage Speed Control
  • Installation Wizard System (Step by Step)
  • Weekly Timer Settings (Open and Close programs)
  • Automatic Close Timer
  • Pedestrian Function
  • Supports Battery Backup
  • Pre wired with a 1.2m Power Cord

  Show more

  • Backlit LCD Display (Auto Standby)
  • Multiple lights and safety sensor inputs
  • 3 Stage Speed Control
  • Installation Wizard System (Step by Step)
  • Weekly Timer Settings (Open and Close programs)
  • Automatic Close Timer
  • Pedestrian Function
  • Supports Battery Backup
  • Pre wired with a 1.2m Power Cord

  ×

  Out Of Stock

•

  Description

  Please be aware this product is only compatible with Automation Systems Australia Control Boards and Remote Receivers, it will NOT work with other brand products.

  STX4K Keyring High Range Remote



  The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

  The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).



  Key Features

  ✓ Up to 100 metres distance in open air
  ✓ Keeloq rolling code security
  ✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
  ✓ Clear visibility red LED indicator which will illuminate upon a button press
  ✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
  ✓ Slimline and modern ergonomic design
  ✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

  x

  Four Button Keyring Remote Control (White)

  • Up to 100 Metre Open Air Distance
  • High Security Rolling Code
  • Slimline and Ergonomic

  Show more

  • Up to 100 Metre Open Air Distance
  • High Security Rolling Code
  • Slimline and Ergonomic

  ×

  Out Of Stock

  Provide a Sun Visor Clip? ($3) *

  Choose an optionNoYes Clear Out Of Stock

  Automatic Gate Remote Control Keyring Mounting STX4K White quantity

•

  Description

  Please be aware this product is only compatible with Automation Systems Australia Control Boards and Remote Receivers, it will NOT work with other brand products.

  STX4K Keyring High Range Remote



  The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

  The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).



  Key Features

  ✓ Up to 100 metres distance in open air
  ✓ Keeloq rolling code security
  ✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
  ✓ Clear visibility red LED indicator which will illuminate upon a button press
  ✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
  ✓ Slimline and modern ergonomic design
  ✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

  x

  Four Button Keyring Remote Control (Black)

  • Up to 100 Metre Open Air Distance
  • High Security Rolling Code
  • Slimline and Ergonomic

  Show more

  • Up to 100 Metre Open Air Distance
  • High Security Rolling Code
  • Slimline and Ergonomic

  ×

  Out Of Stock

  Provide a Sun Visor Clip? ($3) *

  Choose an optionNoYes Clear Out Of Stock

  Automatic Gate Remote Control Keyring Mounting STX4K Black quantity

•

  Description

  Dukie XR Retro-Reflective Sensor



  The Dukie XR series retro-reflective sensor kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Only the sensor requires wiring back to the gate controller as the sensor bounces its own beam back via the reflector installed on the far side of the driveway.

  Added benefits of the XR series photocell is its Anti Interference Infrared characteristics making it best suited for ultra high capacity electric motors.





  Key Features

  ✓ No wiring needed across the driveway (reflector)
  ✓ Narrow Sensor only 20mm width
  ✓ Flexible with multiple different mounting methods
  ✓ NO and NC Relay Options
  ✓ Excellent range characteristics of up to 11 meter distance in clear conditions (-40% in adverse conditions)

  x

  Photocell OR Reflective Safety Sensor

  Choose from Photocell wired to both sides OR a Reflective sensor Wired only on the one side (1.9m Pre-Connected)

  Show more

  Choose from Photocell wired to both sides OR a Reflective sensor Wired only on the one side (1.9m Pre-Connected)

  ×

  Out Of Stock

  Photocell Options *

  Choose an optionNo Photocell, No Cable (I have my own)Wired Both Sides with 7m Cable Roll (Dukie)Wired Both Sides with 10m Cable Roll (Dukie)Reflective Sensor- WIRELESS ACROSS DRIVEWAY (Dukie XR)Wired Both Sides, I already have cable (Dukie) Clear Out Of Stock

•

  Description

  Please be aware this product is only compatible with Automation Systems Australia Control Boards and Remote Receivers, it will NOT work with other brand products.

  Dex 4 Wireless Keypad



  The Dex 4 Wireless Keypad can communicate directly to the gate system using the same Keeloq secure rolling code signal as the remotes allowing for an easy installation process without the need for wiring.

  Due to its high quality chipset the open air signal strength can exceed an astounding 80 meters. This makes the Dex 4 not only suited to controlling the gate but could actually be used to control the garage door, another gate etc. providing they have the compatible receiver installed, Up to FOUR devices/features could be used with individual pin codes for each due to its four independent output channel designs.

  Key Features

  ✓ Three colour options are available: Classic White, Subtle Grey and Deep black
  ✓ Compact design fits almost anywhere at 90(L)x77(W)x35(D)mm
  ✓ Control Up to four systems or four features on different pin codes
  ✓ Astounding open air distance of 80 metres
  ✓ Works on 2x AAA batteries (supplied)
  ✓ Audible and LED indicators
  ✓ Totally wireless (wire free) easy installation

  Power	2xAAA Batteries (Supplied)
  Operating Distance	80 Meters Open Air
  Frequency	Secure Rolling Code 433MHZ
  Operating Channels	4
  Transmitting Time	1.5s

  x

  Wireless Keypad (Three colour options)

  Four channel wireless keypad allowing for full control of all automatic gate features without the need for wiring.

  Show more

  Four channel wireless keypad allowing for full control of all automatic gate features without the need for wiring.

  ×

  Out Of Stock

  Colour *

  Choose an optionBlackGreyWhite Clear Out Of Stock

  Wireless Pin Code/Password Keypad for Automatic Gates and Garage Doors 433MHZ quantity
