This Premium Quality product is Made in Italy and is provided with a TWO year Warranty

Double Swing Gate Automation Access Unlimited WiFi Bluetooth Kit Super Duty Linear Actuator with Limit Stops and Encoder Made in Italy

Name: Double Swing Gate Automation Access Unlimited WiFi Bluetooth Kit Super Duty Linear Actuator with Limit Stops and Encoder Made in Italy
SKU: AXO3-2D-ZLX24-P-AU
Price: 2926 AUD
Availability: InStock

SKU: AXO3-2D-ZLX24-P-AU

$2,966.00

$2,926.00

Save $40.00

Freight from $40.00 Calculate Freight
2 Year Warranty
Brand : CAME x ASA

2 Year Warranty

6 Metre Opening

1600KG (2x 800KG)

Made In Italy

240V to 24V System

AXO

High Torque

Adjustable Limit Stops

2 Year Warranty
6 Metre Opening
1600KG (2x 800KG)
Made In Italy
240V to 24V System
AXO
High Torque
Adjustable Limit Stops

In stock

Click & Collect

Delivery

In-Store

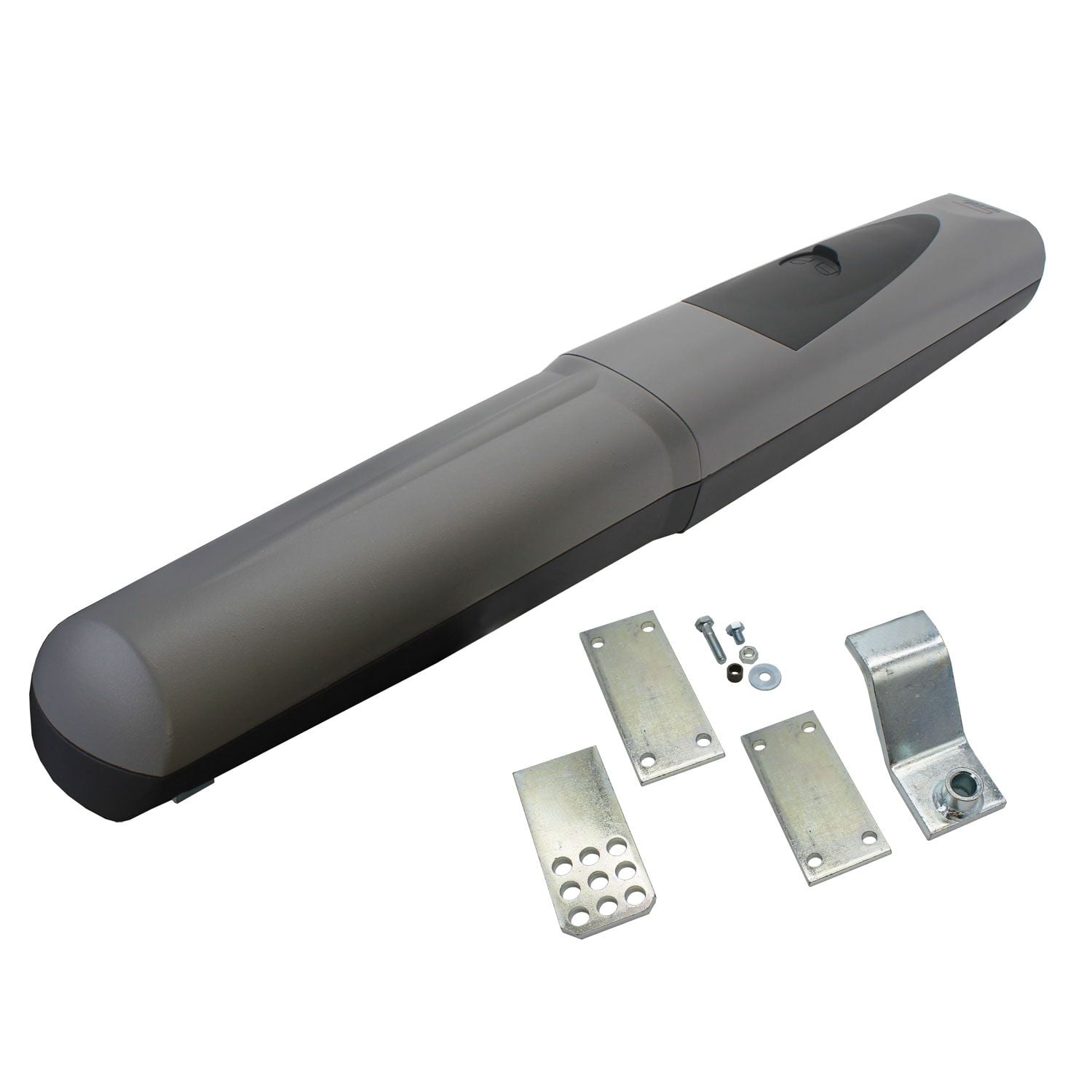

Super Duty High Torque Linear Actuator with Encoder and Limit Stops

axo linear actuator super duty wind proof automation 24v encoder italian made for driveway double swing gates and single swing gates australia

The Axo series Linear Actuator is a high torque, high duty cycle encoder controlled motor. Extremely strong it can be used from short gate installations as well as a complete driveway gate opening up to 6m (2x 3m) or 800KG in weight per gate. A long stroke version is available if required for up to a 10m opening. With the Axo’s wind tolerance and higher torque it can even be used with clad/covered gates in conjunction with an electric lock.

Furthermore the AXO 3024 is a compact design of only 100mm in width, 123mm in height and an overall length of 880mm keeping it discreet.

The versatile swivel tail system allows for flexible mobility in the gates travel which is seldom seen in the design of the actuator and the bracketing system is supplied at full size ready to cut down and weld to suit most installation geometries.

Adjustable Limit Stops

With the built in and adjustable open and close position stops allow for the simplest and easiest setting of the open and close swing angles, completely adjustable they allow for forward/back slide movement and are tightened with a spanner to lock against the cast in bite points.

Complete Alloy bodied with a stainless steel lead screw allows for its superior high torque delivery.

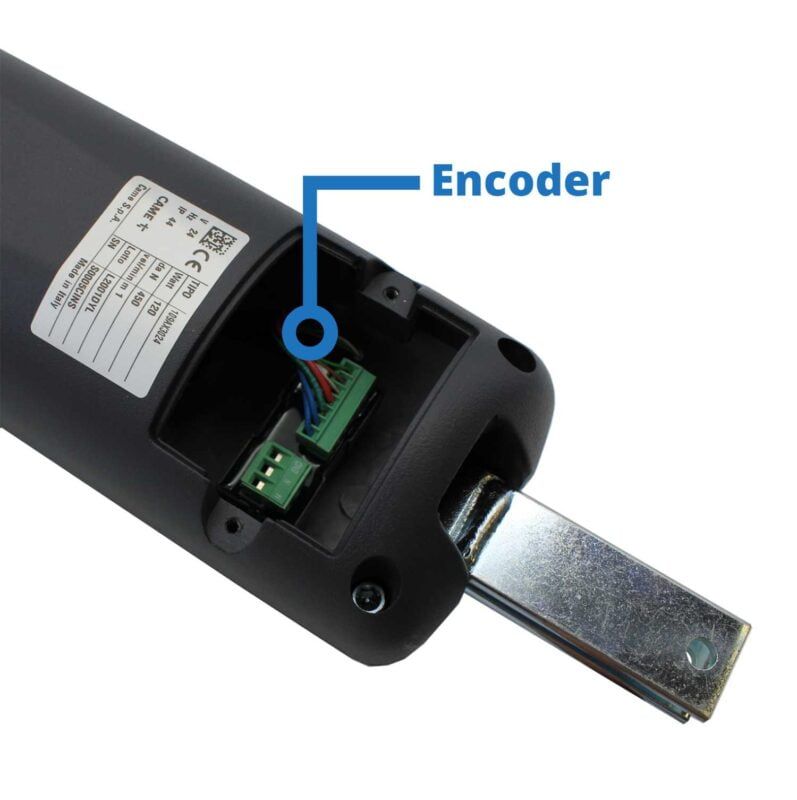

Built In Encoder

Undisputedly the best technology the encoder motor is standard and will feedback to the system where the gate motor and effectively the gate is in its travel through the entire cycle.

Allowing for reliable operation regardless of any changes in operation be it due to temperature, wind or other factors. This is the technology you can rely on for constancy and peace of mind.

24v encoder motor with intelligent operation of parameters

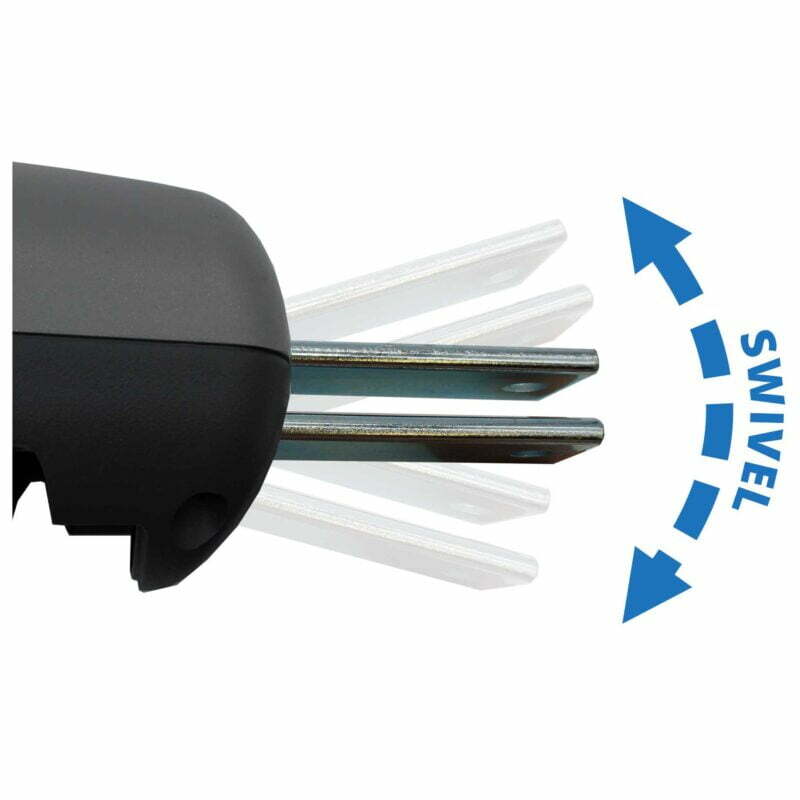

Swivel System

flexible linear actuator swivel end to allow for uneven gate movment

Typically a linear actuator is a rigid unit and has very little tolerance for up-down movement in the gate however with the swivel system there is now some allowance, typical scenarios that would utilize the swivel would be gates with a support wheel, gates with a slight sag or gates with misaligned hinges. Note that this will not support rising gates.

Conduit Feed

Supplied with a 20mm corrugate conduit gland this allows for the best protection of the actuators cable without any modifications required to the structure. If required it could be replaced with a typical cable gland.

conduit gland for professional installation of gate automation equipment

Manual Release System

manual release incase of power outage of automatic electric gate motor

In the case of a power outage, simply slide open the cover and using the supplied key you can release the actuator. Once release you can open and close the gate by hand until ready to re-lock.

If required there is an optional battery backup system available which will fit directly into the systems control box allowing for uninterrupted operation.

Installation Geometry

Actuator Dimensions

Specifications

Maximum Gate Length	3m each
Maximum Gate Weight	800KG each
Maximum Opening Angle	110°
Encoder	Yes
Motor Power (Volts)	24V DC
Power (Watts)	120W
Operating Temperature	-20° to +55° C
Stroke	300mm
Thrust (N)	4500N Max
Duty Cycle	100%

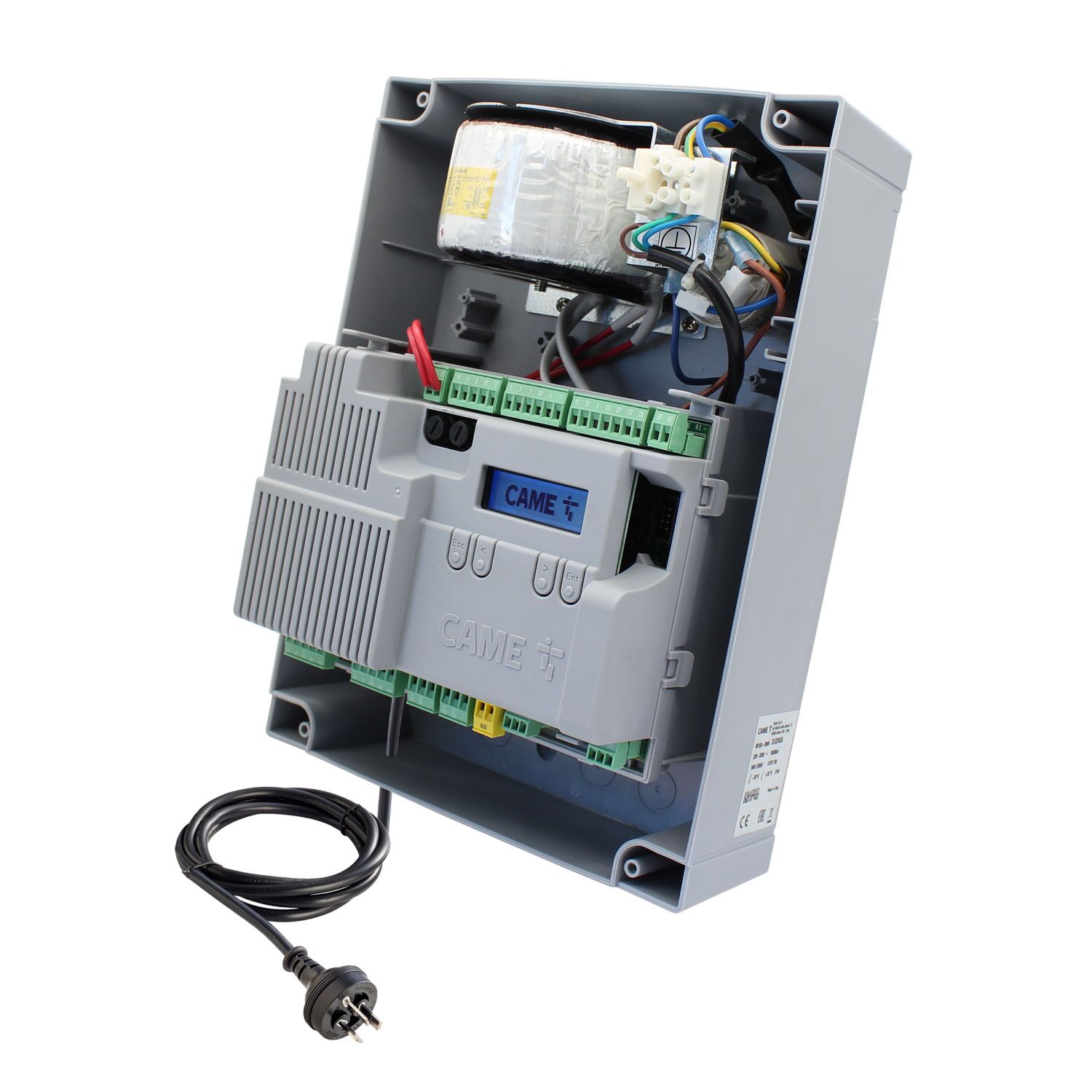

Top of the Line ADVANCED Digital Control Box

zlx24 control board box advanced features and made in italy with long service life

The most ADVANCED AND EASY to use control board in the gate automation industry, the ZLX24 features an endless option list and configurability.

Starting with the casing the ZLX24 control box itself has 8 cable entry point four from the rear and four from the bottom side. The box can be fixed to the wall in a traditional manor being a fixing screw in each corner, or alternatively a DIN rail is supplied for its direct to DIN mounting system.

The control board itself is encased in a complete housing within the box to prevent short circuit and accidental touching of components, during the installation the control board easily unclips revealing its module storage and cable management routes, this simplifies the installation for feeding wiring through without any chance of damage.

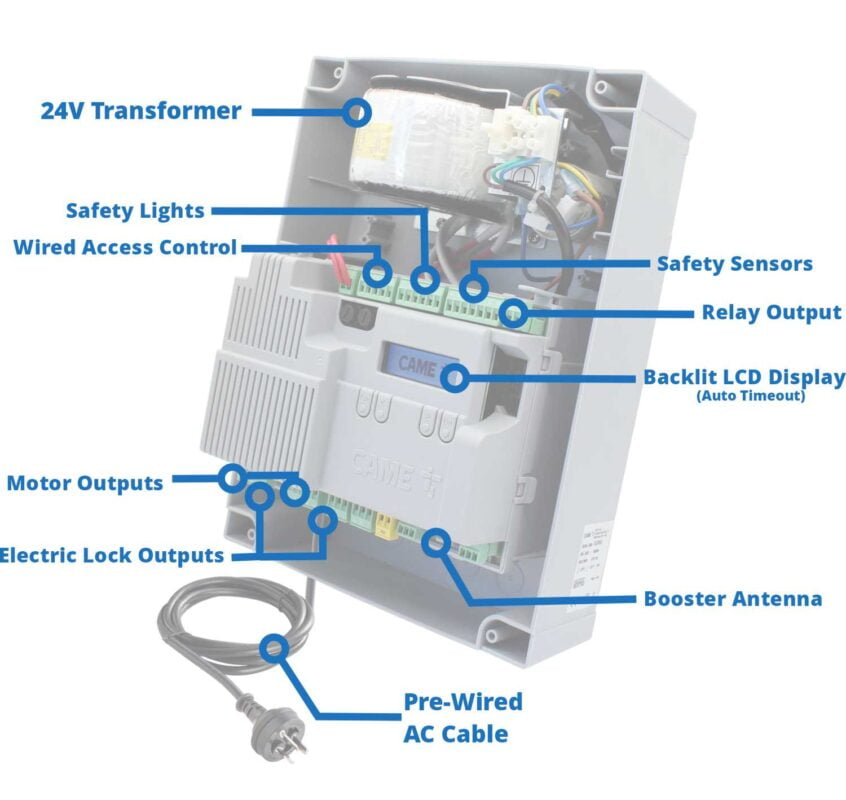

Overview of the Features

Power Inputs and Outputs

Typical input and outputs to power the system and any wired in accessories

24V Power Input

24V Power Output For Accessories

Automatic Weekly Timer

Completely configurable times to open and close the gate automatically and also switch the relay output (great for garden lights).

Selective choice of the 7 Days of the week settings, or the entire week

12/24 Hour Format

EACH timer event can be configured to Open gates, Partial Opening or B1-2 Output Activated

Configurable Methods Of Operation

Along with the on onboard weekly timer wireless and Wired equipment can be configured in a number of different ways to support the best suited operation for the site, by default the system is configured for typical usage being full gate operation and pedestrian opening however as seen below it can be dynamically set according to specific requirements.

ON BOARD WEEKLY TIMER Set the days and times in which you want the gate to open and close EASILY by the LCD screen

Full Gate Operation by remote

Partial by remote (Opens one gate partially) OR Pedestrian by remote (Opens ONE gate completely)

Open Only by remote

Close Only by remote

Open/Close Input by Wired Accessories

Open only Input by Wired Accessories (loop Detector)

Close only Input by Wired Accessories (loop Detector)

Wired Emergency STOP Button

Remote Operation

The remote buttons can individually be programmed to work in any of the below settings for each button.

OPEN-CLOSE (Reverting action if pressed part way through a cycle)

OPEN-CLOSE (Sequential action if pressed part way through a cycle it will STOP)

Partial-Pedestrian Operation

RELAY OUTPUT/STAY OPEN Feature (Pause automatic close)

Motor Specifics

Default configurations are already set however, if required further adjustment can be made to suit all installations

ENCODER Control

Automatic Calibration (with Adjustable Calibration Speed)

Motor Test (used for checking your directions prior to calibration)

Adjustable Thrust

Adjustable Travel Speed

Adjustable Sensitivity

Adjustable Slowdown Speed

Adjustable Slowdown Position (Two Stages)

Delay Time Between Motors for Opening

Delay Time Between Motors for Closing

Safety Devices

Plenty of support to protect occupants, visitors and there vehicles with FOUR Safety Inputs completely configurable in there functionality and method of operation with 11 different Logic settings.

Supports Photocell Sensors

Supports Reflective Sensors

Supports Safety Edge

Supports Induction Loops for Safety

Supports STOP Button

Supports Maintained Action (Hold to OPEN/CLOSE)

Added Electric Lock Security

Added protection for the gates and gate system if wind is a factor or in a high risk setting

Automatic Electric Lock (Adjustable Time) with Reverse Thrust Feature

TWO Electric Lock Outputs, Allows you to use ONE or TWO electric Locks to secure depending on the gate/lock arrangement (with adjustable logic on how they operate).

Control Board Security

A secure password can be set on the control board to prevent unauthorized users from accessing and adjusting its functions. This is an excellent feature in even low risk settings preventing unauthorized users from being able to operate the gate from the ZLX24 menu.

Light Control

Multiple options for visible safety alerts, illuminating the driveway OR Both

Flashing/Static Illuminated Light from OPEN til CLOSED

Additional Output for Flashing During Opening

Operational Control

Infinite support for accessories and methods of operation

Remote Controls

Wireless Keypads

Wired Keypads

Wired Button

Induction Loops

Intercom Systems

Relay Output B

Default Can be set to work on a remote button and/or by the weekly timer

Set to a latching ON/OFF Circuit

Can be used to trigger an alarm, garage door or another gate

Can be used to enable/disable an accessory at set times/days such as an entry or exit loop or a wired button and keypad

Can be used to keep as a STAY OPEN function in the case of an automatic close timer, this is great for trailer and truck access, a time when multiple visitors may be using the gate, etc.

Dimensions

STX4K Keyring High Range Remote

Automation systems Australia keyring remote control for driveway gate

The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).

Key Features

✓ Up to 100 metres distance in open air
✓ Keeloq rolling code security
✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
✓ Clear visibility red LED indicator which will illuminate upon a button press
✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
✓ Slimline and modern ergonomic design
✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

Dukie Photocell Kit

Dukie Automatic gate and garage door photocell

The Dukie series photocell kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Both the photocells are wired back to the control box with low voltage wiring however the OPTIONAL UPGRADE to Dukie XR Retro Reflective sensor allows for a reflector on the far side and the sensor itself to be connected on the control box side.

Key Features

✓ 45° Adjustable in each direction, suited for inline and out of line posts
✓ Ultra modern and neat appearance
✓ Compact design fits almost anywhere at 100(L)x45(W)x35(D)mm
✓ NO and NC Relay Settings
✓ Excellent range characteristics of up to 10 meter distance between each photocell
✓ Unlimited sets can be installed on each system for added protective layers
✓ OPTIONAL Dukie XR reflective sensor upgrade for wiring on one side only

Dex 4 Wireless Keypad

The Dex 4 Wireless Keypad can communicate directly to the gate system using the same Keeloq secure rolling code signal as the remotes allowing for an easy installation process without the need for wiring.

Due to its high quality chipset the open air signal strength can exceed an astounding 80 meters. This makes the Dex 4 not only suited to controlling the gate but could actually be used to control the garage door, another gate etc. providing they have the compatible receiver installed, Up to FOUR devices/features could be used with individual pin codes for each due to its four independent output channel designs.

Key Features

✓ Three colour options are available: Classic White, Subtle Grey and Deep black
✓ Compact design fits almost anywhere at 90(L)x77(W)x35(D)mm
✓ Control Up to four systems or four features on different pin codes
✓ Astounding open air distance of 80 metres
✓ Works on 2x AAA batteries (supplied)
✓ Audible and LED indicators
✓ Totally wireless (wire free) easy installation

Fortress EL Automatic Gate Lock

The Fortress EL totally AUTOMATIC electric gate lock system allows for a secure hold over the gate particularly handy when the gate is wide, prone to wind resistance or in an application requiring an additional layer of security. Prior to beginning the gate operation the electric lock first unlatches then begins to move the gates to the open position, during the closing the lock will automatically latched closed when reaching the end of cycle.

The Fortress EL is supplied with both a gate to post latching plate (for single gates) and also a gate to ground latching plate (for double gates to be used with a metal gate stop).

For double gates a rebate/lip should be installed on the front of the trailing gate to prevent it being pushed past the locked gate (essentially both gates are locked this way).

Key Features

✓ Zero power consumption when locked in standby
✓ All metal construction
✓ Works with the gate controllers battery system
✓ Release keys supplied in-case of total power loss
✓ Easy 2 Wire connection
✓ flexible installation

Tekno WF APP Control Switch

APP Control mobile phone Automatic gate and garage door

The Tekno WF is a versatile control device allowing for connection to the gate system to bridge from a locally controlled installation to also allow for Mobile APP based automatic gate control from anywhere in the world. Its mini design allows for mounting inside the system without the need for any additional boxes.

Key Features

✓ FREE APP Control available in Apple App Store and Google Play Store (Highly rated and reliable with over 5 million users worldwide)
✓ Control your gate ANYWHERE in the world
✓ Voice control and scene control compatible with Google assistant, Alexa and Siri
✓ Can configure opening/closing schedules by Day and Time
✓ Fits directly into the system, no extras required
✓ Simple connection and simple setup
✓ Up to 10 meter Wi-Fi range with basic entry level routers (typically what’s supplied by the internet provider), Substantially boosted using good quality routers or mesh networks.

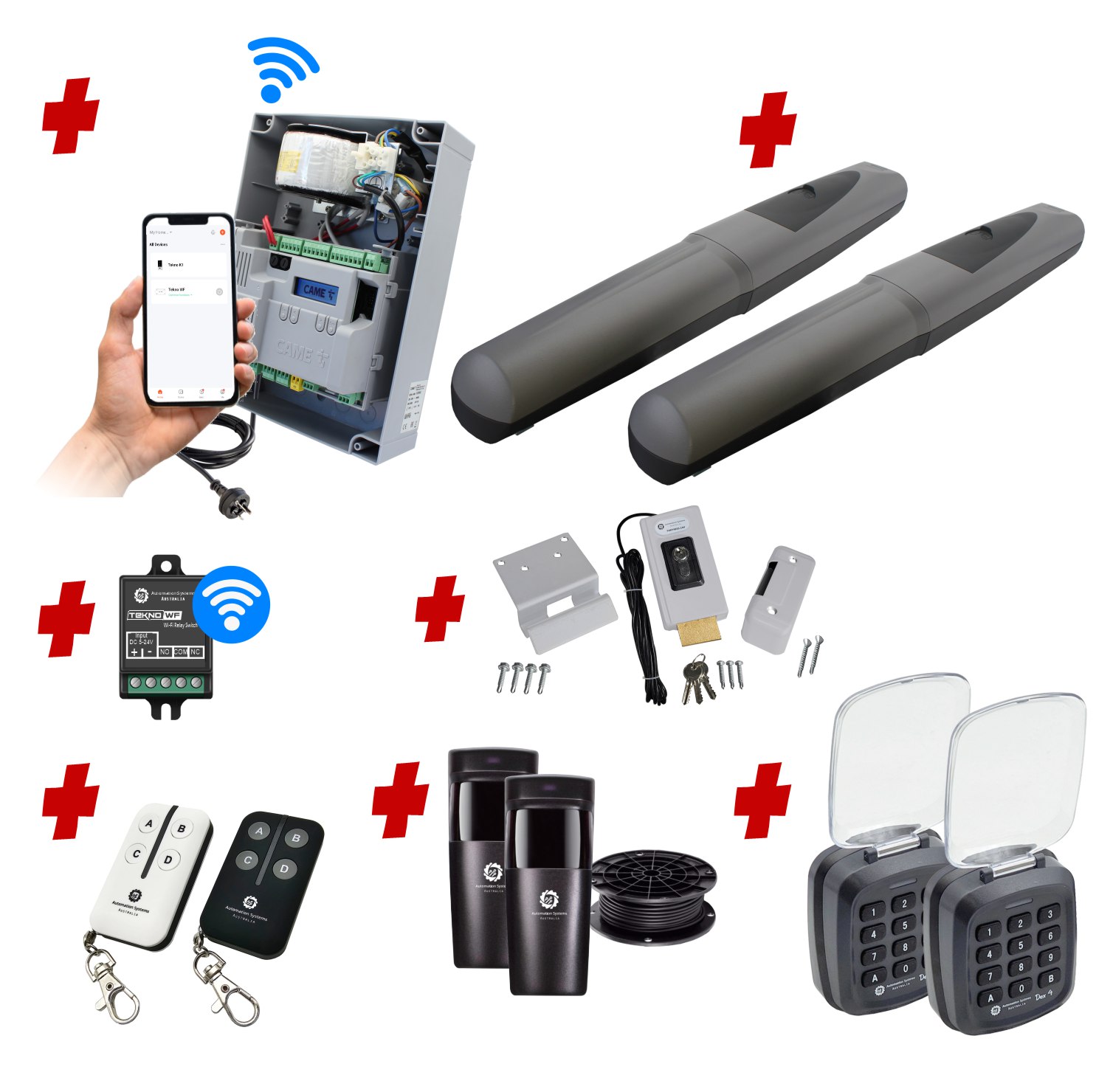

Kit Contents (See Description Tab for Full In-Depth Details)

axo linear actuator super duty wind proof automation 24v encoder italian madeaxo linear actuator super duty wind proof automation 24v encoder italian made for driveway double swing gates and single swing gates australia

Super Duty High Torque Linear Actuator with Encoder and Limit Stops

The Axo series Linear Actuator is a high torque, high duty cycle encoder controlled motor. Extremely strong it can be used from short gate installations as well as a complete driveway gate up to 3m in length/800KG in weight (long stroke version is available for up to 5m). With the Axo’s wind tolerance and higher torque it can even be used with clad/covered gates in conjunction with an electric lock.

Furthermore the AXO 3024 is a compact design of only 100mm in width, 123mm in height and an overall length of 880mm keeping it discreet.

Adjustable Limit Stops

Complete Alloy bodied with a stainless steel lead screw allows for its superior high torque delivery.

Built In Encoder

Undisputedly the best technology the encoder motor is standard and will feedback to the system where the gate motor and effectively the gate is in its travel through the entire cycle.

Allowing for reliable operation regardless of any changes in operation be it due to temperature, wind or other factors. This is the technology you can rely on for constancy and peace of mind.

Swivel System

Conduit Feed

Manual Release System

In the case of a power outage, simply slide open the cover and using the supplied key you can release the actuator. Once release you can open and close the gate by hand until ready to re-lock.

If required there is an optional battery backup system available which will fit directly into the systems control box allowing for uninterrupted operation.

Installation Geometry

Actuator Dimensions

Specifications

Maximum Gate Length	3m
Maximum Gate Weight	800KG
Maximum Opening Angle	110°
Encoder	Yes
Motor Power (Volts)	24V DC
Power (Watts)	120W
Operating Temperature	-20° to +55° C
Stroke	300mm
Thrust (N)	4500N Max
Duty Cycle	100%

AXO 3 Super Duty High Torque Linear Actuator

3m / 12ft Farm Gate / 800KG Capacity
Left OR Right Side
Limit Stops
Encoder Control
High Torque
Flexible Swivel End

Out Of Stock

Cable Length *

Clear

Out Of Stock

Super Duty High Torque Linear Actuator with Encoder and Limit Stops

The Axo series Linear Actuator is a high torque, high duty cycle encoder controlled motor. Extremely strong it can be used from short gate installations as well as a complete driveway gate up to 3m in length/800KG in weight (long stroke version is available for up to 5m). With the Axo’s wind tolerance and higher torque it can even be used with clad/covered gates in conjunction with an electric lock.

Furthermore the AXO 3024 is a compact design of only 100mm in width, 123mm in height and an overall length of 880mm keeping it discreet.

Adjustable Limit Stops

Complete Alloy bodied with a stainless steel lead screw allows for its superior high torque delivery.

Built In Encoder

Undisputedly the best technology the encoder motor is standard and will feedback to the system where the gate motor and effectively the gate is in its travel through the entire cycle.

Allowing for reliable operation regardless of any changes in operation be it due to temperature, wind or other factors. This is the technology you can rely on for constancy and peace of mind.

Swivel System

Conduit Feed

Manual Release System

In the case of a power outage, simply slide open the cover and using the supplied key you can release the actuator. Once release you can open and close the gate by hand until ready to re-lock.

If required there is an optional battery backup system available which will fit directly into the systems control box allowing for uninterrupted operation.

Installation Geometry

Actuator Dimensions

Specifications

Maximum Gate Length	3m
Maximum Gate Weight	800KG
Maximum Opening Angle	110°
Encoder	Yes
Motor Power (Volts)	24V DC
Power (Watts)	120W
Operating Temperature	-20° to +55° C
Stroke	300mm
Thrust (N)	4500N Max
Duty Cycle	100%

AXO 3 Super Duty High Torque Linear Actuator

3m / 12ft Farm Gate / 800KG Capacity
Left OR Right Side
Limit Stops
Encoder Control
High Torque
Flexible Swivel End

Out Of Stock

Cable Length *

Clear

Out Of Stock

Description

Please note this is a replacement operator and is not supplied with remotes or receiver card.

Top of the Line ADVANCED Digital Control Box

The most ADVANCED AND EASY to use control board in the gate automation industry, the ZLX24 features an endless option list and configurability.
Starting with the casing the ZLX24 control box itself has 8 cable entry point four from the rear and four from the bottom side. The box can be fixed to the wall in a traditional manor being a fixing screw in each corner, or alternatively a DIN rail is supplied for its direct to DIN mounting system.
The control board itself is encased in a complete housing within the box to prevent short circuit and accidental touching of components, during the installation the control board easily unclips revealing its module storage and cable management routes, this simplifies the installation for feeding wiring through without any chance of damage.

Overview of the Features

Power Inputs and Outputs

Typical input and outputs to power the system and any wired in accessories
24V Power Input
24V Power Output For Accessories

Automatic Weekly Timer

Completely configurable times to open and close the gate automatically and also switch the relay output (great for garden lights).
Selective choice of the 7 Days of the week settings, or the entire week
12/24 Hour Format
EACH timer event can be configured to Open gates, Partial Opening or B1-2 Output Activated

Configurable Methods Of Operation

Along with the on onboard weekly timer wireless and Wired equipment can be configured in a number of different ways to support the best suited operation for the site, by default the system is configured for typical usage being full gate operation and pedestrian opening however as seen below it can be dynamically set according to specific requirements.
ON BOARD WEEKLY TIMER Set the days and times in which you want the gate to open and close EASILY by the LCD screen
Full Gate Operation by remote
Partial by remote (Opens one gate partially) OR Pedestrian by remote (Opens ONE gate completely)
Open Only by remote
Close Only by remote
Open/Close Input by Wired Accessories
Open only Input by Wired Accessories (loop Detector)
Close only Input by Wired Accessories (loop Detector)
Wired Emergency STOP Button

Remote Operation

The remote buttons can individually be programmed to work in any of the below settings for each button.
OPEN-CLOSE (Reverting action if pressed part way through a cycle)
OPEN-CLOSE (Sequential action if pressed part way through a cycle it will STOP)
Partial-Pedestrian Operation
RELAY OUTPUT/STAY OPEN Feature (Pause automatic close)

Motor Specifics

Default configurations are already set however, if required further adjustment can be made to suit all installations
ENCODER Control
Automatic Calibration (with Adjustable Calibration Speed)
Motor Test (used for checking your directions prior to calibration)
Adjustable Thrust
Adjustable Travel Speed
Adjustable Sensitivity
Adjustable Slowdown Speed
Adjustable Slowdown Position (Two Stages)
Delay Time Between Motors for Opening
Delay Time Between Motors for Closing

Safety Devices

Plenty of support to protect occupants, visitors and there vehicles with FOUR Safety Inputs completely configurable in there functionality and method of operation with 11 different Logic settings.
Supports Photocell Sensors
Supports Reflective Sensors
Supports Safety Edge
Supports Induction Loops for Safety
Supports STOP Button
Supports Maintained Action (Hold to OPEN/CLOSE)

Added Electric Lock Security

Added protection for the gates and gate system if wind is a factor or in a high risk setting
Automatic Electric Lock (Adjustable Time) with Reverse Thrust Feature
TWO Electric Lock Outputs, Allows you to use ONE or TWO electric Locks to secure depending on the gate/lock arrangement (with adjustable logic on how they operate).

Control Board Security

A secure password can be set on the control board to prevent unauthorized users from accessing and adjusting its functions. This is an excellent feature in even low risk settings preventing unauthorized users from being able to operate the gate from the ZLX24 menu.

Light Control

Multiple options for visible safety alerts, illuminating the driveway OR Both
Flashing/Static Illuminated Light from OPEN til CLOSED
Additional Output for Flashing During Opening

Operational Control

Infinite support for accessories and methods of operation
Remote Controls
Wireless Keypads
Wired Keypads
Wired Button
Induction Loops
Intercom Systems

Relay Output B

Default Can be set to work on a remote button and/or by the weekly timer
Set to a latching ON/OFF Circuit
Can be used to trigger an alarm, garage door or another gate
Can be used to enable/disable an accessory at set times/days such as an entry or exit loop or a wired button and keypad
Can be used to keep as a STAY OPEN function in the case of an automatic close timer, this is great for trailer and truck access, a time when multiple visitors may be using the gate, etc.

Dimensions

x

24V ADVANCED Powered Swing Gate Control Panel
- Backlit LCD Display (Auto Standby)
- Multiple lights and safety sensor inputs
- 3 Stage Speed Control
- Installation Wizard System (Step by Step)
- Weekly Timer Settings (Open and Close programs)
- Automatic Close Timer
- Pedestrian Function
- Supports Battery Backup
- Pre wired with a 1.2m Power Cord
Show more
Backlit LCD Display (Auto Standby)

Multiple lights and safety sensor inputs

3 Stage Speed Control

Installation Wizard System (Step by Step)

Weekly Timer Settings (Open and Close programs)

Automatic Close Timer

Pedestrian Function

Supports Battery Backup

Pre wired with a 1.2m Power Cord
×
Out Of Stock
Description

Please be aware this product is only compatible with Automation Systems Australia Control Boards and Remote Receivers, it will NOT work with other brand products.

STX4K Keyring High Range Remote

The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).

Key Features

✓ Up to 100 metres distance in open air
✓ Keeloq rolling code security
✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
✓ Clear visibility red LED indicator which will illuminate upon a button press
✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
✓ Slimline and modern ergonomic design
✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

x

Four Button Keyring Remote Control (White)
- Up to 100 Metre Open Air Distance
- High Security Rolling Code
- Slimline and Ergonomic
Show more
Up to 100 Metre Open Air Distance

High Security Rolling Code

Slimline and Ergonomic
×
Out Of Stock

Provide a Sun Visor Clip? ($4) *
Clear
Out Of Stock

Automatic Gate Remote Control Keyring Mounting STX4K White quantity
Description

Please be aware this product is only compatible with Automation Systems Australia Control Boards and Remote Receivers, it will NOT work with other brand products.

STX4K Keyring High Range Remote

The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).

Key Features

✓ Up to 100 metres distance in open air
✓ Keeloq rolling code security
✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
✓ Clear visibility red LED indicator which will illuminate upon a button press
✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
✓ Slimline and modern ergonomic design
✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

x

Four Button Keyring Remote Control (Black)
- Up to 100 Metre Open Air Distance
- High Security Rolling Code
- Slimline and Ergonomic
Show more
Up to 100 Metre Open Air Distance

High Security Rolling Code

Slimline and Ergonomic
×
Out Of Stock

Provide a Sun Visor Clip? ($4) *
Clear
Out Of Stock

Automatic Gate Remote Control Keyring Mounting STX4K Black quantity

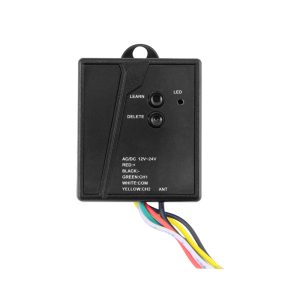

Receiver for Remote Control Operation

Operate your garage door from a different button on the remote using this expander module.

Out Of Stock

Dukie wired both sides photocell for gats garage alarm

Photocell OR Reflective Safety Sensor

Choose from Photocell wired to both sides OR a Reflective sensor Wired only on the one side (1.9m Pre-Connected)

Out Of Stock

Photocell Options *

Clear

Out Of Stock

Description

Please be aware this product is only compatible with Automation Systems Australia Control Boards and Remote Receivers, it will NOT work with other brand products.

Dex 4 Wireless Keypad

The Dex 4 Wireless Keypad can communicate directly to the gate system using the same Keeloq secure rolling code signal as the remotes allowing for an easy installation process without the need for wiring.

Due to its high quality chipset the open air signal strength can exceed an astounding 80 meters. This makes the Dex 4 not only suited to controlling the gate but could actually be used to control the garage door, another gate etc. providing they have the compatible receiver installed, Up to FOUR devices/features could be used with individual pin codes for each due to its four independent output channel designs.

Key Features

✓ Three colour options are available: Classic White, Subtle Grey and Deep black
✓ Compact design fits almost anywhere at 90(L)x77(W)x35(D)mm
✓ Control Up to four systems or four features on different pin codes
✓ Astounding open air distance of 80 metres
✓ Works on 2x AAA batteries (supplied)
✓ Audible and LED indicators
✓ Totally wireless (wire free) easy installation

Power 2xAAA Batteries (Supplied)

Operating Distance 80 Meters Open Air

Frequency Secure Rolling Code 433MHZ

Operating Channels 4

Transmitting Time 1.5s

x

Wireless Keypad (Three colour options) × 2

Four channel wireless keypad allowing for full control of all automatic gate features without the need for wiring.

Show more

Four channel wireless keypad allowing for full control of all automatic gate features without the need for wiring.

×

Out Of Stock

Colour *
Clear
Out Of Stock

Mobile App Control Wi-Fi Connection Module

Control the gate from anywhere in the world with your mobile phone using the Tekno WF module.

Out Of Stock

Description

Fortress EL Automatic Gate Lock

The Fortress EL totally AUTOMATIC electric gate lock system allows for a secure hold over the gate particularly handy when the gate is wide, prone to wind resistance or in an application requiring an additional layer of security. Prior to beginning the gate operation the electric lock first unlatches then begins to move the gates to the open position, during the closing the lock will automatically latched closed when reaching the end of cycle.

The Fortress EL is supplied with both a gate to post latching plate (for single gates) and also a gate to ground latching plate (for double gates to be used with a metal gate stop).

For double gates a rebate/lip should be installed on the front of the trailing gate to prevent it being pushed past the locked gate (essentially both gates are locked this way).

Key Features

✓ Zero power consumption when locked in standby
✓ All metal construction
✓ Works with the gate controllers battery system
✓ Release keys supplied in-case of total power loss
✓ Easy 2 Wire connection
✓ flexible installation

Specifications

Power 12-24V DC

Consumption 15VA

Lock Body Size 124x67x35mm

Mounting Size Vertical OR Horizontal

Cable Length 7 Meters

x

Automatic Electric Lock for with 7 Meter Cable

Additional layer of security and hold of the gate when reaching close to the max width, windy areas or to work against higher risks.

Show more

Additional layer of security and hold of the gate when reaching close to the max width, windy areas or to work against higher risks.

×

Out Of Stock

Optional Add On's

Description
Particularly handy for those unexpected power outages or storms. This system is a must to keep your gates operational when the powers out.

System operation will remain uninterrupted including any wired or wireless accessories.

Charging of the batteries will automatically take place once the power to the system is restored.

Also a great solution when its not possible to reach the manual release system be it due to the design of the gate or no other access into the property.

Compatibility:

FTX System (Fits Internally)
BXV Systems (Fits Internally)
ZLX24 Control Box (Requires additional SMALL Enclosure)
ZL65 Control Box (Requires additional SMALL Enclosure)
x
Uninterrupted Battery Backup System
Direct connection into the system allowing for uninterrupted use.

Show more

Direct connection into the system allowing for uninterrupted use.

×
Add for

$229.00

$177.00

Save $52.00

Out Of Stock
Description

Please be aware this product is only compatible with Automation Systems Australia Control Boards and Remote Receivers, it will NOT work with other brand products.

STX4L Ultra Long Distance Remote

The STX4L Long distance remote is a class leader in Ultra long distance (up to 800 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).

The long distance remote is most useful around larger properties able to operate the gate from sheds, buildings and the home where a typical remote would not be able to achieve the same operating distance.

Key Features

✓ Up to 800 metres distance in open air
✓ Keeloq rolling code security
✓ Easy to Use buttons
✓ ON/OFF switch to prevent accidental operation
✓ Clear visibility LED indicator which will illuminate upon a button press
✓ Narrow handheld design
✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

x

Automatic Gate Long Distance Remote Control (Long Range Remote)
- Up to 800 Metre Open Air Distance
- High Security Rolling Code
- Side Switch Prevents Accidental Operations
Show more
Up to 800 Metre Open Air Distance

High Security Rolling Code

Side Switch Prevents Accidental Operations
×
Add for

$45.00

Out Of Stock

Receiver for Garage Doors

Operate your garage door from a different button on the remote using this expander module.

Add for

$40.00

Out Of Stock

Description

Push/Press Button

The push button is the simplest of all access control devices, a simple press of the button allows the automation to begin its working. Generally installed on the inside of the property within close proximity to the user (driver side when exiting) allows for the easiest method of working.

Key Features

✓ Weatherproof for outdoor use and can be used indoors ✓ Supports NO and NC circuits (when used as a wired button) ✓ 2 Wire connection or Wireless Option (Automation Systems Australia ONLY) ✓ Easy to operate

x

Weatherproof Press Button

Typical press button for foot traffic, suitable for outdoor and indoor installations.

Show more

Typical press button for foot traffic, suitable for outdoor and indoor installations.

×
Add for
$35.00 – $70.00

Out Of Stock

Wired or Wireless *
Clear
Out Of Stock
Description

Big Head (Mushroom) Push/Press Button

The push button is the simplest of all access control devices, a simple press of the button allows the automation to begin its working. Generally installed on the inside of the property within close proximity to the user (driver side when exiting) allows for the easiest method of working.

Key Features

✓ Weatherproof for outdoor use and can be used indoors ✓ Supports NO and NC circuits (when used as a wired button) ✓ 2 Wire connection or Wireless Option (Automation Systems Australia ONLY) ✓ Easy to operate

x

Weatherproof Push Button (Mushroom Head)

Typical press button for vehicles mounted to a bollard, suitable for outdoor and indoor installations.

Show more

Typical press button for vehicles mounted to a bollard, suitable for outdoor and indoor installations.

×
Add for
$35.00 – $70.00

Out Of Stock

Wired or Wireless *
Clear
Out Of Stock
Description

Weekly Schedule Automatic Gate Timer

The weekly timer allows for scheduling open time cycles to operate the gate, simple set the open time and once lapsed the gate would automatically close (automatic close timer must be enabled).

The timer allows for independent 5 day business week, INDEPENDENT days configurations OR a full 7 day week configuration along with other modes. Up to 8 different On/Off schedules can be set.

Key Features

✓ Automatic Opening and Closing at the Set times
✓ LCD Display
✓ Built in Battery to retain schedules, replaced every 2-3 years
✓ Simple setting by: independent days schedule, Common time 5 day working week (MON-FRI), Weekends Combined (SAT+SUN) or Common time 7 day week (MON-SUN)

Specifications

Operating Voltage 12V DC

Power Consumption 50mA

Display LCD

Load Capacity 10A/250V

Programs 8

Relay NO/NC

x

Weekly Auto Open/Close Scheduled Timer

Programable timer with numerous configurations options on when to open and close the gate.

Show more

Programable timer with numerous configurations options on when to open and close the gate.

×
Add for

$69.00

Out Of Stock
Description

WIRELESS Automatic Vehicle Detection Sensor – for Automatic Opening of gate

An easy to install WIRELESS AUTOMATIC OPENING driveway vehicle detection system

Multiple hours saved, materials saved and frustrations gone

Long gone are the days of cutting concrete, chasing wires and configuring induction loop detectors (ground loop). Finally, a simple WIRELESS solution to streamline the installation process.
The WIRELESS loop detector SIMPLY BOLT DOWN to a concrete driveway (or concrete pad in gravel driveways) and wirelessly communicate back with the gate system using the supplied high security (128 Bit) transceiver for two way communication between the New Generation wireless loops.

The wireless exit “loop” is maintenance free and installed with 2x AA Lithium batteries for a THREE YEAR use period before a battery replacement is required (regular usage), to replace the batteries simply remove the top cover and fit the new Lithium AA batteries.

How does it work and what happens if I accidently drive over it?
The wireless loop is designed for a vehicle to drive over and will detect the undercarriage of the vehicle, if its accidently driven over it presents no issue whatsoever as its casing carries a static load capacity of 2500kg.

How far can i have it from the gate?
Thanks to its high transmission range capabilities it has a maximum wireless operating distance of 50 meters.

How big is it?
Its compact form factor allows for a discreet installation measuring only 120x120mm Length and Width and only 30mm in height.

Will it work with my system?
Typically, YES, it will work with any gate system that has an open command input and an accessories voltage output of 12-24V DC

Which installations does this suit?
Any domestic installations which fit the following criteria:
✓A concrete pad or driveway is available for the device to be installed on to
✓When a vehicle is parked it does not sit within 3 meters of the device
✓The device does not sit in a recess and pool water, snow or any debris
✓Not nearby to high voltage cables

How is it installed?
1. Connect the transceiver to the gates control board, this must be installed within the gate controller or any enclosure
2. Power on the transceiver and have the loop touching the antenna of the transceiver.
3. Once the transceiver flashes its blue led and the loop flashes its yellow led they are now paired together.
4. Remove backing plate from the loop and install to concrete using the supplied concrete screw bolts, ensure the arrow faces the direction of travel for exit (faces towards the gate).
5. Install the wireless loop to the backing plate and allow 3 minutes for calibration
Test to confirm operation, job done!

Supplied With

✓1x Wireless Loop (with 2x AA Lithium Batteries Installed)
✓1x Transceiver
✓2x Concrete Screw Bolts

Detection Area

Replaceable Battery Life

x

Automatic Opening WIRELESS Automatic Vehicle Detection Sensor

This WIRELESS system can automatically open the gate as your vehicle passes over it. Installed up to 50 metres away from the gate!

Show more

This WIRELESS system can automatically open the gate as your vehicle passes over it. Installed up to 50 metres away from the gate!

×
Add for

$460.00

$440.00

Save $20.00

Out Of Stock

Access Control Keypad with EM Tag Reader and mobile APP

Wired keypad allowing for pin code access control, em cards and tags operation, along with mobile APP control.

Add for

$150.00 – $190.00

Out Of Stock

Manuals

Videos

Double Swing Gate Automation Access Unlimited WiFi Bluetooth Kit Super Duty Linear Actuator with Limit Stops and Encoder Made in Italy

$2,966.00

$2,926.00

Save $40.00

Operating Voltage	12-30VDC/12-24VAC
Operating Current	9mA standby
Relay Switching Current Capacity	3A Momentary/500mA Latching
Frequency	433mhz
Compatible Transmitters (tX)	STX4L, STX4K, Dex4,PB-WIRELESS-TOUCH1,WPB-PRESS-WIRELESS,WPB-MHEAD-WIRELESS
Wire Length	27CM

Operating Voltage	5-24V DC
Consumption	≤35mA Standby/≤100mA Operation
Smart Assistant Support	YES
Operating Methods	Mobile APP
Wi-Fi Distance	Up to 10m on basic ISP routers (entry level basic) Substantially boosted on a good quality router or mesh network

Operating Voltage	12-30VDC/12-24VAC
Operating Current	9mA standby
Relay Switching Current Capacity	3A Momentary/500mA Latching
Frequency	433mhz
Compatible Transmitters (tX)	STX4L, STX4K, Dex4,PB-WIRELESS-TOUCH1,WPB-PRESS-WIRELESS,WPB-MHEAD-WIRELESS

Power	12V DC
Standby Current	≤35mA
Maximum Users	10,000 Users
Operating Temperature	-40°C - +60°C
Operating Methods	PIN CODE, RFID,MOBILE APP
Wi-Fi Distance	Up to 10m on basic ISP routers (entry level basic) Substantially boosted on a good quality router or mesh network

Power	2xAAA Batteries (Supplied)
Operating Distance	80 Meters Open Air
Frequency	Secure Rolling Code 433MHZ
Operating Channels	4
Transmitting Time	1.5s

Power	12-24V DC
Consumption	15VA
Lock Body Size	124x67x35mm
Mounting Size	Vertical OR Horizontal
Cable Length	7 Meters

Double Swing Gate Automation Access Unlimited WiFi Bluetooth Kit Super Duty Linear Actuator with Limit Stops and Encoder Made in Italy

Super Duty High Torque Linear Actuator with Encoder and Limit Stops

Adjustable Limit Stops

Built In Encoder

Swivel System

Conduit Feed

Manual Release System

Installation Geometry

Actuator Dimensions

Specifications

Top of the Line ADVANCED Digital Control Box

Overview of the Features

Power Inputs and Outputs

Automatic Weekly Timer

Configurable Methods Of Operation

Remote Operation

Motor Specifics

Safety Devices

Added Electric Lock Security

Control Board Security

Light Control

Operational Control

Relay Output B

Dimensions

STX4K Keyring High Range Remote

Key Features

Dukie Photocell Kit

Key Features

Dex 4 Wireless Keypad

Key Features

Fortress EL Automatic Gate Lock

Key Features

Tekno WF APP Control Switch

Key Features

Kit Contents (See Description Tab for Full In-Depth Details)

Description

Super Duty High Torque Linear Actuator with Encoder and Limit Stops

Adjustable Limit Stops

Built In Encoder

Swivel System

Conduit Feed

Manual Release System

Installation Geometry

Actuator Dimensions

Specifications

AXO 3 Super Duty High Torque Linear Actuator

Description

Super Duty High Torque Linear Actuator with Encoder and Limit Stops

Adjustable Limit Stops

Built In Encoder

Swivel System

Conduit Feed

Manual Release System

Installation Geometry

Actuator Dimensions

Specifications

AXO 3 Super Duty High Torque Linear Actuator

Description

Please note this is a replacement operator and is not supplied with remotes or receiver card.

Top of the Line ADVANCED Digital Control Box

Overview of the Features

Power Inputs and Outputs

Automatic Weekly Timer

Configurable Methods Of Operation

Remote Operation

Motor Specifics

Safety Devices

Added Electric Lock Security

Control Board Security

Light Control

Operational Control

Relay Output B

Dimensions

24V ADVANCED Powered Swing Gate Control Panel

Description

STX4K Keyring High Range Remote

Key Features

Four Button Keyring Remote Control (White)

Description

STX4K Keyring High Range Remote
