Electric lock and Access Control Power Supply Combo

Kit Contents (See Description Tab for Full In-Depth Details)

•

  Description



  Automatic lock control power supply suitable for electric locks, magnetic locks, electric bolts, access control keypads, em card readers and alike. The lock control power supply can power devices continuously for a maximum of 1.5 Amps and with an allowance for a spike up to 3A (electric bolts and fail secure solenoid locks).

  Suitable for integration with intercom systems, access control systems, exit buttons and other devices with a voltage free relay contact into the exit button input OR devices with a momentary voltage output of 5-30V DC into the control input.

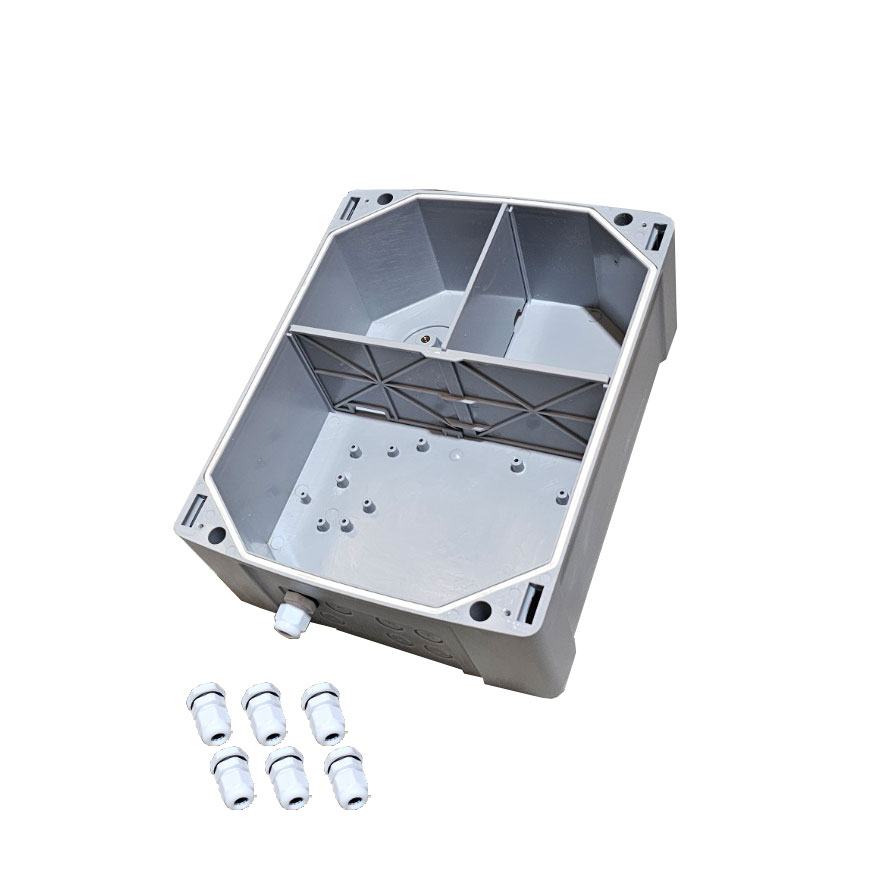

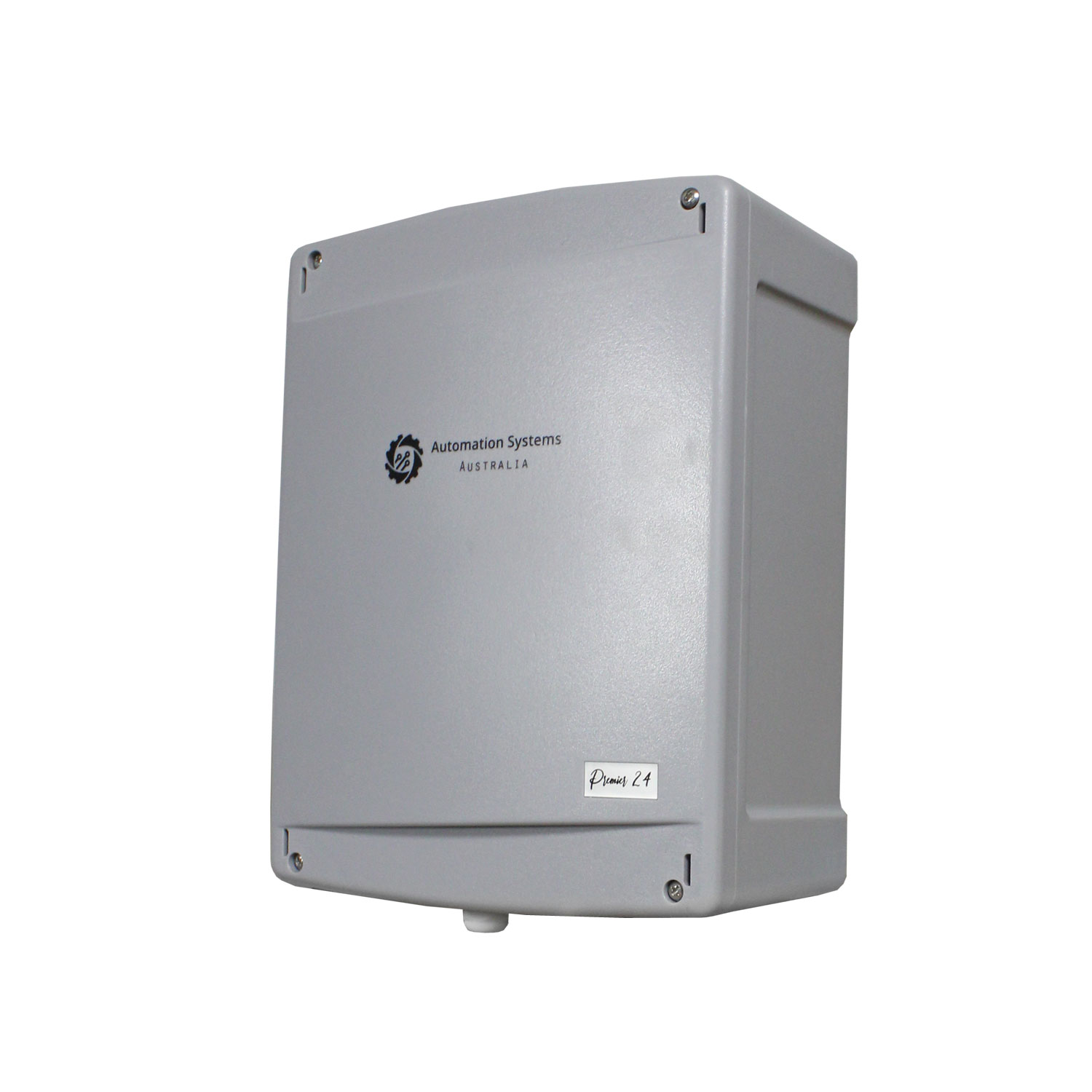

  This lock control power supply is not suitable for outdoor use UNLESS installed in a plastic enclosure (PREMIER-BBOX-L), it should not be installed in ceiling spaces to prevent overheating.

  Access Control Power Supply Specifications

  Input Voltage	90-260V AC
  Output Voltage	12V DC
  Accessories Constant Voltage Terminal	12V DC
  Max Current	3A Momentary, 1.5A Continuous TOTAL
  Supports Battery Backup	Yes, 12V DC
  Lock Types	Fail Secure(NO)/Fail Safe (NC)
  Exit Button Suport	Yes, Voltage Free N/O Momentary Contact
  Exit Button Timing	Adjustable, 1-15 Seconds
  Control Input	Yes, 5-30V DC Polarized
  Operating Temperature	-10°-60°C

  x

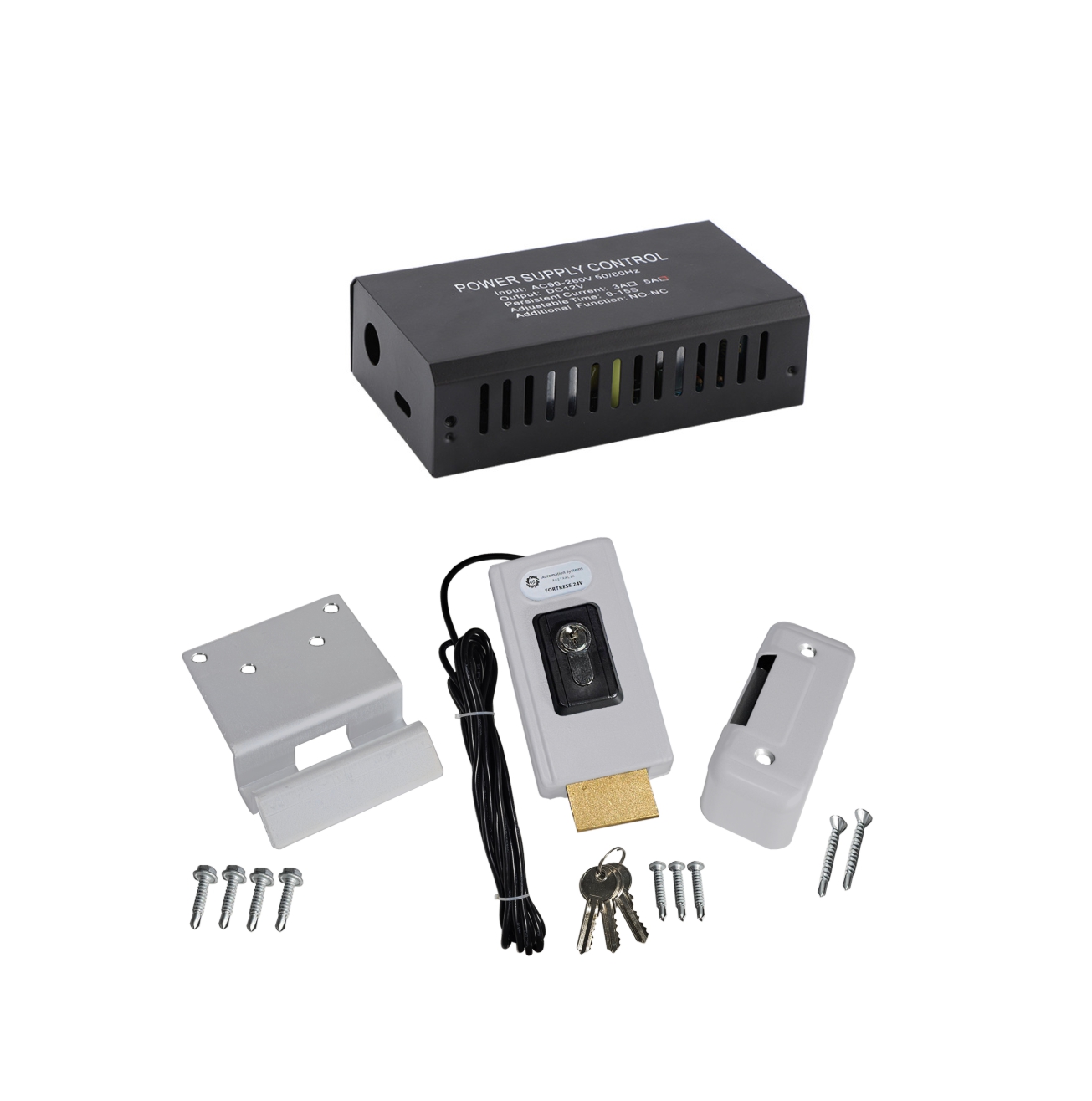

  Access Control Power Supply For Electric Lock, Electric Striker Plates and Magnetic Locks

  Out Of Stock

•

  Description

  Fortress EL Automatic Gate Lock



  The Fortress EL totally AUTOMATIC electric gate lock system allows for a secure hold over the gate particularly handy when the gate is wide, prone to wind resistance or in an application requiring an additional layer of security. Prior to beginning the gate operation the electric lock first unlatches then begins to move the gates to the open position, during the closing the lock will automatically latched closed when reaching the end of cycle.


  The Fortress EL is supplied with both a gate to post latching plate (for single gates) and also a gate to ground latching plate (for double gates to be used with a metal gate stop).

  For double gates a rebate/lip should be installed on the front of the trailing gate to prevent it being pushed past the locked gate (essentially both gates are locked this way).





  Key Features

  ✓ Zero power consumption when locked in standby
  ✓ All metal construction
  ✓ Works with the gate controllers battery system
  ✓ Release keys supplied in-case of total power loss
  ✓ Easy 2 Wire connection
  ✓ flexible installation

  Specifications

  Power	12-24V DC
  Consumption	15VA
  Lock Body Size	124x67x35mm
  Mounting Size	Vertical OR Horizontal
  Cable Length	7 Meters

  x

  Automatic Electric Lock for with 7 Meter Cable

  Additional layer of security and hold of the gate when reaching close to the max width, windy areas or to work against higher risks.

  Show more

  Additional layer of security and hold of the gate when reaching close to the max width, windy areas or to work against higher risks.

  ×

  Out Of Stock
