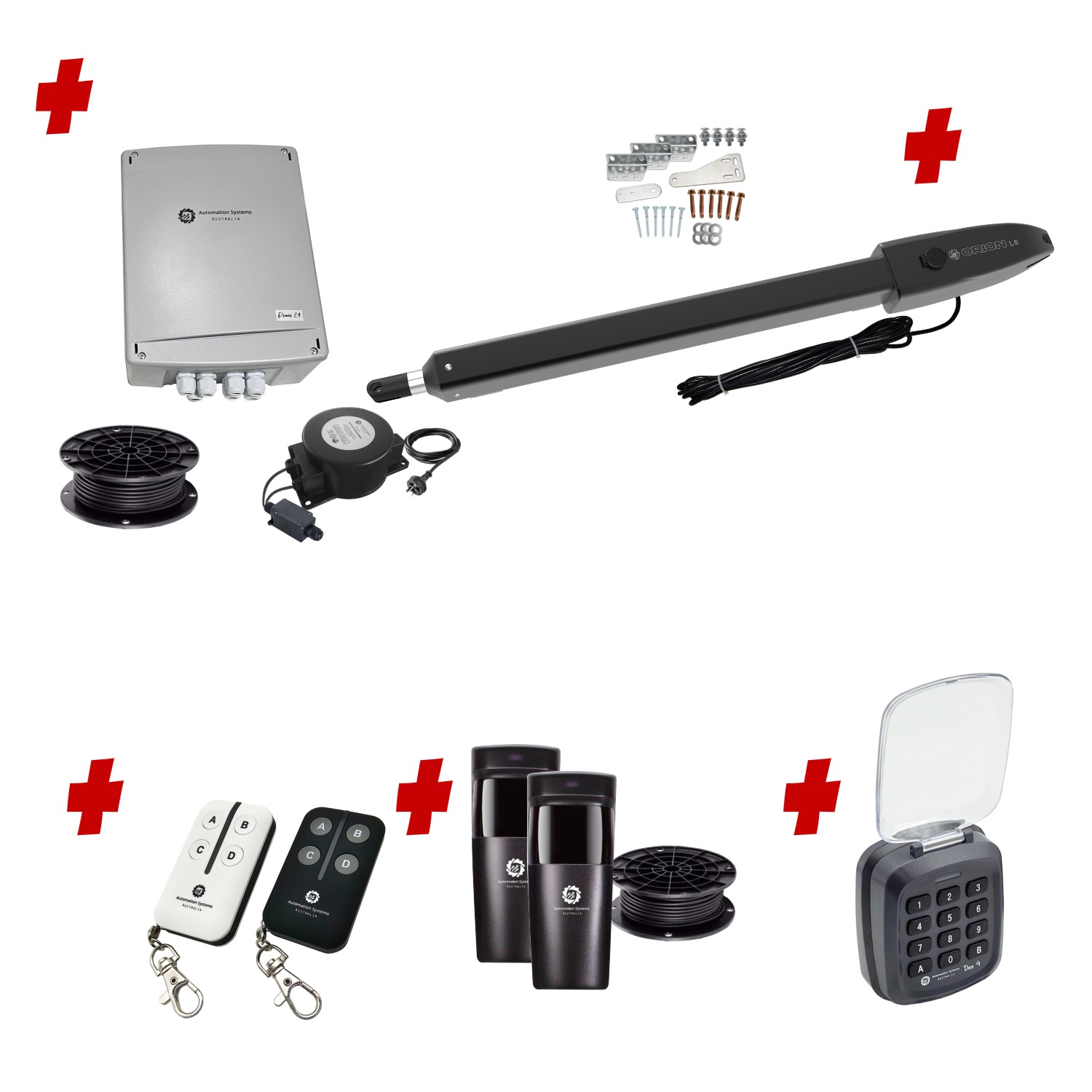

Orion LS Low Voltage 24V Automatic Swing Driveway Gate Opener 24 Volt Kit Slimline Compact Design with Keypad Pin Code

Optional Add On's

•

  Description

  Please be aware this product is only compatible with Automation Systems Australia Control Boards and Remote Receivers, it will NOT work with other brand products.

  STX4L Ultra Long Distance Remote



  The STX4L Long distance remote is a class leader in Ultra long distance (up to 800 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

  The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).



  The long distance remote is most useful around larger properties able to operate the gate from sheds, buildings and the home where a typical remote would not be able to achieve the same operating distance.


  Key Features

  ✓ Up to 800 metres distance in open air
  ✓ Keeloq rolling code security
  ✓ Easy to Use buttons
  ✓ ON/OFF switch to prevent accidental operation
  ✓ Clear visibility LED indicator which will illuminate upon a button press
  ✓ Narrow handheld design
  ✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

  x

  Automatic Gate Long Distance Remote Control (Long Range Remote)

  • Up to 800 Metre Open Air Distance
  • High Security Rolling Code
  • Side Switch Prevents Accidental Operations

  Show more

  • Up to 800 Metre Open Air Distance
  • High Security Rolling Code
  • Side Switch Prevents Accidental Operations

  ×

  Add for

  $45.00

  Out Of Stock

•

  Description

  Dual Channel Remote Control Receiver



  Working with the STX4K, STX4L and Dex4 Wireless equipment the Two Channel receiver offers the ability to control up to two individual devices/systems separately such as automatic gate systems, garage doors, alarm systems and almost any device with the requiring a momentary pulse OR latching circuit to operate.



  Specifications

  Operating Voltage	12-30VDC/12-24VAC
  Operating Current	9mA standby
  Relay Switching Current Capacity	3A Momentary/500mA Latching
  Frequency	433mhz
  Compatible Transmitters (tX)	STX4L, STX4K, Dex4,PB-WIRELESS-TOUCH1,WPB-PRESS-WIRELESS,WPB-MHEAD-WIRELESS

  x

  Receiver for Garage Doors

  Operate your garage door from a different button on the remote using this expander module.

  Show more

  Operate your garage door from a different button on the remote using this expander module.

  ×

  Add for

  $40.00

  Out Of Stock

•

  Description

  Fortress EL Automatic Gate Lock



  The Fortress EL totally AUTOMATIC electric gate lock system allows for a secure hold over the gate particularly handy when the gate is wide, prone to wind resistance or in an application requiring an additional layer of security. Prior to beginning the gate operation the electric lock first unlatches then begins to move the gates to the open position, during the closing the lock will automatically latched closed when reaching the end of cycle.


  The Fortress EL is supplied with both a gate to post latching plate (for single gates) and also a gate to ground latching plate (for double gates to be used with a metal gate stop).

  For double gates a rebate/lip should be installed on the front of the trailing gate to prevent it being pushed past the locked gate (essentially both gates are locked this way).





  Key Features

  ✓ Zero power consumption when locked in standby
  ✓ All metal construction
  ✓ Works with the gate controllers battery system
  ✓ Release keys supplied in-case of total power loss
  ✓ Easy 2 Wire connection
  ✓ flexible installation

  Specifications

  Power	12-24V DC
  Consumption	15VA
  Lock Body Size	124x67x35mm
  Mounting Size	Vertical OR Horizontal
  Cable Length	7 Meters

  x

  Automatic Electric Lock for with 7 Meter Cable

  Additional layer of security and hold of the gate when reaching close to the max width, windy areas or to work against higher risks.

  Show more

  Additional layer of security and hold of the gate when reaching close to the max width, windy areas or to work against higher risks.

  ×

  Add for

  $160.00

  Out Of Stock

•

  Description

  Fortress ML Automatic Magnetic Gate Lock

  The Fortress ML totally AUTOMATIC Magnetic gate lock system allows for a secure hold over the gate particularly handy when the gate is wide, prone to wind resistance or in an application requiring an additional layer of security. Prior to beginning the gate operation the electric lock first unlatches then begins to move the gates to the open position, during the closing the lock will automatically latched closed when reaching the end of cycle.


  The Fortress ML is designed to work with both gate to post (for single gates) and also a gate to gate (for double gates to be used with a metal gate stop).

  The benefit in using a ML series Magnetic lock over an EL series Electric lock is that ML magnetic lock allows for an automatic release from the system as per normal in a circumstance where the lock is loaded by wind resistance whereas the electric lock cannot release whilst loaded by wind resistance.

  Not suited for solar installations





  Key Features

  ✓ Waterproof Stainless Steel Case with resin filled core
  ✓ 280KG Holding Force
  ✓ Works with the gate controllers backup-battery system
  ✓ Can still unlock under load when commanded
  ✓ Easy 2 Wire connection
  ✓ flexible installation

  x

  Automatic Magnetic Gate Lock

  Additional layer of security and hold of the gate when reaching close to the max width, windy areas or to work against higher risks.

  Show more

  Additional layer of security and hold of the gate when reaching close to the max width, windy areas or to work against higher risks.

  ×

  Add for

  $145.00 – $190.00

  Out Of Stock

  Bracket Options *	Choose an optionAluminum "L" Bracket for Magnetic LockAluminum "Z" Bracket for Armature Plate + Aluminum "L" Bracket for Magnetic LockNo brackets, I will make my own
  Cable Length	No Cable (BYO) Choose an optionNo Cable (BYO)

•

  Description

  Push/Press Button



  The push button is the simplest of all access control devices, a simple press of the button allows the automation to begin its working. Generally installed on the inside of the property within close proximity to the user (driver side when exiting) allows for the easiest method of working.



  Key Features


  ✓ Weatherproof for outdoor use and can be used indoors ✓ Supports NO and NC circuits (when used as a wired button) ✓ 2 Wire connection or Wireless Option (Automation Systems Australia ONLY) ✓ Easy to operate

  x

  Weatherproof Press Button

  Typical press button for foot traffic, suitable for outdoor and indoor installations.

  Show more

  Typical press button for foot traffic, suitable for outdoor and indoor installations.

  ×

  Add for

  $35.00 – $70.00

  Out Of Stock

  Wired or Wireless *

  Choose an optionWired (Low voltage TWO core wire required)Wireless (Wireless Transmitter Inside) Clear Out Of Stock

•

  Description

  Big Head (Mushroom) Push/Press Button



  The push button is the simplest of all access control devices, a simple press of the button allows the automation to begin its working. Generally installed on the inside of the property within close proximity to the user (driver side when exiting) allows for the easiest method of working.



  Key Features


  ✓ Weatherproof for outdoor use and can be used indoors ✓ Supports NO and NC circuits (when used as a wired button) ✓ 2 Wire connection or Wireless Option (Automation Systems Australia ONLY) ✓ Easy to operate

  x

  Weatherproof Push Button (Mushroom Head)

  Typical press button for vehicles mounted to a bollard, suitable for outdoor and indoor installations.

  Show more

  Typical press button for vehicles mounted to a bollard, suitable for outdoor and indoor installations.

  ×

  Add for

  $35.00 – $70.00

  Out Of Stock

  Wired or Wireless *

  Choose an optionWired (Low voltage TWO core wire required)Wireless (Wireless Transmitter Inside) Clear Out Of Stock

•

  Description

  Weekly Schedule Automatic Gate Timer



  The weekly timer allows for scheduling open time cycles to operate the gate, simple set the open time and once lapsed the gate would automatically close (automatic close timer must be enabled).

  The timer allows for independent 5 day business week, INDEPENDENT days configurations OR a full 7 day week configuration along with other modes. Up to 8 different On/Off schedules can be set.





  Key Features

  ✓ Automatic Opening and Closing at the Set times
  ✓ LCD Display
  ✓ Built in Battery to retain schedules, replaced every 2-3 years
  ✓ Simple setting by: independent days schedule, Common time 5 day working week (MON-FRI), Weekends Combined (SAT+SUN) or Common time 7 day week (MON-SUN)

  Specifications

  Operating Voltage	12V DC
  Power Consumption	50mA
  Display	LCD
  Load Capacity	10A/250V
  Programs	8
  Relay	NO/NC

  x

  Weekly Auto Open/Close Scheduled Timer

  Programable timer with numerous configurations options on when to open and close the gate.

  Show more

  Programable timer with numerous configurations options on when to open and close the gate.

  ×

  Add for

  $69.00

  Out Of Stock

•

  Description

  WIRELESS Automatic Vehicle Detection Sensor – for Automatic Opening of gate



  An easy to install WIRELESS AUTOMATIC OPENING driveway vehicle detection system

  Multiple hours saved, materials saved and frustrations gone

  Long gone are the days of cutting concrete, chasing wires and configuring induction loop detectors (ground loop). Finally, a simple WIRELESS solution to streamline the installation process.
  The WIRELESS loop detector SIMPLY BOLT DOWN to a concrete driveway (or concrete pad in gravel driveways) and wirelessly communicate back with the gate system using the supplied high security (128 Bit) transceiver for two way communication between the New Generation wireless loops.

  The wireless exit “loop” is maintenance free and installed with 2x AA Lithium batteries for a THREE YEAR use period before a battery replacement is required (regular usage), to replace the batteries simply remove the top cover and fit the new Lithium AA batteries.

  How does it work and what happens if I accidently drive over it?
  The wireless loop is designed for a vehicle to drive over and will detect the undercarriage of the vehicle, if its accidently driven over it presents no issue whatsoever as its casing carries a static load capacity of 2500kg.

  How far can i have it from the gate?
  Thanks to its high transmission range capabilities it has a maximum wireless operating distance of 50 meters.

  How big is it?
  Its compact form factor allows for a discreet installation measuring only 120x120mm Length and Width and only 30mm in height.

  Will it work with my system?
  Typically, YES, it will work with any gate system that has an open command input and an accessories voltage output of 12-24V DC

  Which installations does this suit?
  Any domestic installations which fit the following criteria:
  ✓A concrete pad or driveway is available for the device to be installed on to
  ✓When a vehicle is parked it does not sit within 3 meters of the device
  ✓The device does not sit in a recess and pool water, snow or any debris
  ✓Not nearby to high voltage cables

  How is it installed?
  1. Connect the transceiver to the gates control board, this must be installed within the gate controller or any enclosure
  2. Power on the transceiver and have the loop touching the antenna of the transceiver.
  3. Once the transceiver flashes its blue led and the loop flashes its yellow led they are now paired together.
  4. Remove backing plate from the loop and install to concrete using the supplied concrete screw bolts, ensure the arrow faces the direction of travel for exit (faces towards the gate).
  5. Install the wireless loop to the backing plate and allow 3 minutes for calibration
  Test to confirm operation, job done!

  Supplied With

  ✓1x Wireless Loop (with 2x AA Lithium Batteries Installed)
  ✓1x Transceiver
  ✓2x Concrete Screw Bolts

  Detection Area



  Replaceable Battery Life



  x

  Automatic Opening WIRELESS Automatic Vehicle Detection Sensor

  This WIRELESS system can automatically open the gate as your vehicle passes over it. Installed up to 50 metres away from the gate!

  Show more

  This WIRELESS system can automatically open the gate as your vehicle passes over it. Installed up to 50 metres away from the gate!

  ×

  Add for

  $460.00

  $440.00

  Save $20.00

  Out Of Stock

•

  Description

  Tekno K1 Weatherproof Wired Keypad



  The Tekno K1 is a versatile and feature packed standalone keypad unit with APP Control by mobile phone allowing for the ability to operate from anywhere in the world along with local operations by PIN code or EM card/Tag. Its intuitive design allows for adding administering users directly into the keypad or by the APP.

  The free mobile APP allows for adding temporary PIN codes with expiry dates (or one time use) making it ideal for deliveries, Airbnb and other applications requiring temporary user access with out the need to add the users on-site.

  General Mobile APP users can also be managed in via the app (add/delete) if and when required.





  Key Features

  ✓ FREE APP Control available in Apple App Store and Google Play Store (Highly rated and reliable with over 5 million users worldwide)
  ✓ Control your gate ANYWHERE in the world
  ✓ Voice control and scene control compatible with Google assistant, Alexa and Siri
  ✓ Up to 10,000 Users by PIN code, EM Card and EM Tags
  ✓ Unlimited APP Users
  ✓ Add in expiring PIN codes by APP
  ✓ Add in normal users by APP
  ✓ Wires directly into the system
  ✓ Simple connection and simple setup
  ✓ Up to 10 meter Wi-Fi range with basic entry level routers (typically what’s supplied by the internet provider), Substantially boosted using good quality routers or mesh networks.

  Specifications

  Power	12V DC
  Standby Current	≤35mA
  Maximum Users	10,000 Users
  Operating Temperature	-40°C - +60°C
  Operating Methods	PIN CODE, RFID,MOBILE APP
  Wi-Fi Distance	Up to 10m on basic ISP routers (entry level basic) Substantially boosted on a good quality router or mesh network

  x

  Access Control Keypad with EM Tag Reader and mobile APP

  Wired keypad allowing for pin code access control, em cards and tags operation, along with mobile APP control.

  Show more

  Wired keypad allowing for pin code access control, em cards and tags operation, along with mobile APP control.

  ×

  Add for

  $150.00 – $190.00

  Out Of Stock

  Cable Length *

  Choose an optionNo Cable (BYO)3m Cable5m Cable10m Cable7m Cable20m Cable Clear Out Of Stock

•

  Description

  Tekno WF APP Control Switch



  The Tekno WF is a versatile control device allowing for connection to the gate system to bridge from a locally controlled installation to also allow for Mobile APP based automatic gate control from anywhere in the world. Its mini design allows for mounting inside the system without the need for any additional boxes.





  Key Features

  ✓ FREE APP Control available in Apple App Store and Google Play Store (Highly rated and reliable with over 5 million users worldwide)
  ✓ Control your gate ANYWHERE in the world
  ✓ Voice control and scene control compatible with Google assistant, Alexa and Siri
  ✓ Can configure opening/closing schedules by Day and Time
  ✓ Fits directly into the system, no extras required
  ✓ Simple connection and simple setup
  ✓ Up to 10 meter Wi-Fi range with basic entry level routers (typically what’s supplied by the internet provider), Substantially boosted using good quality routers or mesh networks.

  Specifications

  Operating Voltage	5-24V DC
  Consumption	≤35mA Standby/≤100mA Operation
  Smart Assistant Support	YES
  Operating Methods	Mobile APP
  Wi-Fi Distance	Up to 10m on basic ISP routers (entry level basic) Substantially boosted on a good quality router or mesh network

  x

  Mobile App Control Wi-Fi Connection Module

  Control the gate from anywhere in the world with your mobile phone using the Tekno WF module.

  Show more

  Control the gate from anywhere in the world with your mobile phone using the Tekno WF module.

  ×

  Add for

  $79.00

  Out Of Stock

•

  Description

  Uninterrupted LITHIUM Battery Backup System for Premier SW24 Swing Gate System



  The optional uninterrupted battery backup system allows for continued use in the case of power loss without the need for any user intervention, it will continue to allow system operation including any system accessories for 24-48 hours OR until the power is restored. The batteries are automatically recharged when power is restored and trickle whilst power is available Directly fitting into the systems compartment there is no need for any additional storage boxes.

  ⚠ WARNING

  • Misusing or mishandling a lithium-ion battery may cause fire or explosion, which can result in personal INJURY or DEATH and property damage. You MUST read the safety warnings and resources before purchasing, using, and/or handling batteries. Even if properly handled, lithium-ion batteries may still catch fire or explode.

  • SHORT CIRCUIT is the situation that occurs when battery positive (+) and negative (-) are directly connected. The current will become extremely high due to a lack of resistance in the circuit that would limit current flow. A short circuit usually leads to dangerously high temperatures which may lead to a fire generating personal injury, property damage, or death. The protective PVC shrink wrap should always be in PERFECT condition. DO NOT use the battery if parts are damaged in any way.

  • Keep lithium-ion batteries AWAY from sharp objects. DO NOT store lithium-ion batteries close to or on your person, in a pocket, purse, backpack, etc.

  ⚠ SAFETY INSTRUCTIONS

  • Lithium batteries must be properly disposed of – NOT in a fire or in the trash. Laws vary at the city, state and national level, and it is the buyer’s responsibility to ensure they are recycling lithium batteries properly. Many local governments and retail stores offer free recycling, Recycling locator can be found at  https://recyclingnearyou.com.au/batteries/

  • Immediately STOP charging, storing, or using lithium-ion batteries if they emit an unusual smell, feel hot, change color, or shape, or appear damaged.

  • If exposed to battery electrolyte, flush with water, immediately and/or immediately contact a physician or emergency services.

  • If purchasing this battery for resale purposes, you MUST forward ALL warnings to ALL potential customers for their reference and safety!

  • The positive (+) and negative (-) terminals MUST NOT be reversed when charging or using the battery.

  • Do not charge or discharge lithium-ion batteries at a rate beyond the maximum charging or discharging current of the manufacturer’s specific current ratings.

  • If eye exposure arises, flush with water for 15 minutes, and immediately seek emergency attention.

  • ALWAYS charge lithium-ion batteries in or on a fire-proof surface and do not leave batteries charging without due attention.

  • We are not responsible for any damage if there is any modification of the batteries/chargers in any shape or form (including but not limited to pack making).

  • DO NOT modify, disassemble, puncture, cut, crush, or incinerate.

  • DO NOT solder directly onto the battery, spot weld only.

  • DO NOT use force to install.

  • It is your responsibility to determine that your charger or device is functioning properly.

  • DO NOT store or carry lithium-ion batteries in your pocket, bag, or anywhere together with other conducting materials or objects such as necklaces, hairpins, etc.

  • DO NOT place the battery in high-pressure containers, microwave ovens, or induction cookware.

  • Misuse of lithium-ion rechargeable battery cells can pose a serious risk of personal injury or property damage.

  • Keep the lithium-ion batteries out of the reach of children and pets.

  • Avoid charging or storing lithium-ion batteries at high temperatures greater than 50°C. High temperatures might ignite the battery and cause a fire.
  • Avoid charging lithium batteries below freezing 0°C, as this will permanently reduce the battery capacity due to lithium plating.

  ⚠ BEST PRACTICES

  • DO NOT run the battery until it cuts off. That will significantly reduce the operating life of the battery.
  • DO NOT leave a battery fully charged or fully depleted for longer than a few days.
  • DO NOT charge below freezing or above 50°C.
  • DO NOT discharge below -10°C or above 50°C.
  • IMMEDIATELY unplug a battery once it is charged.
  • DO NOT charge the battery near flammable materials. Keep batteries at least 2 meters from flammable materials.

  x

  Uninterrupted LITHIUM Battery Backup System

  Fits inside the control box, supplied with the plug in harness. Allows for uninterrupted operation during power outage.

  Show more

  Fits inside the control box, supplied with the plug in harness. Allows for uninterrupted operation during power outage.

  ×

  Add for

  $80.00

  Out Of Stock
