Orion LS Low Voltage Farm Gate 24V Automatic Rural Swing Driveway Gate Opener 24 Volt Kit ROBUST Heavy Duty Design for DIY and Trade Installers

Name: Orion LS Low Voltage Farm Gate 24V Automatic Rural Swing Driveway Gate Opener 24 Volt Kit ROBUST Heavy Duty Design for DIY and Trade Installers
SKU: ORION-LS-1S-E-FG1
Price: 919 AUD
Availability: OutOfStock

SKU: ORION-LS-1S-E-FG1

$949.00

$919.00

Save $30.00

Freight from $30.00 Calculate Freight
1 Year Warranty
Brand : Automation Systems Australia

Ultra Fast

Adjustable Limit Stops

All Metal Gears

350KG Max.

4.2 Metre (14FT) Gate

Digital Display

Optional Battery Backup

Ultra Fast
Adjustable Limit Stops
All Metal Gears
350KG Max.
4.2 Metre (14FT) Gate
Digital Display
Optional Battery Backup

On backorder

Click & Collect

Delivery

In-Store

Orion Slimline Low Voltage 24 Volt Driveway Linear Actuator Gate Motor

The Orion LS Linear Actuator kit is the upgraded version of the highly popular original Orion model. With an ultra modern and slimline measuring at only 80mm in width. Suitable for narrow post installations of 100mm. Constructed from a die-cast alloy rear housing for the DC motor and metal gear set and an extruded aluminum housing for the stainless steel telescopic piston it retains a subtle yet modern appearance with plenty of strength for most applications of low resistance/low wind loading gates.

Operations are smooth and efficient using its 24 Volt DC motor system transferred to its steel lead screw through its metal gear set. The end positions are set using the retracted stroke (in) and a gate stop for its expanded stroke (out).

The Orion LS now boasts a maximum of 510mm usable stroke and also two ADJUSTABLE limit stops built in (one for the OPEN position and one for the CLOSED position), the usable amount of stoke whilst retaining the two limit stops is 440mm being each limit stop (individually removable) occupies 35mm of area.

The Orion LS can be used for gates from as short as 1m and up to 4.2m (Farm Gates) in size or up to 350kg in weight (see specifications graph below).

Key Features

✓ Fast and Efficient 24 Volt Operation
✓ Subtle and Quiet
✓ Open and Closed Limit Stops
✓ Large Stroke as standard
✓ Die-Cast Housing and Extruded

✓ Slimline and Compact design
✓ Stainless Steel Piston with Metal Gear Set
✓ Only Two Wires Back to Gate Control Box
✓ Flexible and vast installation geometries
✓ Pre-Connected 7 Metre 1.5mm Double Insulated PVC Cable

Overview of the Orion Actuator

Robust Case Construction

Detail on the Build

Adjustable Limit Stops

Set and forget, easy to adjust open and closed positions by the adjustable limit stops.

Manual Release (Clutch)

Simply open the top cover, insert the supplied key and turn to manually release the gate.

Driveway Gate Motor Specifications

Operating Voltage	24V DC
Duty Cycle	60%
Thrust	1200N
Maximum Stroke Length	510mm(limit stops removed) / 475mm (one limit stops used) / 440mm (two limit stops used)
Limit Topss	Yes for both Open and Closed (individually removable) Ideally a gate stop is used in the closed position if possible
Gearing Structure	Gearbox
Case Material	Die-Cast and Extruded Aluminum
Piston	Stainless Steel With Alloy Gate Connection
Maximum Gate Weight	4.2 Meters (14 Ft) See specifications graph
Maximum Gate Weight	350KG (See specifications graph)

orion automatic gate motor specifications

“Pull to Open” Opening Inwards Geometry

“Push to Open” Opening Outwards Geometry

STX4K Keyring High Range Remote

Automation systems Australia keyring remote control for driveway gate

The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).

Key Features

✓ Up to 100 metres distance in open air
✓ Keeloq rolling code security
✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
✓ Clear visibility red LED indicator which will illuminate upon a button press
✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
✓ Slimline and modern ergonomic design
✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

Premier SW24 Advanced Digital Automatic Gate Controller

Automatic electric 24 volt driveway gate control box

The on-board display makes easy work of any settings changes if desired and is easily visible in the outdoors being the advantage of LED displays. With multiple Inputs and outputs just about any accessory is compatible with the Premier SW24 system (see the complete list below).

Also boasting multiple safety inputs along with its precise on-board detection it allows safety to remain prioritized for any application. with the optional plug and play battery back-up system you will be sure not to ever be locked out of your property.

The installation process is always kept in mind allowing up to 7 cable inputs into the outdoor weatherproof gate control box using IP68 cable glands, you will never run out of space or provisions for more.

The genius automatic learning system, hold one key to enable and begin the automatic learning of the gate system and automatic definition of the ramp up and slow down points, its as easy as it gets suiting all skill levels from DIY once off installs to professional installers.

All connections are Low Voltage and safe for all installers regardless of the skill level without the concern of electrical shock.

Automatic Gate System Features

Features as Standard

✓ Easy to use Single Button Mode of Opening-Stop-Closing including the “Stay open” feature
✓ Automatic Closing Timer Adjustable in one second increments up to 5 minutes
✓ Automatic learning of the gate + Fine tunable operating Times
✓ Soft Start (Ramp UP) and Soft Stop/Slowdown (Ramp DOWN)
✓ Adjustable Slow Down Speed and Time
✓ Optional Plug and Play Battery Backup System
✓ Fortress Series Electric and Magnetic Lock Support
✓ Low Voltage Power for all accessories directly through the gate controller
✓ Warning Light Output

Normal Modes allow for the “STAY Open” feature to cancel the automatic closing timer by remote Handy when expecting guest, backing in a trailer etc.

Multiple Configurable Safety Inputs

✓ Obstacle Detection by load This feature is always running and detecting if the gate is stalled under load by an obstacle during its travel.
✓ Typical Photocell Input Terminal to prevent gate from closing on vehicle, reverts gate if a vehicle passes through during closing, restarts the Automatic closing timer after each interruption.
✓ Photostop Input, Same as the typical photocell input with an added feature of preventing the gate from opening if the photocell is blocked. Handy for short driveways and also opening outwards installations.
✓ Special Detector Input to tell the gate to close two seconds after the vehicle passes, perfect for higher security applications (and also escaping dogs).
✓ Safety Edge Input Installed on to the gate, safety edges allow for a return to open if the edge of gate is to touch an obstacle.
✓ Emergency Stop Button This feature allows for a manned button to immediately stop the system open pressing.

Wired and Wireless Access Control Support

✓ Keypads Wired or Wireless Secure PIN Number access (Tekno K1/Dex4)
✓ Press Button Simple button operation
✓ Mobile APP Control Cloud based and operatable anywhere in the world (Tekno WF)
✓ Doorbell Intercom Systems
✓ Exit Wands and Induction Loops To automatically operate the gate upon vehicle presence
✓ GSM 4G Technology Operate the gate by phone call (or intercom phone call) (Tekno 4/Tekno S1)
✓ Weekly Schedule Timer To automatically operate the gate based on a programmed daily/weekly operating times

Residential, Commercial and Complex Working Modes Options

✓ Normal Remote Operation (Open-Stop-Close)
✓ Normal Remote Operation (Open-Stop-Close) with Automatic Closing Timer and “Stay Open” feature (299 Seconds/5 Minutes)
✓ Typical Complex – Individual Open and Close Command Inputs
✓ Typical Complex – Individual Open and Close Command Inputs with Automatic Closing Timer “Stay Open” feature by wired input (299 Seconds/5 Minutes)
✓ Secure Complex – Open Only Command Inputs with Automatic Closing Timer (299 Seconds/5 Minutes) “Stay Open” feature by wired input

OPTIONAL Uninterrupted Battery Backup System

The optional uninterrupted battery backup system allows for continued use in the case of power loss without the need for any user intervention, it will continue to allow system operation including any system accessories for 24 hours OR until the power is restored. The batteries are automatically recharged when power is restored and trickle whilst power is available Directly fitting into the systems compartment there is no need for any additional storage boxes.

If the optional battery system is not desired the system can still be manually release using the secure override system when applicable.

Automatic Gate System Controller Specifications

Operating Voltage	24V
Duty Cycle	70%
Standby Consumption	20mA
Supports Battery Backup	Yes, 24V DC
Automatic Gate Lock Support	Yes, 24V DC
Light Support	Yes, 24V DC
Accessories Voltage	Yes, 12V DC
Safety Inputs	Photocells, Safety edges, Induction Loops, Edge Sensors, Emergency Stop Button
Operating Temperature	-10°-60°C
Maximum Remotes	192

Control Box Dimensions

Automatic Driveway Gate System Control Box

24V Low Voltage External Transformer

The External 24V Transformer is designed to be installed outdoors or in a garage/carport. The transformer will plug into an ordinary power point and output a safe LOW VOLTAGE supply to the gate system. Being built to an uncompromised and higher specification unit it is capable of a low voltage run of up to 120 meters making it suitable for most installations that do not have a power point nearby to the gate.

Key Features

✓ IP66 Outdoor Rated Design
✓ Can work up to 120 meters low voltage cabling distance
✓ Multiple cable roll options or use your own cable

Dukie Photocell Kit

Dukie Automatic gate and garage door photocell

The Dukie series photocell kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Both the photocells are wired back to the control box with low voltage wiring however the OPTIONAL UPGRADE to Dukie XR Retro Reflective sensor allows for a reflector on the far side and the sensor itself to be connected on the control box side.

Key Features

✓ 45° Adjustable in each direction, suited for inline and out of line posts
✓ Ultra modern and neat appearance
✓ Compact design fits almost anywhere at 100(L)x45(W)x35(D)mm
✓ NO and NC Relay Settings
✓ Excellent range characteristics of up to 10 meter distance between each photocell
✓ Unlimited sets can be installed on each system for added protective layers
✓ OPTIONAL Dukie XR reflective sensor upgrade for wiring on one side only

STX4L Ultra Long Distance Remote

Automation systems Australia Long Distance remote control for driveway gate

The STX4L Long distance remote is a class leader in Ultra long distance (up to 800 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).

The long distance remote is most useful around larger properties able to operate the gate from sheds, buildings and the home where a typical remote would not be able to achieve the same operating distance.

Key Features

✓ Up to 800 metres distance in open air
✓ Keeloq rolling code security
✓ Easy to Use buttons
✓ ON/OFF switch to prevent accidental operation
✓ Clear visibility LED indicator which will illuminate upon a button press
✓ Narrow handheld design
✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

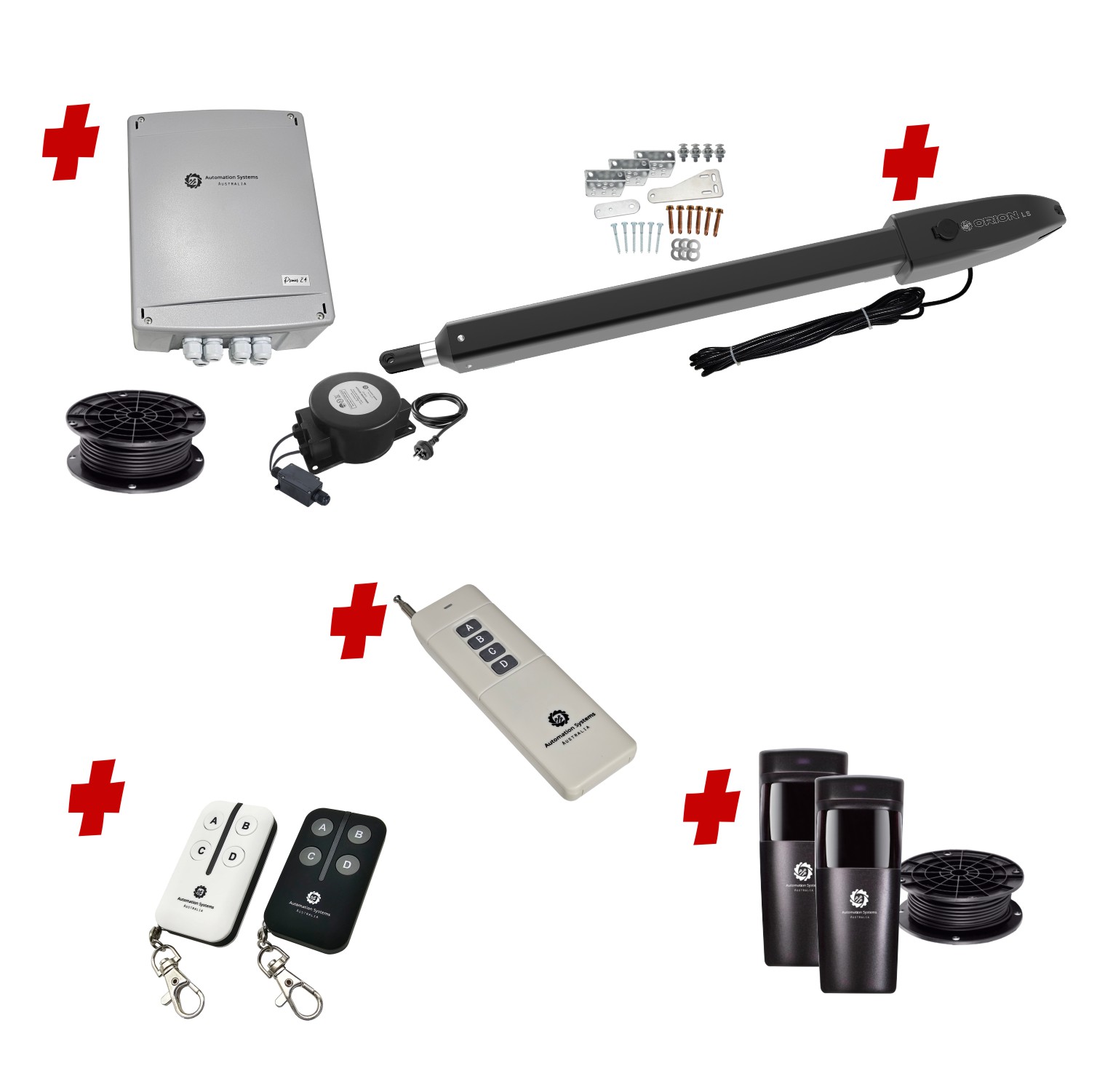

Kit Contents (See Description Tab for Full In-Depth Details)

Orion Slimline Low Voltage 24 Volt Driveway Linear Actuator Gate Motor

The Orion LS can be used for gates from as short as 1m and up to 4.2m (Farm Gates) in size or up to 350kg in weight (see specifications graph below).

Key Features

✓ Fast and Efficient 24 Volt Operation
✓ Subtle and Quiet
✓ Open and Closed Limit Stops
✓ Large Stroke as standard
✓ Die-Cast Housing and Extruded

Overview of the Orion Actuator

Robust Case Construction

Detail on the Build

Adjustable Limit Stops

Set and forget, easy to adjust open and closed positions by the adjustable limit stops.

Manual Release (Clutch)

Simply open the top cover, insert the supplied key and turn to manually release the gate.

Driveway Gate Motor Specifications

Operating Voltage	24V DC
Duty Cycle	60%
Thrust	1200N
Maximum Stroke Length	510mm(limit stops removed) / 475mm (one limit stops used) / 440mm (two limit stops used)
Limit Topss	Yes for both Open and Closed (individually removable) Ideally a gate stop is used in the closed position if possible
Gearing Structure	Gearbox
Case Material	Die-Cast and Extruded Aluminum
Piston	Stainless Steel With Alloy Gate Connection
Maximum Gate Weight	4.2 Meters (14 Ft) See specifications graph
Maximum Gate Weight	350KG (See specifications graph)

“Pull to Open” Opening Inwards Geometry

“Push to Open” Opening Outwards Geometry

Orion LS Actuator Kit with 7 Metre Cable

Maximum 4.2m (12FT) Opening / 350KG
Slimline Telescopic Actuator includes 7m of Cable
Can swing Up To 100° (Adjustable)
