RAPTOR Extra Heavy Duty ITALIAN Electric 24V Low Voltage Automatic Double Swing Driveway Gate Opener Kit ROBUST Heavy Duty Design for DIY and Trade Installers

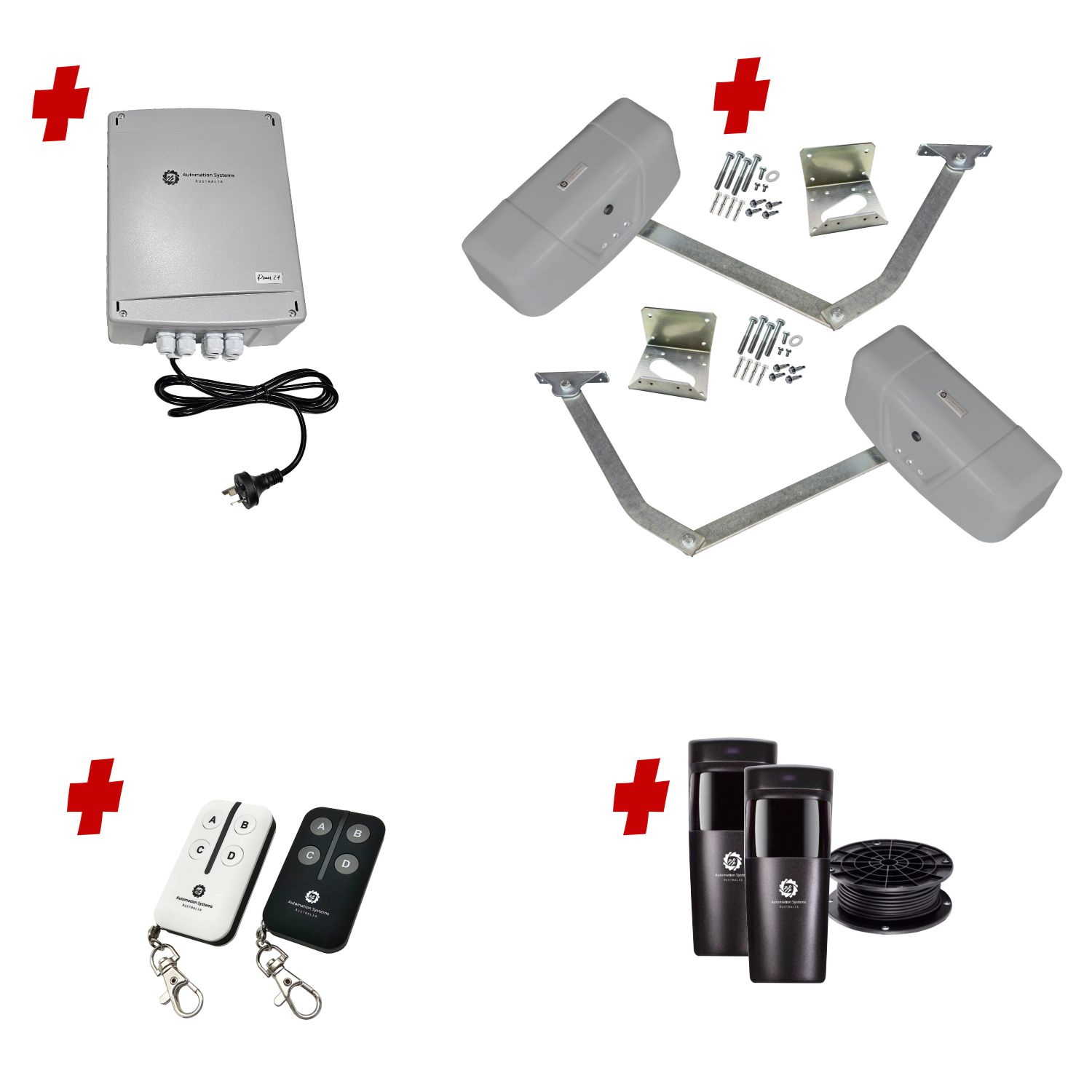

Kit Contents (See Description Tab for Full In-Depth Details)

•

  Description

  Raptor Low Voltage 24 Volt Heavy Duty Articulating Arm Operator



  The Raptor Articulating Arm System Is a High-End ITALIAN 24 Volt Metal Gearbox Articulating Arm Operator in the Extra Heavy Duty Class, Flexible, Strong and and Resilient the operator can swing gate weights of up to an outstanding 800KG (Wrought Iron Gates) and Gates up to 4.2m (14FT). Construction is Heavy Duty and Solid with a all metal reduction gear systems structure encapsulated into a die-cast housing.

  Flexibility is standard thanks to the spherical ball joint connection points on the arm. Both joins in the arm have excellent flexibility allowing for gate operation even when the gate is out of level or a rising gate application. The steel arms continue the heavy duty capabilities of the operators being constructed from laser cut steel at an 8mm thickness for high strength and the post bracket also carries its weight at 5mm thickness also from laser cut steel.

  The Raptor series operator is 100% Universal meaning the operator could be installed on EITHER side of the driveway and is suitable for both Inwards (Pull to Open) and Outwards (Push to Open) installations with a clever clutch release system (Emergency release) is available on both sides of the operator.

  The Raptor operator uses micro switches (Limit Switches) for both the Open and also the Closed positions allowing for precise and easily adjustable cut off point for each position. Micro switches are wired back to the gate control board for easier designation of both positions without the requirement of any electronics within the gate motor.

  The prerequisite for a Raptor operator is a mounting area of 215mm, this is typically available on piers, pillars and large posts. If you have a narrow post the mounting area requirement can be reduced by drilling additional holes in the post bracket OR the post could be extended by installing a heavy duty bracket on the side of the post. The clearance area required for a Raptor operators arm when the gate is open to 90 Degrees (arm folded back) is 450mm.

  Both Cable rolls required (DC Motor and Limit Switches) is available as an add on (in the kit contents tab) if cable has not been pre-laid before hand), a total of 5 wires is used to operate a Raptor.

  Key Features



  ✓ Designed and Manufactured in Italy
  ✓ Fast and Efficient 24 Volt Operation
  ✓ All Metal Gear Reduction System in a Die Cast Housing

  ✓ Micro switch setting for both Open and Closed Positions
  ✓ Universal Left or Right Side
  ✓ Support’s inwards and Outwards Opening

  Under the Cover

  The Raptor allows for adjustment of the open and closed position using the micro switches (Limit Switches), easy to adjust without cams, simply adjust the striker to the required position for each micro switch.


  All Metal Gear Set

  Uncompromised quality and strength, all internal gears are of metal construction.


  Spherical Ball Joints

  Suitable for a large multitude of applications the ball joint allows for ultimate flexibility when required.


  Manual Release System

  Simply remove the grommet, insert the supplied Allen key and turn clockwise/counter-clockwise to lock and unlock


  Mounting Chart



  Simplified – Gate Set In Maximum (Pull to Open)

  Please note gate is in the CLOSED position in this illustration.



  Simplified – Gate Set Out Maximum (Push to Open)

  Please note gate is in the OPEN position in this illustration.



  Raptor Driveway Gate Motor Specifications

  Operating Voltage	24V DC
  Duty Cycle	90%
  Force	500Nm
  Max Angle	120° When mounting bracket Offset is 120mm
  Limit Switches	Yes, Open and Closed Positions
  Gearing Structure	Reduction, Irreversible
  Case Material	Die Cast Alloy, ABS Fascia
  Maximum Gate Width	4.2 Meters (14 Ft)
  Maximum Gate Weight	800KG Always factor in wind resistance, capacities are based on no wind load.





  x

  Raptor Extra Heavy Duty (24V) Automatic Driveway Electric Gate Articulated Arm Operator with Limit Switches

  • Maximum 4.2m Opening (14FT Gate)/800KG
  • Articulating Arm with Spherical Ball Joints
  • Can swing Up To 120° (Adjustable)
  • Adjustable Open & Closed Limit Switches
  • Advanced Digital Control Board

  Show more

  • Maximum 4.2m Opening (14FT Gate)/800KG
  • Articulating Arm with Spherical Ball Joints
  • Can swing Up To 120° (Adjustable)
  • Adjustable Open & Closed Limit Switches
  • Advanced Digital Control Board

  ×

  Out Of Stock

  Raptor Cable Options *

  Choose an option10m Motor and Limit Switch Cable5m Motor and Limit Switch CableNo Cable- I have my own 2 core and 4 core Clear Out Of Stock

•

  Description

  Raptor Low Voltage 24 Volt Heavy Duty Articulating Arm Operator



  The Raptor Articulating Arm System Is a High-End ITALIAN 24 Volt Metal Gearbox Articulating Arm Operator in the Extra Heavy Duty Class, Flexible, Strong and and Resilient the operator can swing gate weights of up to an outstanding 800KG (Wrought Iron Gates) and Gates up to 4.2m (14FT). Construction is Heavy Duty and Solid with a all metal reduction gear systems structure encapsulated into a die-cast housing.

  Flexibility is standard thanks to the spherical ball joint connection points on the arm. Both joins in the arm have excellent flexibility allowing for gate operation even when the gate is out of level or a rising gate application. The steel arms continue the heavy duty capabilities of the operators being constructed from laser cut steel at an 8mm thickness for high strength and the post bracket also carries its weight at 5mm thickness also from laser cut steel.

  The Raptor series operator is 100% Universal meaning the operator could be installed on EITHER side of the driveway and is suitable for both Inwards (Pull to Open) and Outwards (Push to Open) installations with a clever clutch release system (Emergency release) is available on both sides of the operator.

  The Raptor operator uses micro switches (Limit Switches) for both the Open and also the Closed positions allowing for precise and easily adjustable cut off point for each position. Micro switches are wired back to the gate control board for easier designation of both positions without the requirement of any electronics within the gate motor.

  The prerequisite for a Raptor operator is a mounting area of 215mm, this is typically available on piers, pillars and large posts. If you have a narrow post the mounting area requirement can be reduced by drilling additional holes in the post bracket OR the post could be extended by installing a heavy duty bracket on the side of the post. The clearance area required for a Raptor operators arm when the gate is open to 90 Degrees (arm folded back) is 450mm.

  Both Cable rolls required (DC Motor and Limit Switches) is available as an add on (in the kit contents tab) if cable has not been pre-laid before hand), a total of 5 wires is used to operate a Raptor.

  Key Features



  ✓ Designed and Manufactured in Italy
  ✓ Fast and Efficient 24 Volt Operation
  ✓ All Metal Gear Reduction System in a Die Cast Housing

  ✓ Micro switch setting for both Open and Closed Positions
  ✓ Universal Left or Right Side
  ✓ Support’s inwards and Outwards Opening

  Under the Cover

  The Raptor allows for adjustment of the open and closed position using the micro switches (Limit Switches), easy to adjust without cams, simply adjust the striker to the required position for each micro switch.


  All Metal Gear Set

  Uncompromised quality and strength, all internal gears are of metal construction.


  Spherical Ball Joints

  Suitable for a large multitude of applications the ball joint allows for ultimate flexibility when required.


  Manual Release System

  Simply remove the grommet, insert the supplied Allen key and turn clockwise/counter-clockwise to lock and unlock


  Mounting Chart



  Simplified – Gate Set In Maximum (Pull to Open)

  Please note gate is in the CLOSED position in this illustration.



  Simplified – Gate Set Out Maximum (Push to Open)

  Please note gate is in the OPEN position in this illustration.



  Raptor Driveway Gate Motor Specifications

  Operating Voltage	24V DC
  Duty Cycle	90%
  Force	500Nm
  Max Angle	120° When mounting bracket Offset is 120mm
  Limit Switches	Yes, Open and Closed Positions
  Gearing Structure	Reduction, Irreversible
  Case Material	Die Cast Alloy, ABS Fascia
  Maximum Gate Width	4.2 Meters (14 Ft)
  Maximum Gate Weight	800KG Always factor in wind resistance, capacities are based on no wind load.





  x

  Raptor Extra Heavy Duty (24V) Automatic Driveway Electric Gate Articulated Arm Operator with Limit Switches

  • Maximum 4.2m Opening (14FT Gate)/800KG
  • Articulating Arm with Spherical Ball Joints
  • Can swing Up To 120° (Adjustable)
  • Adjustable Open & Closed Limit Switches
  • Advanced Digital Control Board

  Show more

  • Maximum 4.2m Opening (14FT Gate)/800KG
  • Articulating Arm with Spherical Ball Joints
  • Can swing Up To 120° (Adjustable)
  • Adjustable Open & Closed Limit Switches
  • Advanced Digital Control Board

  ×

  Out Of Stock

  Raptor Cable Options *

  Choose an option10m Motor and Limit Switch Cable5m Motor and Limit Switch CableNo Cable- I have my own 2 core and 4 core Clear Out Of Stock

•

  Description

  Please be aware this product is only compatible with Automation Systems Australia Control Boards and Remote Receivers, it will NOT work with other brand products.

  STX4K Keyring High Range Remote



  The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

  The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).



  Key Features

  ✓ Up to 100 metres distance in open air
  ✓ Keeloq rolling code security
  ✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
  ✓ Clear visibility red LED indicator which will illuminate upon a button press
  ✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
  ✓ Slimline and modern ergonomic design
  ✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

  x

  Four Button Keyring Remote Control (White)

  • Up to 100 Metre Open Air Distance
  • High Security Rolling Code
  • Slimline and Ergonomic

  Show more

  • Up to 100 Metre Open Air Distance
  • High Security Rolling Code
  • Slimline and Ergonomic

  ×

  Out Of Stock

  Provide a Sun Visor Clip? ($3) *

  Choose an optionNoYes Clear Out Of Stock

  Automatic Gate Remote Control Keyring Mounting STX4K White quantity

•

  Description

  Please be aware this product is only compatible with Automation Systems Australia Control Boards and Remote Receivers, it will NOT work with other brand products.

  STX4K Keyring High Range Remote



  The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

  The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).



  Key Features

  ✓ Up to 100 metres distance in open air
  ✓ Keeloq rolling code security
  ✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
  ✓ Clear visibility red LED indicator which will illuminate upon a button press
  ✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
  ✓ Slimline and modern ergonomic design
  ✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

  x

  Four Button Keyring Remote Control (Black)

  • Up to 100 Metre Open Air Distance
  • High Security Rolling Code
  • Slimline and Ergonomic

  Show more

  • Up to 100 Metre Open Air Distance
  • High Security Rolling Code
  • Slimline and Ergonomic

  ×

  Out Of Stock

  Provide a Sun Visor Clip? ($3) *

  Choose an optionNoYes Clear Out Of Stock

  Automatic Gate Remote Control Keyring Mounting STX4K Black quantity

•

  Description

  Dukie XR Retro-Reflective Sensor



  The Dukie XR series retro-reflective sensor kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Only the sensor requires wiring back to the gate controller as the sensor bounces its own beam back via the reflector installed on the far side of the driveway.

  Added benefits of the XR series photocell is its Anti Interference Infrared characteristics making it best suited for ultra high capacity electric motors.





  Key Features

  ✓ No wiring needed across the driveway (reflector)
  ✓ Narrow Sensor only 20mm width
  ✓ Flexible with multiple different mounting methods
  ✓ NO and NC Relay Options
  ✓ Excellent range characteristics of up to 11 meter distance in clear conditions (-40% in adverse conditions)

  x

  Photocell OR Reflective Safety Sensor

  Choose from Photocell wired to both sides OR a Reflective sensor Wired only on the one side (1.9m Pre-Connected)

  Show more

  Choose from Photocell wired to both sides OR a Reflective sensor Wired only on the one side (1.9m Pre-Connected)

  ×

  Out Of Stock

  Photocell Options *

  Choose an optionNo Photocell, No Cable (I have my own)Wired Both Sides with 7m Cable Roll (Dukie)Wired Both Sides with 10m Cable Roll (Dukie)Reflective Sensor- WIRELESS ACROSS DRIVEWAY (Dukie XR)Wired Both Sides, I already have cable (Dukie) Clear Out Of Stock

•

  Description

  Premier SW24 Advanced Digital Automatic Gate Controller



  The Premier SW24 Automatic gate system controller comes standard with a state of the art feature set catering for all types of installations, whether only requiring ordinary residential operation to all the way up to a full fledged setup requiring advanced logic principals taking advantage of the 70% duty cycle.

  The on-board display makes easy work of any settings changes if desired and is easily visible in the outdoors being the advantage of LED displays. With multiple Inputs and outputs just about any accessory is compatible with the Premier SW24 system (see the complete list below).

  Also boasting multiple safety inputs along with its precise on-board detection it allows safety to remain prioritized for any application. with the optional plug and play battery back-up system you will be sure not to ever be locked out of your property.

  The installation process is always kept in mind allowing up to 7 cable inputs into the outdoor weatherproof gate control box using IP68 cable glands, you will never run out of space or provisions for more.

  The genius automatic learning system, hold one key to enable and begin the automatic learning of the gate system and automatic definition of the ramp up and slow down points, its as easy as it gets suiting all skill levels from DIY once off installs to professional installers.

  Ready to plug into an ordinary power point there is NO high voltage wiring required, All connections are Low Voltage and safe for all installers regardless of the skill level without the concern of electrical shock.



  Automatic Gate System Features



  Features as Standard

  ✓ Easy to use Single Button Mode of Opening-Stop-Closing including the “Stay open” feature
  ✓ Automatic Closing Timer Adjustable in one second increments up to 5 minutes
  ✓ Automatic learning of the gate + Fine tunable operating Times
  ✓ Soft Start (Ramp UP) and Soft Stop/Slowdown (Ramp DOWN)
  ✓ Adjustable Slow Down Speed and Time
  ✓ Optional Plug and Play Battery Backup System
  ✓ Fortress Series Electric and Magnetic Lock Support
  ✓ Low Voltage Power for all accessories directly through the gate controller
  ✓ Warning Light Output

  Normal Modes allow for the “STAY Open” feature to cancel the automatic closing timer by remote Handy when expecting guest, backing in a trailer etc.





  Multiple Configurable Safety Inputs

  ✓ Obstacle Detection by load This feature is always running and detecting if the gate is stalled under load by an obstacle during its travel.
  ✓ Typical Photocell Input Terminal to prevent gate from closing on vehicle, reverts gate if a vehicle passes through during closing, restarts the Automatic closing timer after each interruption.
  ✓ Photostop Input, Same as the typical photocell input with an added feature of preventing the gate from opening if the photocell is blocked. Handy for short driveways and also opening outwards installations.
  ✓ Special Detector Input to tell the gate to close two seconds after the vehicle passes, perfect for higher security applications (and also escaping dogs).
  ✓ Safety Edge Input Installed on to the gate, safety edges allow for a return to open if the edge of gate is to touch an obstacle.
  ✓ Emergency Stop Button This feature allows for a manned button to immediately stop the system open pressing.

  Wired and Wireless Access Control Support

  ✓ Keypads Wired or Wireless Secure PIN Number access (Tekno K1/Dex4)
  ✓ Press Button Simple button operation
  ✓ Mobile APP Control Cloud based and operatable anywhere in the world (Tekno WF)
  ✓ Doorbell Intercom Systems
  ✓ Exit Wands and Induction Loops To automatically operate the gate upon vehicle presence
  ✓ GSM 4G Technology Operate the gate by phone call (or intercom phone call) (Tekno 4/Tekno S1)
  ✓ Weekly Schedule Timer To automatically operate the gate based on a programmed daily/weekly operating times

  Residential, Commercial and Complex Working Modes Options

  ✓ Normal Remote Operation (Open-Stop-Close)
  ✓ Normal Remote Operation (Open-Stop-Close) with Automatic Closing Timer and “Stay Open” feature (299 Seconds/5 Minutes)
  ✓ Typical Complex – Individual Open and Close Command Inputs
  ✓ Typical Complex – Individual Open and Close Command Inputs with Automatic Closing Timer “Stay Open” feature by wired input (299 Seconds/5 Minutes)
  ✓ Secure Complex – Open Only Command Inputs with Automatic Closing Timer (299 Seconds/5 Minutes) “Stay Open” feature by wired input

  OPTIONAL Uninterrupted Battery Backup System



  The optional uninterrupted battery backup system allows for continued use in the case of power loss without the need for any user intervention, it will continue to allow system operation including any system accessories for 24 hours OR until the power is restored. The batteries are automatically recharged when power is restored and trickle whilst power is available Directly fitting into the systems compartment there is no need for any additional storage boxes.

  If the optional battery system is not desired the system can still be manually release using the secure override system when applicable.

  Automatic Gate System Controller Specifications

  Operating Voltage	24V
  Duty Cycle	70%
  Standby Consumption	20mA
  Supports Battery Backup	Yes, 24V DC
  Automatic Gate Lock Support	Yes, 24V DC
  Light Support	Yes, 24V DC
  Accessories Voltage	Yes, 12V DC
  Safety Inputs	Photocells, Safety edges, Induction Loops, Edge Sensors, Emergency Stop Button
  Operating Temperature	-10°-60°C
  Maximum Remotes	192

  Control Box Dimensions



  x

  Premier 24V Weatherproof Swing Gate Control Box

  • Plugs directly into a Power Point (Or can be hardwired)
  • Digital Display
  • Speed Control + Ramp Up + Slow Down
  • Automatic Close Timer
  • Automatic Lock Support
  • Supports Battery Backup

  Show more

  • Plugs directly into a Power Point (Or can be hardwired)
  • Digital Display
  • Speed Control + Ramp Up + Slow Down
  • Automatic Close Timer
  • Automatic Lock Support
  • Supports Battery Backup

  ×

  Out Of Stock
