RAPTOR Extra Heavy Duty ITALIAN Low Voltage 24V Automatic Double Swing Driveway Gate Opener 24 Volt Kit ROBUST Heavy Duty Design BASE KIT

Name: RAPTOR Extra Heavy Duty ITALIAN Low Voltage 24V Automatic Double Swing Driveway Gate Opener 24 Volt Kit ROBUST Heavy Duty Design BASE KIT
SKU: RAPTOR-2D-E-BK
Price: 2214 AUD
Availability: InStock

SKU: RAPTOR-2D-E-BK

$2,244.00

$2,214.00

Save $30.00

Freight from $30.00 Calculate Freight
3 Year Warranty
Brand : Automation Systems Australia

1600KG (2x 800KG)

Made In Italy

Ultra Fast

Adjustable Limit Switch

All Metal Gears

3 Year Warranty

8.4 Metre Opening

Digital Display

Optional Battery Backup

Raptor

1600KG (2x 800KG)
Made In Italy
Ultra Fast
Adjustable Limit Switch
All Metal Gears
3 Year Warranty
8.4 Metre Opening
Digital Display
Optional Battery Backup
Raptor

In stock

Click & Collect

Delivery

In-Store

Same Day Dispatch (Order before 10AM)

Raptor Low Voltage 24 Volt Heavy Duty Articulating Arm Operator

The Raptor Articulating Arm System Is a High-End ITALIAN 24 Volt Metal Gearbox Articulating Arm Operator in the Extra Heavy Duty Class, Flexible, Strong and and Resilient the operator can swing gate weights of up to an outstanding 800KG EACH (Wrought Iron Gates) and Gates up to 4.2m (14FT) Each for a total of an 8.2m Opening. Construction is Heavy Duty and Solid with a all metal reduction gear systems structure encapsulated into a die-cast housing.

Flexibility is standard thanks to the spherical ball joint connection points on the arm. Both joins in the arm have excellent flexibility allowing for gate operation even when the gate is out of level or a rising gate application. The steel arms continue the heavy duty capabilities of the operators being constructed from laser cut steel at an 8mm thickness for high strength and the post bracket also carries its weight at 5mm thickness also from laser cut steel.

The Raptor series operator is 100% Universal meaning the operator could be installed on EITHER side of the driveway and is suitable for both Inwards (Pull to Open) and Outwards (Push to Open) installations with a clever clutch release system (Emergency release) is available on both sides of the operator.

The Raptor operator uses micro switches (Limit Switches) for both the Open and also the Closed positions allowing for precise and easily adjustable cut off point for each position. Micro switches are wired back to the gate control board for easier designation of both positions without the requirement of any electronics within the gate motor.

The prerequisite for a Raptor operator is a mounting area of 215mm, this is typically available on piers, pillars and large posts. If you have a narrow post the mounting area requirement can be reduced by drilling additional holes in the post bracket OR the post could be extended by installing a heavy duty bracket on the side of the post. The clearance area required for a Raptor operators arm when the gate is open to 90 Degrees (arm folded back) is 450mm.

Both Cable rolls required (DC Motor and Limit Switches) is available as an add on (in the kit contents tab) if cable has not been pre-laid before hand), a total of 5 wires is used to operate a Raptor.

Key Features

✓ Designed and Manufactured in Italy
✓ Fast and Efficient 24 Volt Operation
✓ All Metal Gear Reduction System in a Die Cast Housing

✓ Micro switch setting for both Open and Closed Positions
✓ Universal Left or Right Side
✓ Support’s inwards and Outwards Opening

Under the Cover

The Raptor allows for adjustment of the open and closed position using the micro switches (Limit Switches), easy to adjust without cams, simply adjust the striker to the required position for each micro switch.

All Metal Gear Set

Uncompromised quality and strength, all internal gears are of metal construction.

Spherical Ball Joints

Suitable for a large multitude of applications the ball joint allows for ultimate flexibility when required.

Manual Release System

Simply remove the grommet, insert the supplied Allen key and turn clockwise/counter-clockwise to lock and unlock

Mounting Chart

Simplified – Gate Set In Maximum (Pull to Open)

Please note gate is in the CLOSED position in this illustration.

Simplified – Gate Set Out Maximum (Push to Open)

Please note gate is in the OPEN position in this illustration.

Raptor Driveway Gate Motor Specifications

Operating Voltage	24V DC
Duty Cycle	90%
Force	500Nm
Max Angle	120° When mounting bracket Offset is 120mm
Limit Switches	Yes, Open and Closed Positions
Gearing Structure	Reduction, Irreversible
Case Material	Die Cast Alloy, ABS Fascia
Maximum Gate Width	4.2 Meters (14 Ft) EACH
Maximum Gate Weight	800KG EACH Always factor in wind resistance, capacities are based on no wind load.

viper automatic gate motor specifications

STX4K Keyring High Range Remote

Automation systems Australia keyring remote control for driveway gate

The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).

Key Features

✓ Up to 100 metres distance in open air
✓ Keeloq rolling code security
✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
✓ Clear visibility red LED indicator which will illuminate upon a button press
✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
✓ Slimline and modern ergonomic design
✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

Premier SW24 Advanced Digital Automatic Gate Controller

Automatic electric driveway gate control box

The on-board display makes easy work of any settings changes if desired and is easily visible in the outdoors being the advantage of LED displays. With multiple Inputs and outputs just about any accessory is compatible with the Premier SW24 system (see the complete list below).

Also boasting multiple safety inputs along with its precise on-board detection it allows safety to remain prioritized for any application. with the optional plug and play battery back-up system you will be sure not to ever be locked out of your property.

The installation process is always kept in mind allowing up to 7 cable inputs into the outdoor weatherproof gate control box using IP68 cable glands, you will never run out of space or provisions for more.

The genius automatic learning system, hold one key to enable and begin the automatic learning of the gate system and automatic definition of the ramp up and slow down points, its as easy as it gets suiting all skill levels from DIY once off installs to professional installers.

All connections are Low Voltage and safe for all installers regardless of the skill level without the concern of electrical shock.

Automatic Gate System Features

Features as Standard

✓ Easy to use Single Button Mode of Opening-Stop-Closing including the “Stay open” feature
✓ Open one gate Pedestrian Mode Feature
✓ Automatic Closing Timer Adjustable in one second increments up to 5 minutes
✓ Automatic learning of the gate + Fine tunable operating Times
✓ Soft Start (Ramp UP) and Soft Stop/Slowdown (Ramp DOWN)
✓ Adjustable Slow Down Speed and Time
✓ Optional Plug and Play Battery Backup System
✓ Fortress Series Electric and Magnetic Lock Support
✓ Low Voltage Power for all accessories directly through the gate controller
✓ Warning Light Output

Normal Modes allow for the “STAY Open” feature to cancel the automatic closing timer by remote Handy when expecting guest, backing in a trailer etc.

Multiple Configurable Safety Inputs

✓ Obstacle Detection by load This feature is always running and detecting if the gate is stalled under load by an obstacle during its travel.
✓ Typical Photocell Input Terminal to prevent gate from closing on vehicle, reverts gate if a vehicle passes through during closing, restarts the Automatic closing timer after each interruption.
✓ Photostop Input, Same as the typical photocell input with an added feature of preventing the gate from opening if the photocell is blocked. Handy for short driveways and also opening outwards installations.
✓ Special Detector Input to tell the gate to close two seconds after the vehicle passes, perfect for higher security applications (and also escaping dogs).
✓ Safety Edge Input Installed on to the gate, safety edges allow for a return to open if the edge of gate is to touch an obstacle.
✓ Emergency Stop Button This feature allows for a manned button to immediately stop the system open pressing.

Wired and Wireless Access Control Support

✓ Keypads Wired or Wireless Secure PIN Number access (Tekno K1/Dex4)
✓ Press Button Simple button operation
✓ Mobile APP Control Cloud based and operatable anywhere in the world (Tekno WF)
✓ Doorbell Intercom Systems
✓ Exit Wands and Induction Loops To automatically operate the gate upon vehicle presence
✓ GSM 4G Technology Operate the gate by phone call (or intercom phone call) (Tekno 4/Tekno S1)
✓ Weekly Schedule Timer To automatically operate the gate based on a programmed daily/weekly operating times

Residential, Commercial and Complex Working Modes Options

✓ Normal Remote Operation (Open-Stop-Close)
✓ Normal Remote Operation (Open-Stop-Close) with Automatic Closing Timer and “Stay Open” feature (299 Seconds/5 Minutes)
✓ Typical Complex – Individual Open and Close Command Inputs
✓ Typical Complex – Individual Open and Close Command Inputs with Automatic Closing Timer “Stay Open” feature by wired input (299 Seconds/5 Minutes)
✓ Secure Complex – Open Only Command Inputs with Automatic Closing Timer (299 Seconds/5 Minutes) “Stay Open” feature by wired input

OPTIONAL Uninterrupted Battery Backup System

The optional uninterrupted battery backup system allows for continued use in the case of power loss without the need for any user intervention, it will continue to allow system operation including any system accessories for 24 hours OR until the power is restored. The batteries are automatically recharged when power is restored and trickle whilst power is available Directly fitting into the systems compartment there is no need for any additional storage boxes.

If the optional battery system is not desired the system can still be manually release using the secure override system when applicable.

Automatic Gate System Controller Specifications

Operating Voltage	24V
Duty Cycle	70%
Standby Consumption	20mA
Supports Battery Backup	Yes, 24V DC
Automatic Gate Lock Support	Yes, 24V DC
Light Support	Yes, 24V DC
Accessories Voltage	Yes, 12V DC
Safety Inputs	Photocells, Safety edges, Induction Loops, Edge Sensors, Emergency Stop Button
Operating Temperature	-10°-60°C
Maximum Remotes	192

Control Box Dimensions

Automatic Driveway Gate System Control Box

24V Low Voltage External Transformer

The External 24V Transformer is designed to be installed outdoors or in a garage/carport. The transformer will plug into an ordinary power point and output a safe LOW VOLTAGE supply to the gate system. Being built to an uncompromised and higher specification unit it is capable of a low voltage run of up to 120 meters making it suitable for most installations that do not have a power point nearby to the gate.

Key Features

✓ IP66 Outdoor Rated Design
✓ Can work up to 120 meters low voltage cabling distance
✓ Multiple cable roll options or use your own cable

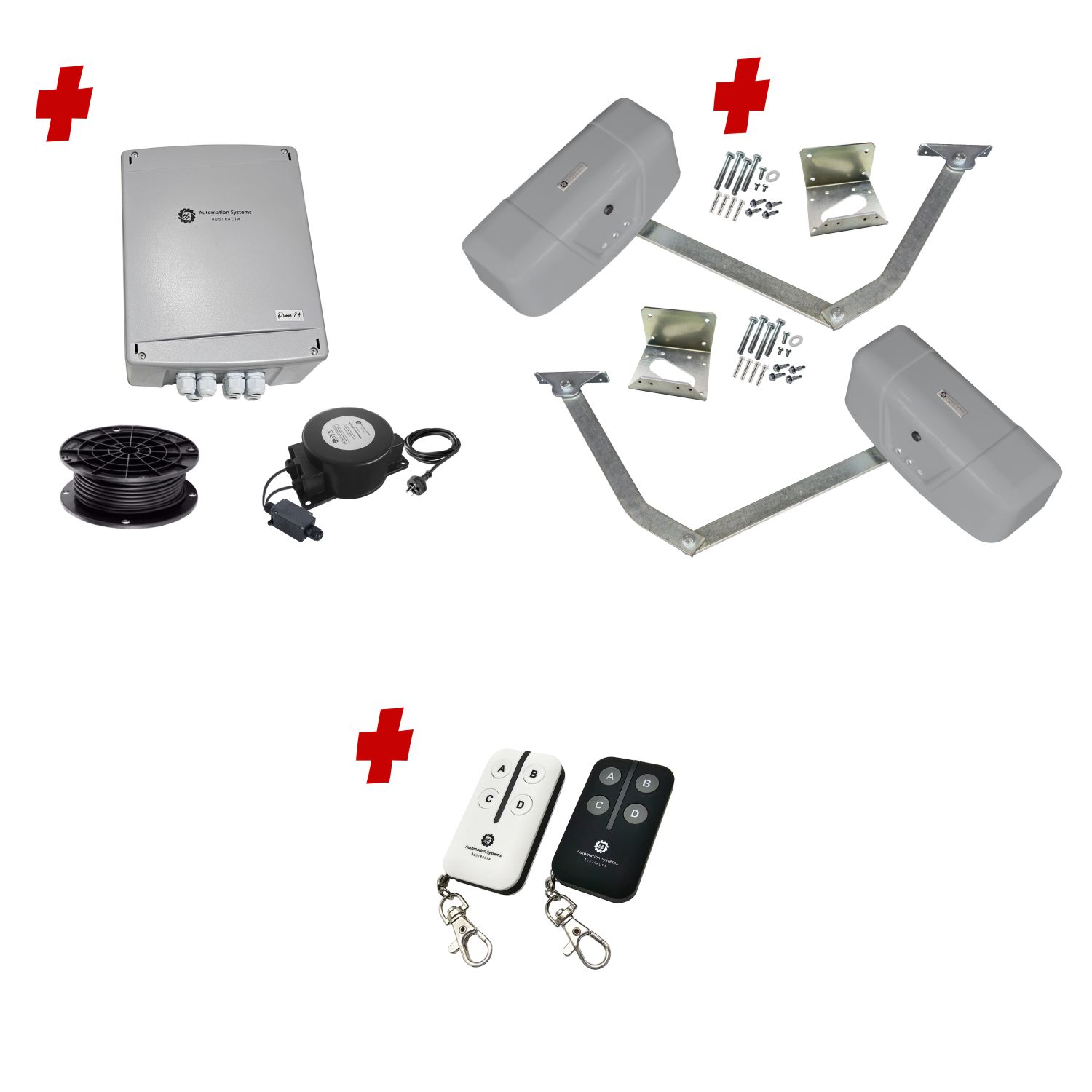

Kit Contents (See Description Tab for Full In-Depth Details)
