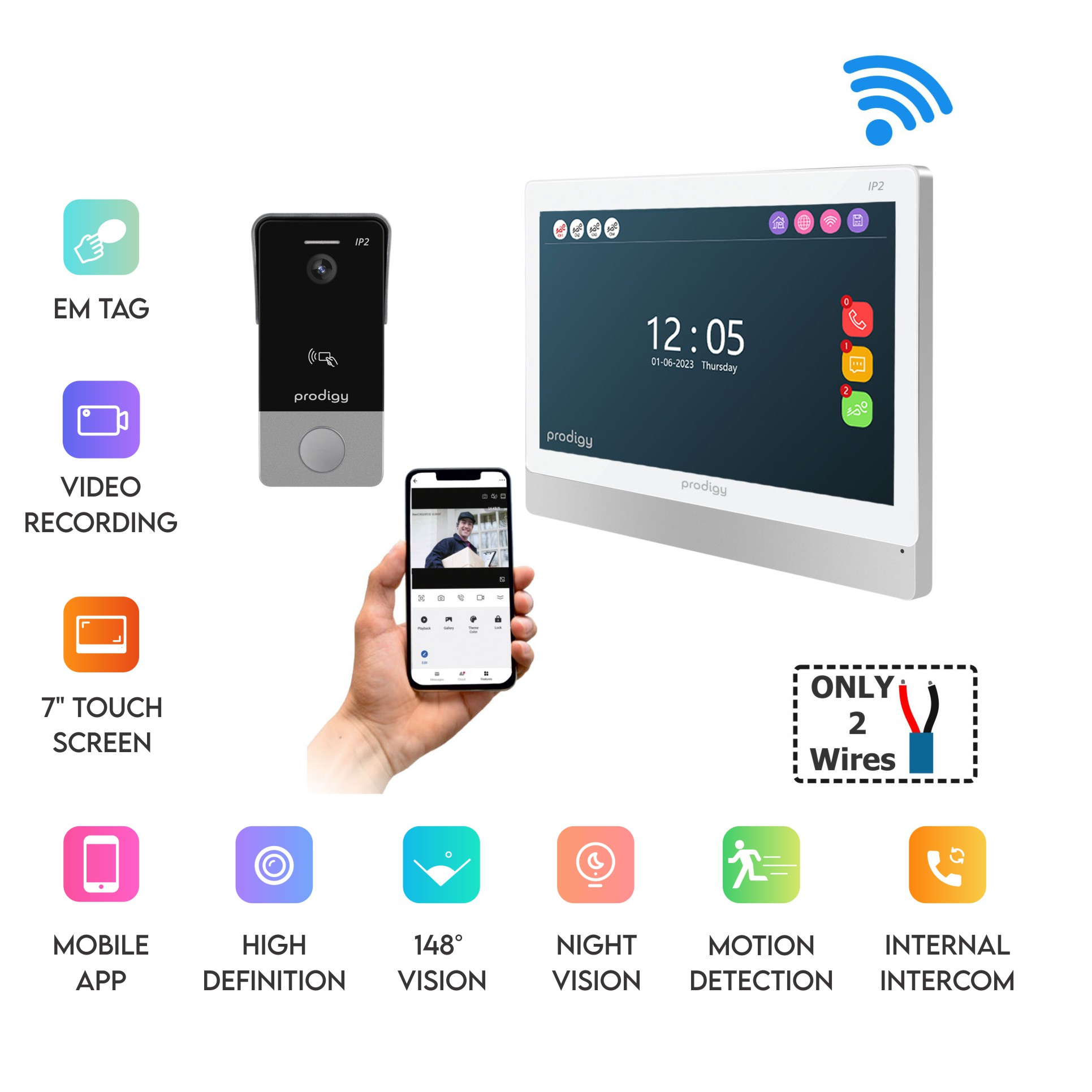

Smart Home Intercom Kit 2 Wire with WiFi and Mobile APP HD with Wide Angle RFID/EM Tag Outdoor Station and 9 Inch Touchscreen Indoor Monitor

SKU: IP2-DS-T+IP29IM

$577.50

$490.00

Save $87.50

2 Mega Pixel
Easy 2 Wire System
Mobile APP
Night Vision
Photo/Video Recording
Video Voicemail Feature
  • 2 Mega Pixel
  • Easy 2 Wire System
  • Mobile APP
  • Night Vision
  • Photo/Video Recording
  • Video Voicemail Feature

In stock

Click & Collect

Delivery

In-Store

2 Wire Intercom Package with Free Cloud Based Mobile APP For Multi Users

intercom system for front gate

FEATURING CLOUD INTERCOM FOR ALL INCOMING/OUTGOING TO YOUR MOBILE SIMULANEOUSLY (Two options of FREE 5 Star APP’s for all mobile phones – Tuya Smart and Smart Life – OVER 15 Million Users Combined

Finally a FULL HD 2 wire system with unrivaled feature set and easy installation. The prodigy HD 2 wire systems offer all the typical features of an intercom such as day/night vision, unlocking capabilities and Totally 2 wire connection between indoor monitor and outdoor unit (no need for a power supply at the outdoor unit).

At the weatherproof outdoor unit a 148° wide angle outdoor station camera with CMOS sensor with Unlocking by RFID card.

At the internal monitor a true ultra large 9″ touch screen, video recordings, photo snapshots, multi monitor communications, multi door/gate lock control, away mode with voicemail, multiple ring melodies and schedules and so much more, truly unrivaled.

General System Features

✓ Built in Wi-Fi Card to allow direct connection to your internet allowing for SIMULTENOUS APP and Monitor Calls from guests with low latency
✓Totally Free 5 star rated Mobile APP available from Apple APP Store and Google Play (Effectively All modern phones)
✓ Can be powered by the supplied power adapter or by the BUS power line (BUS Distribution module is required)
✓True 9″ Touch Screen Display (HD)
✓Video recordings and photo snapshots of guest who press the doorbell
✓Voicemail feature as standard, selectively turned on when required to prompt guest to leave a message (Video and Audio recording)
✓Three pre-loaded display themes to choose from based on UI preference
✓Standby screen OFF/Calendar/Time with clear indicators of missed calls and voicemails
✓Multi time schedules for different ring tones and volumes of the ring tones, ex. At night the ringing volume could be low or muted, during the day it could be configured to a higher volume
✓Multi Monitor intercommunication calls allows for communication with others in the home between different screens. Selectively call an individual monitor OR call all monitors
✓Home/Away and Do Not Disturb Setting By hot Key for quick switching

Free Class Leader Mobile APP Integration

A very brief overview of the mobile APP’s typical features such as Door and gate release, photo and video recordings, playback with so much more useful features left to explore.

tuya smart life app intercom system

Totally Free Mobile App for ALL DEVICES, Secure, Safe and 5 Star Rated
✓Simultaneously receive video intercom calls to MULTIPLE phones simultaneously with the indoor monitor
✓Door release for all connected locks/automatic gates/garage doors
✓Video recordings and photo snapshots can be taken in the APP and stored locally or optionally to cloud
✓Total Control – Monitor the outdoor station at any time by simply opening the APP on your phone and selecting the intercom

intercom app mobile tuya smart life
Download the highly rated APP Tuya Smart or Smart Life From App Store on your mobile device for FREE

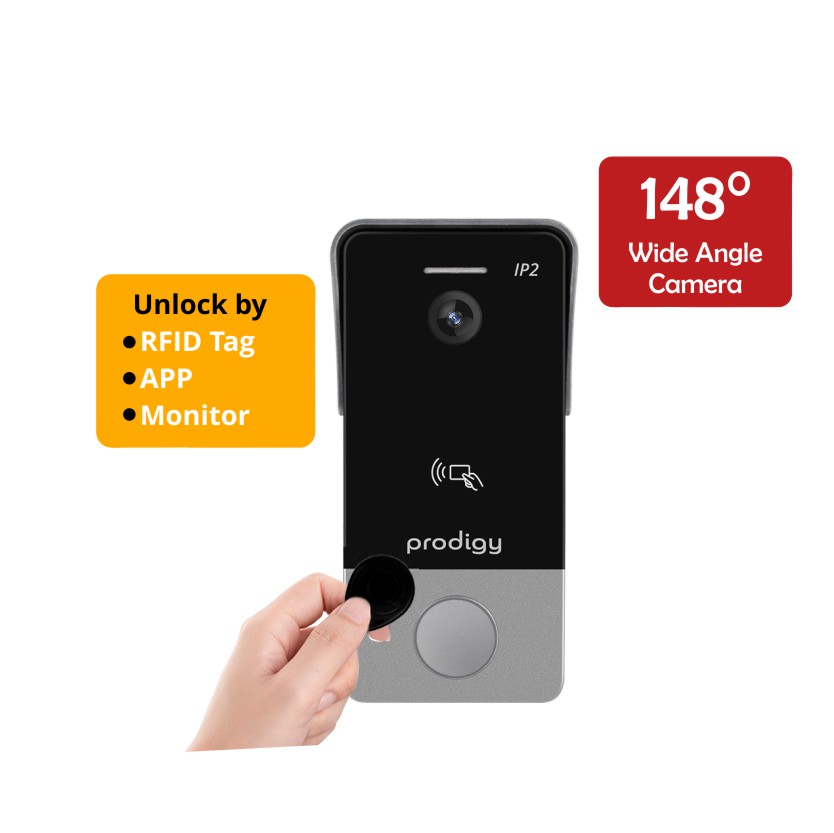

IP Based HD 2 Wire Access Control Outdoor Station Features

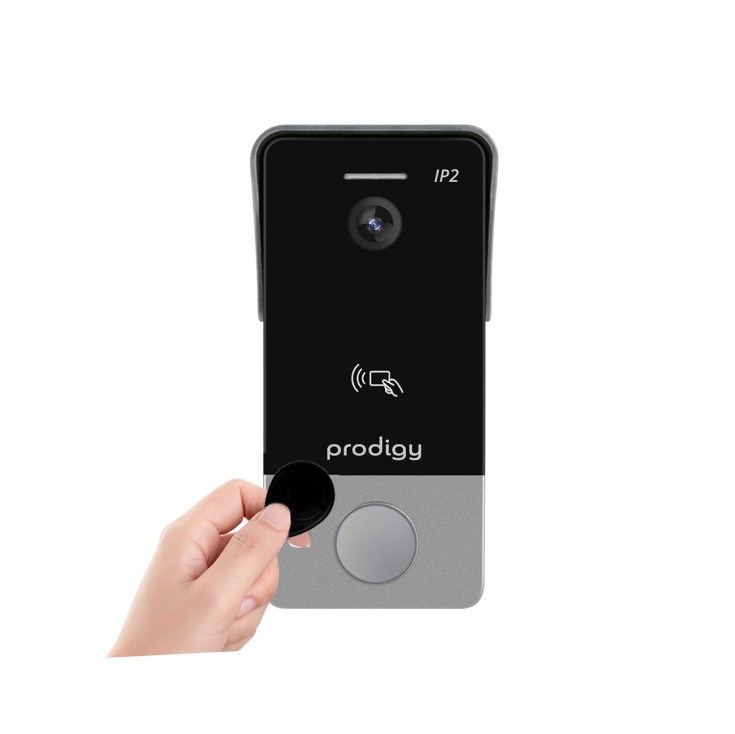

RFID access control pin code intercom

✓Full HD 1080 Resolution 2 Megapixel CMOS Camera
✓RFID card reading feature built in as standard and Supports up to 199 EM Tags
✓Wide angle 148° Outdoor station for the widest field of view
✓No additional wires or power supplies required, communications and power are all via the 2 wire line
✓Outdoor weatherproof design IP54
✓Night vision allows for identification of guests at all times
✓Backing plate gasket provided to prevent ingress of insects
✓Adjustable Ring tone volume at outdoor station to prevent neighbors complaining (No Ringing/Select the volume)
✓ON/OFF Setting of the outdoor stations illumination ring around the call button

Door/Gate release features:

Unlock by Outdoor station, indoor monitor or mobile phone
Release connection from the back of the outdoor station with the ability to from all positions – Unlock by Outdoor station, indoor monitor, mobile phone, exit button (Voltage Free Relay OR N/O,N/C with 12V DC)

IP Based 2 Wire HD Touchscreen Indoor Monitor Features (with WiFi Cloud and Mobile APP)

2 wire 9 inch intercom monitor

✓Built in Wi-Fi to allow direct connection to your internet allowing for SIMULTENOUS APP and Monitor Calls from guests with low latency (* Latency is based on internet speed)
✓Totally Free 5 star rated Mobile APP available from Apple APP Store and Google Play (Effectively All modern phones)
✓True 9″ Touch Screen Display (HD)
✓Motion detection with recordings to SD card
✓Video recordings and photo snapshots of guest who press the doorbell
✓Voicemail feature as standard, selectively turned on when required to prompt guest to leave a message (Video and Audio recording)
✓Three pre-loaded display themes to choose from based on UI preference
✓Standby screen OFF/Calendar/Time with clear indicators of missed calls and voicemails
✓Multi time schedules for different ring tones and volumes of the ring tones, ex. At night the ringing volume could be low or muted, during the day it could be configured to a higher volume
✓Multi Monitor intercommunication calls allows for communication with others in the home between different screens. Selectively call an individual monitor OR call all monitors
✓Home/Away and Do Not Disturb Setting By hot Key for quick switching

Indoor Monitor Pre Loaded Themes

Pre-Loaded themes make easy choosing of your desired user interface based on personal preference, the style is easily changed from the systems menu with three to choose from.

intercom system with different look

Flexible Cabling System

maximum cabling distance of 2 wire intercom

Cabling Requirements

2 Core Cable Up to 150 Meters Using 0.75mm Pair
2 Core Cable Up to Up to 50 Meters using 0.5mm Pair
Cat 5 and Cat 6 Cables Up to 30 Meters using Cat 5, Cat5e, Cat 6 (all 4 pairs)
Security Cable .020 Up to 40 Meters using 4 Core and 6 Core Security Cable (Paired)

System Wiring Examples

Typical example of a layout for home with the option of one or two indoor monitors (maximum six indoor monitors)

intercom wiring method

Gate and Door Release Wiring Examples

Example of Electric striker connection

electric striker and intercom system

Example of Automatic gate/Garage Door

automatic gate and intercom

Max Capacity System Topology using Power Adapters

Method 1, Power Adapter at each indoor monitor, Totally parallel wiring

2 wire system full capacity

Method 2, Power Adapter at each indoor monitor, Daisy chain connection between indoor monitors

2 wire system full capacity

Max Capacity System Topology using the OPTIONAL BUS distribution power supply

Method 3, Power via BUS line, Star wiring to each monitor from distribution

2 wire system full capacity

Method 4, Power via BUS line, parallel wiring to each monitor

2 wire system full capacity

Kit Contents (See Description Tab for Full In-Depth Details)

  • Description

    IP Based HD 2 Wire Access Control Outdoor Station Features

    RFID access control pin code intercom

    ✓Full HD 1080 Resolution 2 Megapixel CMOS Camera
    ✓RFID card reading feature built in as standard and Supports up to 199 EM Tags
    ✓Wide angle 148° Outdoor station for the widest field of view
    ✓No additional wires or power supplies required, communications and power are all via the 2 wire line
    ✓Outdoor weatherproof design IP54
    ✓Night vision allows for identification of guests at all times
    ✓Backing plate gasket provided to prevent ingress of insects
    ✓Adjustable Ring tone volume at outdoor station to prevent neighbors complaining (No Ringing/Select the volume)
    ✓ON/OFF Setting of the outdoor stations illumination ring around the call button

    Door/Gate release features:

    Unlock by Outdoor station, indoor monitor or mobile phone
    Release connection from the back of the outdoor station with the ability to from all positions – Unlock by Outdoor station, indoor monitor, mobile phone, exit button (Voltage Free Relay OR N/O,N/C with 12V DC)

    x

    2 Wire Intercom Outdoor Station Wide Angle 148 Degrees with Built in RFID Reader (IP2 Series)

    Out Of Stock

  • Description

    IP Based 2 Wire HD Touchscreen Indoor Monitor Features (with WiFi Cloud and Mobile APP)

    2 wire 9 inch intercom monitor

    ✓Built in Wi-Fi to allow direct connection to your internet allowing for SIMULTENOUS APP and Monitor Calls from guests with low latency (* Latency is based on internet speed)
    ✓Totally Free 5 star rated Mobile APP available from Apple APP Store and Google Play (Effectively All modern phones)
    ✓True 9″ Touch Screen Display (HD)
    ✓Motion detection with recordings to SD card
    ✓Video recordings and photo snapshots of guest who press the doorbell
    ✓Voicemail feature as standard, selectively turned on when required to prompt guest to leave a message (Video and Audio recording)
    ✓Three pre-loaded display themes to choose from based on UI preference
    ✓Standby screen OFF/Calendar/Time with clear indicators of missed calls and voicemails
    ✓Multi time schedules for different ring tones and volumes of the ring tones, ex. At night the ringing volume could be low or muted, during the day it could be configured to a higher volume
    ✓Multi Monitor intercommunication calls allows for communication with others in the home between different screens. Selectively call an individual monitor OR call all monitors
    ✓Home/Away and Do Not Disturb Setting By hot Key for quick switching

    Indoor Monitor Pre Loaded Themes

    Pre-Loaded themes make easy choosing of your desired user interface based on personal preference, the style is easily changed from the systems menu with three to choose from.

    intercom system with different look

    x

    9" HD 2 Wire Intercom Monitor Touchscreen with WiFi APP Connection (IP2 Series)

    Out Of Stock

  • Free
    Description

    EM Tag

    13.56mhz ic card tag
    • Slimline Design
    • Fits on to a keyring
    • 13.56mhz Frequency
    • Works with prodigy HD2-K and KPx series outdoor stations
    x

    13.56MHZ Proximity IC Tag

    • Slimline Design
    • Fits on keyrings
    • 13.56MHZ
    Show more
    • Slimline Design
    • Fits on keyrings
    • 13.56MHZ
    ×
    Out Of Stock

Optional Add On's

  • Description

    High Quality Copper Conductor Cable Low Voltage TWO Core

    1.5mm Twin Core Double Insulated Cable
    High Quality two core (2 core) double insulated copper cable, suitable for all low voltage applications requiring two conductors with minimal volt drop due to core thickness and quality copper conductor.

    Specifications

    Insulation Double Insulated
    Conductor Material Copper
    Strands 48
    Strand Thickness 0.20mm
    x

    Cable (1.5mm) PLM - Provided us one length based on Quantity

    Out Of Stock

  • Description
    Bus line power supply for IP 2 Wire system supporting up to 6 monitors and 4 outdoor stations without the need to use individual power supplies at each monitor.
    x

    IP2 Series 24V Centralized BUS LINE Power Supply with Din Rail Mounting for 2 Wire IP2 Series Intercom Systems ONLY

    Out Of Stock

  • Description
    PSU 24V 2.5Amp power supply can support a maximum of 8 indoor monitors directly to its 24 Volt output. It eliminates the need for localised power adapters and can mount directly in a distribution are with its din compatible mounting (din rail not supplied).
    x

    24V Centralized Power Supply for 2 Wire HD2 and B2 Series Intercom Systems Din Rail Mounting

    Out Of Stock

  • Description

    38 Series Electric Striker Plate

    38 electric striker plate for mortice locks
    Suitable for Wooden frames, metal frames and metal posts the 38 series electric striker plate is suitable for the large majority of non-dead bolt mortice lock sets. The striker is Fail-Secure type meaning in case of a power outage the door or gate would remain locked and the premises would remain secure, the mortice locks keys would be used to unlock the lock.

    Specifications

    Operating Voltage 12V DC
    Operating Current 400mA Max.
    Construction Stainless Steel Plate and Strike, Die-Cast Solenoid Housing
    Striker Operation Type Power ON to unlock (Fail Secure)
    Direction Universal LEFT or RIGHT swinging doors/gates
    Threshold 450KG
    x

    Flush Mount Electric Striker Plate for Mortice Locks (38 Series)

    Out Of Stock

  • Description

    38D Series Electric Striker Plate

    38 electric striker plate for mortice locks with dead latch
    Suitable for Wooden frames, metal frames and metal posts the 38D series electric striker plate is suitable for the large majority of dead latch mortice lock sets. The striker is Fail-Secure type meaning in case of a power outage the door or gate would remain locked and the premises would remain secure, the mortice locks keys would be used to unlock the lock.

    Typically speaking the deadlatch is not engaged when the striker is in use, but rather so used to "lock up" or secure when not in use.

    Specifications

    Operating Voltage 12V DC
    Operating Current 400mA Max.
    Construction Stainless Steel Plate and Strike, Die-Cast Solenoid Housing
    Striker Operation Type Power ON to unlock (Fail Secure)
    Direction Universal LEFT or RIGHT swinging doors/gates
    Threshold 450KG
    x

    Flush Mount Electric Striker Plate for Mortice Locks (38D Series)

    Out Of Stock

  • Description

    31 Series Electric Striker Plate

    31 aluminum frame electric striker plate for mortice locks
    Suitable for aluminum frame doors where the striker would be near to the edge of the frame the 31 series electric striker plate is suitable for the large majority of non-dead bolt mortice lock sets. The striker is Fail-Secure type meaning in case of a power outage the door or gate would remain locked and the premises would remain secure, the mortice locks keys would be used to unlock the lock.

    Specifications

    Operating Voltage 12V DC
    Operating Current 400mA Max.
    Construction Stainless Steel Plate and Strike, Die-Cast Solenoid Housing
    Striker Operation Type Power ON to unlock (Fail Secure)
    Direction Universal LEFT or RIGHT swinging doors/gates
    Threshold 450KG
    x

    Flush Mount Aluminum Door Frame Electric Striker Plate for Mortice Locks (31 Series)

    Out Of Stock

  • Description

    31D Series Electric Striker Plate

    38 aluminum frame electric striker plate for mortice locks with dead latch
    Suitable for aluminum frame doors where the striker would be near to the edge of the frame the 31D series electric striker plate is suitable for the large majority of dead latch mortice lock sets. The striker is Fail-Secure type meaning in case of a power outage the door or gate would remain locked and the premises would remain secure, the mortice locks keys would be used to unlock the lock.

    Typically speaking the deadlatch is not engaged when the striker is in use, but rather so used to "lock up" or secure when not in use.

    Specifications

    Operating Voltage 12V DC
    Operating Current 400mA Max.
    Construction Stainless Steel Plate and Strike, Die-Cast Solenoid Housing
    Striker Operation Type Power ON to unlock (Fail Secure)
    Direction Universal LEFT or RIGHT swinging doors/gates
    Threshold 450KG
    x

    Flush Mount Aluminum Frame Electric Striker Plate for Mortice Locks (31D Series)

    Out Of Stock

  • Description

    Gooseneck Pedestal Bollard for Driveways

    Gooseneck bollard for intercom, keypad door bell
    Suitable for all applications requiring a keypad or intercom post the gooseneck pedestal is designed for residential use whilst retaining an extremely strong from factor. Built from pre-galvanized 75x75mm SHS tube welded to a 150x150mm base plate it allows for a simple bolt down installation to a concrete footing, curb or traffic island.

    Key Features

    ✓ Spacious rain hood to suit most access controllers/intercoms ALSO REVERSABLE and can be used as a backing plate for very large and very small access controllers/intercoms ✓ Easy four bolt installation to join the top and bottom sections ✓ Anti deformation with 175x175x5mm thick base plate (pre-punched for dynabolts/masonry anchors) ✓ Rigid and durable ✓ Pre-Galvanized Steel (75x75mm) ✓ Minimized risk with the perfect amount of extension (220mm from back of post to back of rain hood) ✓ Satin Black Powder Coating (NIGHT SKY COLOUR)

    Rain hood internal dimensions 115mm (H) x 65mm (W), Top Depth 65mm/Bottom Depth 40mm, The rain hood can also be installed in reverse to be used as a backing plate for your own rain hood.

    This product is manufactured as two pieces for freight and transport. The top half slides into the bottom half and they form one complete unit, supplied with Allen fasteners to ensure a secure fit.

    x

    Gooseneck pedestal bollard for intercom, keypad door bell 75x75 Steel Satin Black Powder Coat (residential)

    Out Of Stock

Videos

Smart Home Intercom Kit 2 Wire with WiFi and Mobile APP HD with Wide Angle RFID/EM Tag Outdoor Station and 9 Inch Touchscreen Indoor Monitor

$577.50

$490.00

Save $87.50

In stock

x

Register

Shipping To

Add company name

Australia

Add apartment, unit, building, floor, etc.

Billing To

Add company name

Australia

Add apartment, unit, building, floor, etc.


Close
