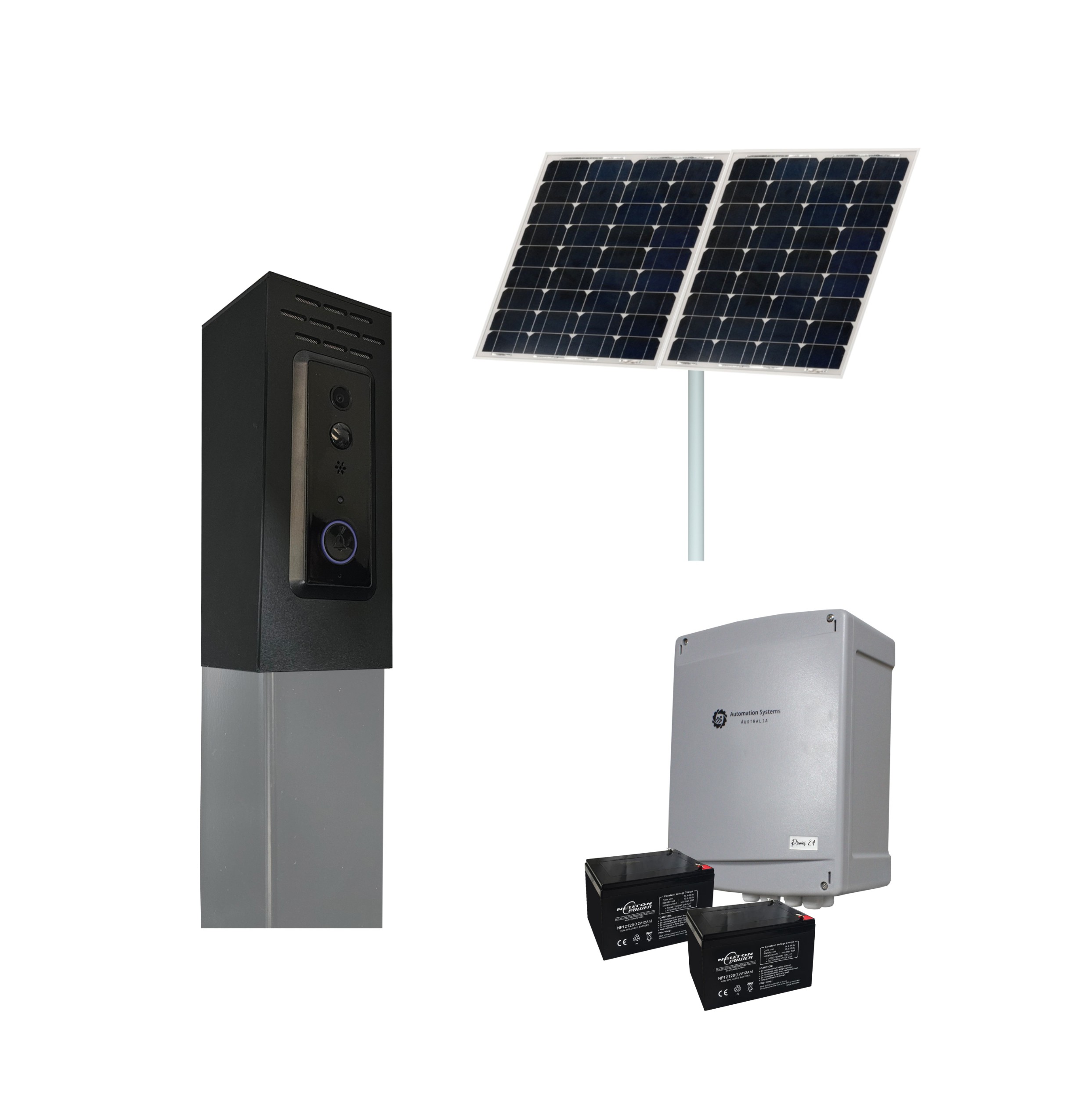

Solar Powered Australian Made 4G Video Intercom (Post Top Mount) with Dual Release for Automatic Gate Release 1080P, Motion Detection, In-Built Storage, Auto Telstra/Optus Switching

Kit Contents (See Description Tab for Full In-Depth Details)

•

  Description

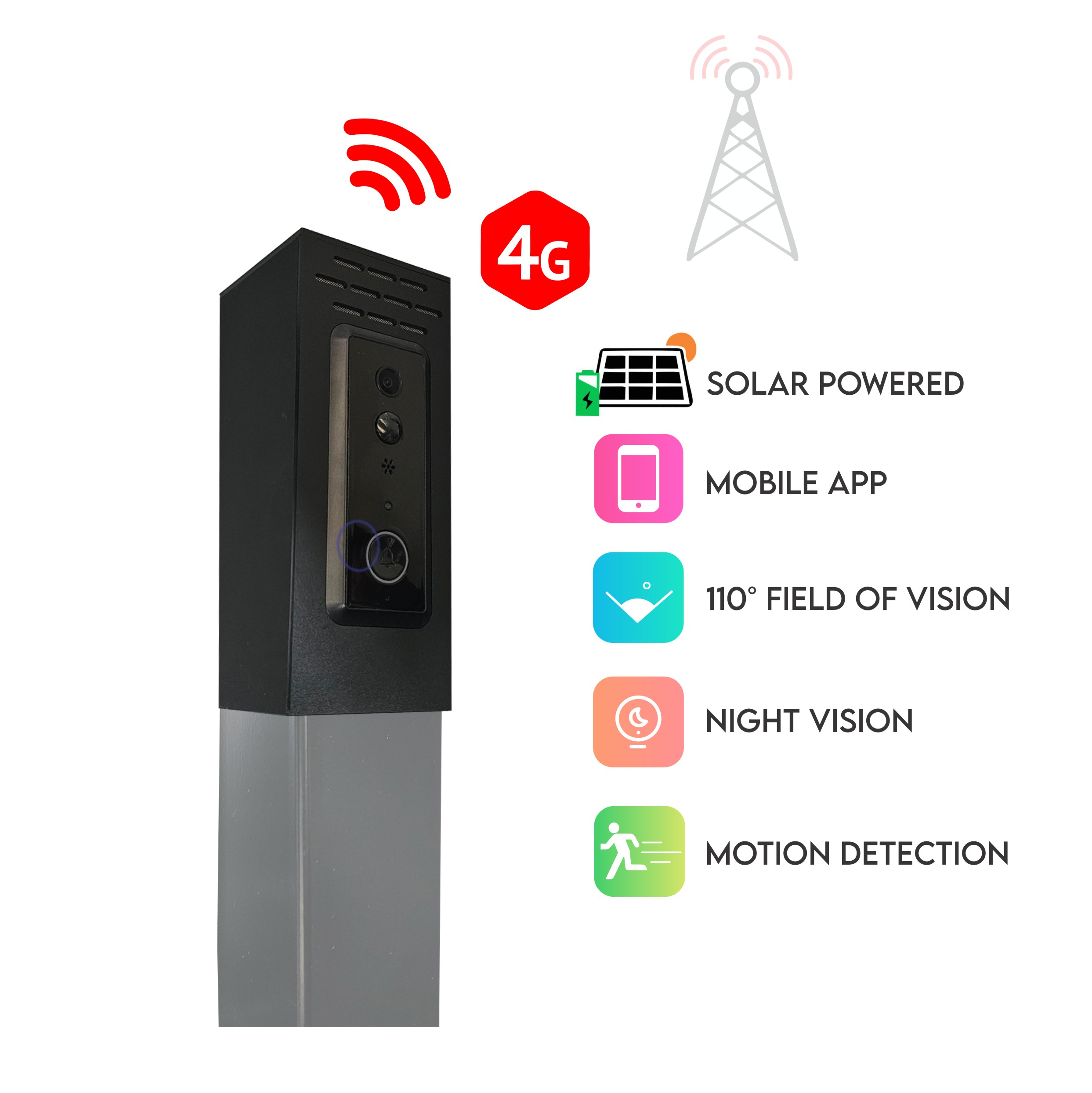

  Australian Made 4G Video Intercom System Direct to Mobile APP



  A revolutionary Australian Made Product that addresses all your long distance including Video doorbell, gate release and intercommunication needs working on in-built 4G technology.

  High quality video stream is standard using a 2MP 1080P camera with a 110° field of view and a 10 meter viewing distance, with the ability to view the stream even without receiving an intercom call. Gate release at any time via the Home screen of the APP.

  Capable of working across 99.7% of location Australia Wide. The embedded sim takes away the need for shopping around for a deal from the service providers as the service charge is $15 per month you have access to both Optus and Telstra networks with intelligent Auto-Switching according to the best network reception available.

  The GateKeeper post top mount design fits directly to the top of a steel or Aluminium post and SECUERLY clamps in place from the inside (accessible via the back cover). The product is manufactured from an Acrylic outer made for durability in the Australian climate without degradation, Wipe the dust off and it will look as good as new whether one year or ten years down the road.

  Features in Brief: ✓ Fits to the top of a 75x75 post (Drivers side bollard post) ✓ Calls you anywhere providing your mobile has access to the internet ✓ Video, Audio and Unlocking ✓ Uses Tuya Smart App which is top Tier and Free ✓ 4G Built In ✓ TWO Separate gate release triggers (open FULL Gate and Pedestrian if the gate controller has the functionality)

  Setup

  Upon receiving the device you will scan the QR code to register the device along with your billing details, upon completion of the registration form allow 3-4 Hours during business trading times for the service to become active. At this point you will receive an email with your Tuya Smart App's Invitation code with the device already connected. Install the Tuya Smart APP then Navigate to Home management, join a home and paste the code received via email. For the connection the GateKeeper requires a power supply normally provided by the automatic gate (if a powered solution) or its own solar system (this is an alternative kit option).

  Frequently Asked Questions

  How much does it cost to operate per month? The Cost for the device service is $15 per month providing you with 1GB Bandwidth (More than sufficient for regular intercom and normal monitoring use) and with TWO service providers (Telstra and Optus) of bandwidth, the speed is throttled automatically if the bandwidth is exceeded. Can i mount it to my fence post, fence or wall? Not this specific model as its designed to clamp to the top of a 75x75mm post, BUT we also offer an alternative model that can do so. click here to see the fence mounting option. Can it alert me to people approaching the gate? Yes it can but it is motion based so you may receive false triggers from trees in the wind, passing vehicles etc. Can i use it on my mobile phone? Most likely yes, go to your APP store and confirm you can download and install Tuya Smart (its Free). How do i confirm it will be suitable at my gate location/i am in a remote location? To do this test you will need a phone or tablet on the Optus or Telstra network. - Hold your phone or device where the GateKeeper will be located. - Go to https://fiber.google.com/speedtest/ and run speed test. - Write down the recorded UPLOAD speed. Using upload, the general experience of the product can be determined as below: 0.5 - 1.5 Mbps - Poor performance 1.5 - 5 Mbps - Usable performance > 5 Mbps - Good performance > 30 Mbps - Very good performance Speeds below 1.5Mbps UPLOAD may work due to GateKeeper’s extended range antennas, however a live test with a unit will be required to confirm if the service will viable. Is it available in a metal finish? The GateKeeper is designed to provide the absolute best possible signal strength, metal enclosure will limit/mask the cellular reception but rest assured the GateKeeper is designed using the highest quality and long lasting acrylic materials. Do i need a rain hood? A rain hood is NOT required, the unit is totally weatherproof (IP55). Installing with a rainhood will only limit the cellular reception and may also cause audio issues.

  Specifications

  Dimensions	190x81x81mm
  Outer Material	Acrylic
  Processor	Quad Core 1.2GHZ
  Camera	2MP F2.4 FOV 110 Degrees
  Motion Detection	Available with Sensitivity Options (may cause issues on some sites due to trees in the wind, passing vehicles)
  Device Storage	Up to 5,000 Short Videos (Cloud storage available at an additional cost)
  APP	Tuya Smart (Android and Apple Devices)
  Connectivity	LTE 4G (Auto-Switching Telstra/Optus)
  Power	DC Only 6-28V
  Standby Consumption	80mA in Power Saving Mode (Solar) / 120mA in Normal Mode
  Security and Encryption	End to end: 128 bit 4G: Standard AKA, EPS, IPsec
  Control Outputs	Dual Output Negative Switching to Common Ground
  Operating Temperatures	-5 to +50 Decrees Celsius
  IP Rating	55
  Warranty	Two Years Manufacturers Warranty
  Communication	Video and Two-Way Audio

  x

  Australian Made 4G Video Intercom (Post Top Mount) with Dual Release for Automatic Gate Release 1080P, Motion Detection, In-Built Storage, Auto Telstra/Optus Switching

  Out Of Stock

•

  Description

  Premier Plastic Battery Storage Box (Large)



  Large size plastic enclosure suitable for outdoor use. Can be used to store access control equipment, batteries, controllers and numerous other applications Internal Dimensions: 120-215mm(W)x284mm(H)x100mm(D) External Dimensions: 220mm(W)x290mm(H)x128mm(D) Cable glands: 1x Pre-Installed, 6x Additional Supplied

  x

  Premier Plastic Battery Storage Box (Large) Box Only

  Out Of Stock

•

  Description

  12V 22aH Battery



  Voltage: 12V A/H: 22aH Deep Cycle Dimensions: 181x77x167mm Terminal Type: M5

  x

  12V 22aH Deep Cycle Battery

  Out Of Stock

•

  Description

  • Solar Panel 12V/24V 30A • Build-in industrial micro controller. • One-key setting, auto memory function. digital display, • 4-stage PWM charge management. • There are Build-in short-circuit protections, open-circuit protections, reverse protections, over-load protections reverse current protections, low heat productions. • With double USB ports charge • The Regulator is only suitable for lead acid batteries

  x

  Solar Regulator 12-24V 30A PWM

  Out Of Stock

•

  Description

  High Wattage PREMIUM Monocrystalline Solar Panel + Adjustable 30mm Fence Mounting Post




  Solar Panel can be installed vertically or horizontally.


  ✓ PREMIUM QUALITY Monocrystalline 24V Solar Panel
  ✓ True IP67 Rating
  ✓ 97% or greater power tolerance
  ✓ Anodized Silver Aluminum Frame
  ✓ Long 10 Metre Cable (or cut to required size)
  ✓ Three Solar System Arrangement (1x 60W, 120W (2x60W Panels) or 180W (3x 60W Panels)) Each panel is supplied with its own post


  Maximum Power(Pmax)	60W/120W/180W
  Optimum Operating Voltage(Vmp)	35.5V
  Optimum Operating Current(Imp)	1.13A
  Open Circuit Voltage(Voc)	43.1V
  Short Circuit Current(Isc) 40/80/120W	3.4A/6.8A/10.2A
  Power Tolerance	-1%~+3%
  Operating Module Temperature	40 C to +85 C





  x

  24V 60 Watt Monocrystalline Solar Panel

  Out Of Stock

•

  Description

  Heavy Duty Solar Pole




  ✓ Powdercoated 30mm Diameter Mounting Pole.
  ✓ Mounts to Fence, Wall or Post by supplied saddles to suit all installations


  x

  Solar Post

  Out Of Stock
