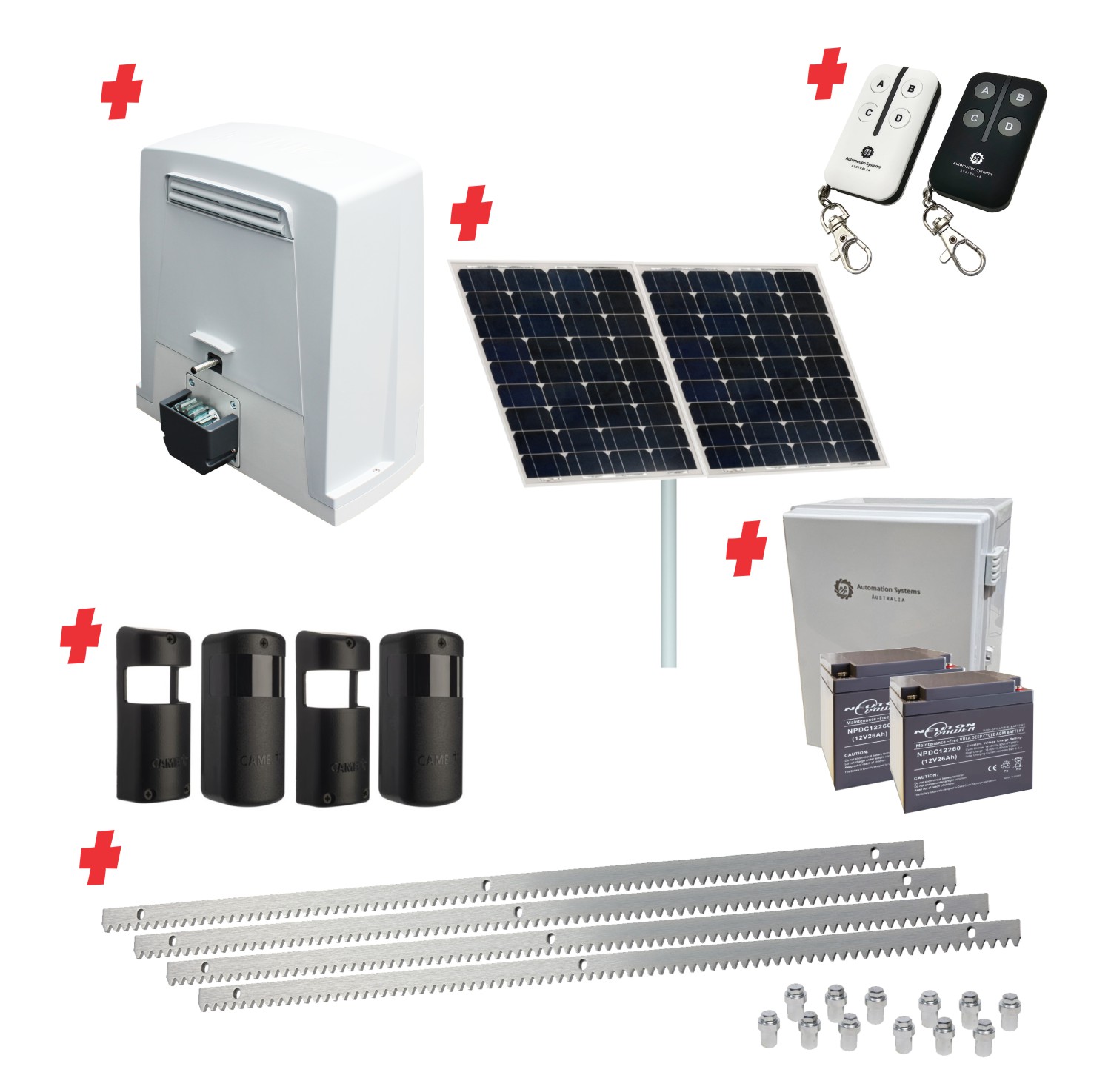

Super Duty COMMERCIAL GRADE Automatic Sliding Gate With BKV1500 Solar Powered Sliding Gate Motor Kit (1500G/20M MAX)

SKU: BKV1500-SOLAR-CI-2

$2,754.00

Freight from $40.00 Calculate Freight
1 Year Warranty
Brand : Automation Systems Australia

In stock

Click & Collect

Delivery

In-Store

Super Duty Full Time 24V Sliding Gate Motor with Encoder and Limit Switches

The BKV range is the pinnacle of the sliding gate automation industry. Still low voltage but at the leading power range and with adaptive torque design this sliding gate system is suited for almost any gate weight, slope, and length.

Suitable for commercial, industrial and Residential Installation of all weights and sizes whether a 20m long commercial gate or a heavy merbau cladded gate at home the BKV makes easy work of it with the ability to run at 100% duty cycle (24HR operation) where required with a maximum capacity of 1500KG weight or a 20 Meter Long Gate.

Still carrying the CAME typical top of the line features such as three stage speed control all adjustable, precise encoder travel DC motor, reliable spring limit system PLUS the option of a plug in weekly timer (no wiring bulky hard to program timers) and all still with the easy to use an intuitive LCD interface.

All-in-One and Feature Packed

For ease of configuration the cutting edge digital control board with backlit LCD screen is housed at the top of the unit allowing for easy changes to any one of the numerous features of the system.

Further key benefits of the BKV system is the motor is controlled by an encoder giving precise and accurate operation along with its slowdowns, all completely adjustable including the High speed, low speed and approach points with the ability to have a soft start enabled where required.

The stopping point at each end is controlled by an easy to setup and durable spring limit system not affected by the Australian climate (unlike magnetic limits).

Four point adjustment

36v electric sliding gate opener strongest low voltage adjustable tilt level system for concrete adaptive torque

As is often the case concreting is never perfect and is more apparent once a motor is installed, this is remedied by the FOUR point adjustment system of the BKV.

Simply adjust each corner of the motor chassis up/down to return the unit to level in both directions. This will allow for easy gear rack installation to the gate since alignment is set to suit

Manual Release

Easy to use manual release incase of power outage. Insert the supplied key and turn to unlock the manual release lever. To release turn the manual release lever and now the gate can be opened and closed manually. If required an internal battery backup system is available for completely uninterrupted operation. The system is completely housed within the unit and allows for continued use at a 24V level.

Specifications

Maximum Gate Width	20M
Maximum Gate Weight	1500KG Each
Speed (M/Min)	8M/Min
Encoder	Yes
Motor Power (Volts)	24V DC
Power (Watts)	200W
IP Rating	54
Operating Temperature	-20° to +55° C
Thrust (Nm)	1200N
Duty Cycle	100%

Dimensions

Digital Control Board

By default the control board will be pre-configured for the best typical settings for most users however with the onboard digital display and easy to use scroll buttons the configuration options are almost endless. Out of the box it will be configured for Both Full Gate OPEN/CLOSE + Partial Opening Function (a set amount of the gates travel) typically you would start an automatic calibration, set the automatic close time and connect any accessories to the system to complete the installation.

Power Inputs and Outputs

Typical input and outputs to power the system and any wired in accessories

Power Input Running on Full Time 24V

24V Power Output For Accessories

Automatic Weekly Timer

Completely configurable times to open and close the gate automatically and also switch the relay output (great for garden lights).

Selective choice of the 7 Days of the week settings, or the entire week

12/24 Hour Format

EACH timer event can be configured to Open the gate, Partial Opening or B1-2 Output Activated
* Plug in clock Module Required from the add on’s

Configurable Methods Of Operation

Along with the on board weekly timer wireless and Wired equipment can be configured in a number of different ways to support the best suited operation for the site, by default the system is configured for typical usage being full gate operation and pedestrian opening however as seen below it can be dynamically set according to specific requirements.

ON BOARD WEEKLY TIMER Set the days and times in which you want the gate to open and close EASILY by the LCD screen *Plug In Clock Module Required from add on’s required

Full Gate Operation by remote

Partial by remote (Opens the gate partially)

Open Only by remote

Close Only by remote

Open/Close Input by Wired Accessories

Open only Input by Wired Accessories (loop Detector)

Close only Input by Wired Accessories (loop Detector)

Wired Emergency STOP Button

Remote Operation

The remote buttons can individually be programmed to work in any of the below settings for each button.

OPEN-CLOSE (Reverting action if pressed part way through a cycle)

OPEN-CLOSE (Sequential action if pressed part way through a cycle it will STOP)

Partial Operation

RELAY OUTPUT/STAY OPEN Feature (Pause automatic close)

Motor Specifics

Default configurations are already set however, if required further adjustment can be made to suit all installations

Adaptive Torque

ENCODER Control

Automatic Calibration

Motor Test (used for checking your directions prior to calibration)

Adjustable Thrust

Adjustable Travel Speed

Adjustable Sensitivity

Adjustable Slowdown Speed

Adjustable Slowdown Position (Two Stages)

Safety Devices

Plenty of support to protect occupants, visitors and there vehicles with FOUR Safety Inputs completely configurable in there functionality and method of operation with 11 different Logic settings.

Supports Photocell Sensors

Supports Reflective Sensors

Supports Safety Edge

Supports Induction Loops for Safety

Supports STOP Button

Supports Maintained Action (Hold to OPEN/CLOSE)

Light Control

Multiple options for visible safety alerts, illuminating the driveway OR Both

Flashing/Static Illuminated Light from OPEN til CLOSED

Additional Output for Flashing During Opening

Operational Control

Infinite support for accessories and methods of operation

Remote Controls

Wireless Keypads

Wired Keypads

Wired Button

Induction Loops

Intercom Systems

Relay Output B

Default Can be set to work on a remote button and/or by the weekly timer

Set to a latching ON/OFF Circuit

Can be used to trigger an alarm, garage door or another gate

Can be used to enable/disable an accessory at set times/days such as an entry or exit loop or a wired button and keypad

Can be used to keep as a STAY OPEN function in the case of an automatic close timer, this is great for trailer and truck access, a time when multiple visitors may be using the gate, etc.

Control Board Security

A secure password can be set on the control board to prevent unauthorized users from accessing and adjusting its functions. This is an excellent feature in even low risk settings preventing unauthorized users from being able to operate the gate from the menu.

STX4K Keyring High Range Remote

Automation systems Australia keyring remote control for driveway gate

The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).

Key Features

✓ Up to 100 metres distance in open air
✓ Keeloq rolling code security
✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
✓ Clear visibility red LED indicator which will illuminate upon a button press
✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
✓ Slimline and modern ergonomic design
✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

High Wattage PREMIUM Monocrystalline Solar Panel + Adjustable 30mm Fence Mounting Post

Solar Panel can be installed vertically or horizontally.

✓ PREMIUM QUALITY Monocrystalline 24V Solar Panel
✓ True IP67 Rating
✓ 97% or greater power tolerance
✓ Anodized Silver Aluminum Frame
✓ Long 10 Metre Cable (or cut to required size)
✓ Three Solar System Arrangement (1x 60W, 120W (2x60W Panels) or 180W (3x 60W Panels)) Each panel is supplied with its own post

Maximum Power(Pmax)	60W/120W/180W
Optimum Operating Voltage(Vmp)	35.5V
Optimum Operating Current(Imp)	1.13A
Open Circuit Voltage(Voc)	43.1V
Short Circuit Current(Isc)	3.4A/6.8A/10.2A
Power Tolerance	-1%~+3%
Operating Module Temperature	40 C to +85 C

Heavy Duty Solar Pole

✓ Powder Coated 30mm Diameter Steel Mounting Pole, Adapter and Plate
✓ Allows for Panel installation in a Vertical or Horizontal Orientation
✓ Pre-Set Fixed Angle best suited for the southern hemisphere
✓ Mounts to Fence, Wall or Post by supplied saddles to suit all installations

CERO Built IN ready to go PWM Solar Regulator

The Cero Solar Regulator is PWM type suited for Gel, Sealed and Flooded batteries. It operates in a 3 stage charging control to ensure optimal performance to the batteries and provide the greatest longevity. The Cero is has protections in place in case of errors and failures in the solar panel installation or battery installation and will shut down in the case of short circuit and overload, then restart once clear.

The LCD display provides accurate data on the current input voltage from the solar panel, the current stage of charging and also the current battery voltage making it easy to check the status on the fly.

✓ Large copper input terminals (12-28AWG)
✓ Ribbed metal heat sink across the entire back side
✓ LCD Display
✓ 3 Stage PWM Management (Bulk, Boost, Float)
✓ Supports Sealed, Gel and Flooded Batteries
✓ Short Circuit, Open Circuit ,Overload Protection along with multiple other protections
✓ Allows for a total of 10 Amps Inputs
✓ High Efficiency
✓ USB Terminal
✓ Temperature Compensation
✓ Low voltage disconnect and reconnect

Battery System

Supplied with an external Dual DEEP CYCLE battery system 24V 15aH system as standard in a SLIMLINE Waterproof and Dust Proof Rated Enclosure (IP67 Cable Gland Supplied), there are a total of THREE battery capacity options available.

Option 1 (Premier 24-15B): The 15aH Deep Cycle setup allow for up to a two and a half weeks of usage without any charge from the solar panel in a typical residential installation of 10 cycles per days (whilst factoring in standby power), this is the ideal choice for areas that may see a consistent week of poor weather poor weather through winter without sunlight. This is great choice VIC, NSW, SA, ACT, TAS, QLD, NT and WA.

Option 2 (Premier 24-22B): The 22aH Deep Cycle setup allows for well over three weeks in a typical residential installation of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). It can also support Light commercial usage.

Option 3 (Premier 24-26B): The 26aH Deep Cycle setup allows for well over four weeks in a typical residential installation of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). It can also support Medium commercial usage of 10-15 operations per day for a period of approx. 2 weeks.

Option 4 (Premier 24-55B): The 55aH Deep Cycle setup allows for well over eight to nine weeks in a typical residential installation of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). It can also support higher duty commercial usage of 60 operations per day for a period of approx. 1 weeks. It should be considered in these applications to upgrade the solar panel option to 180 Watts.

The allowances are general in nature and typically factor for a continuous period taking into account overcast and other poor weather conditions along with wet seasons that will contribute to a no charge/minimal charge result from the solar system. These allowances do not take into account shade on the solar panel which will effect the overall charging.

These allowances DO NOT take into account WiFi and Bluetooth Modules, as system consumption will increase using one of these devices Always use the next option up from requirment.

	Premier 24-15B	Premier 24-22B	Premier 24-26B	Premier 24-55B
IP Rating	IP67 Waterproof	IP67 Waterproof	IP67 Waterproof	IP67 Waterproof
Battery	2x 15aH DEEP CYCLE	2x 22aH DEEP CYCLE	2x 26aH DEEP CYCLE	2x 55aH DEEP CYCLE
Enclosure Dimensions (L x W x D)	220x290x130mm	400x300x170mm	400x300x170mm	400x300x170mm (x2)
Recommended Usage by State (General Guideline)	All States	All States + Light Commercial	All States + Medium Commercial	All States + Higher Duty Commercial
Cable Inlet/Outlet (Weatherproof)	6x Supplied	3x Supplied	3x Supplied	3x Supplied
Mounting Method	Through Box	External Mounting Bracket (supplied)	External Mounting Bracket (supplied)	External Mounting Bracket (supplied)

photocell with battery wireless across the driveway

The DXR20 boast a 20m operating range making it ideal for large gate openings typically seen in commercial properties.

The Aluminium cover plates make it an ideal choice due to its vandal resistance.

Furthermore the DXR20 can swivel up to 180° Vertically and 5°Horizontally Up or Down for the easiest alignment.

The reciever photocells operating voltage of 12-24V AC OR DC and can be wired from the system directly 10 meter distance between the photocells.

Voltage	12-24V AC/DC
Standby Current (mA)	40mA
Adjustments	180° Vertical, 5° Horizontally
Operational Distance	20 Metres Max.
Circuits	Normally Open/Normally Closed
Operating Temperature	-20°-55°C
Material	ABS Backing, Aluminium Cover
Dimensions	46x108x37mm

Kit Contents (See Description Tab for Full In-Depth Details)

36v electric sliding gate opener strongest low voltage

Please note this is a replacement operator and is not supplied with gear rack, remotes or receiver card.

Super Duty 36V Sliding Gate Motor with Encoder and Limit Switches

36v electric sliding gate opener strongest low voltage external overview adaptive torque

The BKV range is the pinnacle of the sliding gate automation industry. Still low voltage but at the leading power range of 36V this adaptive torque designed sliding gate system is suited for any gate weight, slope, and length.

Both 2000KG and 2500KG versions are also available if required for heavier project and custom applications.

All-in-One and Feature Packed

For ease of configuration the cutting edge digital control board with backlit LCD screen is housed at the top of the unit allowing for easy changes to any one of the numerous features of the system.

The stopping point at each end is controlled by an easy to setup and durable spring limit system not affected by the Australian climate (unlike magnetic limits).

36v electric sliding gate opener strongest low voltage overview inside adaptive torque

Four point adjustment

As is often the case concreting is never perfect and is more apparent once a motor is installed, this is remedied by the FOUR point adjustment system of the BKV.

Simply adjust each corner of the motor chassis up/down to return the unit to level in both directions. This will allow for easy gear rack installation to the gate since alignment is set to suit

Manual Release

Specifications

Maximum Gate Width	20M
Maximum Gate Weight	1500KG Each
Speed (M/Min)	12M/Min
Encoder	Yes
Motor Power (Volts)	24V DC
Power (Watts)	200W
IP Rating	54
Operating Temperature	-20° to +55° C
Thrust (Nm)	1200N
Duty Cycle	100%

Dimensions

Digital Control Board

Power Inputs and Outputs

Typical input and outputs to power the system and any wired in accessories

36V Power Input

24V Power Output For Accessories

Automatic Weekly Timer

Completely configurable times to open and close the gate automatically and also switch the relay output (great for garden lights).

Selective choice of the 7 Days of the week settings, or the entire week

12/24 Hour Format

EACH timer event can be configured to Open the gate, Partial Opening or B1-2 Output Activated
* Plug in clock Module Required from the add on’s

Configurable Methods Of Operation

ON BOARD WEEKLY TIMER Set the days and times in which you want the gate to open and close EASILY by the LCD screen *Plug In Clock Module Required from add on’s required

Full Gate Operation by remote

Partial by remote (Opens the gate partially)

Open Only by remote

Close Only by remote

Open/Close Input by Wired Accessories

Open only Input by Wired Accessories (loop Detector)

Close only Input by Wired Accessories (loop Detector)

Wired Emergency STOP Button

Remote Operation

The remote buttons can individually be programmed to work in any of the below settings for each button.

OPEN-CLOSE (Reverting action if pressed part way through a cycle)

OPEN-CLOSE (Sequential action if pressed part way through a cycle it will STOP)

Partial Operation

RELAY OUTPUT/STAY OPEN Feature (Pause automatic close)

Motor Specifics

Default configurations are already set however, if required further adjustment can be made to suit all installations

Adaptive Torque

ENCODER Control

Automatic Calibration

Motor Test (used for checking your directions prior to calibration)

Adjustable Thrust

Adjustable Travel Speed

Adjustable Sensitivity

Adjustable Slowdown Speed

Adjustable Slowdown Position (Two Stages)

Safety Devices

Supports Photocell Sensors

Supports Reflective Sensors

Supports Safety Edge

Supports Induction Loops for Safety

Supports STOP Button

Supports Maintained Action (Hold to OPEN/CLOSE)

Light Control

Multiple options for visible safety alerts, illuminating the driveway OR Both

Flashing/Static Illuminated Light from OPEN til CLOSED

Additional Output for Flashing During Opening

Operational Control

Infinite support for accessories and methods of operation

Remote Controls

Wireless Keypads

Wired Keypads

Wired Button

Induction Loops

Intercom Systems

Relay Output B

Default Can be set to work on a remote button and/or by the weekly timer

Set to a latching ON/OFF Circuit

Can be used to trigger an alarm, garage door or another gate

Can be used to enable/disable an accessory at set times/days such as an entry or exit loop or a wired button and keypad

Can be used to keep as a STAY OPEN function in the case of an automatic close timer, this is great for trailer and truck access, a time when multiple visitors may be using the gate, etc.

Control Board Security

1500 KG 24V Low Voltage Super Duty Sliding Gate Motor

Ultimate Power
1500KG /20 Mtr Capacity
Internal Stepdown Transformer
Prewired with Power Cord (1.2m)
3 Stage Speed
Encoder Control

Out Of Stock

Description

Steel Gear Rack

The steel gear rack for sliding gates is a better alternative to nylon racking, although it is noisier in its operation than nylon coated variants it has a much higher sheer strength making it less susceptible to breaking teeth due to abrupt or sudden movements.

Provided in 1 meter lengths with three threaded lugs and bolts it is typically welded to a gate however the lugs could be used as spacers instead allowing for installation by self drilling metal screws.

Key Features
✓ Zinc Plated ✓ 1500KG Capacity ✓ Long Lengths

x

Steel Sliding Gate Steel Gear Rack 1 Metre Length 6 Lug for Industrial and Commercial Usage

Out Of Stock

Steel Sliding Gate Steel Gear Rack 1 Metre Length 6 Lug for Industrial and Commercial Usage quantity
Description

Please be aware this product is only compatible with Automation Systems Australia Control Boards and Remote Receivers, it will NOT work with other brand products.

STX4K Keyring High Range Remote

The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).

Key Features

✓ Up to 100 metres distance in open air
✓ Keeloq rolling code security
✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
✓ Clear visibility red LED indicator which will illuminate upon a button press
✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
✓ Slimline and modern ergonomic design
✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

x

Four Button Keyring Remote Control (White)
- Up to 100 Metre Open Air Distance
- High Security Rolling Code
- Slimline and Ergonomic
Show more
Up to 100 Metre Open Air Distance

High Security Rolling Code

Slimline and Ergonomic
×
Out Of Stock

Provide a Sun Visor Clip? ($3) *
Clear
Out Of Stock

Automatic Gate Remote Control Keyring Mounting STX4K White quantity
Description

Please be aware this product is only compatible with Automation Systems Australia Control Boards and Remote Receivers, it will NOT work with other brand products.

STX4K Keyring High Range Remote

The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).

Key Features

✓ Up to 100 metres distance in open air
✓ Keeloq rolling code security
✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
✓ Clear visibility red LED indicator which will illuminate upon a button press
✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
✓ Slimline and modern ergonomic design
✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

x

Four Button Keyring Remote Control (Black)
- Up to 100 Metre Open Air Distance
- High Security Rolling Code
- Slimline and Ergonomic
Show more
Up to 100 Metre Open Air Distance

High Security Rolling Code

Slimline and Ergonomic
×
Out Of Stock

Provide a Sun Visor Clip? ($3) *
Clear
Out Of Stock

Automatic Gate Remote Control Keyring Mounting STX4K Black quantity

Receiver for Remote Control Operation

Operate your garage door from a different button on the remote using this expander module.

Out Of Stock

24V Solar Panel and Heavy Duty Post Installation System

Out Of Stock

Cable Length	10m Cable
Solar Panel System *

Battery System

These allowances DO NOT take into account WiFi and Bluetooth Modules, as system consumption will increase using one of these devices Always use the next option up from requirment.

	Premier 24-15B	Premier 24-22B	Premier 24-26B	Premier 24-55B
IP Rating	IP67 Waterproof	IP67 Waterproof	IP67 Waterproof	IP67 Waterproof
Battery	2x 15aH DEEP CYCLE	2x 22aH DEEP CYCLE	2x 26aH DEEP CYCLE	2x 55aH DEEP CYCLE
Enclosure Dimensions (L x W x D)	220x290x130mm	400x300x170mm	400x300x170mm	400x300x170mm (x2)
Recommended Usage by State (General Guideline)	All States	All States + Light Commercial	All States + Medium Commercial	All States + Higher Duty Commercial
Cable Inlet/Outlet (Weatherproof)	6x Supplied	3x Supplied	3x Supplied	3x Supplied
Mounting Method	Through Box	External Mounting Bracket (supplied)	External Mounting Bracket (supplied)	External Mounting Bracket (supplied)

24V DEEP CYCLE Battery System in Enclosure

Out Of Stock

Battery System *
Battery Box Cable Length *	Clear Out Of Stock

Vandal Proof Aluminum Cover 20M Capable -180 Degree Adjustable Photocells 12-24V AC/DC

Wired ONLY on one side, replaceable lithium battery in transmitter on far side
180° Adjustment on each cell for easiest alignment
Up to 2 year battery life

Out Of Stock

Manuals

Videos

Super Duty COMMERCIAL GRADE Automatic Sliding Gate With BKV1500 Solar Powered Sliding Gate Motor Kit (1500G/20M MAX)

$2,754.00

Operating Voltage	12-30VDC/12-24VAC
Operating Current	9mA standby
Relay Switching Current Capacity	3A Momentary/500mA Latching
Frequency	433mhz
Compatible Transmitters (tX)	STX4L, STX4K, Dex4,PB-WIRELESS-TOUCH1,WPB-PRESS-WIRELESS,WPB-MHEAD-WIRELESS
Wire Length	27CM

Power	2xAAA Batteries (Supplied)
Operating Distance	80 Meters Open Air
Frequency	Secure Rolling Code 433MHZ
Operating Channels	4
Transmitting Time	1.5s

Operating Voltage	12V DC
Power Consumption	45mA Standby/<130mA Initialization and calling
IP Rating	IP54
Sim Card Size	Nano Sim
VOLTE	YES
4G Network	TDD: 2300(B40)>FDD 2100(B1)/1800(B3)/2600(B7)/900(B8)/1900 (B2)/1700(B4)/850 (B5)/700APT(B28)
3G Network	2100(B1)/1900(B2)/850(B5)/90038)

Operating Voltage	9-36V DC
Power Consumption	45mA Standby/<130mA Initialization and calling
Sim Card Size Length	Nano Sim
4G Network	TDD: 2300(B40)>FDD 2100(B1)/1800(B3)/2600(B7)/900(B8)/1900 (B2)/1700(B4)/850 (B5)/700APT(B28)
3G Network	2100(B1)/1900(B2)/850(B5)/90038)

Operating Voltage	12V DC
Tuning	Auto:10uH to 1500uH
Sensitivity	Four Settings
Frequency	12-80kHz (based on actual loop and setting switch)
Relay Circuits	N/O and N/C
Configurations	Pulse or Presence
Wiring	11 Pin Screw Terminal Base
Mounting	Din Rail or Shelf

Super Duty COMMERCIAL GRADE Automatic Sliding Gate With BKV1500 Solar Powered Sliding Gate Motor Kit (1500G/20M MAX)

Super Duty Full Time 24V Sliding Gate Motor with Encoder and Limit Switches

All-in-One and Feature Packed

Four point adjustment

Manual Release

Specifications

Dimensions

Digital Control Board

Power Inputs and Outputs

Automatic Weekly Timer

Configurable Methods Of Operation

Remote Operation

Motor Specifics

Safety Devices

Light Control

Operational Control

Relay Output B

Control Board Security

STX4K Keyring High Range Remote

Key Features

High Wattage PREMIUM Monocrystalline Solar Panel + Adjustable 30mm Fence Mounting Post

Heavy Duty Solar Pole

CERO Built IN ready to go PWM Solar Regulator

Battery System

Kit Contents (See Description Tab for Full In-Depth Details)

Description

Please note this is a replacement operator and is not supplied with gear rack, remotes or receiver card.

Super Duty 36V Sliding Gate Motor with Encoder and Limit Switches

All-in-One and Feature Packed

Four point adjustment

Manual Release

Specifications

Dimensions

Digital Control Board

Power Inputs and Outputs

Automatic Weekly Timer

Configurable Methods Of Operation

Remote Operation

Motor Specifics

Safety Devices

Light Control

Operational Control

Relay Output B

Control Board Security

1500 KG 24V Low Voltage Super Duty Sliding Gate Motor

Description

Steel Gear Rack

Key Features

Steel Sliding Gate Steel Gear Rack 1 Metre Length 6 Lug for Industrial and Commercial Usage

Description

STX4K Keyring High Range Remote

Key Features

Four Button Keyring Remote Control (White)

Description

STX4K Keyring High Range Remote

Key Features

Four Button Keyring Remote Control (Black)

Description

Dual Channel Remote Control Receiver

Specifications

Receiver for Remote Control Operation

Description

High Wattage PREMIUM Monocrystalline Solar Panel + Adjustable 30mm Fence Mounting Post

Heavy Duty ADJUSTABLE Solar Pole

24V Solar Panel and Heavy Duty Post Installation System

Description

Battery System

24V DEEP CYCLE Battery System in Enclosure

Description

Vandal Proof Aluminum Cover 20M Capable -180 Degree Adjustable Photocells 12-24V AC/DC

Optional Add On's

Description

STX4L Ultra Long Distance Remote

Key Features

Automatic Gate Long Distance Remote Control (Long Range Remote)

Description

Dex 4 Wireless Keypad

Key Features

Wireless Keypad (Three colour options)

Description
