Titan 2410 Electric 24V Low Voltage Automatic Sliding Driveway Gate Opener Kit FAST Heavy Duty POWERFUL Design BASE KIT

SKU: TITAN2410-P-BK

$826.00

$685.00

Save $141.00

  • Freight from $30.00 Calculate Freight
  • 1 Year Warranty
  • Brand : Automation Systems Australia
Max. 8m Gate
1000KG Max.
Ultra Fast
High Duty Cycle
Digital Display
Optional Battery Backup
  • Max. 8m Gate
  • 1000KG Max.
  • Ultra Fast
  • High Duty Cycle
  • Digital Display
  • Optional Battery Backup

In stock

Click & Collect

Delivery

In-Store

Same Day Dispatch (Order before 10AM)

Titan 2410 Ultra Fast 24 Volt Sliding Gate Gate Motor

The Titan 2410 Sliding Gate System is built around a compact form factor yet utilizing the space for a large 180 Watt 24V DC motor delivering an unparalleled capacity of up to 1000KG gate or up to 8 Meters in length (package is supplied with 4 Metres of gear rack which is adjustable in the kit contents tab).

Clever engineering allows for the system to work in a Ultra Fast and controlled operating speed with the allowance to be reduced to a normal or even slow running speed if required. The housing is formed from die-cast alloy with a steel pinion gear and all internal mountings are of steel to provide the best physical strength both inside and outside and the peace of mind of a long service life.

Keeping it reliable and dependable the Titan series operator uses trusty micro switch limit system allowing for the added bonus of a simple (and effective) installation. Housed within the Titan system the Premier SL24 Automatic gate system controller comes standard with a state of the art feature set catering for all types of installations, whether only requiring ordinary residential operation to all the way up to a full fledged commercial setups requiring advanced logic principals taking advantage of the high 90% duty cycle ability.

The on-board display makes easy work of any settings changes if desired and is easily visible in the outdoors being the advantage of LED displays. With multiple Inputs and outputs just about any accessory is compatible with the Premier SL24 system (see the complete list below).

Also boasting multiple safety inputs along with its precise on-board detection it allows safety to remain prioritized for any application. with the optional plug and play battery back-up system you will be sure not to ever be locked out of your property.

The installation process is always kept in mind allowing up to 4 cable inputs into gate motor housing using IP68 cable glands, this allows for the best weather proofing and assists in insect proofing.

The genius automatic learning system, hold one key to enable and begin the automatic learning of the gate system and automatic definition of the ramp up and slow down points, its as easy as it gets suiting all skill levels from DIY once off installs to professional installers.

The premier controller also supports all installations with an intelligent light control system with three output options (traffic light control, driveway light control and alert strobe/courtesy light)

Ready to plug into an ordinary power point there is NO high voltage wiring required, All connections are Low Voltage and safe for all installers regardless of the skill level without the concern of electrical shock.

Key Features



✓ Fast and Efficient 24 Volt Operation
✓ Die-Cast Alloy Housing
✓ Compact Footprint
✓ Multiple Cable entries by IP68 rated Glands
✓ Steel Pinion Gear
✓ Open and Closed Position Easy Micro-Switch Limits
✓ Flexible size and weight capacities

A peak inside the Titan Series Operator

Tough 180 Watt DC Motor and Digital Logic Controller

high quality strong automatic low voltage sliding gate motor

Steel Pinion and Easy Limit Switches

Secure yet Easy Manual Release

Automatic Gate System Logic Controller Features

Features as Standard

✓ Easy to use Single Button Mode of Opening-Stop-Closing including the “Stay open” feature
✓ Open partially Pedestrian Mode Feature (adjustable distance)
✓ Automatic Closing Timer Adjustable in one second increments up to 5 minutes
✓ Automatic learning of the gate + Fine tunable operating Times
✓ Soft Start (Ramp UP) and Soft Stop/Slowdown (Ramp DOWN)
✓ Adjustable Slow Down Speed and Time
✓ Optional Plug and Play Battery Backup System
✓ Low Voltage Power for all accessories directly through the gate controller
✓ Warning Light Output
✓ Traffic Light Output
✓ Driveway Light Output

Normal Modes allow for the “STAY Open” feature to cancel the automatic closing timer by remote Handy when expecting guest, backing in a trailer etc.


Multiple Configurable Safety Inputs

✓ Obstacle Detection by load This feature is always running and detecting if the gate is stalled under load by an obstacle during its travel.
✓ Typical Photocell Input Terminal to prevent gate from closing on vehicle, reverts gate if a vehicle passes through during closing, restarts the Automatic closing timer after each interruption.
✓ Photostop Input, Same as the typical photocell input with an added feature of preventing the gate from opening if the photocell is blocked. Handy for sliding gates that open towards an obstacle such as a pedestrian gate..
✓ Special Detector Input to tell the gate to close two seconds after the vehicle passes, perfect for higher security applications (and also escaping dogs).
✓ Safety Edge Input Installed on to the gate, safety edges allow for a return to open if the edge of gate is to touch an obstacle.
✓ Emergency Stop Button This feature allows for a manned button to immediately stop the system open pressing.

Wired and Wireless Access Control Support

✓ Keypads Wired or Wireless Secure PIN Number access (Tekno K1/Dex4)
✓ Press Button Simple button operation
✓ Mobile APP Control Cloud based and operatable anywhere in the world (Tekno WF)
✓ Doorbell Intercom Systems
✓ Exit Wands and Induction Loops To automatically operate the gate upon vehicle presence
✓ GSM 4G Technology Operate the gate by phone call (or intercom phone call) (Tekno 4/Tekno S1)
✓ Weekly Schedule Timer To automatically operate the gate based on a programmed daily/weekly operating times

Residential, Commercial and Complex Working Modes Options

✓ Normal Remote Operation (Open-Stop-Close)
✓ Normal Remote Operation (Open-Stop-Close) with Automatic Closing Timer and “Stay Open” feature (299 Seconds/5 Minutes)
✓ Typical Complex – Individual Open and Close Command Inputs
✓ Typical Complex – Individual Open and Close Command Inputs with Automatic Closing Timer “Stay Open” feature by wired input (299 Seconds/5 Minutes)
✓ Secure Complex – Open Only Command Inputs with Automatic Closing Timer (299 Seconds/5 Minutes) “Stay Open” feature by wired input

OPTIONAL Uninterrupted Battery Backup System

backup uninterrupted battery sliding gate

The optional uninterrupted battery backup system allows for continued use in the case of power loss without the need for any user intervention, it will continue to allow system operation including any system accessories for 24 hours OR until the power is restored. The batteries are automatically recharged when power is restored and trickle whilst power is available Directly fitting into the systems compartment there is no need for any additional storage boxes.

If the optional battery system is not desired the system can still be manually release using the secure override system.

Dimensions

compact small sliding gate motor dimensions

Automatic Sliding Gate System Specifications

Operating Voltage 24V
Maximum Gate Size 8 Meters (package is supplied with 4 Metres of gear rack which is adjustable in the kit contents tab)
Maximum Gate Weight 1000KG
Duty Cycle 90%
Thrust 27nM
Speed Adjustable up to 36cm/s (21 Meters per minute)
Standby Consumption 40mA
Supports Battery Backup Yes, 24V DC
Light Support Yes, Traffic Light/Driveway Light/Strobe
Accessories Voltage Yes, 12V DC
Safety Inputs Photocells, Safety edges, Induction Loops, Edge Sensors, Emergency Stop Button
Operating Temperature -10°-60°C
Maximum Remotes 250
automatic sliding gate motor specifications



STX4K Keyring High Range Remote

Automation systems Australia keyring remote control for driveway gate
The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).

Key Features

✓ Up to 100 metres distance in open air
✓ Keeloq rolling code security
✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
✓ Clear visibility red LED indicator which will illuminate upon a button press
✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
✓ Slimline and modern ergonomic design
✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

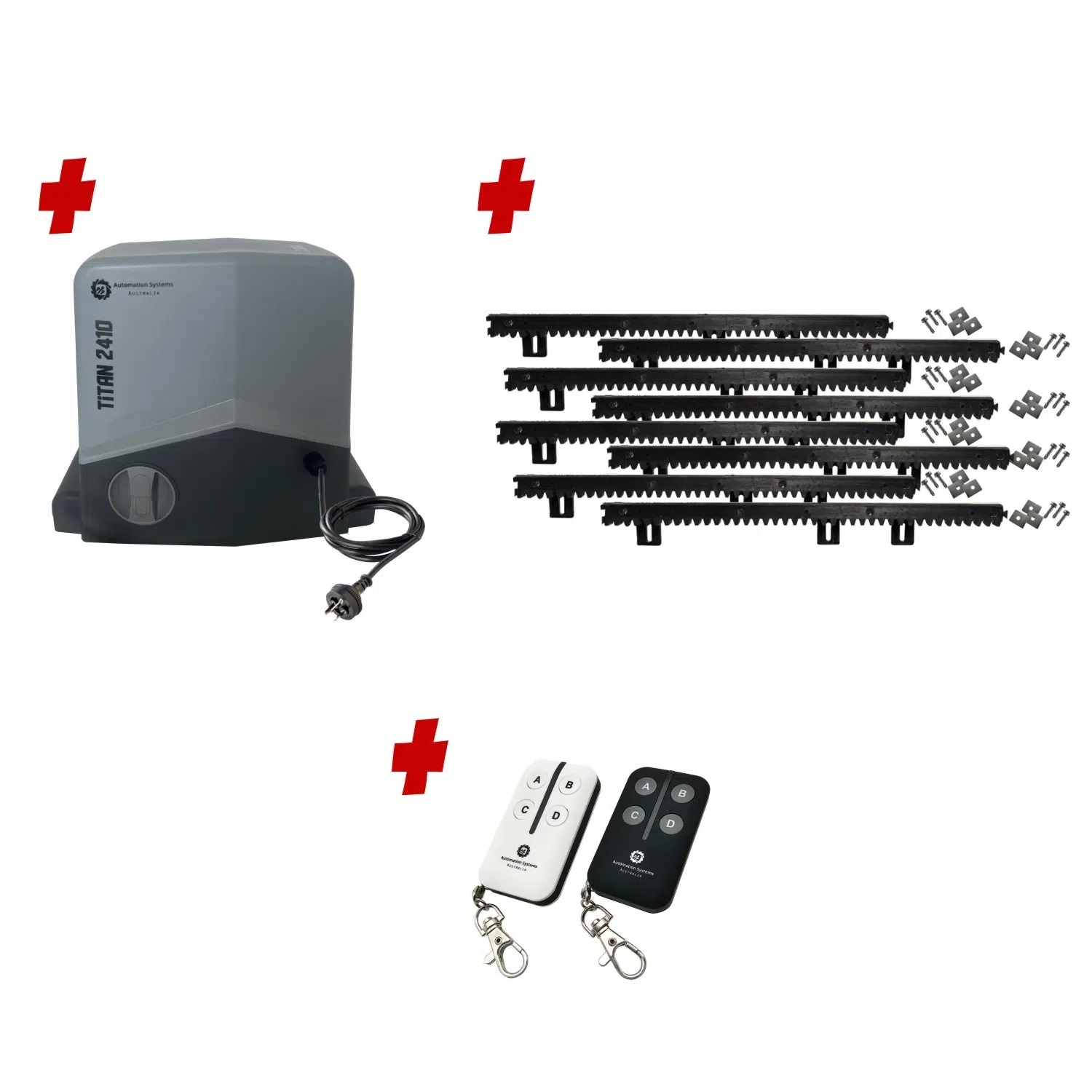

Kit Contents (See Description Tab for Full In-Depth Details)

  • Description

    Titan 2410 Ultra Fast 24 Volt Sliding Gate Gate Motor

    The Titan 2410 Sliding Gate System is built around a compact form factor yet utilizing the space for a large 180 Watt 24V DC motor delivering an unparalleled capacity of up to 1000KG gate or up to 8 Meters in length. Clever engineering allows for the system to work in a Ultra Fast and controlled operating speed with the allowance to be reduced to a normal or even slow running speed if required. The housing is formed from die-cast alloy with a steel pinion gear and all internal mountings are of steel to provide the best physical strength both inside and outside and the peace of mind of a long service life. Keeping it reliable and dependable the Titan series operator uses trusty micro switch limit system allowing for the added bonus of a simple (and effective) installation. Housed within the Titan system the Premier SL24 Automatic gate system controller comes standard with a state of the art feature set catering for all types of installations, whether only requiring ordinary residential operation to all the way up to a full fledged commercial setups requiring advanced logic principals taking advantage of the high 90% duty cycle ability. The on-board display makes easy work of any settings changes if desired and is easily visible in the outdoors being the advantage of LED displays. With multiple Inputs and outputs just about any accessory is compatible with the Premier SL24 system (see the complete list below).
    Also boasting multiple safety inputs along with its precise on-board detection it allows safety to remain prioritized for any application. with the optional plug and play battery back-up system you will be sure not to ever be locked out of your property. The installation process is always kept in mind allowing up to 4 cable inputs into gate motor housing using IP68 cable glands, this allows for the best weather proofing and assists in insect proofing. The genius automatic learning system, hold one key to enable and begin the automatic learning of the gate system and automatic definition of the ramp up and slow down points, its as easy as it gets suiting all skill levels from DIY once off installs to professional installers. The premier controller also supports all installations with an intelligent light control system with three output options (traffic light control, driveway light control and alert strobe/courtesy light) Ready to plug into an ordinary power point there is NO high voltage wiring required, All connections are Low Voltage and safe for all installers regardless of the skill level without the concern of electrical shock.

    Key Features


    ✓ Fast and Efficient 24 Volt Operation ✓ Die-Cast Alloy Housing ✓ Compact Footprint ✓ Multiple Cable entries by IP68 rated Glands
    ✓ Steel Pinion Gear ✓ Open and Closed Position Easy Micro-Switch Limits ✓ Flexible size and weight capacities

    A peak inside the Titan Series Operator

    Tough 180 Watt DC Motor and Digital Logic Controller

    high quality strong automatic low voltage sliding gate motor

    Steel Pinion and Easy Limit Switches

    Secure yet Easy Manual Release



    Automatic Gate System Logic Controller Features

    Features as Standard

    ✓ Easy to use Single Button Mode of Opening-Stop-Closing including the "Stay open" feature ✓ Open partially Pedestrian Mode Feature (adjustable distance) ✓ Automatic Closing Timer Adjustable in one second increments up to 5 minutes ✓ Automatic learning of the gate + Fine tunable operating Times ✓ Soft Start (Ramp UP) and Soft Stop/Slowdown (Ramp DOWN) ✓ Adjustable Slow Down Speed and Time ✓ Optional Plug and Play Battery Backup System ✓ Low Voltage Power for all accessories directly through the gate controller ✓ Warning Light Output ✓ Traffic Light Output ✓ Driveway Light Output
    Normal Modes allow for the "STAY Open" feature to cancel the automatic closing timer by remote Handy when expecting guest, backing in a trailer etc.


    Multiple Configurable Safety Inputs

    ✓ Obstacle Detection by load This feature is always running and detecting if the gate is stalled under load by an obstacle during its travel. ✓ Typical Photocell Input Terminal to prevent gate from closing on vehicle, reverts gate if a vehicle passes through during closing, restarts the Automatic closing timer after each interruption. ✓ Photostop Input, Same as the typical photocell input with an added feature of preventing the gate from opening if the photocell is blocked. Handy for sliding gates that open towards an obstacle such as a pedestrian gate.. ✓ Special Detector Input to tell the gate to close two seconds after the vehicle passes, perfect for higher security applications (and also escaping dogs). ✓ Safety Edge Input Installed on to the gate, safety edges allow for a return to open if the edge of gate is to touch an obstacle. ✓ Emergency Stop Button This feature allows for a manned button to immediately stop the system open pressing.

    Wired and Wireless Access Control Support

    ✓ Keypads Wired or Wireless Secure PIN Number access (Tekno K1/Dex4) ✓ Press Button Simple button operation ✓ Mobile APP Control Cloud based and operatable anywhere in the world (Tekno WF) ✓ Doorbell Intercom Systems ✓ Exit Wands and Induction Loops To automatically operate the gate upon vehicle presence ✓ GSM 4G Technology Operate the gate by phone call (or intercom phone call) (Tekno 4/Tekno S1) ✓ Weekly Schedule Timer To automatically operate the gate based on a programmed daily/weekly operating times

    Residential, Commercial and Complex Working Modes Options

    ✓ Normal Remote Operation (Open-Stop-Close) ✓ Normal Remote Operation (Open-Stop-Close) with Automatic Closing Timer and "Stay Open" feature (299 Seconds/5 Minutes) ✓ Typical Complex - Individual Open and Close Command Inputs ✓ Typical Complex - Individual Open and Close Command Inputs with Automatic Closing Timer "Stay Open" feature by wired input (299 Seconds/5 Minutes) ✓ Secure Complex - Open Only Command Inputs with Automatic Closing Timer (299 Seconds/5 Minutes) "Stay Open" feature by wired input

    OPTIONAL Uninterrupted Battery Backup System

    backup uninterrupted battery sliding gate
    The optional uninterrupted battery backup system allows for continued use in the case of power loss without the need for any user intervention, it will continue to allow system operation including any system accessories for 24 hours OR until the power is restored. The batteries are automatically recharged when power is restored and trickle whilst power is available Directly fitting into the systems compartment there is no need for any additional storage boxes. If the optional battery system is not desired the system can still be manually release using the secure override system.

    Dimensions

    compact small sliding gate motor dimensions

    Automatic Sliding Gate System Specifications

    Operating Voltage 24V
    Maximum Gate Size 8 Meters
    Maximum Gate Weight 1000KG
    Duty Cycle 90%
    Thrust 27nM
    Speed Adjustable up to 36cm/s (21 Meters per minute)
    Standby Consumption 40mA
    Supports Battery Backup Yes, 24V DC
    Light Support Yes, Traffic Light/Driveway Light/Strobe
    Accessories Voltage Yes, 12V DC
    Safety Inputs Photocells, Safety edges, Induction Loops, Edge Sensors, Emergency Stop Button
    Operating Temperature -10°-60°C
    Maximum Remotes 250
    automatic sliding gate motor specifications

    x

    Titan 2410 1000KG 24V Electric Sliding Gate Motor

    • Ultra Fast
    • Maximum 8m Gate Length
    • Maximum 1000KG Weight
    • Adjustable Open & Closed Limit Switches
    • Advanced Digital Control Board
    Show more
    • Ultra Fast
    • Maximum 8m Gate Length
    • Maximum 1000KG Weight
    • Adjustable Open & Closed Limit Switches
    • Advanced Digital Control Board
    ×
    Out Of Stock

  • Description

    Extra Heavy Duty Sliding Gate Gear Rack

    • 520mm Lengths
    • Black Nylon
    • Steel Core
    • Interlocking with Key on one end, Keyway on the other for precise alignment
    • 3 Lug fixing facing downwards
    x

    QUIET 520mm (Clip In Key - Keyway) Sliding Gate Gear Rack Nylon Coated over Steel Reinforced

    Out Of Stock
    Clear
    Out Of Stock

  • Description

    Please be aware this product is only compatible with Automation Systems Australia Control Boards and Remote Receivers, it will NOT work with other brand products.

    STX4K Keyring High Range Remote

    Automation systems Australia keyring remote control for driveway gate
    The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

    The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).

    Key Features

    ✓ Up to 100 metres distance in open air
    ✓ Keeloq rolling code security
    ✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
    ✓ Clear visibility red LED indicator which will illuminate upon a button press
    ✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
    ✓ Slimline and modern ergonomic design
    ✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

    x

    Four Button Keyring Remote Control (White)

    • Up to 100 Metre Open Air Distance
    • High Security Rolling Code
    • Slimline and Ergonomic
    Show more
    • Up to 100 Metre Open Air Distance
    • High Security Rolling Code
    • Slimline and Ergonomic
    ×
    Out Of Stock
    Clear
    Out Of Stock

  • Description

    Please be aware this product is only compatible with Automation Systems Australia Control Boards and Remote Receivers, it will NOT work with other brand products.

    STX4K Keyring High Range Remote

    Automation systems Australia keyring remote control for driveway gate
    The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

    The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).

    Key Features

    ✓ Up to 100 metres distance in open air
    ✓ Keeloq rolling code security
    ✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
    ✓ Clear visibility red LED indicator which will illuminate upon a button press
    ✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
    ✓ Slimline and modern ergonomic design
    ✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

    x

    Four Button Keyring Remote Control (Black)

    • Up to 100 Metre Open Air Distance
    • High Security Rolling Code
    • Slimline and Ergonomic
    Show more
    • Up to 100 Metre Open Air Distance
    • High Security Rolling Code
    • Slimline and Ergonomic
    ×
    Out Of Stock
    Clear
    Out Of Stock

Optional Add On's

  • Description

    Please be aware this product is only compatible with Automation Systems Australia Control Boards and Remote Receivers, it will NOT work with other brand products.

    STX4L Ultra Long Distance Remote

    Automation systems Australia Long Distance remote control for driveway gate
    The STX4L Long distance remote is a class leader in Ultra long distance (up to 800 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

    The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).

    The long distance remote is most useful around larger properties able to operate the gate from sheds, buildings and the home where a typical remote would not be able to achieve the same operating distance.

    Key Features

    ✓ Up to 800 metres distance in open air
    ✓ Keeloq rolling code security
    ✓ Easy to Use buttons
    ✓ ON/OFF switch to prevent accidental operation
    ✓ Clear visibility LED indicator which will illuminate upon a button press
    ✓ Narrow handheld design
    ✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

    x

    Automatic Gate Long Distance Remote Control (Long Range Remote)

    • Up to 800 Metre Open Air Distance
    • High Security Rolling Code
    • Side Switch Prevents Accidental Operations
    Show more
    • Up to 800 Metre Open Air Distance
    • High Security Rolling Code
    • Side Switch Prevents Accidental Operations
    ×
    Out Of Stock

  • Description

    Dual Channel Remote Control Receiver

    two channel receiver for garage door automatic gate alarm system
    Working with the STX4K, STX4L and Dex4 Wireless equipment the Two Channel receiver offers the ability to control up to two individual devices/systems separately such as automatic gate systems, garage doors, alarm systems and almost any device with the requiring a momentary pulse OR latching circuit to operate.

    Specifications

    Operating Voltage 12-30VDC/12-24VAC
    Operating Current 9mA standby
    Relay Switching Current Capacity 3A Momentary/500mA Latching
    Frequency 433mhz
    Compatible Transmitters (tX) STX4L, STX4K, Dex4
    x

    Receiver for Garage Doors

    Operate your garage door from a different button on the remote using this expander module.

    Show more

    Operate your garage door from a different button on the remote using this expander module.

    ×
    Out Of Stock

  • Description

    Please be aware this product is only compatible with Automation Systems Australia Control Boards and Remote Receivers, it will NOT work with other brand products.

    Dex 4 Wireless Keypad

    wireless automatic gate keypad

    The Dex 4 Wireless Keypad can communicate directly to the gate system using the same Keeloq secure rolling code signal as the remotes allowing for an easy installation process without the need for wiring.

    Due to its high quality chipset the open air signal strength can exceed an astounding 80 meters. This makes the Dex 4 not only suited to controlling the gate but could actually be used to control the garage door, another gate etc. providing they have the compatible receiver installed, Up to FOUR devices/features could be used with individual pin codes for each due to its four independent output channel designs.

    Key Features

    ✓ Three colour options are available: Classic White, Subtle Grey and Deep black
    ✓ Compact design fits almost anywhere at 90(L)x77(W)x35(D)mm
    ✓ Control Up to four systems or four features on different pin codes
    ✓ Astounding open air distance of 80 metres
    ✓ Works on 2x AAA batteries (supplied)
    ✓ Audible and LED indicators
    ✓ Totally wireless (wire free) easy installation

    Power 2xAAA Batteries (Supplied)
    Operating Distance 80 Meters Open Air
    Frequency Secure Rolling Code 433MHZ
    Operating Channels 4
    Transmitting Time 1.5s
    x

    Wireless Keypad (Three colour options)

    Four channel wireless keypad allowing for full control of all automatic gate features without the need for wiring.

    Show more

    Four channel wireless keypad allowing for full control of all automatic gate features without the need for wiring.

    ×
    Out Of Stock

  • Description

    Push/Press Button

    push press button for automation machinery access control
    The push button is the simplest of all access control devices, a simple press of the button allows the automation to begin its working. Generally installed on the inside of the property within close proximity to the user (driver side when exiting) allows for the easiest method of working.

    Key Features


    ✓ Weatherproof for outdoor use and can be used indoors ✓ Supports NO and NC circuits (when used as a wired button) ✓ 2 Wire connection or Wireless Option (Automation Systems Australia ONLY) ✓ Easy to operate
    x

    Weatherproof Press Button

    Typical press button for foot traffic, suitable for outdoor and indoor installations.

    Show more

    Typical press button for foot traffic, suitable for outdoor and indoor installations.

    ×
    Out Of Stock

  • Description

    Big Head (Mushroom) Push/Press Button

    big mushroom palm push press button for automation machinery access control
    The push button is the simplest of all access control devices, a simple press of the button allows the automation to begin its working. Generally installed on the inside of the property within close proximity to the user (driver side when exiting) allows for the easiest method of working.

    Key Features


    ✓ Weatherproof for outdoor use and can be used indoors ✓ Supports NO and NC circuits (when used as a wired button) ✓ 2 Wire connection or Wireless Option (Automation Systems Australia ONLY) ✓ Easy to operate
    x

    Weatherproof Push Button (Mushroom Head)

    Typical press button for vehicles mounted to a bollard, suitable for outdoor and indoor installations.

    Show more

    Typical press button for vehicles mounted to a bollard, suitable for outdoor and indoor installations.

    ×
    Out Of Stock

  • Description

    Weekly Schedule Automatic Gate Timer

    Automatic timer for opening and closing a driveway gate residential and commercial
    The weekly timer allows for scheduling open and close cycles to operate the gate, simple set the open time and the close time (with accuracy to the minute). During the scheduled times the gate will automatically open- remain open- then close when the set close time lapses. The timer allows for independent 5 day business week, INDEPENDENT days configurations OR a full 7 day week configuration along with other modes. Up to 8 different On/Off schedules can be set.


    Key Features

    ✓ Automatic Opening and Closing at the Set times
    ✓ LCD Display
    ✓ Quartz micro-controller for stability and accuracy
    ✓ Built in Backup-Battery to retain schedules up to 150 Hours
    ✓ DIN Rail Mounting
    ✓ Simple setting by: independent days schedule, Common time 5 day working week (MON-FRI), Weekends Combined (SAT+SUN) or Common time 7 day week (MON-SUN)

    Specifications

    Operating Voltage 12V DC
    Power Consumption 50mA
    Display LCD
    Load Capacity 16A/250V
    Programs 8
    Relay NO/NC
    x

    Weekly Auto Open/Close Scheduled Timer

    Programable timer with numerous configurations options on when to open and close the gate.

    Show more

    Programable timer with numerous configurations options on when to open and close the gate.

    ×
    Out Of Stock

  • Description

    WIRELESS Automatic Vehicle Detection Sensor – for Automatic Opening of gate

    wireless automatic driveway gate exit sensor

    An easy to install WIRELESS AUTOMATIC OPENING driveway vehicle detection system

    Multiple hours saved, materials saved and frustrations gone

    Long gone are the days of cutting concrete, chasing wires and configuring induction loop detectors (ground loop). Finally, a simple WIRELESS solution to streamline the installation process.
    The WIRELESS loop detector SIMPLY BOLT DOWN to a concrete driveway (or concrete pad in gravel driveways) and wirelessly communicate back with the gate system using the supplied high security (128 Bit) transceiver for two way communication between the New Generation wireless loops.

    The wireless exit “loop” is maintenance free and installed with 2x AA Lithium batteries for a THREE YEAR use period before a battery replacement is required (regular usage), to replace the batteries simply remove the top cover and fit the new Lithium AA batteries.

    How does it work and what happens if I accidently drive over it?
    The wireless loop is designed for a vehicle to drive over and will detect the undercarriage of the vehicle, if its accidently driven over it presents no issue whatsoever as its casing carries a static load capacity of 2500kg.

    How far can i have it from the gate?
    Thanks to its high transmission range capabilities it has a maximum wireless operating distance of 50 meters.

    How big is it?
    Its compact form factor allows for a discreet installation measuring only 120x120mm Length and Width and only 30mm in height.

    Will it work with my system?
    Typically, YES, it will work with any gate system that has an open command input and an accessories voltage output of 12-24V DC

    Which installations does this suit?
    Any domestic installations which fit the following criteria:
    ✓A concrete pad or driveway is available for the device to be installed on to
    ✓When a vehicle is parked it does not sit within 3 meters of the device
    ✓The device does not sit in a recess and pool water, snow or any debris
    ✓Not nearby to high voltage cables

    How is it installed?
    1. Connect the transceiver to the gates control board, this must be installed within the gate controller or any enclosure
    2. Power on the transceiver and have the loop touching the antenna of the transceiver.
    3. Once the transceiver flashes its blue led and the loop flashes its yellow led they are now paired together.
    4. Remove backing plate from the loop and install to concrete using the supplied concrete screw bolts, ensure the arrow faces the direction of travel for exit (faces towards the gate).
    5. Install the wireless loop to the backing plate and allow 3 minutes for calibration
    Test to confirm operation, job done!

    Supplied With

    ✓1x Wireless Loop (with 2x AA Lithium Batteries Installed)
    ✓1x Transceiver
    ✓2x Concrete Screw Bolts

    Detection Area

    Replaceable Battery Life

    x

    Automatic Opening WIRELESS Automatic Vehicle Detection Sensor

    This WIRELESS system can automatically open the gate as your vehicle passes over it. Installed up to 50 metres away from the gate!

    Show more

    This WIRELESS system can automatically open the gate as your vehicle passes over it. Installed up to 50 metres away from the gate!

    ×
    Out Of Stock

  • Description

    Tekno K1 Weatherproof Wired Keypad

    APP Control entry keypad mobile phone Automatic gate and garage door

    The Tekno K1 is a versatile and feature packed standalone keypad unit with APP Control by mobile phone allowing for the ability to operate from anywhere in the world along with local operations by PIN code or EM card/Tag. Its intuitive design allows for adding administering users directly into the keypad or by the APP.

    The free mobile APP allows for adding temporary PIN codes with expiry dates (or one time use) making it ideal for deliveries, Airbnb and other applications requiring temporary user access with out the need to add the users on-site.

    General Mobile APP users can also be managed in via the app (add/delete) if and when required.



    Key Features

    ✓ FREE APP Control available in Apple App Store and Google Play Store (Highly rated and reliable with over 5 million users worldwide)
    ✓ Control your gate ANYWHERE in the world
    ✓ Voice control and scene control compatible with Google assistant, Alexa and Siri
    ✓ Up to 10,000 Users by PIN code, EM Card and EM Tags
    ✓ Unlimited APP Users
    ✓ Add in expiring PIN codes by APP
    ✓ Add in normal users by APP
    ✓ Wires directly into the system
    ✓ Simple connection and simple setup
    ✓ Up to 10 meter Wi-Fi range with basic entry level routers (typically what’s supplied by the internet provider), Substantially boosted using good quality routers or mesh networks.

    Specifications

    Power 12V DC
    Standby Current ≤35mA
    Maximum Users 10,000 Users
    Operating Temperature -40°C - +60°C
    Operating Methods PIN CODE, RFID,MOBILE APP
    Wi-Fi Distance Up to 10m on basic ISP routers (entry level basic) Substantially boosted on a good quality router or mesh network
    x

    Access Control Keypad with EM Tag Reader and mobile APP

    Wired keypad allowing for pin code access control, em cards and tags operation, along with mobile APP control.

    Show more

    Wired keypad allowing for pin code access control, em cards and tags operation, along with mobile APP control.

    ×
    Out Of Stock

  • Description

    Tekno WF APP Control Switch

    APP Control mobile phone Automatic gate and garage door
    The Tekno WF is a versatile control device allowing for connection to the gate system to bridge from a locally controlled installation to also allow for Mobile APP based automatic gate control from anywhere in the world. Its mini design allows for mounting inside the system without the need for any additional boxes.



    Key Features

    ✓ FREE APP Control available in Apple App Store and Google Play Store (Highly rated and reliable with over 5 million users worldwide)
    ✓ Control your gate ANYWHERE in the world
    ✓ Voice control and scene control compatible with Google assistant, Alexa and Siri
    ✓ Can configure opening/closing schedules by Day and Time
    ✓ Fits directly into the system, no extras required
    ✓ Simple connection and simple setup
    ✓ Up to 10 meter Wi-Fi range with basic entry level routers (typically what’s supplied by the internet provider), Substantially boosted using good quality routers or mesh networks.

    Specifications

    Operating Voltage 5-24V DC
    Consumption ≤35mA Standby/≤100mA Operation
    Smart Assistant Support YES
    Operating Methods Mobile APP
    Wi-Fi Distance Up to 10m on basic ISP routers (entry level basic) Substantially boosted on a good quality router or mesh network
    x

    Mobile App Control Wi-Fi Connection Module

    Control the gate from anywhere in the world with your mobile phone using the Tekno WF module.

    Show more

    Control the gate from anywhere in the world with your mobile phone using the Tekno WF module.

    ×
    Out Of Stock

  • Description

    Uninterrupted Battery Backup System for Titan 2410/Premier SL24 Sliding Gate System

    backup uninterrupted battery sliding gate
    The optional uninterrupted battery backup system allows for continued use in the case of power loss without the need for any user intervention, it will continue to allow system operation including any system accessories for 24 hours OR until the power is restored. The batteries are automatically recharged when power is restored and trickle whilst power is available Directly fitting into the systems compartment there is no need for any additional storage boxes.
    x

    Titian 2410 Uninterrupted Battery Backup System

    Fits directly inside the sliding gate motor, supplied with the plug in harness. Allows for uninterrupted operation during power outage.

    Show more

    Fits directly inside the sliding gate motor, supplied with the plug in harness. Allows for uninterrupted operation during power outage.

    ×
    Out Of Stock

  • Description

    Dukie XR Retro-Reflective Sensor

    Dukie XR Reflective Sensor Automatic gate and garage door photocell

    The Dukie XR series retro-reflective sensor kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Only the sensor requires wiring back to the gate controller as the sensor bounces its own beam back via the reflector installed on the far side of the driveway.

    Added benefits of the XR series photocell is its Anti Interference Infrared characteristics making it best suited for ultra high capacity electric motors.



    Key Features

    ✓ No wiring needed across the driveway (reflector)
    ✓ Narrow Sensor only 20mm width
    ✓ Flexible with multiple different mounting methods
    ✓ NO and NC Relay Options
    ✓ Excellent range characteristics of up to 11 meter distance in clear conditions (-40% in adverse conditions)

    x

    Dukie X OR Dukie XR Photocells

    Choose from Photocell wired to both sides OR a Reflective sensor Wired only on the one side (1.9m Pre-Connected)

    Show more

    Choose from Photocell wired to both sides OR a Reflective sensor Wired only on the one side (1.9m Pre-Connected)

    ×
    Out Of Stock

Videos

Titan 2410 Electric 24V Low Voltage Automatic Sliding Driveway Gate Opener Kit FAST Heavy Duty POWERFUL Design BASE KIT

$826.00

$685.00

Save $141.00

x

Register

Shipping To

Add company name

Australia

Add apartment, unit, building, floor, etc.

Billing To

Add company name

Australia

Add apartment, unit, building, floor, etc.


Close
