Up to 3200mm / 3.2m Opening (1200mm H) 3.6×1.2m Sliding Driveway Gate Package Cladding Gate Frame (Internal Cladding) (Satin Black Powder Coat)

Name: Up to 3200mm / 3.2m Opening (1200mm H) 3.6x1.2m Sliding Driveway Gate Package Cladding Gate Frame (Internal Cladding) (Satin Black Powder Coat)
SKU: FRAME12-3570-INTCLAD x1+SLIDEHW
Price: 634 AUD
Availability: InStock

SKU: FRAME12-3570-INTCLAD x1+SLIDEHW

$651.00

$634.00

Save $17.00

Bulky Item Shipping costs are calculated during checkout
1 Year Warranty
Brand : Alpha Automation

Internal Cladding Frame

Up to 3.2m Opening (3600mm Gate)

1200mm Height

Internal Cladding Frame
Up to 3.2m Opening (3600mm Gate)
1200mm Height

In stock

Click & Collect

Delivery

In-Store

Versatile Driveway Sliding Gate Frame for cladding

Versatile driveway gate frame for cladding

The versatile design gate frame is suitable for both INTERNAL horizontal cladding (up to 20mm material thickness) or EXTERNAL vertical/Horizontal Cladding of any thickness. The gate features a center 40x40mm dividing the cladding area into two sections which does not interfere with internal cladding.

The construction is of pre-galvanized steel RHS tubing for the Bottom Rail (80x40mm), SHS tubing (40x40mm Top and Sides) and a Vertical support of 40x40mm in the center, every join on the gate is welded providing the best strength and rigidity unlike flat pack gates.

Key Features

✓ Proper Rigid Steel Gate, 100% Welded (NO flat pack and NO concerns about flex, integrity or assembly)
✓ Pre-Galvanized Steel Tubing
✓ Satin Black Powder Coating (NIGHT SKY COLOUR)
✓ RHS 80×40 Bottom Rails
✓ SHS 40×40 Top and Sides
✓ RHS 40×40 Vertical Center

internal Cladding Example

The kit is provided ready for internal cladding within the gate frame (cladding set into the gate) This is achieved by the provided channels. If required and external cladding is version is available.

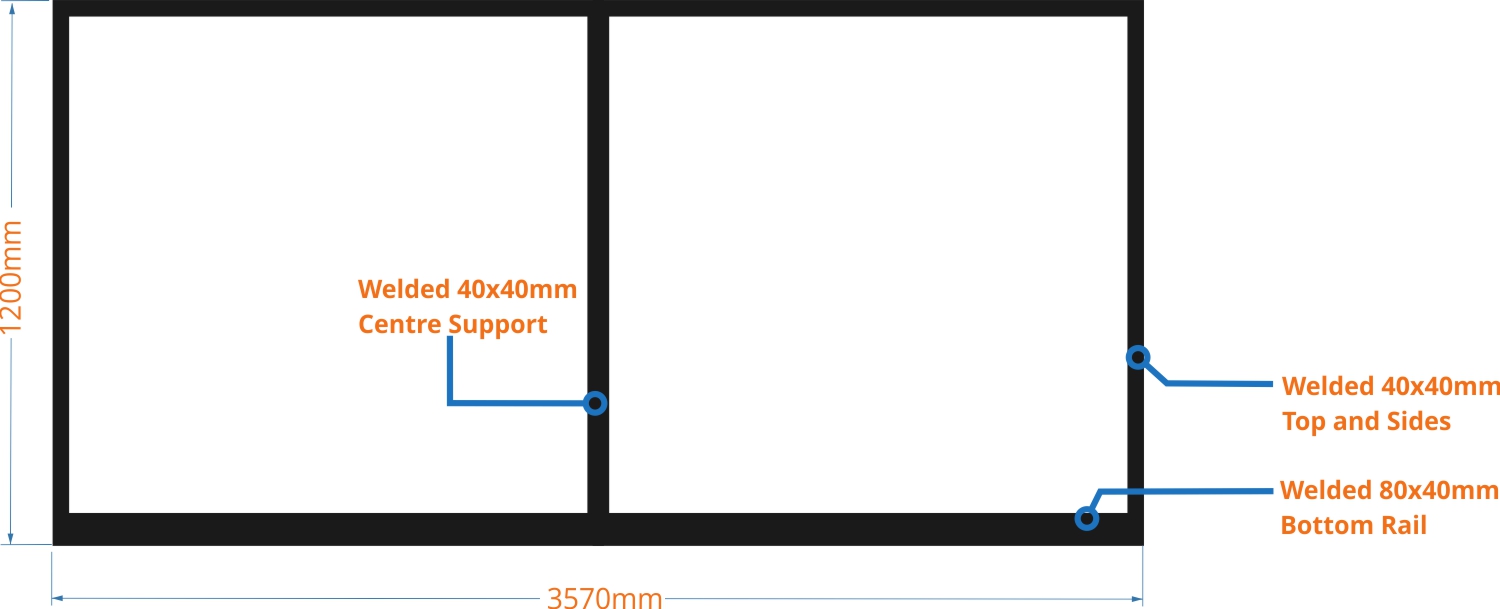

Dimensions

Important Information – Measurement details and Requirements

Width of Gate Panel	3570mm EACH
Height of Gate Panel	1200mm
Max Sliding Gate Opening Size	(Manual Operation: 3300mm factors in an internal support post)(Automated/Motorised: 3140mm)
Min. clear area for gate to open to	3770mm including a gate stop

Top Guide System Options

Multiple options available to choose from based on the gates total thickness including any horizontally cladding material if applicable.

100mm Black rollers with 175mm Bracket
The 175mm overhead bracket allows for an adjustment up to maximum total gate thickness of 75mm. This is the standard option typically used with 40/50mm thick gates without external cladding and allows for minor adjustment.

100mm White rollers with 175mm Bracket
The 175mm overhead bracket allows for an adjustment up to maximum total gate thickness of 75mm. This is the standard option typically used with 40/50mm thick gates without external cladding and allows for minor adjustment.

100mm Black rollers with 210mm HD Bracket
The 210mm Longer overhead bracket is typically the go to in most cases when flexibility and best adjustment is key. Allowing for a large adjustment area up to maximum total gate thickness of 115mm. Using an overhead bracket and roller arrangement as it allows for all standard gate thickness and also surface mounted horizontally clad gates or gates that need a larger set back away from the post. It is constructed of DUAL C channels providing the best rigidity and with no flex under load.

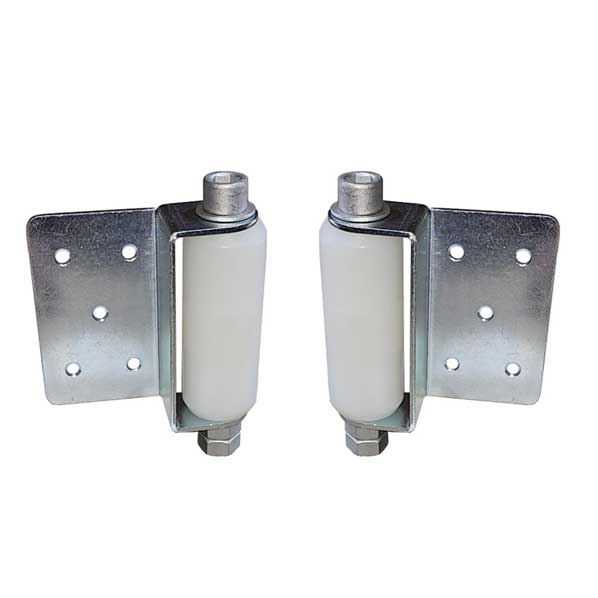

Independent roller system (White)
Typically (but not exclusively) used with spear design gates, a guide roller on each side (inside support post also required) WITHOUT the need of an overhead bracket allows for any protrusion above the gate frame to run through without an issue as the rollers contact each side of the gate frame, it does however require the gate to operate on a level grade, if not see the C channel section option with Nylon Block.

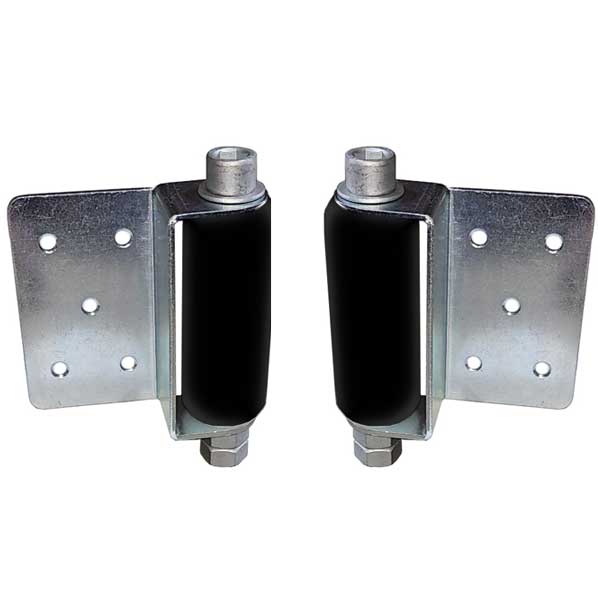

Independent roller system (Black)
Typically (but not exclusively) used with spear design gates, a guide roller on each side (inside support post also required) WITHOUT the need of an overhead bracket allows for any protrusion above the gate frame to run through without an issue as the rollers contact each side of the gate frame, it does however require the gate to operate on a level grade, if not see the C channel section option with Nylon Block.

Gate Catcher/Receiver Meeting Point

Multiple options available to choose from based on the gates total thickness including and cladding material if applicable. It is recommended to use a gate catcher that is 10mm greater than the gate thickness. All catchers are available with offset brackets allowing for closing behind a post (as opposed to up to a post).

Available in 50mm and 75mm entry points.Best suited for gates that close up to a post.

sliding-gate-catcher-reciever-with-top-cap

Available in 60mm and 80mm (Anti Lift).Best suited for gates that close up to a post.

Sliding-gate-adjustable-catcher-with-roller-anti-scratch-

Adjustable from 55mm-90mm.Best suited for gates that close up to a post.

Including the Offset bracket to help align to a gate sliding behind a post- available in 50mm and 75mm entry

Including the Offset bracket to help align to a gate sliding behind a post- available in 60mm and 80mm entry (Anti Lift)

Sliding-gate-adjustable-catcher-with-roller-anti-scratch-OFFSET-Bracket

Including the HAEVY DUTY Offset bracket to help align to a gate sliding behind a post- Adjustable from 55mm to 90mm

Sliding Gate Wheel Options

Internal Recess/Flush Mount Wheels

Internal Double bearing wheels allow the gate wheels to be recessed into the bottom of the gate frame (minimum height 75mm tubing), they keep the gate close to the ground track system (normally within 25mm) and provide the neatest aesthetic. The small pocket cut into the bottom of the gate is not greater than the 78mm wheel diameter and allows the flange points to meet with the tubing on either side and screw into place.

External Surface Mount Wheels

The easiest to install, these bearing wheels screw directly to the bottom of the gate tubing without any need for cutting, the external surface mounting wheels typically raise the gate 90mm from the ground track system.

Sliding Gate Ground/Floor Track

The sliding gate ground track is formed from galvanized steel to the R10 profile, this profile is proven to be the smoothest operation for the gate wheels without any negative characteristics like the older v groove designs.

The track is secured to the driveway using plugs and screws or knock in’s such as anchor nails, its important to use a fixing that does not protrude greater than 3-4mm to prevent contact with the gate wheels.

✓ Galvanized Steel
✓ Elongated 6mm holes allow for adjustment before final tie down
✓ Suits all R10 gate wheels

Gate Stopper

The gate stopper is a crucial part to any sliding gate installation, the stop is installed at the end of the open position to prevent the gate from being opened past the normal open point which prevents the sliding gate from coming off the track (or out of the top guiding system.

✓ Rubber Bumper
✓ 115mm High
✓ 8mm stem and 4mm base steel thickness

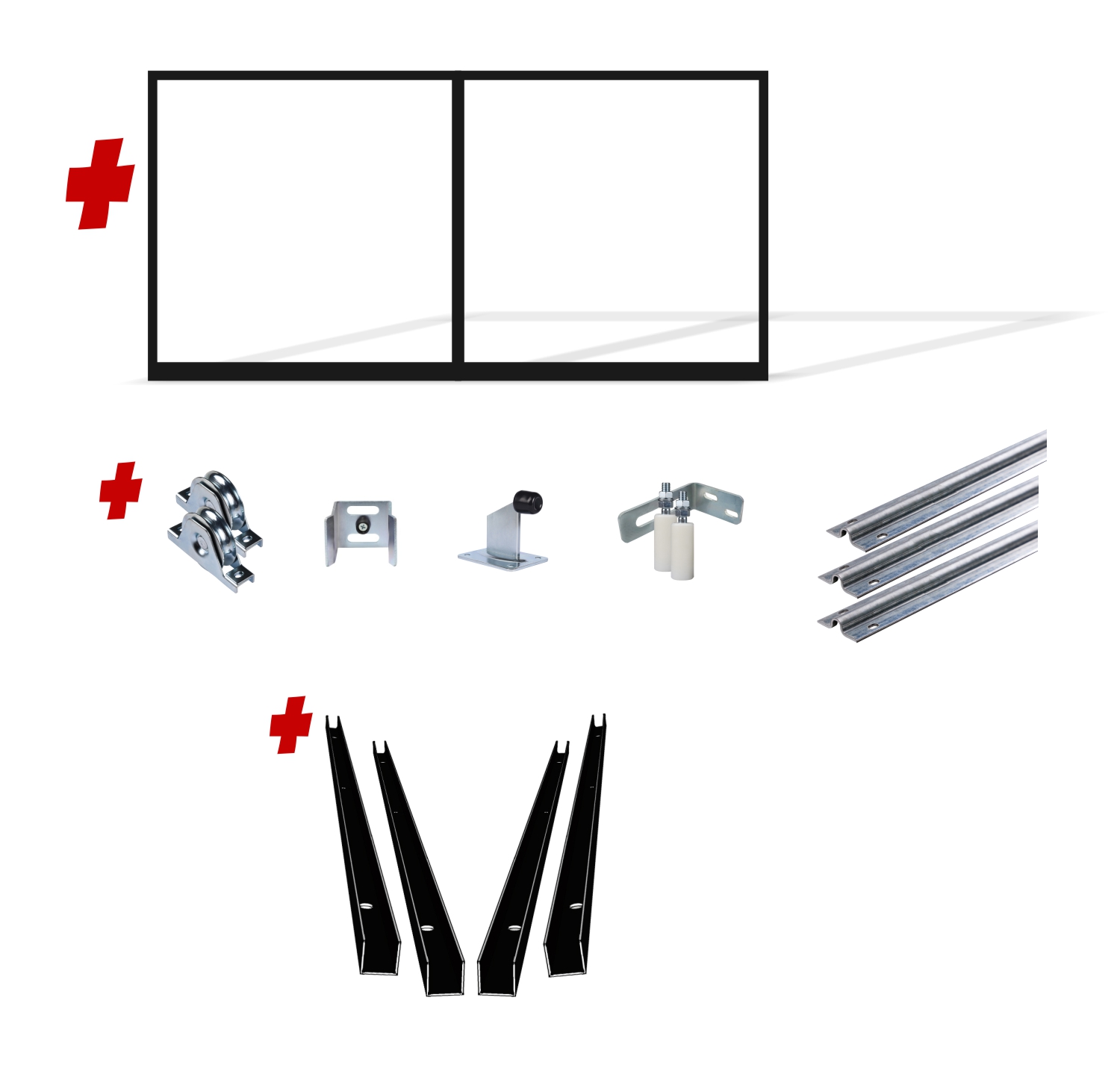

Kit Contents (See Description Tab for Full In-Depth Details)

Bulky item

No description available...

x

3570mm x 1200mm Cladding Driveway Gate Frame (Internal/External Cladding) (Satin Black Powder Coat)

Out Of Stock
Description

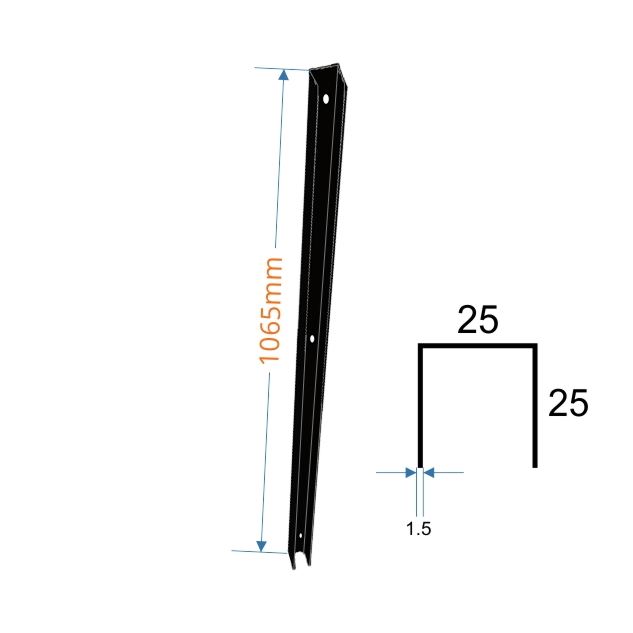

Cladding Channel Set

Designed to be installed within the gate frame to allow for horizontal cladding. Pre-punched with three holes for fixing to the gate frame by metal screw. Additional holes along the back side (inside of property) will be required to fix the cladding in position.

Key Features
✓ 1065mm Long fits within the gate frame without the need to cut ✓ Can also be used for fencing ✓ Pre-Galvanized Steel ✓ Suits up to 20mm cladding material ✓ Satin Black Powder Coating (NIGHT SKY COLOUR)

x

Cladding Gate Channel (4 Pack) To Suit 1.2m Frame 25x25x25mm (1.6mm) 1065mm Length Suits Merbau, Hardwood and Slats

Screws directly into the inside of the frame allowing for horizontal cladding material up to 20mm in thickness.

Show more

Screws directly into the inside of the frame allowing for horizontal cladding material up to 20mm in thickness.

×

Out Of Stock
No description available...

x

R10 Gal Steel Sliding Gate Track (QTY is Total Meters) × 7

Galvanized Steel Construction, nailed/anchored down to the concrete for the gate wheels to roll on

Show more

Galvanized Steel Construction, nailed/anchored down to the concrete for the gate wheels to roll on

×

Out Of Stock

Gate Catcher

Out Of Stock

Gate Catcher Options *

Clear

Out Of Stock

Upper Roller Guide System

Out Of Stock

Upper Roller Guide Options *

Clear

Out Of Stock

Sliding Gate Wheels

Out Of Stock

Sliding Gate Wheel Options *

Clear

Out Of Stock

Description

120mm Height Sliding Gate Stop

The gate stopper is a crucial part to any sliding gate installation, the stop is installed at the end of the open position to prevent the gate from being opened past the normal open point which prevents the sliding gate from coming off the track (or out of the top guiding system.
✓ Rubber Bumper ✓ 120mm High ✓ 8mm stem and 4mm base steel thickness

Dimensions

x

120mm Height Sliding Gate Stopper Steel Bolt Down

Out Of Stock

Optional Add On's

Bulky item

Description

Powder Coated Gate and Fence Post 100x100mm

✓ Pre-Galvanized Steel ✓ Powder Coated Black (Night Sky) ✓ 100x100x2660mm(2.66 Meters)- 2.5mm Wall Thickness

x

100x100x2660 (2.7m) Steel Gate Fence Post Powder Coated Night Sky Satin Black

Add for

$215.00

$160.00

Save $55.00

Out Of Stock
Bulky item

Description

Powder Coated Gate and Fence Post 100x100mm with Base Ground Plate

✓ Smart Design flush (within 5mm) welded base plate allows for fixings of base plate on the inside of fence line, can go against walls, etc. ✓ Pre-Galvanized Steel ✓ Powder Coated Black (Night Sky) ✓ 100x100x2000mm(2.0 Meters)- 2.0mm Wall Thickness / 5mm Base Plate

x

100x100x2000 (2.0m) Steel Gate Fence Post WITH BASE PLATE (Bolt Down) Powder Coated Night Sky Satin Black

Add for

$170.00

$135.00

Save $35.00

Out Of Stock

100x100x2000 (2.0m) Steel Gate Fence Post WITH BASE PLATE (Bolt Down) Powder Coated Night Sky Satin Black quantity
Bulky item

Description

Powder Coated Gate and Fence Post 75x75mm

✓ Pre-Galvanized Steel ✓ Powder Coated Black (Night Sky) ✓ 75x75x2660mm(2.66 Meters)- 2.0mm Wall Thickness

x

FENCE POST 75x75x2660 (2.7m) Steel Post Powder Coated Night Sky Satin Black

Add for

$135.00

$105.00

Save $30.00

Out Of Stock

75x75x2660 (2.7m) Steel Gate Fence Post Powder Coated Night Sky Satin Black quantity
Bulky item

Description

Powder Coated Gate and Fence Post 50x50mm

✓ Pre-Galvanized Steel ✓ Powder Coated Black (Night Sky) ✓ 50x50x2660mm(2.66 Meters)- 1.5mm Wall Thickness

x

Optionally used for Pedestrian Gate 50x50x2660 (2.7m) Steel Post Powder Coated Night Sky Satin Black

Add for

$85.00

$50.00

Save $35.00

Out Of Stock

50x50x2660 (2.7m) Steel Gate Fence Post Powder Coated Night Sky Satin Black quantity
No description available...

x

Lock 35mm Kit (Lock + Handle + Cylinder surrounds)

Add for

$89.00

Out of stock

Out Of Stock

Pedestrian Gate Hinge (Choose a side)

Add for

$15.00

Out Of Stock

Bulky item

880mm x 1200mm Cladding Pedestrian Gate Frame (Internal/External Cladding) (Satin Black Powder Coat)

Add for

$145.00

Out Of Stock

Manuals

Alpha-Automation-Sliding-Gate-Installation-Helpful-Guide V2
