Bulky Item
Add to Cart To Get a Personalised Freight Quote

Up to 3200mm / 3.2m Opening 3.6×1.5m Sliding Driveway Gate Package Alternating Picket Steel Gate (Satin Black Powder Coat)

SKU: ALT15-3570 x1+POSTS+SLIDEHW

$1,279.00

$1,155.00

Save $124.00

  • Bulky Item Shipping costs are calculated during checkout
  • 1 Year Warranty
  • Brand : Alpha Automation
Alternating Picket Design
Up to 3.2m Opening (3600mm Gate)
1500mm Height
  • Alternating Picket Design
  • Up to 3.2m Opening (3600mm Gate)
  • 1500mm Height

In stock

Click & Collect

Delivery

In-Store

Driveway Sliding Gate with Alternating Pickets

Steel Driveway Gate flat top design

The Alternating top design gate combines the classic design with a more modern appearance. Each picket in the top rail section of the gate is alternating and still provides excellent security as the gates remining section has pickets throughout. The gate height is 1.5m (1500mm) allowing for use in most driveway installations

The construction is of pre-galvanized steel RHS tubing for the Bottom Rail (80x40mm), SHS tubing (40x40mm Top, Sides and Horizontal Rails) and steel pickets (19mm), every join on the gate is welded providing the best strength and rigidity unlike flat pack gates.

Key Features

✓ Proper Rigid Steel Gate, 100% Welded (NO flat pack and NO concerns about flex, integrity or assembly)
✓ Pre-Galvanized Steel Tubing
✓ Satin Black Powder Coating (NIGHT SKY COLOUR)
✓ RHS 80×40 Bottom Rails
✓ SHS 40×40 Top, Sides and Additional Rails
✓ 19mm Pickets Welded at 4 TOP Points Per Intersecting Rail
✓ Alternating picket design in top rail for ultra modern appearance

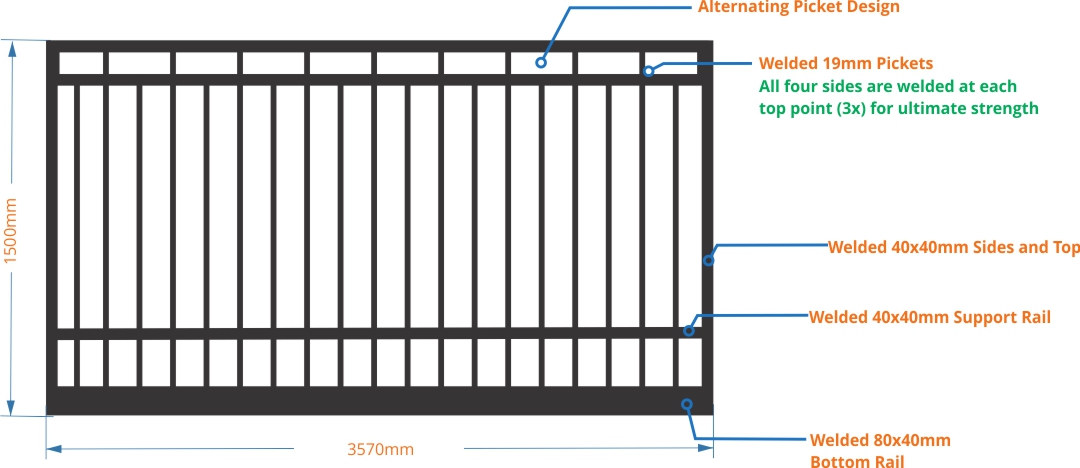

Dimensions

Gate Measurement Steel Driveway Gate flat top design

Important Information – Measurement details and Requirements

Width of Gate Panel 3570mm EACH
Height of Gate Panel 1500mm
Max Sliding Gate Opening Size (Manual Operation: 3400mm)(Automated/Motorised: 3140mm)
Min. clear area for gate to open to 3770mm including a gate stop

Post Options

  • 100x100x2000mm, Bolt down with base plate post only used when unable to concrete a post into the ground, if use with cladded gates consider bracing the post
  • 100x100x2660mm, Suitable for applications with heavier gates (eg. cladded with light timber, colorbond etc.) and automatic applications
  • 150x150x2700mm, Suitable for applications with heavier gates (eg. cladded with Hardwoods) and automatic applications
  • 200x200x2700mm, Suitable for applications with heavier gates (eg. cladded with Hardwoods) and automatic applications. Provides the highest end aesthetic look.

Sliding-gate-on-track-residential

Top Guide System Options

Multiple options available to choose from based on two factors:

1. Protrusions above the gate such as spears.

2. Gates total thickness including and cladding material if applicable.

175mm Bracket with 100mm Nylon Rollers

175mm top bracket with 100mm rollers

The 175mm overhead bracket allows for an adjustment up to maximum total gate thickness of 75mm. This is the standard option typically used with 40/50mm thick gates without cladding and allows for minor adjustment.

210mm Bracket with 100mm Nylon Rollers

210mm top bracket with 100mm rollers

The 210mm Longer overhead bracket allows for a full adjustment up to maximum total gate thickness of 115mm. This is typically the go to in most cases when using an overhead bracket and roller arrangement as it allows for all standard gate thickness and also surface mounted horizontally clad gates or gates that need a larger set back away from the post. It is constructed of DUAL C channels providing the best rigidity and with no flex under load.

Independent Rollers

independent rollers and brackets
Typically (but not exclusively) used with spear design gates, a guide roller on each side (inside support post also required) WITHOUT the need of an overhead bracket allows for any protrusion above the gate frame to run through without an issue as the rollers contact each side of the gate frame, it does however require the gate to operate on a level grade, if not see the C channel section option with Nylon Block.

C Channel Section with Nylon Block

c channel and nylon block

This system requires a support post behind the gate on the inside, the C channel option chosen ideally should be same material as the post (Both Steel and Aluminum choices are available).

On the back of the gate a welded 40×40 angle (or screw on Z section, available as an optional item) slides through the nylon block.

Best suited for gates on a grade where the guide system must follow UP/DOWN during the gates operation, Suitable for gates where there is overhead protrusions such as spears, suitable for gates with face mounted cladding to the frame.

White and Black nylon block options are available.

Gate Catcher/Receiver Meeting Point

Multiple options available to choose from based on the gates total thickness including and cladding material if applicable. It is recommended to use a gate catcher that is 10mm greater than the gate thickness.

50mm Catcher Option

50mm gate catcher with Anti-Lift top cap

50mm Catcher is used with gates not exceeding 40mm (typically 40×40 tubing gates)

60mm Catcher Option (with Anti-Lift Top Cap)

60mm gate catcher with Anti-Lift top cap
60mm Catcher is used with gates not exceeding 50mm (typically 50×50 tubing gates). It has a top cap to prevent the gate from being lifted when in the closed position.

80mm Catcher Option (with Anti-Lift Top Cap)

80mm gate catcher with Anti-Lift top cap

80mm Catcher is used with gates not exceeding 70mm (typically externally face cladded gates). It has a top cap to prevent the gate from being lifted when in the closed position.

55-90mm Adjustable Catcher Option

55-90mm adjustable gate catcher
55-90mm Adjustable entry catcher, suitable for gates from 40mm to 80mm total thickness requiring a roller entry point due to wind loading or otherwise). Highly effective option for cladded gates prone to wind loading.

55-90mm Adjustable Catcher Option + OFFSET bracket (with Anti-Lift Top Cap)

55-90mm adjustable gate catcher with Anti-Lift top cap and adjustable offset bracket
55-90mm Adjustable entry catcher, suitable for gates from 40mm to 80mm total thickness requiring a roller entry point due to wind loading or otherwise). Highly effective option for cladded gates prone to wind loading. The key additional feature of this catcher is the ability to adjust its alignment with the offset bracket making it perfect for when the posts side face does not align with the gate.

Sliding Gate Wheel Options

Internal Recess/Flush Mount Wheels

Sliding gate internal recess bearing wheel

Internal Double bearing wheels allow the gate wheels to be recessed into the bottom of the gate frame (minimum height 75mm tubing), they keep the gate close to the ground track system (normally within 25mm) and provide the neatest aesthetic. The small pocket cut into the bottom of the gate is not greater than the 78mm wheel diameter and allows the flange points to meet with the tubing on either side and screw into place.

External Surface Mount Wheels

Sliding gate internal recess bearing wheel

The easiest to install, these bearing wheels screw directly to the bottom of the gate tubing without any need for cutting, the external surface mounting wheels typically raise the gate 90mm from the ground track system.

Sliding Gate Ground/Floor Track

domes r10 sliding gate track round profile bolt down to ground concrete

The sliding gate ground track is formed from galvanized steel to the R10 profile, this profile is proven to be the smoothest operation for the gate wheels without any negative characteristics like the older v groove designs.

The track is secured to the driveway using plugs and screws or knock in’s such as anchor nails, its important to use a fixing that does not protrude greater than 3-4mm to prevent contact with the gate wheels.

✓ Galvanized Steel
✓ Elongated 6mm holes allow for adjustment before final tie down
✓ Suits all R10 gate wheels

Gate Stopper

Sliding gate stop

The gate stopper is a crucial part to any sliding gate installation, the stop is installed at the end of the open position to prevent the gate from being opened past the normal open point which prevents the sliding gate from coming off the track (or out of the top guiding system.

✓ Rubber Bumper
✓ 115mm High
✓ 8mm stem and 4mm base steel thickness

Kit Contents (See Description Tab for Full In-Depth Details)

  • Bulky item
    Description

    Driveway Swing/Sliding Gate with Alternating Pickets

    Steel Driveway Gate flat top design

    The Alternating top design gate combines the classic design with a more modern appearance. Each picket in the top rail section of the gate is alternating and still provides excellent security as the gates remining section has pickets throughout. The gate height is 1.5m (1500mm) allowing for use in most driveway installations

    The construction is of pre-galvanized steel RHS tubing for the Bottom Rail (80x40mm), SHS tubing (40x40mm Top, Sides and Horizontal Rails) and steel pickets (19mm), every join on the gate is welded providing the best strength and rigidity unlike flat pack gates.

    Key Features

    ✓ Proper Rigid Steel Gate, 100% Welded (NO flat pack and NO concerns about flex, integrity or assembly) ✓ Pre-Galvanized Steel Tubing ✓ Satin Black Powder Coating (NIGHT SKY COLOUR) ✓ RHS 80x40 Bottom Rails ✓ SHS 40x40 Top, Sides and Additional Rails ✓ 19mm Pickets Welded at 4 TOP Points Per Intersecting Rail ✓ Alternating picket design in top rail for ultra modern appearance

    Dimensions

    Gate Measurement Steel Driveway Gate flat top design

    Important Information - Measurement details and Requirements

    Width of Gate Panel 3570mm EACH
    Height of Gate Panel 1500mm
    Max Sliding Gate Opening Size (Manual Operation: 3400mm)(Automated/Motorised: 3140mm)
    Additional Space Requirements SWING GATE 15-20mm for EACH Hinge Side + 15-20mm Between Gates in Centre (Double Gates)/End of gate (Single Gate)
    x

    3570mm x 1500mm Alternating Picket Driveway Steel Gate (Satin Black Powder Coat)

    Out Of Stock

  • No description available...
    x

    Gate Posts × 2

    Select the post size that best suits your clearance area.

    Show more

    Select the post size that best suits your clearance area.

    ×
    Out Of Stock
    Clear
    Out Of Stock

  • No description available...
    x

    R10 Gal Steel Sliding Gate Track (QTY is Total Meters) × 7

    Galvanized Steel Construction, nailed/anchored down to the concrete for the gate wheels to roll on

    Show more

    Galvanized Steel Construction, nailed/anchored down to the concrete for the gate wheels to roll on

    ×
    Out Of Stock

  • Bundled product placeholder image
    No description available...
    x

    Gate Catcher

    Out Of Stock
    Clear
    Out Of Stock

  • Bundled product placeholder image
    No description available...
    x

    Upper Guide System

    Out Of Stock
    Clear
    Out Of Stock

  • Bundled product placeholder image
    No description available...
    x

    Sliding Gate Wheels

    Out Of Stock
    Clear
    Out Of Stock

  • Description

    120mm Height Sliding Gate Stop

    Sliding gate stop

    The gate stopper is a crucial part to any sliding gate installation, the stop is installed at the end of the open position to prevent the gate from being opened past the normal open point which prevents the sliding gate from coming off the track (or out of the top guiding system.

    ✓ Rubber Bumper ✓ 120mm High ✓ 8mm stem and 4mm base steel thickness

    Dimensions

    sliding gate stop 120mm height
    x

    120mm Height Sliding Gate Stopper Steel Bolt Down

    Out Of Stock

Optional Add On's

  • Bulky item
    Description

    Powder Coated Gate and Fence Post 75x75mm

    75mm gate fence post powder coat black
    ✓ Pre-Galvanized Steel ✓ Powder Coated Black (Night Sky) ✓ 75x75x2660mm(2.66 Meters)- 2.0mm Wall Thickness
    x

    FENCE POST 75x75x2660 (2.7m) Steel Post Powder Coated Night Sky Satin Black

    Out Of Stock

  • Bulky item
    Description

    Powder Coated Gate and Fence Post 50x50mm

    50mm gate fence post powder coat black
    ✓ Pre-Galvanized Steel ✓ Powder Coated Black (Night Sky) ✓ 50x50x2660mm(2.66 Meters)- 1.5mm Wall Thickness
    x

    Optionally used for Pedestrian Gate 50x50x2660 (2.7m) Steel Post Powder Coated Night Sky Satin Black

    Out Of Stock

  • No description available...
    x

    Lock 35mm Kit (Lock + Handle + Cylinder surrounds)

    Out of stock

    Out Of Stock

  • No description available...
    x

    Pedestrian Gate Hinge (Choose a side)

    Out Of Stock

  • Bulky item
    Description

    Driveway Pedestrian Gate with Alternating Pickets

    Steel Driveway Gate top alternating design

    The Alternating top design gate combines the classic design with a more modern appearance. Each picket in the top rail section of the gate is alternating and still provides excellent security as the gates remining section has pickets throughout. The gate height is 1.5m (1500mm) allowing for use in most driveway installations

    The construction is of pre-galvanized steel RHS tubing for the Bottom Rail (80x40mm), SHS tubing (40x40mm Top, Sides and Horizontal Rails) and steel pickets (19mm), every join on the gate is welded providing the best strength and rigidity unlike flat pack gates.

    Key Features

    ✓ Proper Rigid Steel Gate, 100% Welded (NO flat pack and NO concerns about flex, integrity or assembly) ✓ Pre-Galvanized Steel Tubing ✓ Satin Black Powder Coating (NIGHT SKY COLOUR) ✓ RHS 80x40 Bottom Rails ✓ SHS 40x40 Top, Sides and Additional Rails ✓ 19mm Pickets Welded at 4 TOP Points Per Intersecting Rail ✓ Alternating picket design in top rail for ultra modern appearance

    Dimensions

    gate measurements flat top alt design

    Important Information - Measurement details and Requirements

    Width of Gate Panel 880mm EACH
    Height of Gate Panel 1500mm
    Additional Space Requirements 15-20mm for EACH Hinge Side + 15-20mm Between Gates in Centre (Double Gates)/End of gate (Single Gate)
    x

    880mm x 1500mm Alternating Picket Steel Pedestrian Gate (Satin Black Powder Coat)

    Out Of Stock

  • No description available...
    x

    Fence Panel Screw On Socket Kit Tops and Bottom (Both Sides)-PER PANEL

    Out Of Stock

  • Bulky item
    Description

    Fence Panel with Alternating Pickets

    Fence Panel With flat top design

    The Alternating top design fence panel combines the classic design with a more modern appearance. Each picket in the top rail section of the fence panel is alternating and still provides excellent security as the fence panel remining section has pickets throughout. The panel height is 1.5m (1500mm) allowing for use in most driveway installations

    The construction is of pre-galvanized steel RHS tubing for the Bottom Rail (80x40mm), SHS tubing (40x40mm Top, Sides and Horizontal Rails) and steel pickets (19mm), every join on the fence panel is welded providing the best strength and rigidity unlike flat pack fence panels.

    Key Features

    ✓ Proper Rigid Steel fence panel, 100% Welded (NO flat pack and NO concerns about flex, integrity or assembly) ✓ Pre-Galvanized Steel Tubing ✓ Satin Black Powder Coating (NIGHT SKY COLOUR) ✓ SHS 40x40 Top Rails x2 and Bottom ✓ 19mm Pickets Welded at 4 TOP Points Per Intersecting Rail ✓ Alternating picket design in top rail for ultra modern appearance

    Dimensions

    fence panel Measurement Steel Driveway fence panel flat top design

    Important Information - Measurement details and Requirements

    Width of fence panel Panel 2400mm EACH
    Height of fence Panel 1500mm
    Max. Post Span 2400mm
    Min. Post Span Any, Cut to size
    x

    **PICKUP ONLY** 2400mm x 1500mm Alternating Picket FENCE PANEL- Cut to width during install (Satin Black Powder Coat)

    Out of stock

    Out Of Stock
