Up to 3600mm / 3.6m Opening (1200mm H) 4.17×1.2m Sliding Driveway Gate Package Cladding Gate Frame (External Cladding) (Satin Black Powder Coat)

Name: Up to 3600mm / 3.6m Opening (1200mm H) 4.17x1.2m Sliding Driveway Gate Package Cladding Gate Frame (External Cladding) (Satin Black Powder Coat)
SKU: FRAME12-4170-EXTCLAD x1+SLIDEHW
Price: 748 AUD
Availability: InStock

SKU: FRAME12-4170-EXTCLAD x1+SLIDEHW

$781.00

$748.00

Save $33.00

Bulky Item Shipping costs are calculated during checkout
1 Year Warranty
Brand : Alpha Automation

External Cladding Frame

1200mm Height

Up to 3.6 Opening (4170mm Gate)

External Cladding Frame
1200mm Height
Up to 3.6 Opening (4170mm Gate)

In stock

Click & Collect

Delivery

In-Store

Versatile Driveway Sliding Gate Frame for cladding

Versatile driveway gate frame for cladding

The versatile design gate frame is suitable for both INTERNAL horizontal cladding (up to 20mm material thickness) or EXTERNAL vertical/Horizontal Cladding of any thickness. The gate features a center 40x40mm dividing the cladding area into two sections which does not interfere with internal cladding.

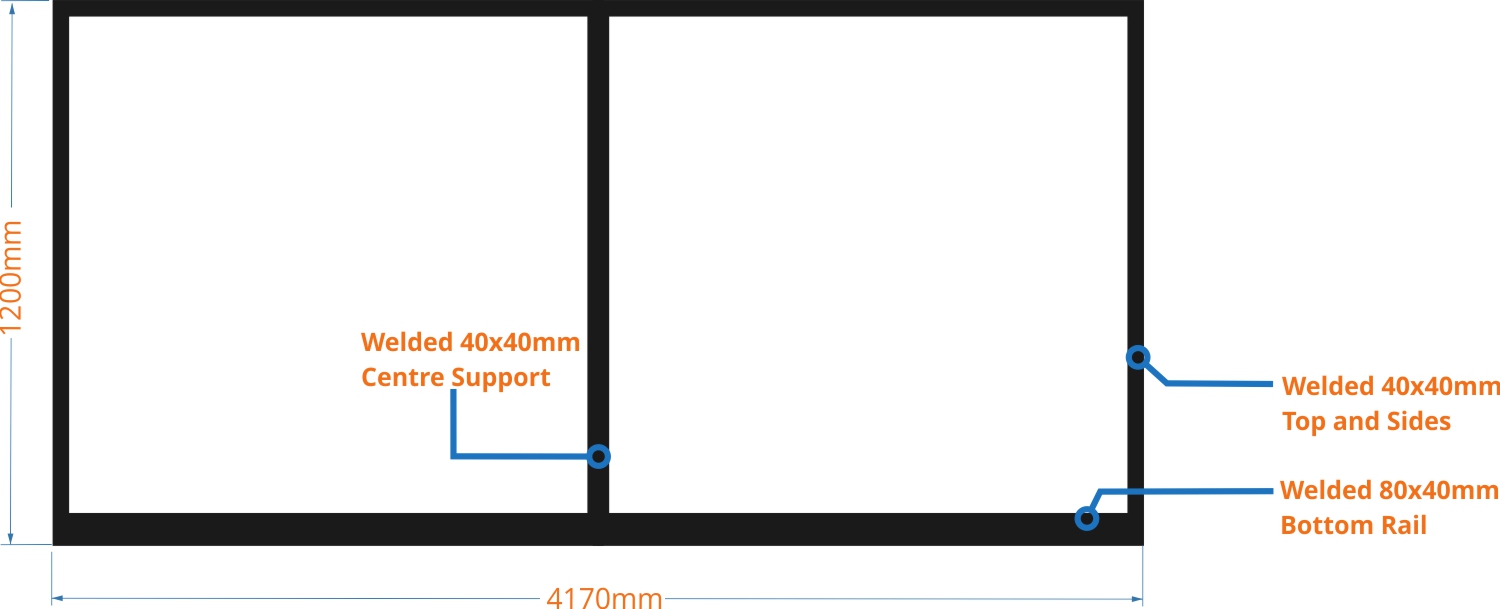

The construction is of pre-galvanized steel RHS tubing for the Bottom Rail (80x40mm), SHS tubing (40x40mm Top and Sides) and a Vertical support of 40x40mm in the center, every join on the gate is welded providing the best strength and rigidity unlike flat pack gates.

Key Features

✓ Proper Rigid Steel Gate, 100% Welded (NO flat pack and NO concerns about flex, integrity or assembly)
✓ Pre-Galvanized Steel Tubing
✓ Satin Black Powder Coating (NIGHT SKY COLOUR)
✓ RHS 80×40 Bottom Rails
✓ SHS 40×40 Top and Sides
✓ RHS 40×40 Vertical Center

Dimensions

Important Information – Measurement details and Requirements

Width of Gate Panel	4170mm EACH
Height of Gate Panel	1200mm
Max Sliding Gate Opening Size	(Manual Operation: 3970mm factors in an internal support post)(Automated/Motorised: 3670mm)
Min. clear area for gate to open to	4800mm including a gate stop

External Cladding Example

The kit is provided ready for surface mounted cladding to the front face of the gate, if required there an internal cladding version is also available (cladding set into the gate).

Sliding-gate-on-track-residential cladded

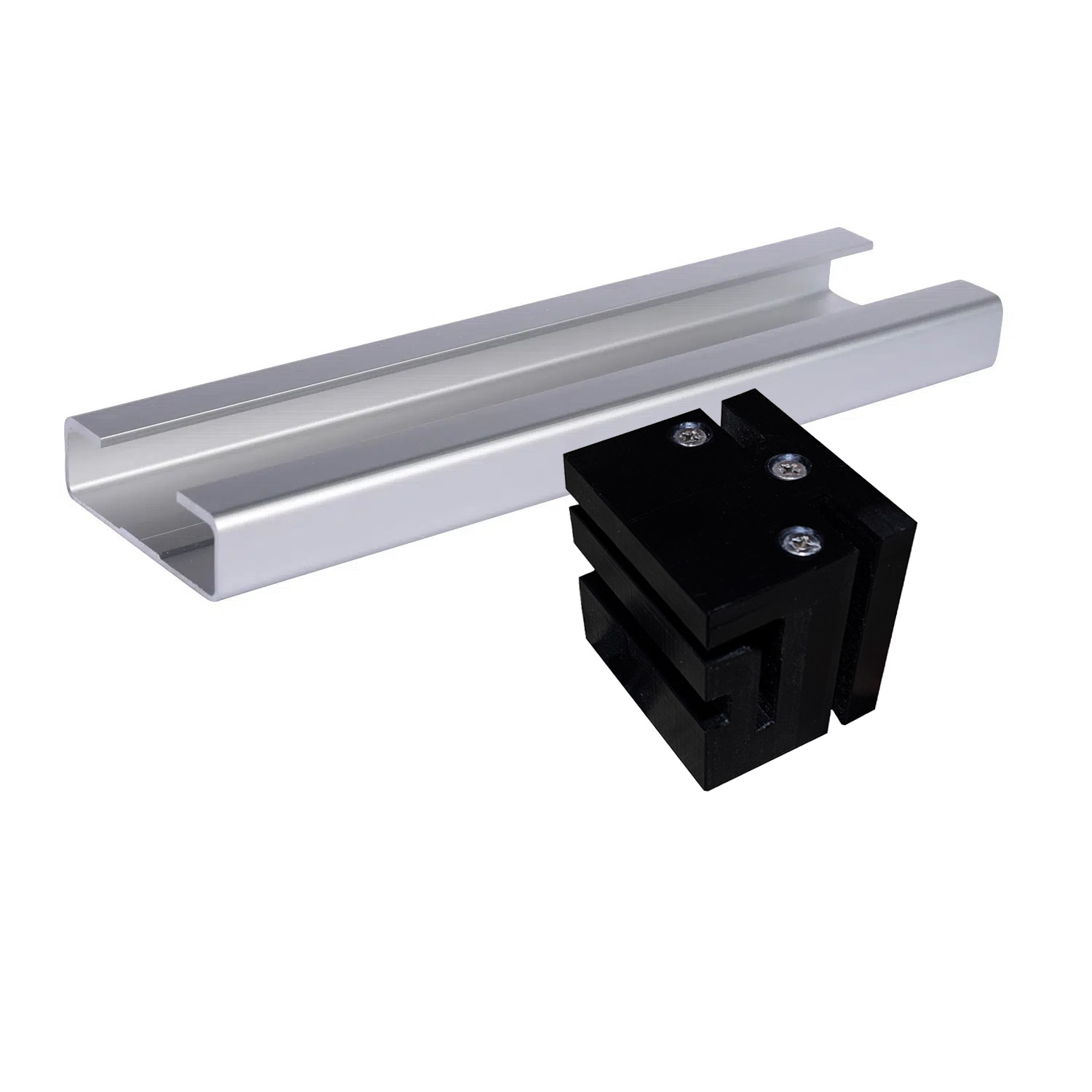

C Channel Section with Nylon Block

The C channel with Nylon Block is fitted to a support post behind the gate on the inside. On the back of the gate the supplied Z section slides through the nylon block. This totally removes the need for rollers operating on an uneven surface such as vertical cladding or any protrusions that may be above the gate frame such as spears.

The C channel and nylon block also works well for gates on a grade where the guide system must follow UP/DOWN during the gates operation, Suitable for gates where there is overhead protrusions such as spears, suitable for gates with face mounted cladding to the frame.

The C channel is available in both Steel (with top cap) and Aluminum and the Nylon block is available in both white and black colour options.

Aluminum Z Profile Angle for Rear Guiding by Nylon Block

✓ Excellent alternative to having an angle welded to the gate
✓ Compatible with all gate using 40mm tubing or greater
✓ 4mm Aluminum Extrusion Profile Specific for use with sliding gate guiding
✓ 34mm Mounting face with 6mm pre punched holes for fixing every 300mm
✓ Total offset of 42mm from gate back face to the back of the angle

Gate Catcher/Receiver Meeting Point

Multiple options available to choose from based on the gates total thickness including and cladding material if applicable. It is recommended to use a gate catcher that is 10mm greater than the gate thickness.

50mm Catcher Option

50mm gate catcher with Anti-Lift top cap

50mm Catcher is used with gates not exceeding 40mm (typically 40×40 tubing gates)

60mm Catcher Option (with Anti-Lift Top Cap)

60mm gate catcher with Anti-Lift top cap

60mm Catcher is used with gates not exceeding 50mm (typically 50×50 tubing gates). It has a top cap to prevent the gate from being lifted when in the closed position.

80mm Catcher Option (with Anti-Lift Top Cap)

80mm gate catcher with Anti-Lift top cap

80mm Catcher is used with gates not exceeding 70mm (typically externally face cladded gates). It has a top cap to prevent the gate from being lifted when in the closed position.

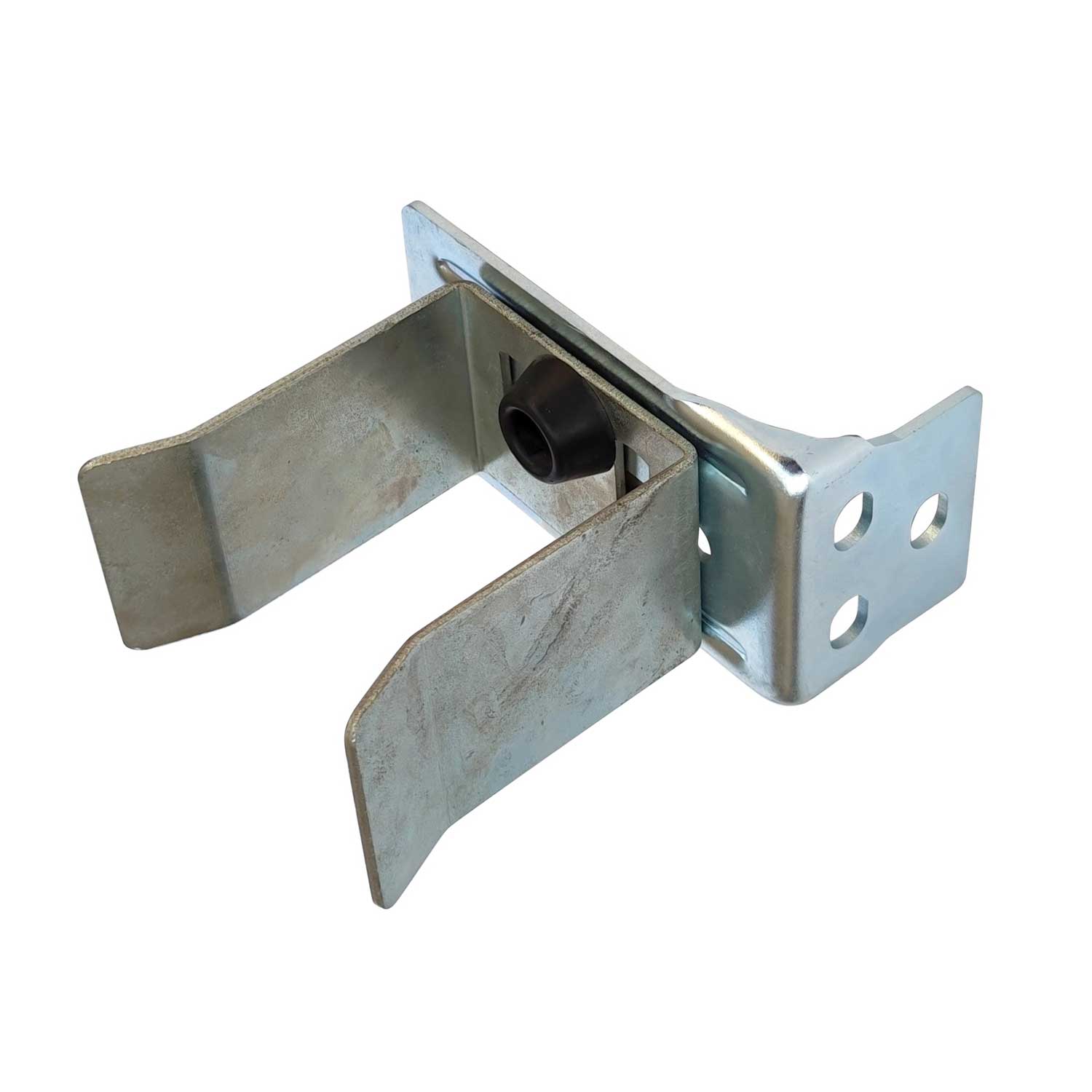

55-90mm Adjustable Catcher Option

55-90mm Adjustable Catcher Option + OFFSET bracket

55-90mm adjustable gate catcher with Anti-Lift top cap and adjustable offset bracket

55-90mm Adjustable entry catcher, suitable for gates from 40mm to 80mm total thickness requiring a roller entry point due to wind loading or otherwise). Highly effective option for cladded gates prone to wind loading. The key additional feature of this catcher is the ability to adjust its alignment with the offset bracket making it perfect for when the posts side face does not align with the gate.

Sliding Gate Wheel Options

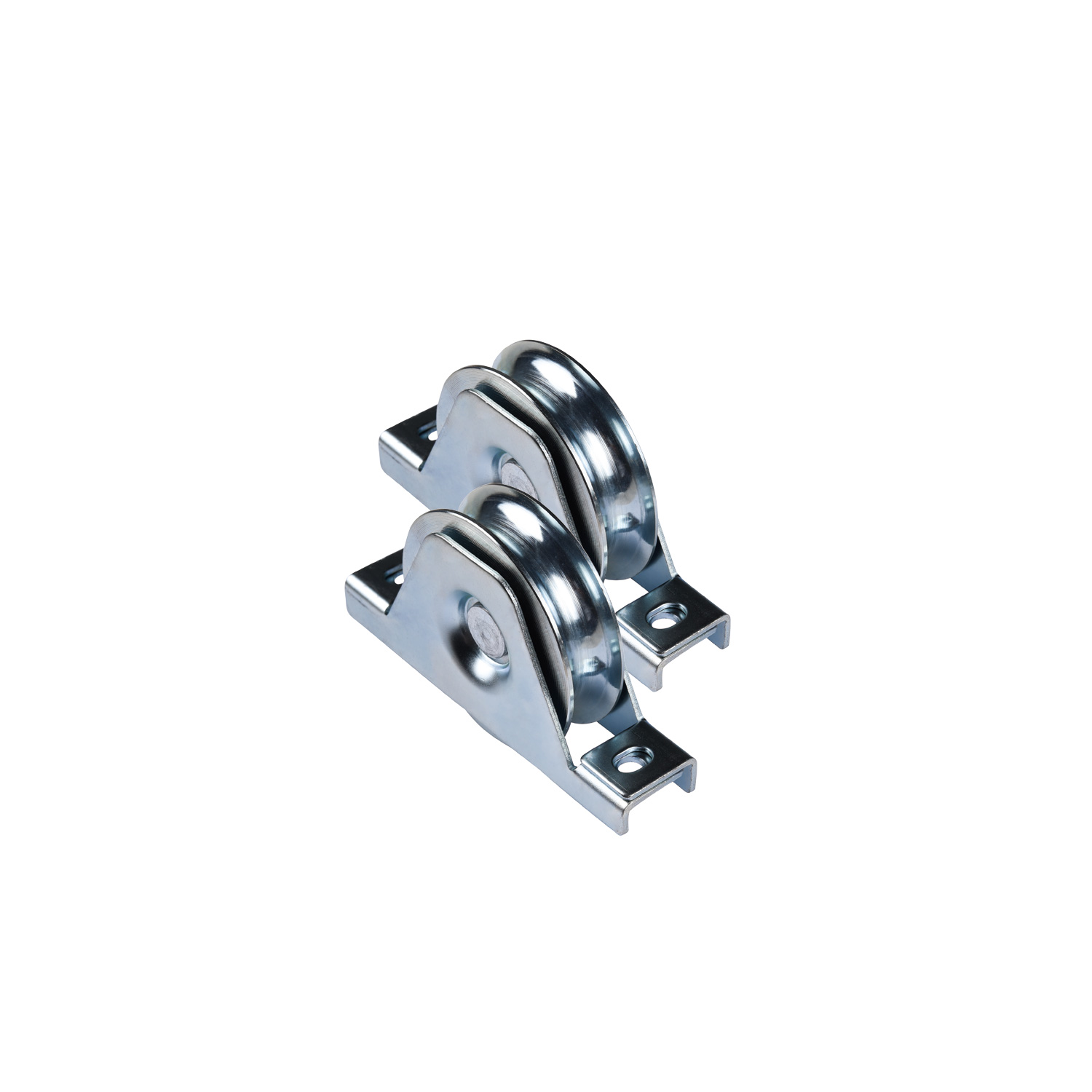

Internal Recess/Flush Mount Wheels

Sliding gate internal recess bearing wheel

Internal Double bearing wheels allow the gate wheels to be recessed into the bottom of the gate frame (minimum height 78mm tubing), they keep the gate close to the ground track system (normally within 25mm) and provide the neatest aesthetic. The small pocket cut into the bottom of the gate is not greater than the 78mm wheel diameter and allows the flange points to meet with the tubing on either side and screw into place.

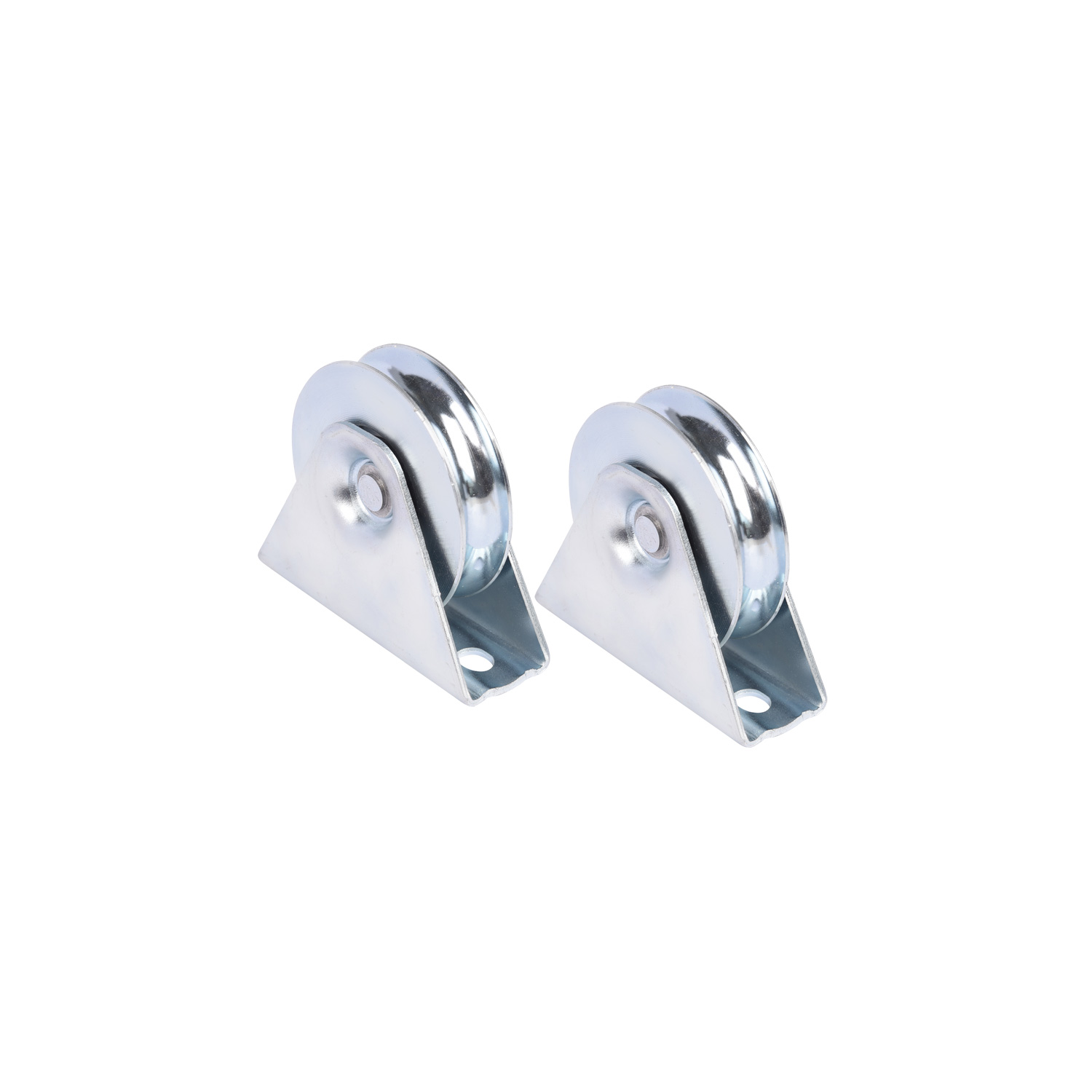

External Surface Mount Wheels

Sliding gate internal recess bearing wheel

The easiest to install, these bearing wheels screw directly to the bottom of the gate tubing without any need for cutting, the external surface mounting wheels typically raise the gate 90mm from the ground track system.

Sliding Gate Ground/Floor Track

The sliding gate ground track is formed from galvanized steel to the R10 profile, this profile is proven to be the smoothest operation for the gate wheels without any negative characteristics like the older v groove designs.

The track is secured to the driveway using plugs and screws or knock in’s such as anchor nails, its important to use a fixing that does not protrude greater than 3-4mm to prevent contact with the gate wheels.

✓ Galvanized Steel
✓ Elongated 6mm holes allow for adjustment before final tie down
✓ Suits all R10 gate wheels

Gate Stopper

The gate stopper is a crucial part to any sliding gate installation, the stop is installed at the end of the open position to prevent the gate from being opened past the normal open point which prevents the sliding gate from coming off the track (or out of the top guiding system.

✓ Rubber Bumper
✓ 115mm High
✓ 8mm stem and 4mm base steel thickness

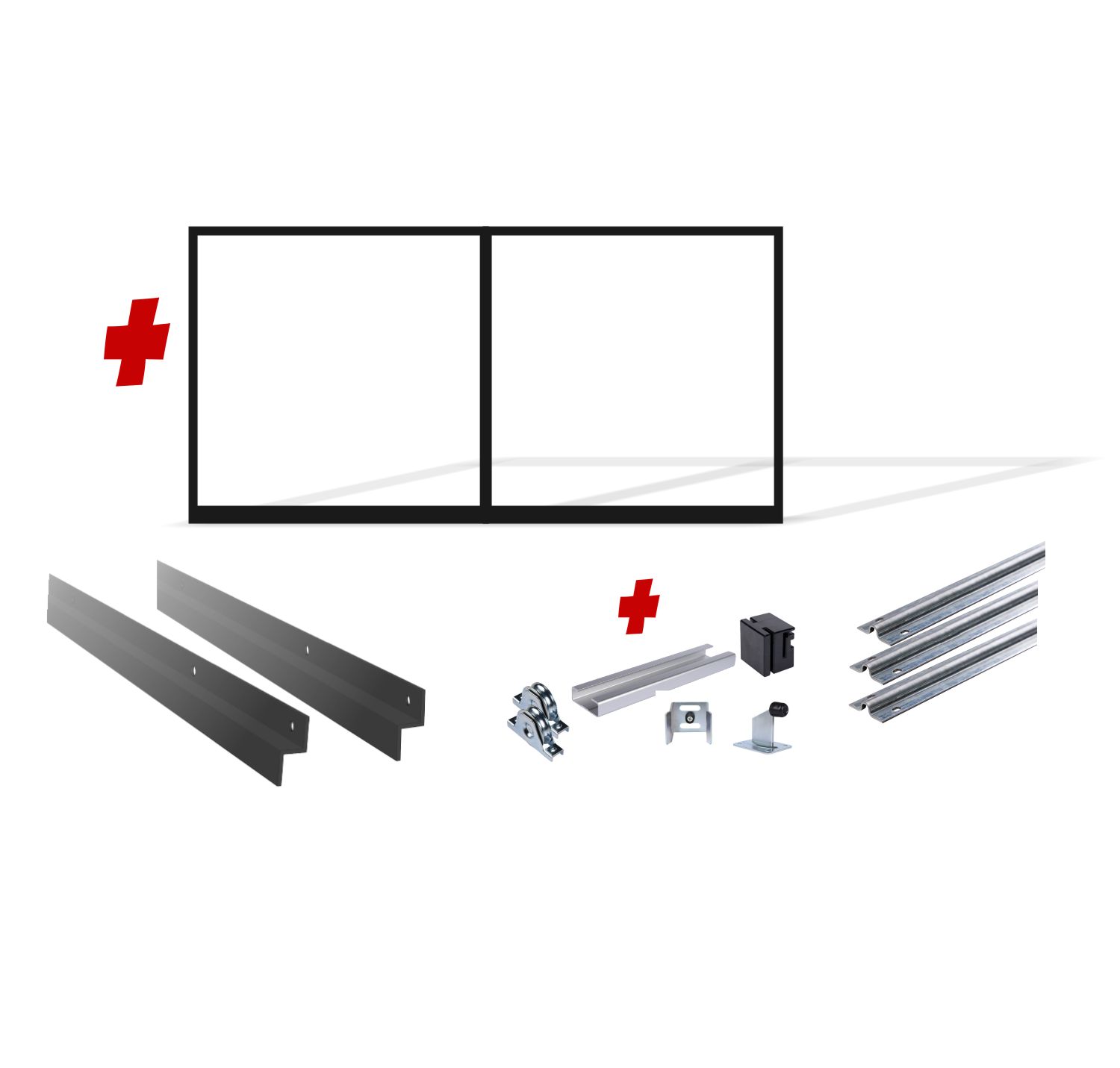

Kit Contents (See Description Tab for Full In-Depth Details)
