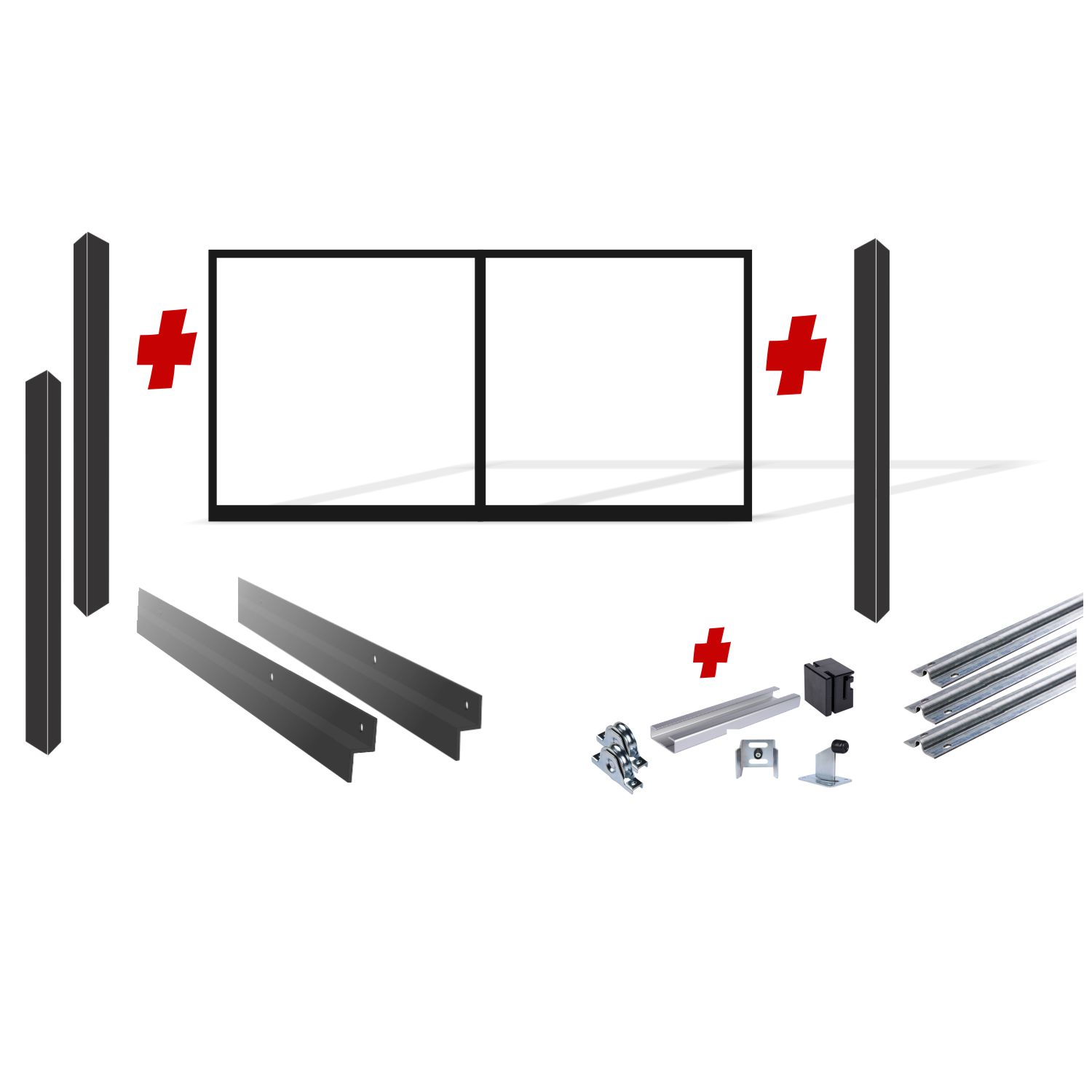

Up to 3600mm / 3.6m Opening (1500mm H) 4.17×1.5m Sliding Driveway Gate Package Cladding Gate Frame (External Cladding) (Satin Black Powder Coat)

SKU: FRAME15-4170-EXTCLAD x1+POSTS+SLIDEHW

$1,448.00

$1,255.00

Save $193.00

  • Bulky Item Shipping costs are calculated during checkout
  • 1 Year Warranty
  • Brand : Alpha Automation
External Cladding Frame
1500mm Height
Up to 3.6 Opening (4170mm Gate)
  • External Cladding Frame
  • 1500mm Height
  • Up to 3.6 Opening (4170mm Gate)

In stock

Click & Collect

Delivery

In-Store

Versatile Driveway Sliding Gate Frame for cladding

Versatile driveway gate frame for cladding

The versatile design gate frame is suitable for both INTERNAL horizontal cladding (up to 20mm material thickness) or EXTERNAL vertical/Horizontal Cladding of any thickness. The gate features a center 40x40mm dividing the cladding area into two sections, each vertical quarter line is supported with a 40x20mm vertical support rail (2x) which does not interfere with internal cladding. The frame measures 1.5m in height.

The construction is of pre-galvanized steel RHS tubing for the Bottom Rail (80x40mm), SHS tubing (40x40mm Top and Sides) and a Vertical support of 40x20mm in the center, every join on the gate is welded providing the best strength and rigidity unlike flat pack gates.

Key Features

✓ Proper Rigid Steel Gate, 100% Welded (NO flat pack and NO concerns about flex, integrity or assembly)
✓ Pre-Galvanized Steel Tubing
✓ Satin Black Powder Coating (NIGHT SKY COLOUR)
✓ RHS 80×40 Bottom Rails
✓ SHS 40×40 Top, Sides and Center
✓ RHS 40×20 Quarter Supports

External Cladding Example

external cladding gate

The kit is provided ready for surface mounted cladding to the front face of the gate, if required there an internal cladding version is also available (cladding set into the gate).

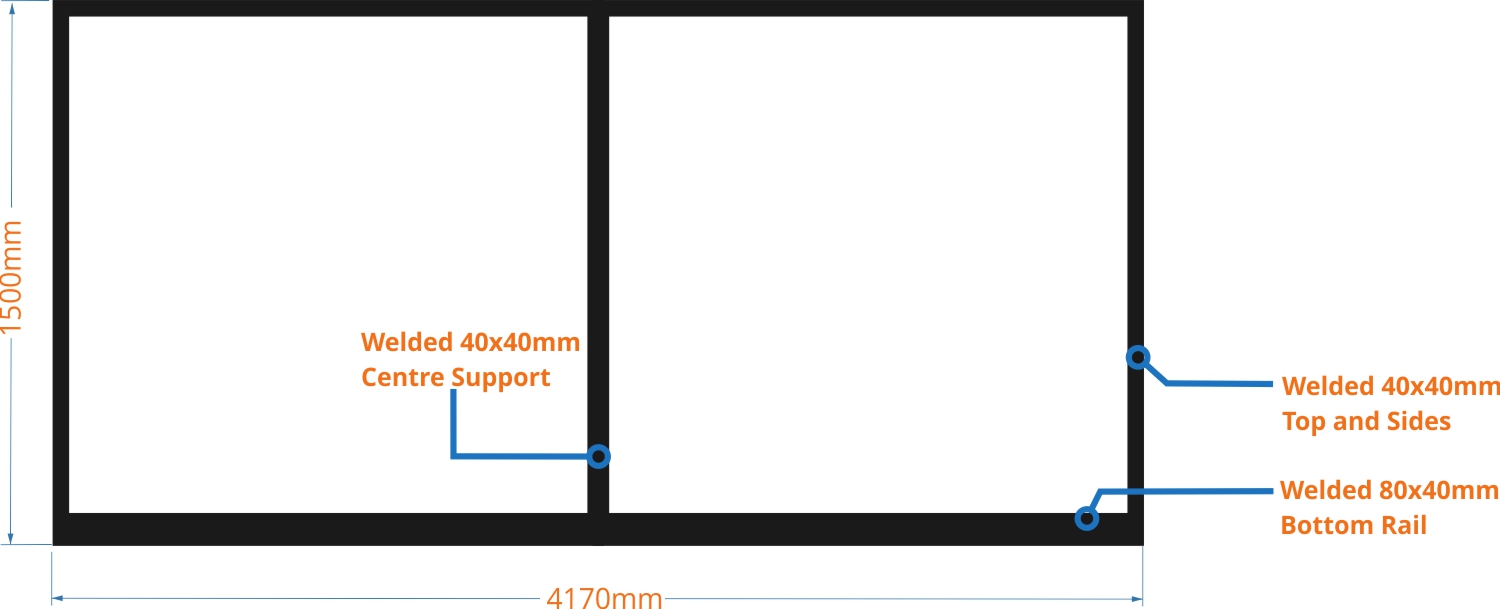

Dimensions
