Up to 4200mm / 4.2m Opening (1200mm H) 4.6×1.2m Sliding Driveway Gate Package Blade Fin Design with extra heavy duty 24v sliding gate motor

SKU: FRAME12-4600-BLADE x1+POSTS+SLIDEHW+Titan2410

$3,046.00

$2,890.00

Save $156.00

  • Bulky Item Shipping costs are calculated during checkout
  • 1 Year Warranty
  • Brand : Alpha Automation
Up to 4.2 Opening (4600mm Gate)
1200mm Height
Blade
  • Up to 4.2 Opening (4600mm Gate)
  • 1200mm Height
  • Blade

In stock

Click & Collect

Delivery

In-Store

Versatile Driveway Sliding Gate Frame for cladding

Versatile driveway gate frame for cladding

The versatile design gate frame is suitable for both INTERNAL horizontal cladding (up to 20mm material thickness) or EXTERNAL vertical/Horizontal Cladding of any thickness. The gate features a center 40x40mm dividing the cladding area into two sections which does not interfere with internal cladding.

The construction is of pre-galvanized steel RHS tubing for the Bottom Rail (80x40mm), SHS tubing (40x40mm Top and Sides) and a Vertical support of 40x40mm in the center, every join on the gate is welded providing the best strength and rigidity unlike flat pack gates.

Key Features

✓ Proper Rigid Steel Gate, 100% Welded (NO flat pack and NO concerns about flex, integrity or assembly)
✓ Pre-Galvanized Steel Tubing
✓ Satin Black Powder Coating (NIGHT SKY COLOUR)
✓ RHS 80×40 Bottom Rails
✓ SHS 40×40 Top and Sides
✓ RHS 40×40 Vertical Center

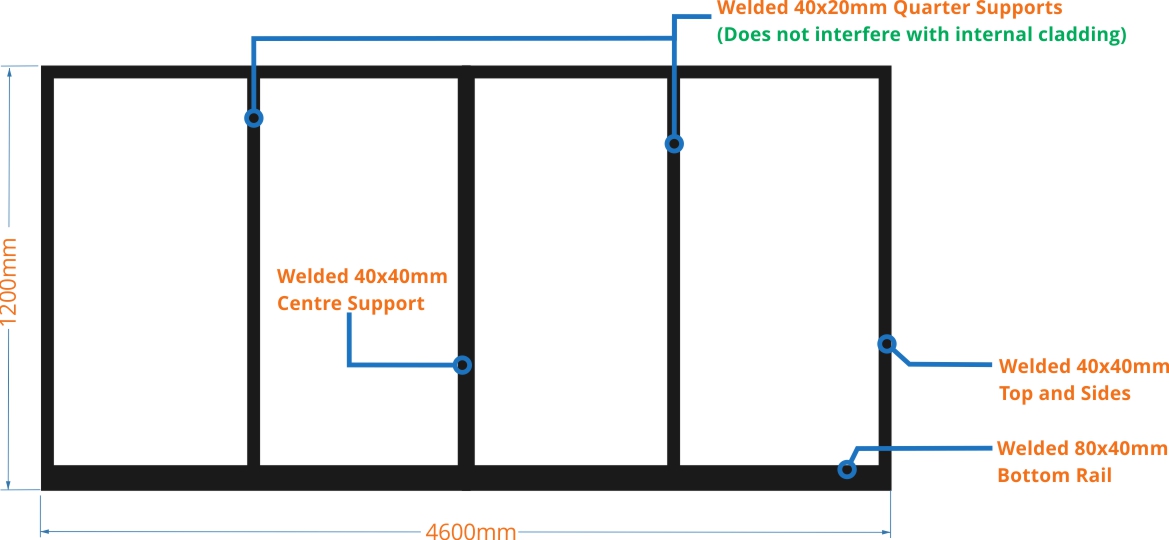

Dimensions

driveway gate for cladding measurements

Important Information – Measurement details and Requirements

Width of Gate Panel 4600mm EACH
Height of Gate Panel 1200mm
Max Sliding Gate Opening Size (Manual Operation: 4400mm factors in an internal support post)(Automated/Motorised: 4270mm)
Min. clear area for gate to open to 4800mm including a gate stop

Blade Fin Sliding Gate System

Sliding-Gate aluminum blade

Simple, Elegant and Cost Effective The Aluminium Blade (Fin) system provides maintenance free and a cost effective solution for modern gate and fencing system. Key benefits over others are:
✓ Gate Frame and Sub Structure (Blade System) are separate meaning double the vertical rails (total 4x)
✓ Easy to handle and install
✓ Aluminium caps (NOT plastic)
✓ 40×40 Vertical Rail
✓ 50×10 Vertical Slats (Blade)
✓ Welded to vertical rails

Please note that the blade panels will need to be cut to width during installation and are supplied with the special adapter sockets that allow a direct fixing to the gate frame. Cutting is easy and they will not rust both due to being aluminum material.

System Powering Options

By default in this package the system will be supplied as a powered system, (power point available at the gate)(optional uninterrupted battery back up available), optionally if required there are upgrade options available to switch to an external power supply with a lov voltage run available up to 120 meters, or a totally standalone solar system with a 60 Watt panel and 12aH Batteries.

Power at the gate (Default Option)

electric automatic sliding gate

External Low Voltage Power Supply

24v automatic sliding gate

Off Grid Standalone Solar

solar off grid automatic sliding gate

Titan 2410 Ultra Fast 24 Volt Sliding Gate Gate Motor

The Titan 2410 Sliding Gate System is built around a compact form factor yet utilizing the space for a large 180 Watt 24V DC motor delivering an unparalleled capacity of up to 1000KG gate or up to 8 Meters in length.

Clever engineering allows for the system to work in a Ultra Fast and controlled operating speed with the allowance to be reduced to a normal or even slow running speed if required. The housing is formed from die-cast alloy with a steel pinion gear and all internal mountings are of steel to provide the best physical strength both inside and outside and the peace of mind of a long service life.

Keeping it reliable and dependable the Titan series operator uses trusty micro switch limit system allowing for the added bonus of a simple (and effective) installation. Housed within the Titan system the Premier SL24 Automatic gate system controller comes standard with a state of the art feature set catering for all types of installations, whether only requiring ordinary residential operation to all the way up to a full fledged commercial setups requiring advanced logic principals taking advantage of the high 90% duty cycle ability.

The on-board display makes easy work of any settings changes if desired and is easily visible in the outdoors being the advantage of LED displays. With multiple Inputs and outputs just about any accessory is compatible with the Premier SL24 system (see the complete list below).

Also boasting multiple safety inputs along with its precise on-board detection it allows safety to remain prioritized for any application. with the optional plug and play battery back-up system you will be sure not to ever be locked out of your property.

The installation process is always kept in mind allowing up to 4 cable inputs into gate motor housing using IP68 cable glands, this allows for the best weather proofing and assists in insect proofing.

The genius automatic learning system, hold one key to enable and begin the automatic learning of the gate system and automatic definition of the ramp up and slow down points, its as easy as it gets suiting all skill levels from DIY once off installs to professional installers.

The premier controller also supports all installations with an intelligent light control system with three output options (traffic light control, driveway light control and alert strobe/courtesy light)

Ready to plug into an ordinary power point there is NO high voltage wiring required, All connections are Low Voltage and safe for all installers regardless of the skill level without the concern of electrical shock.

Key Features



✓ Fast and Efficient 24 Volt Operation
✓ Die-Cast Alloy Housing
✓ Compact Footprint
✓ Multiple Cable entries by IP68 rated Glands
✓ Steel Pinion Gear
✓ Open and Closed Position Easy Micro-Switch Limits
✓ Flexible size and weight capacities

Secure yet Easy Manual Release

A peak inside the Titan Series Operator

Tough 180 Watt DC Motor and Digital Logic Controller

high quality strong automatic low voltage sliding gate motor

Steel Pinion and Easy Limit Switches

Automatic Gate System Logic Controller Features

Features as Standard

✓ Easy to use Single Button Mode of Opening-Stop-Closing including the “Stay open” feature
✓ Open partially Pedestrian Mode Feature (adjustable distance)
✓ Automatic Closing Timer Adjustable in one second increments up to 5 minutes
✓ Automatic learning of the gate + Fine tunable operating Times
✓ Soft Start (Ramp UP) and Soft Stop/Slowdown (Ramp DOWN)
✓ Adjustable Slow Down Speed and Time
✓ Optional Plug and Play Battery Backup System (Powered Systems)
✓ Low Voltage Power for all accessories directly through the gate controller
✓ Warning Light Output
✓ Traffic Light Output
✓ Driveway Light Output

Normal Modes allow for the “STAY Open” feature to cancel the automatic closing timer by remote Handy when expecting guest, backing in a trailer etc.


Multiple Configurable Safety Inputs

✓ Obstacle Detection by load This feature is always running and detecting if the gate is stalled under load by an obstacle during its travel.
✓ Typical Photocell Input Terminal to prevent gate from closing on vehicle, reverts gate if a vehicle passes through during closing, restarts the Automatic closing timer after each interruption.
✓ Photostop Input, Same as the typical photocell input with an added feature of preventing the gate from opening if the photocell is blocked. Handy for sliding gates that open towards an obstacle such as a pedestrian gate..
✓ Special Detector Input to tell the gate to close two seconds after the vehicle passes, perfect for higher security applications (and also escaping dogs).
✓ Safety Edge Input Installed on to the gate, safety edges allow for a return to open if the edge of gate is to touch an obstacle.
✓ Emergency Stop Button This feature allows for a manned button to immediately stop the system open pressing.

Wired and Wireless Access Control Support

✓ Keypads Wired or Wireless Secure PIN Number access (Tekno K1/Dex4)
✓ Press Button Simple button operation
✓ Mobile APP Control Cloud based and operatable anywhere in the world (Tekno WF)
✓ Doorbell Intercom Systems
✓ Exit Wands and Induction Loops To automatically operate the gate upon vehicle presence
✓ GSM 4G Technology Operate the gate by phone call (or intercom phone call) (Tekno 4/Tekno S1)
✓ Weekly Schedule Timer To automatically operate the gate based on a programmed daily/weekly operating times

Residential, Commercial and Complex Working Modes Options

✓ Normal Remote Operation (Open-Stop-Close)
✓ Normal Remote Operation (Open-Stop-Close) with Automatic Closing Timer and “Stay Open” feature (299 Seconds/5 Minutes)
✓ Typical Complex – Individual Open and Close Command Inputs
✓ Typical Complex – Individual Open and Close Command Inputs with Automatic Closing Timer “Stay Open” feature by wired input (299 Seconds/5 Minutes)
✓ Secure Complex – Open Only Command Inputs with Automatic Closing Timer (299 Seconds/5 Minutes) “Stay Open” feature by wired input

Dimensions

compact small sliding gate motor dimensions

Automatic Sliding Gate System Specifications

Operating Voltage 24V
Maximum Gate Size 8 Meters
Maximum Gate Weight 1000KG
Duty Cycle 90%
Thrust 27nM
Speed Adjustable up to 36cm/s (21 Meters per minute)
Standby Consumption 40mA
Light Support Yes, Traffic Light/Driveway Light/Strobe
Accessories Voltage Yes, 12V DC
Safety Inputs Photocells, Safety edges, Induction Loops, Edge Sensors, Emergency Stop Button
Operating Temperature -10°-60°C
Maximum Remotes 250
automatic sliding gate motor specifications



Post Options

  • 100x100x2000mm, Bolt down with base plate post only used when unable to concrete a post into the ground, if use with cladded gates consider bracing the post
  • 100x100x2660mm, Suitable for applications with heavier gates (eg. cladded with light timber, colorbond etc.) and automatic applications
  • 150x150x2700mm, Suitable for applications with heavier gates (eg. cladded with Hardwoods) and automatic applications
  • 200x200x2700mm, Suitable for applications with heavier gates (eg. cladded with Hardwoods) and automatic applications. Provides the highest end aesthetic look.

Sliding-gate-on-track-residential cladded

C Channel Section with Nylon Block

c channel and nylon block

The C channel with Nylon Block is fitted to a support post behind the gate on the inside. On the back of the gate the supplied Z section slides through the nylon block. This totally removes the need for rollers operating on an uneven surface such as vertical cladding or any protrusions that may be above the gate frame such as spears.

The C channel and nylon block also works well for gates on a grade where the guide system must follow UP/DOWN during the gates operation, Suitable for gates where there is overhead protrusions such as spears, suitable for gates with face mounted cladding to the frame.

The C channel is available in both Steel (with top cap) and Aluminum and the Nylon block is available in both white and black colour options.

Aluminum Z Profile Angle for Rear Guiding by Nylon Block

z profile angle for rear guiding of all sliding gates with nylon block
✓ Excellent alternative to having an angle welded to the gate
✓ Compatible with all gate using 40mm tubing or greater
✓ 4mm Aluminum Extrusion Profile Specific for use with sliding gate guiding
✓ 34mm Mounting face with 6mm pre punched holes for fixing every 300mm
✓ Total offset of 42mm from gate back face to the back of the angle

Gate Catcher/Receiver Meeting Point

Multiple options available to choose from based on the gates total thickness including and cladding material if applicable. It is recommended to use a gate catcher that is 10mm greater than the gate thickness. All catchers are available with offset brackets allowing for closing behind a post (as opposed to up to a post).

Sliding Gate Wheel Options

Internal Recess/Flush Mount Wheels

Sliding gate internal recess bearing wheel

Internal Double bearing wheels allow the gate wheels to be recessed into the bottom of the gate frame (minimum height 78mm tubing), they keep the gate close to the ground track system (normally within 25mm) and provide the neatest aesthetic. The small pocket cut into the bottom of the gate is not greater than the 78mm wheel diameter and allows the flange points to meet with the tubing on either side and screw into place.

External Surface Mount Wheels

Sliding gate internal recess bearing wheel

The easiest to install, these bearing wheels screw directly to the bottom of the gate tubing without any need for cutting, the external surface mounting wheels typically raise the gate 90mm from the ground track system.

Sliding Gate Ground/Floor Track

domes r10 sliding gate track round profile bolt down to ground concrete

The sliding gate ground track is formed from galvanized steel to the R10 profile, this profile is proven to be the smoothest operation for the gate wheels without any negative characteristics like the older v groove designs.

The track is secured to the driveway using plugs and screws or knock in’s such as anchor nails, its important to use a fixing that does not protrude greater than 3-4mm to prevent contact with the gate wheels.

✓ Galvanized Steel
✓ Elongated 6mm holes allow for adjustment before final tie down
✓ Suits all R10 gate wheels

Gate Stopper

Sliding gate stop

The gate stopper is a crucial part to any sliding gate installation, the stop is installed at the end of the open position to prevent the gate from being opened past the normal open point which prevents the sliding gate from coming off the track (or out of the top guiding system.

✓ Rubber Bumper
✓ 115mm High
✓ 8mm stem and 4mm base steel thickness

Titan 2410 Ultra Fast 24 Volt Sliding Gate Gate Motor

The Titan 2410 Sliding Gate System is built around a compact form factor yet utilizing the space for a large 180 Watt 24V DC motor delivering an unparalleled capacity of up to 1000KG gate or up to 8 Meters in length (package is supplied with 4 Metres of gear rack which is adjustable in the kit contents tab).

Clever engineering allows for the system to work in a Ultra Fast and controlled operating speed with the allowance to be reduced to a normal or even slow running speed if required. The housing is formed from die-cast alloy with a steel pinion gear and all internal mountings are of steel to provide the best physical strength both inside and outside and the peace of mind of a long service life.

Keeping it reliable and dependable the Titan series operator uses trusty micro switch limit system allowing for the added bonus of a simple (and effective) installation. Housed within the Titan system the Premier SL24 Automatic gate system controller comes standard with a state of the art feature set catering for all types of installations, whether only requiring ordinary residential operation to all the way up to a full fledged commercial setups requiring advanced logic principals taking advantage of the high 90% duty cycle ability.

The on-board display makes easy work of any settings changes if desired and is easily visible in the outdoors being the advantage of LED displays. With multiple Inputs and outputs just about any accessory is compatible with the Premier SL24 system (see the complete list below).

Also boasting multiple safety inputs along with its precise on-board detection it allows safety to remain prioritized for any application. with the optional plug and play battery back-up system you will be sure not to ever be locked out of your property.

The installation process is always kept in mind allowing up to 4 cable inputs into gate motor housing using IP68 cable glands, this allows for the best weather proofing and assists in insect proofing.

The genius automatic learning system, hold one key to enable and begin the automatic learning of the gate system and automatic definition of the ramp up and slow down points, its as easy as it gets suiting all skill levels from DIY once off installs to professional installers.

The premier controller also supports all installations with an intelligent light control system with three output options (traffic light control, driveway light control and alert strobe/courtesy light)

Ready to plug into an ordinary power point there is NO high voltage wiring required, All connections are Low Voltage and safe for all installers regardless of the skill level without the concern of electrical shock.

Key Features



✓ Fast and Efficient 24 Volt Operation
✓ Die-Cast Alloy Housing
✓ Compact Footprint
✓ Multiple Cable entries by IP68 rated Glands
✓ Steel Pinion Gear
✓ Open and Closed Position Easy Micro-Switch Limits
✓ Flexible size and weight capacities

A peak inside the Titan Series Operator

Tough 180 Watt DC Motor and Digital Logic Controller

high quality strong automatic low voltage sliding gate motor

Steel Pinion and Easy Limit Switches

Secure yet Easy Manual Release

Automatic Gate System Logic Controller Features

Features as Standard

✓ Easy to use Single Button Mode of Opening-Stop-Closing including the “Stay open” feature
✓ Open partially Pedestrian Mode Feature (adjustable distance)
✓ Automatic Closing Timer Adjustable in one second increments up to 5 minutes
✓ Automatic learning of the gate + Fine tunable operating Times
✓ Soft Start (Ramp UP) and Soft Stop/Slowdown (Ramp DOWN)
✓ Adjustable Slow Down Speed and Time
✓ Optional Plug and Play Battery Backup System
✓ Low Voltage Power for all accessories directly through the gate controller
✓ Warning Light Output
✓ Traffic Light Output
✓ Driveway Light Output

Normal Modes allow for the “STAY Open” feature to cancel the automatic closing timer by remote Handy when expecting guest, backing in a trailer etc.


Multiple Configurable Safety Inputs

✓ Obstacle Detection by load This feature is always running and detecting if the gate is stalled under load by an obstacle during its travel.
✓ Typical Photocell Input Terminal to prevent gate from closing on vehicle, reverts gate if a vehicle passes through during closing, restarts the Automatic closing timer after each interruption.
✓ Photostop Input, Same as the typical photocell input with an added feature of preventing the gate from opening if the photocell is blocked. Handy for sliding gates that open towards an obstacle such as a pedestrian gate..
✓ Special Detector Input to tell the gate to close two seconds after the vehicle passes, perfect for higher security applications (and also escaping dogs).
✓ Safety Edge Input Installed on to the gate, safety edges allow for a return to open if the edge of gate is to touch an obstacle.
✓ Emergency Stop Button This feature allows for a manned button to immediately stop the system open pressing.

Wired and Wireless Access Control Support

✓ Keypads Wired or Wireless Secure PIN Number access (Tekno K1/Dex4)
✓ Press Button Simple button operation
✓ Mobile APP Control Cloud based and operatable anywhere in the world (Tekno WF)
✓ Doorbell Intercom Systems
✓ Exit Wands and Induction Loops To automatically operate the gate upon vehicle presence
✓ GSM 4G Technology Operate the gate by phone call (or intercom phone call) (Tekno 4/Tekno S1)
✓ Weekly Schedule Timer To automatically operate the gate based on a programmed daily/weekly operating times

Residential, Commercial and Complex Working Modes Options

✓ Normal Remote Operation (Open-Stop-Close)
✓ Normal Remote Operation (Open-Stop-Close) with Automatic Closing Timer and “Stay Open” feature (299 Seconds/5 Minutes)
✓ Typical Complex – Individual Open and Close Command Inputs
✓ Typical Complex – Individual Open and Close Command Inputs with Automatic Closing Timer “Stay Open” feature by wired input (299 Seconds/5 Minutes)
✓ Secure Complex – Open Only Command Inputs with Automatic Closing Timer (299 Seconds/5 Minutes) “Stay Open” feature by wired input

OPTIONAL Uninterrupted Battery Backup System

backup uninterrupted battery sliding gate

The optional uninterrupted battery backup system allows for continued use in the case of power loss without the need for any user intervention, it will continue to allow system operation including any system accessories for 24 hours OR until the power is restored. The batteries are automatically recharged when power is restored and trickle whilst power is available Directly fitting into the systems compartment there is no need for any additional storage boxes.

If the optional battery system is not desired the system can still be manually release using the secure override system.

Dimensions

compact small sliding gate motor dimensions

Automatic Sliding Gate System Specifications

Operating Voltage 24V
Maximum Gate Size 8 Meters (package is supplied with 4 Metres of gear rack which is adjustable in the kit contents tab)
Maximum Gate Weight 1000KG
Duty Cycle 90%
Thrust 27nM
Speed Adjustable up to 36cm/s (21 Meters per minute)
Standby Consumption 40mA
Supports Battery Backup Yes, 24V DC
Light Support Yes, Traffic Light/Driveway Light/Strobe
Accessories Voltage Yes, 12V DC
Safety Inputs Photocells, Safety edges, Induction Loops, Edge Sensors, Emergency Stop Button
Operating Temperature -10°-60°C
Maximum Remotes 250
automatic sliding gate motor specifications



STX4K Keyring High Range Remote

Automation systems Australia keyring remote control for driveway gate
The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).

Key Features

✓ Up to 100 metres distance in open air
✓ Keeloq rolling code security
✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
✓ Clear visibility red LED indicator which will illuminate upon a button press
✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
✓ Slimline and modern ergonomic design
✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

Dukie X 32KHZ Anti-Interference Professional Photocell Kit

Dukie X Automatic gate and garage door photocell

The Dukie X series photocell kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Both the photocells are wired back to the control box with low voltage.

Added benefits of the X series photocell is its Anti Interference Infrared frequency (32KHZ) making it best suited for ultra high capacity electric motors.



Key Features

✓ Ultra modern and neat appearance
✓ Compact design fits almost anywhere at 81(L)x65(W)x29(D)mm
✓ NO and NC Relay Settings
✓ Excellent range characteristics of up to 10 meter distance between each photocell
✓ Multiple sets can be installed on each system for added protective layers (with Synchronization setting)

Kit Contents (See Description Tab for Full In-Depth Details)

  • Bulky item
    Description

    Versatile Driveway Swing/Sliding Gate Frame for cladding

    Versatile driveway gate frame for cladding
    The versatile design gate frame is suitable for both INTERNAL horizontal cladding (up to 20mm material thickness) or EXTERNAL vertical/Horizontal Cladding of any thickness. The gate features a center 40x40mm dividing the cladding area into two sections, each vertical quarter line is supported with a 40x20mm vertical support rail (2x) which does not interfere with internal cladding. The frame measures 1.2m in height. The construction is of pre-galvanized steel RHS tubing for the Bottom Rail (80x40mm), SHS tubing (40x40mm Top and Sides) and a Vertical support of 40x20mm in the center, every join on the gate is welded providing the best strength and rigidity unlike flat pack gates.

    Key Features

    ✓ Proper Rigid Steel Gate, 100% Welded (NO flat pack and NO concerns about flex, integrity or assembly) ✓ Pre-Galvanized Steel Tubing ✓ Satin Black Powder Coating (NIGHT SKY COLOUR) ✓ RHS 80x40 Bottom Rails ✓ SHS 40x40 Top, Sides and Center ✓ RHS 40x20 Quarter Supports

    Cladding Methods

    Internal Cladding Channel System is provided separately as an additional item (See our store), Gate is supplied ready for external Cladding

    Internal Cladding Using Channel System

    Internal cladding gate

    External Cladding Directly to Gate Face

    external cladding gate

    Dimensions

    driveway gate for cladding measurements

    Important Information - Measurement details and Requirements

    Width of Gate Panel 4600mm EACH
    Height of Gate Panel 1200mm
    Max Sliding Gate Opening Size (Manual Operation: 4400mm factors in an internal support post)(Automated/Motorised: 4270mm)
    Additional Space Requirements SWING GATE 15-20mm for EACH Hinge Side + 15-20mm Between Gates in Centre (Double Gates)/End of gate (Single Gate)
    x

    4600mm x 1200mm Cladding Driveway Gate Frame (Internal/External Cladding) (Satin Black Powder Coat)

    Out Of Stock

  • Bulky item
    Description

    Aluminium Blade Fence Panel

    Aluminium blade fence
    Please note this system is designed for installation between fence posts and they are additional to this item along with the required fencing sockets. The Aluminium blade system provides maintenance free and a cost effective solution for a modern gate and fencing system. Quick and easy installation, simply cut to the required size and install to your fence posts using fencing sockets (not supplied). ✓ Aluminium caps (NOT plastic) ✓ 40x40 Vertical Rail ✓ 50x10 Vertical Slats (Blade) ✓ Welded to vertical rails

    Technical Drawing

    blade fence Dimensions

    Important Information - Measurement details and Requirements

    Blade Slat Size 50x10mm
    Height 1200mm
    Max. Post Span 2400mm
    Min. Post Span Any, Cut to size
    Requirements Fence Post EACH Side + Fencing Sockets x4
    x

    Aluminium Blade Panel Insert (1200H) - Cut to width during install × 2

      • Welded Slats
      • 50mm Gaps
      • Welded Aluminium Caps (Not Plastic)

    Cutting and installation of blade system is required

    Show more
      • Welded Slats
      • 50mm Gaps
      • Welded Aluminium Caps (Not Plastic)

    Cutting and installation of blade system is required

    ×
    Out Of Stock

  • No description available...
    x

    Gate Posts × 2

    Select the post size that best suits your clearance area.

    Show more

    Select the post size that best suits your clearance area.

    ×
    Out Of Stock
    Clear
    Out Of Stock

  • No description available...
    x

    R10 Gal Steel Sliding Gate Track (QTY is Total Meters) × 9

    Galvanized Steel Construction, nailed/anchored down to the concrete for the gate wheels to roll on

    Show more

    Galvanized Steel Construction, nailed/anchored down to the concrete for the gate wheels to roll on

    ×
    Out Of Stock

  • Bundled product placeholder image
    No description available...
    x

    Gate Catcher

    Out Of Stock
    Clear
    Out Of Stock

  • Bundled product placeholder image
    No description available...
    x

    Upper Guide System

    Out Of Stock
    Aluminum C Channel + Black Nylon Block

  • Description

    Aluminum Z Profile Angle for Rear Guiding by Nylon Block

    z profile angle for rear guiding of all sliding gates with nylon block
    ✓ Excellent alternative to having an angle welded to the gate ✓ Compatible with all gate using 40mm tubing or greater ✓ 4mm Aluminum Extrusion Profile Specific for use with sliding gate guiding ✓ 34mm Mounting face with 6mm pre punched holes for fixing every 300mm ✓ Total offset of 42mm from gate back face to the back of the angle Suitable for use with our black and white nylon blocks
    x

    Cladded Gate Screw On Z Profile (QTY is Total Meters) × 5

    Rear Mount Guide System (Works with Nylon Block System)

    Show more

    Rear Mount Guide System (Works with Nylon Block System)

    ×
    Out Of Stock

  • Bundled product placeholder image
    No description available...
    x

    Sliding Gate Wheels

    Out Of Stock
    Clear
    Out Of Stock

  • Description

    120mm Height Sliding Gate Stop

    Sliding gate stop

    The gate stopper is a crucial part to any sliding gate installation, the stop is installed at the end of the open position to prevent the gate from being opened past the normal open point which prevents the sliding gate from coming off the track (or out of the top guiding system.

    ✓ Rubber Bumper ✓ 120mm High ✓ 8mm stem and 4mm base steel thickness

    Dimensions

    sliding gate stop 120mm height
    x

    120mm Height Sliding Gate Stopper Steel Bolt Down

    Out Of Stock

  • No description available...
    x

    Titan 24V Automatic Driveway Sliding Gate Motor

    Please Choose the Power Option that Best Suits Your Requirments

    Show more

    Please Choose the Power Option that Best Suits Your Requirments

    ×
    Out Of Stock
    Clear
    Out Of Stock

  • Description

    Extra Heavy Duty Sliding Gate Gear Rack

    • 520mm Lengths
    • Black Nylon
    • Steel Core
    • Interlocking with Key on one end, Keyway on the other for precise alignment
    • 3 Lug fixing facing downwards
    x

    QUIET 520mm (Clip In Key - Keyway) Sliding Gate Gear Rack Nylon Coated over Steel Reinforced

    Out Of Stock
    For gates up to 4.5 Metres

  • Description

    Please be aware this product is only compatible with Automation Systems Australia Control Boards and Remote Receivers, it will NOT work with other brand products.

    STX4K Keyring High Range Remote

    Automation systems Australia keyring remote control for driveway gate
    The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

    The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).

    Key Features

    ✓ Up to 100 metres distance in open air
    ✓ Keeloq rolling code security
    ✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
    ✓ Clear visibility red LED indicator which will illuminate upon a button press
    ✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
    ✓ Slimline and modern ergonomic design
    ✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

    x

    Four Button Keyring Remote Control (White)

    • Up to 100 Metre Open Air Distance
    • High Security Rolling Code
    • Slimline and Ergonomic
    Show more
    • Up to 100 Metre Open Air Distance
    • High Security Rolling Code
    • Slimline and Ergonomic
    ×
    Out Of Stock
    Clear
    Out Of Stock

  • Description

    Please be aware this product is only compatible with Automation Systems Australia Control Boards and Remote Receivers, it will NOT work with other brand products.

    STX4K Keyring High Range Remote

    Automation systems Australia keyring remote control for driveway gate
    The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

    The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).

    Key Features

    ✓ Up to 100 metres distance in open air
    ✓ Keeloq rolling code security
    ✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
    ✓ Clear visibility red LED indicator which will illuminate upon a button press
    ✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
    ✓ Slimline and modern ergonomic design
    ✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

    x

    Four Button Keyring Remote Control (Black)

    • Up to 100 Metre Open Air Distance
    • High Security Rolling Code
    • Slimline and Ergonomic
    Show more
    • Up to 100 Metre Open Air Distance
    • High Security Rolling Code
    • Slimline and Ergonomic
    ×
    Out Of Stock
    Clear
    Out Of Stock

  • Description

    Dukie XR Retro-Reflective Sensor

    Dukie XR Reflective Sensor Automatic gate and garage door photocell

    The Dukie XR series retro-reflective sensor kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Only the sensor requires wiring back to the gate controller as the sensor bounces its own beam back via the reflector installed on the far side of the driveway.

    Added benefits of the XR series photocell is its Anti Interference Infrared characteristics making it best suited for ultra high capacity electric motors.



    Key Features

    ✓ No wiring needed across the driveway (reflector)
    ✓ Narrow Sensor only 20mm width
    ✓ Flexible with multiple different mounting methods
    ✓ NO and NC Relay Options
    ✓ Excellent range characteristics of up to 11 meter distance in clear conditions (-40% in adverse conditions)

    x

    Dukie X OR Dukie XR Photocells

    Choose from Photocell wired to both sides OR a Reflective sensor Wired only on the one side (1.9m Pre-Connected)

    Show more

    Choose from Photocell wired to both sides OR a Reflective sensor Wired only on the one side (1.9m Pre-Connected)

    ×
    Out Of Stock
    Clear
    Out Of Stock

  • No description available...
    x

    Pack of Assembly Screws

    Out Of Stock

Optional Add On's

  • Bulky item
    Description

    Powder Coated Gate and Fence Post 75x75mm

    75mm gate fence post powder coat black
    ✓ Pre-Galvanized Steel ✓ Powder Coated Black (Night Sky) ✓ 75x75x2660mm(2.66 Meters)- 2.0mm Wall Thickness
    x

    FENCE POST 75x75x2660 (2.7m) Steel Post Powder Coated Night Sky Satin Black

    Out Of Stock

  • Bulky item
    Description

    Powder Coated Gate and Fence Post 50x50mm

    50mm gate fence post powder coat black
    ✓ Pre-Galvanized Steel ✓ Powder Coated Black (Night Sky) ✓ 50x50x2660mm(2.66 Meters)- 1.5mm Wall Thickness
    x

    Optionally used for Pedestrian Gate 50x50x2660 (2.7m) Steel Post Powder Coated Night Sky Satin Black

    Out Of Stock

  • No description available...
    x

    Lock 35mm Kit (Lock + Handle + Cylinder surrounds)

    Out of stock

    Out Of Stock

  • No description available...
    x

    Pedestrian Gate Hinge (Choose a side)

    Out Of Stock

  • Bulky item
    Description

    Versatile Pedestrian Swing Gate Frame for cladding

    Versatile driveway gate frame for cladding
    The versatile design gate frame is suitable for both INTERNAL horizontal cladding or EXTERNAL vertical/Horizontal Cladding of any thickness. The construction is of pre-galvanized steel RHS tubing for the Bottom Rail (80x40mm), SHS tubing (40x40mm Top and Sides) and a Vertical support of 40x40mm in the center, every join on the gate is welded providing the best strength and rigidity unlike flat pack gates.

    Key Features

    ✓ Proper Rigid Steel Gate, 100% Welded (NO flat pack and NO concerns about flex, integrity or assembly) ✓ Pre-Galvanized Steel Tubing ✓ Satin Black Powder Coating (NIGHT SKY COLOUR) ✓ RHS 80x40 Bottom Rails ✓ SHS 40x40 Top and Sides ✓ RHS 40x40 Vertical Center

    Cladding Methods

    Internal Cladding Channel System is provided separately as an additional item (See our store), Gate is supplied ready for external Cladding

    Internal Cladding Using Channel System

    Internal cladding gate

    External Cladding Directly to Gate Face

    external cladding gate

    Dimensions

    driveway gate for cladding measurements

    Important Information - Measurement details and Requirements

    Width of Gate Panel 880mm EACH
    Height of Gate Panel 1200mm
    Additional Space Requirements 15-20mm for EACH Hinge Side + 15-20mm Between Gates in Centre (Double Gates)/End of gate (Single Gate)
    x

    880mm x 1200mm Cladding Pedestrian Gate Frame (Internal/External Cladding) (Satin Black Powder Coat)

    Out Of Stock

  • Description

    Please be aware this product is only compatible with Automation Systems Australia Control Boards and Remote Receivers, it will NOT work with other brand products.

    STX4L Ultra Long Distance Remote

    Automation systems Australia Long Distance remote control for driveway gate
    The STX4L Long distance remote is a class leader in Ultra long distance (up to 800 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

    The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).

    The long distance remote is most useful around larger properties able to operate the gate from sheds, buildings and the home where a typical remote would not be able to achieve the same operating distance.

    Key Features

    ✓ Up to 800 metres distance in open air
    ✓ Keeloq rolling code security
    ✓ Easy to Use buttons
    ✓ ON/OFF switch to prevent accidental operation
    ✓ Clear visibility LED indicator which will illuminate upon a button press
    ✓ Narrow handheld design
    ✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

    x

    Automatic Gate Long Distance Remote Control (Long Range Remote)

    • Up to 800 Metre Open Air Distance
    • High Security Rolling Code
    • Side Switch Prevents Accidental Operations
    Show more
    • Up to 800 Metre Open Air Distance
    • High Security Rolling Code
    • Side Switch Prevents Accidental Operations
    ×
    Out Of Stock

  • Description

    Dual Channel Remote Control Receiver

    two channel receiver for garage door automatic gate alarm system
    Working with the STX4K, STX4L and Dex4 Wireless equipment the Two Channel receiver offers the ability to control up to two individual devices/systems separately such as automatic gate systems, garage doors, alarm systems and almost any device with the requiring a momentary pulse OR latching circuit to operate.

    Specifications

    Operating Voltage 12-30VDC/12-24VAC
    Operating Current 9mA standby
    Relay Switching Current Capacity 3A Momentary/500mA Latching
    Frequency 433mhz
    Compatible Transmitters (tX) STX4L, STX4K, Dex4,PB-WIRELESS-TOUCH1,WPB-PRESS-WIRELESS,WPB-MHEAD-WIRELESS
    x

    Receiver for Garage Doors

    Operate your garage door from a different button on the remote using this expander module.

    Show more

    Operate your garage door from a different button on the remote using this expander module.

    ×
    Out Of Stock

  • Description

    Please be aware this product is only compatible with Automation Systems Australia Control Boards and Remote Receivers, it will NOT work with other brand products.

    Dex 4 Wireless Keypad

    wireless automatic gate keypad

    The Dex 4 Wireless Keypad can communicate directly to the gate system using the same Keeloq secure rolling code signal as the remotes allowing for an easy installation process without the need for wiring.

    Due to its high quality chipset the open air signal strength can exceed an astounding 80 meters. This makes the Dex 4 not only suited to controlling the gate but could actually be used to control the garage door, another gate etc. providing they have the compatible receiver installed, Up to FOUR devices/features could be used with individual pin codes for each due to its four independent output channel designs.

    Key Features

    ✓ Three colour options are available: Classic White, Subtle Grey and Deep black
    ✓ Compact design fits almost anywhere at 90(L)x77(W)x35(D)mm
    ✓ Control Up to four systems or four features on different pin codes
    ✓ Astounding open air distance of 80 metres
    ✓ Works on 2x AAA batteries (supplied)
    ✓ Audible and LED indicators
    ✓ Totally wireless (wire free) easy installation

    Power 2xAAA Batteries (Supplied)
    Operating Distance 80 Meters Open Air
    Frequency Secure Rolling Code 433MHZ
    Operating Channels 4
    Transmitting Time 1.5s
    x

    Wireless Keypad (Three colour options)

    Four channel wireless keypad allowing for full control of all automatic gate features without the need for wiring.

    Show more

    Four channel wireless keypad allowing for full control of all automatic gate features without the need for wiring.

    ×
    Out Of Stock

  • Description

    Push/Press Button

    push press button for automation machinery access control
    The push button is the simplest of all access control devices, a simple press of the button allows the automation to begin its working. Generally installed on the inside of the property within close proximity to the user (driver side when exiting) allows for the easiest method of working.

    Key Features


    ✓ Weatherproof for outdoor use and can be used indoors ✓ Supports NO and NC circuits (when used as a wired button) ✓ 2 Wire connection or Wireless Option (Automation Systems Australia ONLY) ✓ Easy to operate
    x

    Weatherproof Press Button

    Typical press button for foot traffic, suitable for outdoor and indoor installations.

    Show more

    Typical press button for foot traffic, suitable for outdoor and indoor installations.

    ×
    Out Of Stock

  • Description

    Big Head (Mushroom) Push/Press Button

    big mushroom palm push press button for automation machinery access control
    The push button is the simplest of all access control devices, a simple press of the button allows the automation to begin its working. Generally installed on the inside of the property within close proximity to the user (driver side when exiting) allows for the easiest method of working.

    Key Features


    ✓ Weatherproof for outdoor use and can be used indoors ✓ Supports NO and NC circuits (when used as a wired button) ✓ 2 Wire connection or Wireless Option (Automation Systems Australia ONLY) ✓ Easy to operate
    x

    Weatherproof Push Button (Mushroom Head)

    Typical press button for vehicles mounted to a bollard, suitable for outdoor and indoor installations.

    Show more

    Typical press button for vehicles mounted to a bollard, suitable for outdoor and indoor installations.

    ×
    Out Of Stock

  • Description

    Weekly Schedule Automatic Gate Timer

    Automatic timer for opening and closing a driveway gate residential and commercial

    The weekly timer allows for scheduling open time cycles to operate the gate, simple set the open time and once lapsed the gate would automatically close (automatic close timer must be enabled).

    The timer allows for independent 5 day business week, INDEPENDENT days configurations OR a full 7 day week configuration along with other modes. Up to 8 different On/Off schedules can be set.



    Key Features

    ✓ Automatic Opening and Closing at the Set times
    ✓ LCD Display
    ✓ Built in Battery to retain schedules, replaced every 2-3 years
    ✓ Simple setting by: independent days schedule, Common time 5 day working week (MON-FRI), Weekends Combined (SAT+SUN) or Common time 7 day week (MON-SUN)

    Specifications

    Operating Voltage 12V DC
    Power Consumption 50mA
    Display LCD
    Load Capacity 10A/250V
    Programs 8
    Relay NO/NC
    x

    Weekly Auto Open/Close Scheduled Timer

    Programable timer with numerous configurations options on when to open and close the gate.

    Show more

    Programable timer with numerous configurations options on when to open and close the gate.

    ×
    Out Of Stock

  • Description

    WIRELESS Automatic Vehicle Detection Sensor – for Automatic Opening of gate

    wireless automatic driveway gate exit sensor

    An easy to install WIRELESS AUTOMATIC OPENING driveway vehicle detection system

    Multiple hours saved, materials saved and frustrations gone

    Long gone are the days of cutting concrete, chasing wires and configuring induction loop detectors (ground loop). Finally, a simple WIRELESS solution to streamline the installation process.
    The WIRELESS loop detector SIMPLY BOLT DOWN to a concrete driveway (or concrete pad in gravel driveways) and wirelessly communicate back with the gate system using the supplied high security (128 Bit) transceiver for two way communication between the New Generation wireless loops.

    The wireless exit “loop” is maintenance free and installed with 2x AA Lithium batteries for a THREE YEAR use period before a battery replacement is required (regular usage), to replace the batteries simply remove the top cover and fit the new Lithium AA batteries.

    How does it work and what happens if I accidently drive over it?
    The wireless loop is designed for a vehicle to drive over and will detect the undercarriage of the vehicle, if its accidently driven over it presents no issue whatsoever as its casing carries a static load capacity of 2500kg.

    How far can i have it from the gate?
    Thanks to its high transmission range capabilities it has a maximum wireless operating distance of 50 meters.

    How big is it?
    Its compact form factor allows for a discreet installation measuring only 120x120mm Length and Width and only 30mm in height.

    Will it work with my system?
    Typically, YES, it will work with any gate system that has an open command input and an accessories voltage output of 12-24V DC

    Which installations does this suit?
    Any domestic installations which fit the following criteria:
    ✓A concrete pad or driveway is available for the device to be installed on to
    ✓When a vehicle is parked it does not sit within 3 meters of the device
    ✓The device does not sit in a recess and pool water, snow or any debris
    ✓Not nearby to high voltage cables

    How is it installed?
    1. Connect the transceiver to the gates control board, this must be installed within the gate controller or any enclosure
    2. Power on the transceiver and have the loop touching the antenna of the transceiver.
    3. Once the transceiver flashes its blue led and the loop flashes its yellow led they are now paired together.
    4. Remove backing plate from the loop and install to concrete using the supplied concrete screw bolts, ensure the arrow faces the direction of travel for exit (faces towards the gate).
    5. Install the wireless loop to the backing plate and allow 3 minutes for calibration
    Test to confirm operation, job done!

    Supplied With

    ✓1x Wireless Loop (with 2x AA Lithium Batteries Installed)
    ✓1x Transceiver
    ✓2x Concrete Screw Bolts

    Detection Area

    Replaceable Battery Life

    x

    Automatic Opening WIRELESS Automatic Vehicle Detection Sensor

    This WIRELESS system can automatically open the gate as your vehicle passes over it. Installed up to 50 metres away from the gate!

    Show more

    This WIRELESS system can automatically open the gate as your vehicle passes over it. Installed up to 50 metres away from the gate!

    ×
    Out Of Stock

  • Description

    Tekno K1 Weatherproof Wired Keypad

    APP Control entry keypad mobile phone Automatic gate and garage door

    The Tekno K1 is a versatile and feature packed standalone keypad unit with APP Control by mobile phone allowing for the ability to operate from anywhere in the world along with local operations by PIN code or EM card/Tag. Its intuitive design allows for adding administering users directly into the keypad or by the APP.

    The free mobile APP allows for adding temporary PIN codes with expiry dates (or one time use) making it ideal for deliveries, Airbnb and other applications requiring temporary user access with out the need to add the users on-site.

    General Mobile APP users can also be managed in via the app (add/delete) if and when required.



    Key Features

    ✓ FREE APP Control available in Apple App Store and Google Play Store (Highly rated and reliable with over 5 million users worldwide)
    ✓ Control your gate ANYWHERE in the world
    ✓ Voice control and scene control compatible with Google assistant, Alexa and Siri
    ✓ Up to 10,000 Users by PIN code, EM Card and EM Tags
    ✓ Unlimited APP Users
    ✓ Add in expiring PIN codes by APP
    ✓ Add in normal users by APP
    ✓ Wires directly into the system
    ✓ Simple connection and simple setup
    ✓ Up to 10 meter Wi-Fi range with basic entry level routers (typically what’s supplied by the internet provider), Substantially boosted using good quality routers or mesh networks.

    Specifications

    Power 12V DC
    Standby Current ≤35mA
    Maximum Users 10,000 Users
    Operating Temperature -40°C - +60°C
    Operating Methods PIN CODE, RFID,MOBILE APP
    Wi-Fi Distance Up to 10m on basic ISP routers (entry level basic) Substantially boosted on a good quality router or mesh network
    x

    Access Control Keypad with EM Tag Reader and mobile APP

    Wired keypad allowing for pin code access control, em cards and tags operation, along with mobile APP control.

    Show more

    Wired keypad allowing for pin code access control, em cards and tags operation, along with mobile APP control.

    ×
    Out Of Stock

  • Description

    Tekno WF APP Control Switch

    APP Control mobile phone Automatic gate and garage door
    The Tekno WF is a versatile control device allowing for connection to the gate system to bridge from a locally controlled installation to also allow for Mobile APP based automatic gate control from anywhere in the world. Its mini design allows for mounting inside the system without the need for any additional boxes.



    Key Features

    ✓ FREE APP Control available in Apple App Store and Google Play Store (Highly rated and reliable with over 5 million users worldwide)
    ✓ Control your gate ANYWHERE in the world
    ✓ Voice control and scene control compatible with Google assistant, Alexa and Siri
    ✓ Can configure opening/closing schedules by Day and Time
    ✓ Fits directly into the system, no extras required
    ✓ Simple connection and simple setup
    ✓ Up to 10 meter Wi-Fi range with basic entry level routers (typically what’s supplied by the internet provider), Substantially boosted using good quality routers or mesh networks.

    Specifications

    Operating Voltage 5-24V DC
    Consumption ≤35mA Standby/≤100mA Operation
    Smart Assistant Support YES
    Operating Methods Mobile APP
    Wi-Fi Distance Up to 10m on basic ISP routers (entry level basic) Substantially boosted on a good quality router or mesh network
    x

    Mobile App Control Wi-Fi Connection Module

    Control the gate from anywhere in the world with your mobile phone using the Tekno WF module.

    Show more

    Control the gate from anywhere in the world with your mobile phone using the Tekno WF module.

    ×
    Out Of Stock

  • Description

    Uninterrupted LITHIUM Battery Backup System for Titan 2410/Premier SL24 Sliding Gate System

    backup uninterrupted battery sliding gate
    The optional uninterrupted battery backup system allows for continued use in the case of power loss without the need for any user intervention, it will continue to allow system operation including any system accessories for 24-48 hours OR until the power is restored. The batteries are automatically recharged when power is restored and trickle whilst power is available Directly fitting into the systems compartment there is no need for any additional storage boxes.
    ⚠ WARNING
    • Misusing or mishandling a lithium-ion battery may cause fire or explosion, which can result in personal INJURY or DEATH and property damage. You MUST read the safety warnings and resources before purchasing, using, and/or handling batteries. Even if properly handled, lithium-ion batteries may still catch fire or explode.
    • SHORT CIRCUIT is the situation that occurs when battery positive (+) and negative (-) are directly connected. The current will become extremely high due to a lack of resistance in the circuit that would limit current flow. A short circuit usually leads to dangerously high temperatures which may lead to a fire generating personal injury, property damage, or death. The protective PVC shrink wrap should always be in PERFECT condition. DO NOT use the battery if parts are damaged in any way.
    • Keep lithium-ion batteries AWAY from sharp objects. DO NOT store lithium-ion batteries close to or on your person, in a pocket, purse, backpack, etc.
    ⚠ SAFETY INSTRUCTIONS
    • Lithium batteries must be properly disposed of – NOT in a fire or in the trash. Laws vary at the city, state and national level, and it is the buyer’s responsibility to ensure they are recycling lithium batteries properly. Many local governments and retail stores offer free recycling, Recycling locator can be found at  https://recyclingnearyou.com.au/batteries/
    • Immediately STOP charging, storing, or using lithium-ion batteries if they emit an unusual smell, feel hot, change color, or shape, or appear damaged.
    • If exposed to battery electrolyte, flush with water, immediately and/or immediately contact a physician or emergency services.
    • If purchasing this battery for resale purposes, you MUST forward ALL warnings to ALL potential customers for their reference and safety!
    • The positive (+) and negative (-) terminals MUST NOT be reversed when charging or using the battery.
    • Do not charge or discharge lithium-ion batteries at a rate beyond the maximum charging or discharging current of the manufacturer’s specific current ratings.
    • If eye exposure arises, flush with water for 15 minutes, and immediately seek emergency attention.
    • ALWAYS charge lithium-ion batteries in or on a fire-proof surface and do not leave batteries charging without due attention.
    • We are not responsible for any damage if there is any modification of the batteries/chargers in any shape or form (including but not limited to pack making).
    • DO NOT modify, disassemble, puncture, cut, crush, or incinerate.
    • DO NOT solder directly onto the battery, spot weld only.
    • DO NOT use force to install.
    • It is your responsibility to determine that your charger or device is functioning properly.
    • DO NOT store or carry lithium-ion batteries in your pocket, bag, or anywhere together with other conducting materials or objects such as necklaces, hairpins, etc.
    • DO NOT place the battery in high-pressure containers, microwave ovens, or induction cookware.
    • Misuse of lithium-ion rechargeable battery cells can pose a serious risk of personal injury or property damage.
    • Keep the lithium-ion batteries out of the reach of children and pets.
    • Avoid charging or storing lithium-ion batteries at high temperatures greater than 50°C. High temperatures might ignite the battery and cause a fire.
    • Avoid charging lithium batteries below freezing 0°C, as this will permanently reduce the battery capacity due to lithium plating.
    ⚠ BEST PRACTICES
    • DO NOT run the battery until it cuts off. That will significantly reduce the operating life of the battery.
    • DO NOT leave a battery fully charged or fully depleted for longer than a few days.
    • DO NOT charge below freezing or above 50°C.
    • DO NOT discharge below -10°C or above 50°C.
    • IMMEDIATELY unplug a battery once it is charged.
    • DO NOT charge the battery near flammable materials. Keep batteries at least 2 meters from flammable materials.
    x

    Titian 2410 Uninterrupted LITHIUM Battery Backup System

    Fits directly inside the sliding gate motor, supplied with the plug in harness. Allows for uninterrupted operation during power outage.

    Show more

    Fits directly inside the sliding gate motor, supplied with the plug in harness. Allows for uninterrupted operation during power outage.

    ×
    Out Of Stock
Up to 4200mm / 4.2m Opening (1200mm H) 4.6×1.2m Sliding Driveway Gate Package Blade Fin Design with extra heavy duty 24v sliding gate motor

$3,046.00

$2,890.00

Save $156.00

x

Register

Shipping To

Add company name

Australia

Add apartment, unit, building, floor, etc.

Billing To

Add company name

Australia

Add apartment, unit, building, floor, etc.


Close
