Long Stroke Actuator

3 YEAR Warranty

ULTRA FAST

Viper 5 Long Stroke ITALIAN Electric 24V Low Voltage Automatic Double Swing Driveway Gate Opener Kit ROBUST Heavy Duty Design with TWO Keypads Entry Exit

Name: Viper 5 Long Stroke ITALIAN Electric 24V Low Voltage Automatic Double Swing Driveway Gate Opener Kit ROBUST Heavy Duty Design with TWO Keypads Entry Exit
SKU: V5-2D-P-AP
Price: 1999 AUD
Availability: BackOrder

SKU: V5-2D-P-AP

$2,039.00

$1,999.00

Save $40.00

Freight from $30.00 Calculate Freight
3 Year Warranty
Brand : Automation Systems Australia

Made In Italy

Ultra Fast

Adjustable Limit Stops

All Metal Gears

3 Year Warranty

600KG (2x 300KG)

8.4 Metre Opening

Digital Display

Long Stroke

Optional Battery Backup

Made In Italy
Ultra Fast
Adjustable Limit Stops
All Metal Gears
3 Year Warranty
600KG (2x 300KG)
8.4 Metre Opening
Digital Display
Long Stroke
Optional Battery Backup

On backorder

Click & Collect

Delivery

In-Store

Pre-Order Now - Dispatch Late November

VIPER 524 Low Voltage 24 Volt Strong and Silent Linear Actuator

The VIPER 524 Is a High-End ITALIAN 24 Volt Telescopic actuator in the Extra Heavy Duty Class, Strong and Silent this actuator can swing gate weights of up to 300KG and Gates up to 4.2m (14FT). Construction is solid and smooth from the die-cast inner structure connecting systems internals to the post bracket to the extruded aluminum housing, stainless steel piston, and robust 3/4″ Internal lead screw the actuator retains subtle and quiet characteristics but the drive to push gates of most sizes and weights.

Operations are smooth and efficient using its 24 Volt DC motor system coupled to a 19mm (3/4″) lead screw driving the stainless steel “piston” in and out. The end positions are set using the easiest possible method of adjustable limit stops. Limit stops are slid forward/back to adjust both the maximum open and closed positions of the gate, being a mechanical system its a case of set and forget with no further adjustments being required. Typically the open and closed positions will not require and further stops unless higher wind loads are expected (cladded gates).

The Viper series actuators are 100% Universal meaning one actuator could be installed on EITHER side of the driveway as the clever clutch release system (Emergency release) is available on both sides of the actuator.

The laser cut steel brackets for the gate and post are constructed from 6mm steel (galvanized) ensuring they are rigid and static with no flexibility or movement. The actuator is suited for both pull to open inwards and also pushing outwards to open installations.

The Viper 524 has 500mm of usable stroke without the use of included limit stoppers, or effectively a reduction of 30mm per limit stop used (MIN. 440mm/470mm) and has the ability to work with gates from as narrow as 850mm and as wide as 4.2m (14ft) with a maximum weight of 300kg.

The prerequisite for a VIPER operator is a gate mounting rail or fitting point at 200mm or greater from the ground level. A 6mm thick Riser plate is included in the package contents to create a mounting point for the actuator if required.

A 1 Metre flying lead is pre-connected to the actuator ready to connect to a junction of your choosing. Cable rolls and junction boxes are available as add on items.

Key Features

✓ Designed and Manufactured in Italy
✓ Fast and Efficient 24 Volt Operation
✓ Metal Transfer Gear
✓ Aluminum Housing
✓ Quiet and discreet
✓ 19mm (3/4″) Actuator Lead Screw

✓ Stainless Steel Piston with embedded piston stopper
✓ Open and Closed Position ADJUSTABLE without the need for a gate stop (adjustable limit stops)
✓ Flexible and vast installation geometries

Supplied Riser Plate

The supplied riser plate allows for installation to the bottom rail when no others are available making it suitable for all gate mounting rail scenarios. Alternatively the gate mounting bracket (without the riser plate) can be installed to any horizontal rail greater than 200mm from ground level.

Manual Release System

Simply insert the supplied lever key and turn clockwise/counter-clockwise to lock and unlock

A peak inside the VIPER Series

Driveway Gate Motor Specifications

Operating Voltage	24V DC
Duty Cycle	90%
Thrust	2000N
Maximum Stroke Length	500mm (Minus 30mm Per limit Stop Used)
Limit Stops	Yes, Open and Closed Positions (Removable)
Gearing Structure	Transfer Gear, Irreversible
Case Material	Extruded Aluminum Piston Housing, Die-Cast Inner Structure, ABS Fascia
Piston	Die-Cast Alloy Gate End-Stainless Steel Piston
Maximum Gate Weight	4.2 Meters (14 Ft) EACH
Maximum Gate Weight	300KG EACH

viper automatic gate motor specifications

“Pull to Open”/”Push to Open” Installation Geometry

viper gate system opening inwards or outwards

STX4K Keyring High Range Remote

Automation systems Australia keyring remote control for driveway gate

The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).

Key Features

✓ Up to 100 metres distance in open air
✓ Keeloq rolling code security
✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
✓ Clear visibility red LED indicator which will illuminate upon a button press
✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
✓ Slimline and modern ergonomic design
✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

Premier SW24 Advanced Digital Automatic Gate Controller

Automatic electric 24 volt driveway gate control box

The Premier SW24 Automatic gate system controller comes standard with a state of the art feature set catering for all types of installations, whether only requiring ordinary residential operation to all the way up to a full fledged setup requiring advanced logic principals taking advantage of the 70% duty cycle.

The on-board display makes easy work of any settings changes if desired and is easily visible in the outdoors being the advantage of LED displays. With multiple Inputs and outputs just about any accessory is compatible with the Premier SW24 system (see the complete list below).

Also boasting multiple safety inputs along with its precise on-board detection it allows safety to remain prioritized for any application. with the optional plug and play battery back-up system you will be sure not to ever be locked out of your property.

The installation process is always kept in mind allowing up to 7 cable inputs into the outdoor weatherproof gate control box using IP68 cable glands, you will never run out of space or provisions for more.

The genius automatic learning system, hold one key to enable and begin the automatic learning of the gate system and automatic definition of the ramp up and slow down points, its as easy as it gets suiting all skill levels from DIY once off installs to professional installers.

Ready to plug into an ordinary power point there is NO high voltage wiring required, All connections are Low Voltage and safe for all installers regardless of the skill level without the concern of electrical shock.

Automatic Gate System Features

Features as Standard

✓ Easy to use Single Button Mode of Opening-Stop-Closing including the “Stay open” feature
✓ Open one gate Pedestrian Mode Feature
✓ Automatic Closing Timer Adjustable in one second increments up to 5 minutes
✓ Automatic learning of the gate + Fine tunable operating Times
✓ Soft Start (Ramp UP) and Soft Stop/Slowdown (Ramp DOWN)
✓ Adjustable Slow Down Speed and Time
✓ Optional Plug and Play Battery Backup System
✓ Fortress Series Electric and Magnetic Lock Support
✓ Low Voltage Power for all accessories directly through the gate controller
✓ Warning Light Output

Normal Modes allow for the “STAY Open” feature to cancel the automatic closing timer by remote Handy when expecting guest, backing in a trailer etc.

Multiple Configurable Safety Inputs

✓ Obstacle Detection by load This feature is always running and detecting if the gate is stalled under load by an obstacle during its travel.
✓ Typical Photocell Input Terminal to prevent gate from closing on vehicle, reverts gate if a vehicle passes through during closing, restarts the Automatic closing timer after each interruption.
✓ Photostop Input, Same as the typical photocell input with an added feature of preventing the gate from opening if the photocell is blocked. Handy for short driveways and also opening outwards installations.
✓ Special Detector Input to tell the gate to close two seconds after the vehicle passes, perfect for higher security applications (and also escaping dogs).
✓ Safety Edge Input Installed on to the gate, safety edges allow for a return to open if the edge of gate is to touch an obstacle.
✓ Emergency Stop Button This feature allows for a manned button to immediately stop the system open pressing.

Wired and Wireless Access Control Support

✓ Keypads Wired or Wireless Secure PIN Number access (Tekno K1/Dex4)
✓ Press Button Simple button operation
✓ Mobile APP Control Cloud based and operatable anywhere in the world (Tekno WF)
✓ Doorbell Intercom Systems
✓ Exit Wands and Induction Loops To automatically operate the gate upon vehicle presence
✓ GSM 4G Technology Operate the gate by phone call (or intercom phone call) (Tekno 4/Tekno S1)
✓ Weekly Schedule Timer To automatically operate the gate based on a programmed daily/weekly operating times

Residential, Commercial and Complex Working Modes Options

✓ Normal Remote Operation (Open-Stop-Close)
✓ Normal Remote Operation (Open-Stop-Close) with Automatic Closing Timer and “Stay Open” feature (299 Seconds/5 Minutes)
✓ Typical Complex – Individual Open and Close Command Inputs
✓ Typical Complex – Individual Open and Close Command Inputs with Automatic Closing Timer “Stay Open” feature by wired input (299 Seconds/5 Minutes)
✓ Secure Complex – Open Only Command Inputs with Automatic Closing Timer (299 Seconds/5 Minutes) “Stay Open” feature by wired input

OPTIONAL Uninterrupted Battery Backup System

The optional uninterrupted battery backup system allows for continued use in the case of power loss without the need for any user intervention, it will continue to allow system operation including any system accessories for 24 hours OR until the power is restored. The batteries are automatically recharged when power is restored and trickle whilst power is available Directly fitting into the systems compartment there is no need for any additional storage boxes.

If the optional battery system is not desired the system can still be manually release using the secure override system when applicable.

Automatic Gate System Controller Specifications

Operating Voltage	24V
Duty Cycle	70%
Standby Consumption	20mA
Supports Battery Backup	Yes, 24V DC
Automatic Gate Lock Support	Yes, 24V DC
Light Support	Yes, 24V DC
Accessories Voltage	Yes, 12V DC
Safety Inputs	Photocells, Safety edges, Induction Loops, Edge Sensors, Emergency Stop Button
Operating Temperature	-10°-60°C
Maximum Remotes	192

Control Box Dimensions

Automatic Driveway Gate System Control Box

Dukie Photocell Kit

Dukie Automatic gate and garage door photocell

The Dukie series photocell kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Both the photocells are wired back to the control box with low voltage wiring however the OPTIONAL UPGRADE to Dukie XR Retro Reflective sensor allows for a reflector on the far side and the sensor itself to be connected on the control box side.

Key Features

✓ 45° Adjustable in each direction, suited for inline and out of line posts
✓ Ultra modern and neat appearance
✓ Compact design fits almost anywhere at 100(L)x45(W)x35(D)mm
✓ NO and NC Relay Settings
✓ Excellent range characteristics of up to 10 meter distance between each photocell
✓ Unlimited sets can be installed on each system for added protective layers
✓ OPTIONAL Dukie XR reflective sensor upgrade for wiring on one side only

Dex 4 Wireless Keypad

The Dex 4 Wireless Keypad can communicate directly to the gate system using the same Keeloq secure rolling code signal as the remotes allowing for an easy installation process without the need for wiring.

Due to its high quality chipset the open air signal strength can exceed an astounding 80 meters. This makes the Dex 4 not only suited to controlling the gate but could actually be used to control the garage door, another gate etc. providing they have the compatible receiver installed, Up to FOUR devices/features could be used with individual pin codes for each due to its four independent output channel designs.

Key Features

✓ Three colour options are available: Classic White, Subtle Grey and Deep black
✓ Compact design fits almost anywhere at 90(L)x77(W)x35(D)mm
✓ Control Up to four systems or four features on different pin codes
✓ Astounding open air distance of 80 metres
✓ Works on 2x AAA batteries (supplied)
✓ Audible and LED indicators
✓ Totally wireless (wire free) easy installation

Automatic Electric Lock and Magnetic Lock Options

Fortress EL Automatic Gate Lock

The Fortress EL totally AUTOMATIC electric gate lock system allows for a secure hold over the gate particularly handy when the gate is wide, prone to wind resistance or in an application requiring an additional layer of security. Prior to beginning the gate operation the electric lock first unlatches then begins to move the gates to the open position, during the closing the lock will automatically latched closed when reaching the end of cycle.

The Fortress EL is supplied with both a gate to post latching plate (for single gates) and also a gate to ground latching plate (for double gates to be used with a metal gate stop).

For double gates a rebate/lip should be installed on the front of the trailing gate to prevent it being pushed past the locked gate (essentially both gates are locked this way).

Key Features

✓ Zero power consumption when locked in standby
✓ All metal construction
✓ Works with the gate controllers battery system
✓ Release keys supplied in-case of total power loss
✓ Easy 2 Wire connection
✓ flexible installation

Fortress ML Automatic Magnetic Gate Lock

The Fortress ML totally AUTOMATIC Magnetic gate lock system allows for a secure hold over the gate particularly handy when the gate is wide, prone to wind resistance or in an application requiring an additional layer of security. Prior to beginning the gate operation the electric lock first unlatches then begins to move the gates to the open position, during the closing the lock will automatically latched closed when reaching the end of cycle.

The Fortress ML is designed to work with both gate to post (for single gates) and also a gate to gate (for double gates to be used with a metal gate stop).

The benefit in using a ML series Magnetic lock over an EL series Electric lock is that ML magnetic lock allows for an automatic release from the system as per normal in a circumstance where the lock is loaded by wind resistance whereas the electric lock cannot release whilst loaded by wind resistance.

Key Features

✓ Waterproof Stainless Steel Case with resin filled core
✓ 280KG Holding Force
✓ Works with the gate controllers backup-battery system
✓ Can still unlock under load when commanded
✓ Easy 2 Wire connection
✓ flexible installation

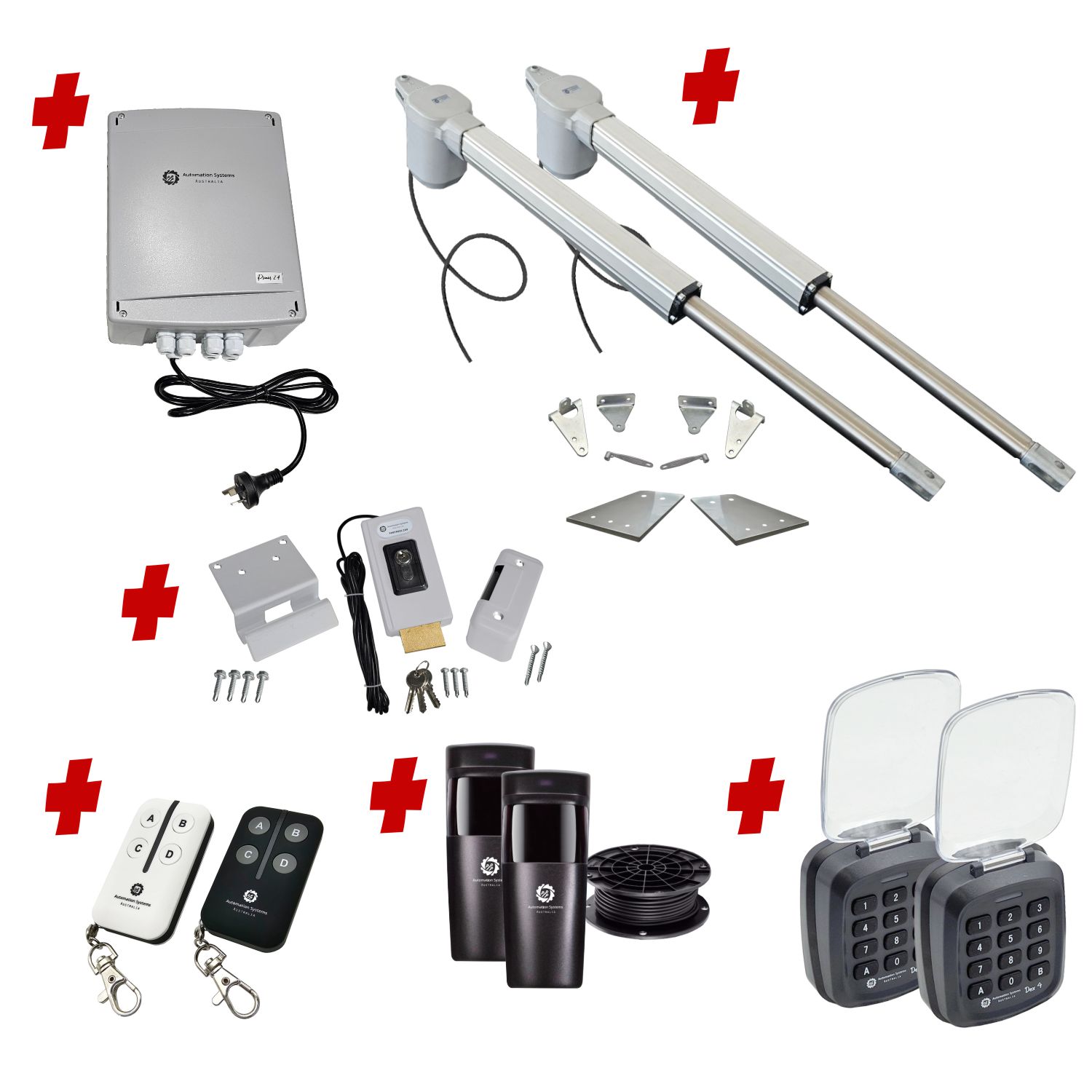

Kit Contents (See Description Tab for Full In-Depth Details)

VIPER 524 Low Voltage 24 Volt Strong and Silent Linear Actuator

A 1 Metre flying lead is pre-connected to the actuator ready to connect to a junction of your choosing. Cable rolls and junction boxes are available as add on items.

Key Features

✓ Designed and Manufactured in Italy
✓ Fast and Efficient 24 Volt Operation
✓ Metal Transfer Gear
✓ Aluminum Housing
✓ Quiet and discreet
✓ 19mm (3/4″) Actuator Lead Screw

Supplied Riser Plate

Manual Release System

Simply insert the supplied lever key and turn clockwise/counter-clockwise to lock and unlock

A peak inside the VIPER Series

Driveway Gate Motor Specifications

Operating Voltage	24V DC
Duty Cycle	90%
Thrust	2000N
Maximum Stroke Length	500mm (Minus 30mm Per limit Stop Used)
Limit Stops	Yes, Open and Closed Positions (Removable)
Gearing Structure	Transfer Gear, Irreversible
Case Material	Extruded Aluminum Piston Housing, Die-Cast Inner Structure, ABS Fascia
Piston	Die-Cast Alloy Gate End-Stainless Steel Piston
Maximum Gate Weight	4.2 Meters (14 Ft)
Maximum Gate Weight	300KG EACH

“Pull to Open”/”Push to Open” Installation Geometry

Viper 524 Actuator Kit with Limit Stops

Maximum 4.2m (14FT) / 300KG Each
Metal Gear Actuator
Can swing Up To 100° (Adjustable)
Adjustable Open & Closed Limit Stops

Out Of Stock

Cable Options *

Clear

Out Of Stock

VIPER 524 Low Voltage 24 Volt Strong and Silent Linear Actuator

A 1 Metre flying lead is pre-connected to the actuator ready to connect to a junction of your choosing. Cable rolls and junction boxes are available as add on items.

Key Features

✓ Designed and Manufactured in Italy
✓ Fast and Efficient 24 Volt Operation
✓ Metal Transfer Gear
✓ Aluminum Housing
✓ Quiet and discreet
✓ 19mm (3/4″) Actuator Lead Screw

Supplied Riser Plate

Manual Release System

Simply insert the supplied lever key and turn clockwise/counter-clockwise to lock and unlock

A peak inside the VIPER Series

Driveway Gate Motor Specifications

Operating Voltage	24V DC
Duty Cycle	90%
Thrust	2000N
Maximum Stroke Length	500mm (Minus 30mm Per limit Stop Used)
Limit Stops	Yes, Open and Closed Positions (Removable)
Gearing Structure	Transfer Gear, Irreversible
Case Material	Extruded Aluminum Piston Housing, Die-Cast Inner Structure, ABS Fascia
Piston	Die-Cast Alloy Gate End-Stainless Steel Piston
Maximum Gate Weight	4.2 Meters (14 Ft)
Maximum Gate Weight	300KG EACH

“Pull to Open”/”Push to Open” Installation Geometry

Viper 524 Actuator Kit with Limit Stops

Maximum 4.2m (14FT) / 300KG Each
Metal Gear Actuator
Can swing Up To 100° (Adjustable)
Adjustable Open & Closed Limit Stops

Out Of Stock

Cable Options *

Clear

Out Of Stock

Description

Please be aware this product is only compatible with Automation Systems Australia Control Boards and Remote Receivers, it will NOT work with other brand products.

STX4K Keyring High Range Remote

The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).

Key Features

✓ Up to 100 metres distance in open air
✓ Keeloq rolling code security
✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
✓ Clear visibility red LED indicator which will illuminate upon a button press
✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
✓ Slimline and modern ergonomic design
✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

x

Four Button Keyring Remote Control (White)
- Up to 100 Metre Open Air Distance
- High Security Rolling Code
- Slimline and Ergonomic
Show more
Up to 100 Metre Open Air Distance

High Security Rolling Code

Slimline and Ergonomic
×
Out Of Stock

Provide a Sun Visor Clip? ($3) *
Clear
Out Of Stock

Automatic Gate Remote Control Keyring Mounting STX4K White quantity
Description

Please be aware this product is only compatible with Automation Systems Australia Control Boards and Remote Receivers, it will NOT work with other brand products.

STX4K Keyring High Range Remote

The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).

Key Features

✓ Up to 100 metres distance in open air
✓ Keeloq rolling code security
✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
✓ Clear visibility red LED indicator which will illuminate upon a button press
✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
✓ Slimline and modern ergonomic design
✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

x

Four Button Keyring Remote Control (Black)
- Up to 100 Metre Open Air Distance
- High Security Rolling Code
- Slimline and Ergonomic
Show more
Up to 100 Metre Open Air Distance

High Security Rolling Code

Slimline and Ergonomic
×
Out Of Stock

Provide a Sun Visor Clip? ($3) *
Clear
Out Of Stock

Automatic Gate Remote Control Keyring Mounting STX4K Black quantity

Dukie wired both sides photocell for gats garage alarm

Photocell OR Reflective Safety Sensor

Choose from Photocell wired to both sides OR a Reflective sensor Wired only on the one side (1.9m Pre-Connected)

Out Of Stock

Photocell Options *

Clear

Out Of Stock

Premier SW24 Advanced Digital Automatic Gate Controller

Automatic electric 24v driveway gate control box

Automatic Gate System Features

Features as Standard

✓ Easy to use Single Button Mode of Opening-Stop-Closing including the “Stay open” feature
✓ Automatic Closing Timer Adjustable in one second increments up to 5 minutes
✓ Automatic learning of the gate + Fine tunable operating Times
✓ Soft Start (Ramp UP) and Soft Stop/Slowdown (Ramp DOWN)
✓ Adjustable Slow Down Speed and Time
✓ Optional Plug and Play Battery Backup System
✓ Fortress Series Electric and Magnetic Lock Support
✓ Low Voltage Power for all accessories directly through the gate controller
✓ Warning Light Output

Normal Modes allow for the “STAY Open” feature to cancel the automatic closing timer by remote Handy when expecting guest, backing in a trailer etc.

Multiple Configurable Safety Inputs

Wired and Wireless Access Control Support

Residential, Commercial and Complex Working Modes Options

OPTIONAL Uninterrupted Battery Backup System

If the optional battery system is not desired the system can still be manually release using the secure override system when applicable.

Automatic Gate System Controller Specifications

Operating Voltage	24V
Duty Cycle	70%
Standby Consumption	20mA
Supports Battery Backup	Yes, 24V DC
Automatic Gate Lock Support	Yes, 24V DC
Light Support	Yes, 24V DC
Accessories Voltage	Yes, 12V DC
Safety Inputs	Photocells, Safety edges, Induction Loops, Edge Sensors, Emergency Stop Button
Operating Temperature	-10°-60°C
Maximum Remotes	192

Control Box Dimensions

Premier 24V Weatherproof Swing Gate Control Box

Plugs directly into a Power Point (Or can be hardwired)
Digital Display
Speed Control + Ramp Up + Slow Down
Automatic Close Timer
Automatic Lock Support
Supports Battery Backup

Out Of Stock

Description

Please be aware this product is only compatible with Automation Systems Australia Control Boards and Remote Receivers, it will NOT work with other brand products.

Dex 4 Wireless Keypad

The Dex 4 Wireless Keypad can communicate directly to the gate system using the same Keeloq secure rolling code signal as the remotes allowing for an easy installation process without the need for wiring.

Due to its high quality chipset the open air signal strength can exceed an astounding 80 meters. This makes the Dex 4 not only suited to controlling the gate but could actually be used to control the garage door, another gate etc. providing they have the compatible receiver installed, Up to FOUR devices/features could be used with individual pin codes for each due to its four independent output channel designs.

Key Features

✓ Three colour options are available: Classic White, Subtle Grey and Deep black
✓ Compact design fits almost anywhere at 90(L)x77(W)x35(D)mm
✓ Control Up to four systems or four features on different pin codes
✓ Astounding open air distance of 80 metres
✓ Works on 2x AAA batteries (supplied)
✓ Audible and LED indicators
✓ Totally wireless (wire free) easy installation

Power 2xAAA Batteries (Supplied)

Operating Distance 80 Meters Open Air

Frequency Secure Rolling Code 433MHZ

Operating Channels 4

Transmitting Time 1.5s

x

Wireless Keypad (Three colour options) × 2

Four channel wireless keypad allowing for full control of all automatic gate features without the need for wiring.

Show more

Four channel wireless keypad allowing for full control of all automatic gate features without the need for wiring.

×

Out Of Stock

Colour *
Clear
Out Of Stock
No description available...

x

Automatic Lock

Out Of Stock

Automatic Lock Options *
Clear
Out Of Stock

Optional Add On's

Description

Please be aware this product is only compatible with Automation Systems Australia Control Boards and Remote Receivers, it will NOT work with other brand products.

STX4L Ultra Long Distance Remote

The STX4L Long distance remote is a class leader in Ultra long distance (up to 800 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).

The long distance remote is most useful around larger properties able to operate the gate from sheds, buildings and the home where a typical remote would not be able to achieve the same operating distance.

Key Features

✓ Up to 800 metres distance in open air
✓ Keeloq rolling code security
✓ Easy to Use buttons
✓ ON/OFF switch to prevent accidental operation
✓ Clear visibility LED indicator which will illuminate upon a button press
✓ Narrow handheld design
✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

x

Automatic Gate Long Distance Remote Control (Long Range Remote)
- Up to 800 Metre Open Air Distance
- High Security Rolling Code
- Side Switch Prevents Accidental Operations
Show more
Up to 800 Metre Open Air Distance

High Security Rolling Code

Side Switch Prevents Accidental Operations
×
Add for

$45.00

Out Of Stock
Description

Dual Channel Remote Control Receiver

Working with the STX4K, STX4L and Dex4 Wireless equipment the Two Channel receiver offers the ability to control up to two individual devices/systems separately such as automatic gate systems, garage doors, alarm systems and almost any device with the requiring a momentary pulse OR latching circuit to operate.

Specifications

Operating Voltage 12-30VDC/12-24VAC

Operating Current 9mA standby

Relay Switching Current Capacity 3A Momentary/500mA Latching

Frequency 433mhz

Compatible Transmitters (tX) STX4L, STX4K, Dex4

x

Receiver for Garage Doors

Operate your garage door from a different button on the remote using this expander module.

Show more

Operate your garage door from a different button on the remote using this expander module.

×
Add for

$40.00

Out Of Stock
Description

Push/Press Button

The push button is the simplest of all access control devices, a simple press of the button allows the automation to begin its working. Generally installed on the inside of the property within close proximity to the user (driver side when exiting) allows for the easiest method of working.

Key Features

✓ Weatherproof for outdoor use and can be used indoors ✓ Supports NO and NC circuits (when used as a wired button) ✓ 2 Wire connection or Wireless Option (Automation Systems Australia ONLY) ✓ Easy to operate

x

Weatherproof Press Button

Typical press button for foot traffic, suitable for outdoor and indoor installations.

Show more

Typical press button for foot traffic, suitable for outdoor and indoor installations.

×
Add for
$35.00 – $70.00

Out Of Stock

Wired or Wireless *
Clear
Out Of Stock
Description

Big Head (Mushroom) Push/Press Button

The push button is the simplest of all access control devices, a simple press of the button allows the automation to begin its working. Generally installed on the inside of the property within close proximity to the user (driver side when exiting) allows for the easiest method of working.

Key Features

✓ Weatherproof for outdoor use and can be used indoors ✓ Supports NO and NC circuits (when used as a wired button) ✓ 2 Wire connection or Wireless Option (Automation Systems Australia ONLY) ✓ Easy to operate

x

Weatherproof Push Button (Mushroom Head)

Typical press button for vehicles mounted to a bollard, suitable for outdoor and indoor installations.

Show more

Typical press button for vehicles mounted to a bollard, suitable for outdoor and indoor installations.

×
Add for
$35.00 – $70.00

Out Of Stock

Wired or Wireless *
Clear
Out Of Stock
Description

Weekly Schedule Automatic Gate Timer

The weekly timer allows for scheduling open time cycles to operate the gate, simple set the open time and once lapsed the gate would automatically close (automatic close timer must be enabled).

The timer allows for independent 5 day business week, INDEPENDENT days configurations OR a full 7 day week configuration along with other modes. Up to 8 different On/Off schedules can be set.

Key Features

✓ Automatic Opening and Closing at the Set times
✓ LCD Display
✓ Built in Battery to retain schedules, replaced every 2-3 years
✓ Simple setting by: independent days schedule, Common time 5 day working week (MON-FRI), Weekends Combined (SAT+SUN) or Common time 7 day week (MON-SUN)

Specifications

Operating Voltage 12V DC

Power Consumption 50mA

Display LCD

Load Capacity 10A/250V

Programs 8

Relay NO/NC

x

Weekly Auto Open/Close Scheduled Timer

Programable timer with numerous configurations options on when to open and close the gate.

Show more

Programable timer with numerous configurations options on when to open and close the gate.

×
Add for

$69.00

Out Of Stock
Description

WIRELESS Automatic Vehicle Detection Sensor – for Automatic Opening of gate

An easy to install WIRELESS AUTOMATIC OPENING driveway vehicle detection system

Multiple hours saved, materials saved and frustrations gone

Long gone are the days of cutting concrete, chasing wires and configuring induction loop detectors (ground loop). Finally, a simple WIRELESS solution to streamline the installation process.
The WIRELESS loop detector SIMPLY BOLT DOWN to a concrete driveway (or concrete pad in gravel driveways) and wirelessly communicate back with the gate system using the supplied high security (128 Bit) transceiver for two way communication between the New Generation wireless loops.

The wireless exit “loop” is maintenance free and installed with 2x AA Lithium batteries for a THREE YEAR use period before a battery replacement is required (regular usage), to replace the batteries simply remove the top cover and fit the new Lithium AA batteries.

How does it work and what happens if I accidently drive over it?
The wireless loop is designed for a vehicle to drive over and will detect the undercarriage of the vehicle, if its accidently driven over it presents no issue whatsoever as its casing carries a static load capacity of 2500kg.

How far can i have it from the gate?
Thanks to its high transmission range capabilities it has a maximum wireless operating distance of 50 meters.

How big is it?
Its compact form factor allows for a discreet installation measuring only 120x120mm Length and Width and only 30mm in height.

Will it work with my system?
Typically, YES, it will work with any gate system that has an open command input and an accessories voltage output of 12-24V DC

Which installations does this suit?
Any domestic installations which fit the following criteria:
✓A concrete pad or driveway is available for the device to be installed on to
✓When a vehicle is parked it does not sit within 3 meters of the device
✓The device does not sit in a recess and pool water, snow or any debris
✓Not nearby to high voltage cables

How is it installed?
1. Connect the transceiver to the gates control board, this must be installed within the gate controller or any enclosure
2. Power on the transceiver and have the loop touching the antenna of the transceiver.
3. Once the transceiver flashes its blue led and the loop flashes its yellow led they are now paired together.
4. Remove backing plate from the loop and install to concrete using the supplied concrete screw bolts, ensure the arrow faces the direction of travel for exit (faces towards the gate).
5. Install the wireless loop to the backing plate and allow 3 minutes for calibration
Test to confirm operation, job done!

Supplied With

✓1x Wireless Loop (with 2x AA Lithium Batteries Installed)
✓1x Transceiver
✓2x Concrete Screw Bolts

Detection Area

Replaceable Battery Life

x

Automatic Opening WIRELESS Automatic Vehicle Detection Sensor

This WIRELESS system can automatically open the gate as your vehicle passes over it. Installed up to 50 metres away from the gate!

Show more

This WIRELESS system can automatically open the gate as your vehicle passes over it. Installed up to 50 metres away from the gate!

×
Add for

$460.00

Out Of Stock

Access Control Keypad with EM Tag Reader and mobile APP

Wired keypad allowing for pin code access control, em cards and tags operation, along with mobile APP control.

Add for

$150.00 – $190.00

Out Of Stock

Mobile App Control Wi-Fi Connection Module

Control the gate from anywhere in the world with your mobile phone using the Tekno WF module.

Add for

$79.00

Out Of Stock

Description

Uninterrupted Battery Backup System for Premier SW24 Swing Gate System

The optional uninterrupted battery backup system allows for continued use in the case of power loss without the need for any user intervention, it will continue to allow system operation including any system accessories for 24 hours OR until the power is restored. The batteries are automatically recharged when power is restored and trickle whilst power is available Directly fitting into the systems compartment there is no need for any additional storage boxes.

x

Uninterrupted Battery Backup System

Fits inside the control box, supplied with the plug in harness. Allows for uninterrupted operation during power outage.

Show more

Fits inside the control box, supplied with the plug in harness. Allows for uninterrupted operation during power outage.

×
Add for

$50.00

$45.00

Save $5.00

Out Of Stock

Manuals

Videos

Viper 5 Long Stroke ITALIAN Electric 24V Low Voltage Automatic Double Swing Driveway Gate Opener Kit ROBUST Heavy Duty Design with TWO Keypads Entry Exit

$2,039.00

$1,999.00

Save $40.00

Available on backorder

Power	12V DC
Standby Current	≤35mA
Maximum Users	10,000 Users
Operating Temperature	-40°C - +60°C
Operating Methods	PIN CODE, RFID,MOBILE APP
Wi-Fi Distance	Up to 10m on basic ISP routers (entry level basic) Substantially boosted on a good quality router or mesh network

Operating Voltage	5-24V DC
Consumption	≤35mA Standby/≤100mA Operation
Smart Assistant Support	YES
Operating Methods	Mobile APP
Wi-Fi Distance	Up to 10m on basic ISP routers (entry level basic) Substantially boosted on a good quality router or mesh network

Power	2xAAA Batteries (Supplied)
Operating Distance	80 Meters Open Air
Frequency	Secure Rolling Code 433MHZ
Operating Channels	4
Transmitting Time	1.5s

Operating Voltage	12-30VDC/12-24VAC
Operating Current	9mA standby
Relay Switching Current Capacity	3A Momentary/500mA Latching
Frequency	433mhz
Compatible Transmitters (tX)	STX4L, STX4K, Dex4

Operating Voltage	12V DC
Power Consumption	50mA
Display	LCD
Load Capacity	10A/250V
Programs	8
Relay	NO/NC

Viper 5 Long Stroke ITALIAN Electric 24V Low Voltage Automatic Double Swing Driveway Gate Opener Kit ROBUST Heavy Duty Design with TWO Keypads Entry Exit

VIPER 524 Low Voltage 24 Volt Strong and Silent Linear Actuator

Key Features

Supplied Riser Plate

Manual Release System

A peak inside the VIPER Series

Driveway Gate Motor Specifications

“Pull to Open”/”Push to Open” Installation Geometry

STX4K Keyring High Range Remote

Key Features

Premier SW24 Advanced Digital Automatic Gate Controller

Automatic Gate System Features

Features as Standard

Multiple Configurable Safety Inputs

Wired and Wireless Access Control Support

Residential, Commercial and Complex Working Modes Options

OPTIONAL Uninterrupted Battery Backup System

Automatic Gate System Controller Specifications

Control Box Dimensions

Dukie Photocell Kit

Key Features

Dex 4 Wireless Keypad

Key Features

Automatic Electric Lock and Magnetic Lock Options

Fortress EL Automatic Gate Lock

Key Features

Fortress ML Automatic Magnetic Gate Lock

Key Features

Kit Contents (See Description Tab for Full In-Depth Details)

Description

VIPER 524 Low Voltage 24 Volt Strong and Silent Linear Actuator

Key Features

Supplied Riser Plate

Manual Release System

A peak inside the VIPER Series

Driveway Gate Motor Specifications

“Pull to Open”/”Push to Open” Installation Geometry

Viper 524 Actuator Kit with Limit Stops

Description

VIPER 524 Low Voltage 24 Volt Strong and Silent Linear Actuator

Key Features

Supplied Riser Plate

Manual Release System

A peak inside the VIPER Series

Driveway Gate Motor Specifications

“Pull to Open”/”Push to Open” Installation Geometry

Viper 524 Actuator Kit with Limit Stops

Description

STX4K Keyring High Range Remote

Key Features

Four Button Keyring Remote Control (White)

Description

STX4K Keyring High Range Remote

Key Features

Four Button Keyring Remote Control (Black)

Description

Dukie XR Retro-Reflective Sensor

Key Features

Photocell OR Reflective Safety Sensor

Description

Premier SW24 Advanced Digital Automatic Gate Controller

Automatic Gate System Features

Features as Standard

Multiple Configurable Safety Inputs

Wired and Wireless Access Control Support

Residential, Commercial and Complex Working Modes Options

OPTIONAL Uninterrupted Battery Backup System

Automatic Gate System Controller Specifications

Control Box Dimensions

Premier 24V Weatherproof Swing Gate Control Box

Description

Dex 4 Wireless Keypad

Key Features

Wireless Keypad (Three colour options) × 2

Automatic Lock

Optional Add On's

Description

STX4L Ultra Long Distance Remote

Key Features

Automatic Gate Long Distance Remote Control (Long Range Remote)
