Viper 5 Long Stroke ITALIAN Low Voltage Farm Gate 24V Automatic Rural Swing Driveway Gate Opener 24 Volt Kit Volt ROBUST Heavy Duty Design with 4G Intercom

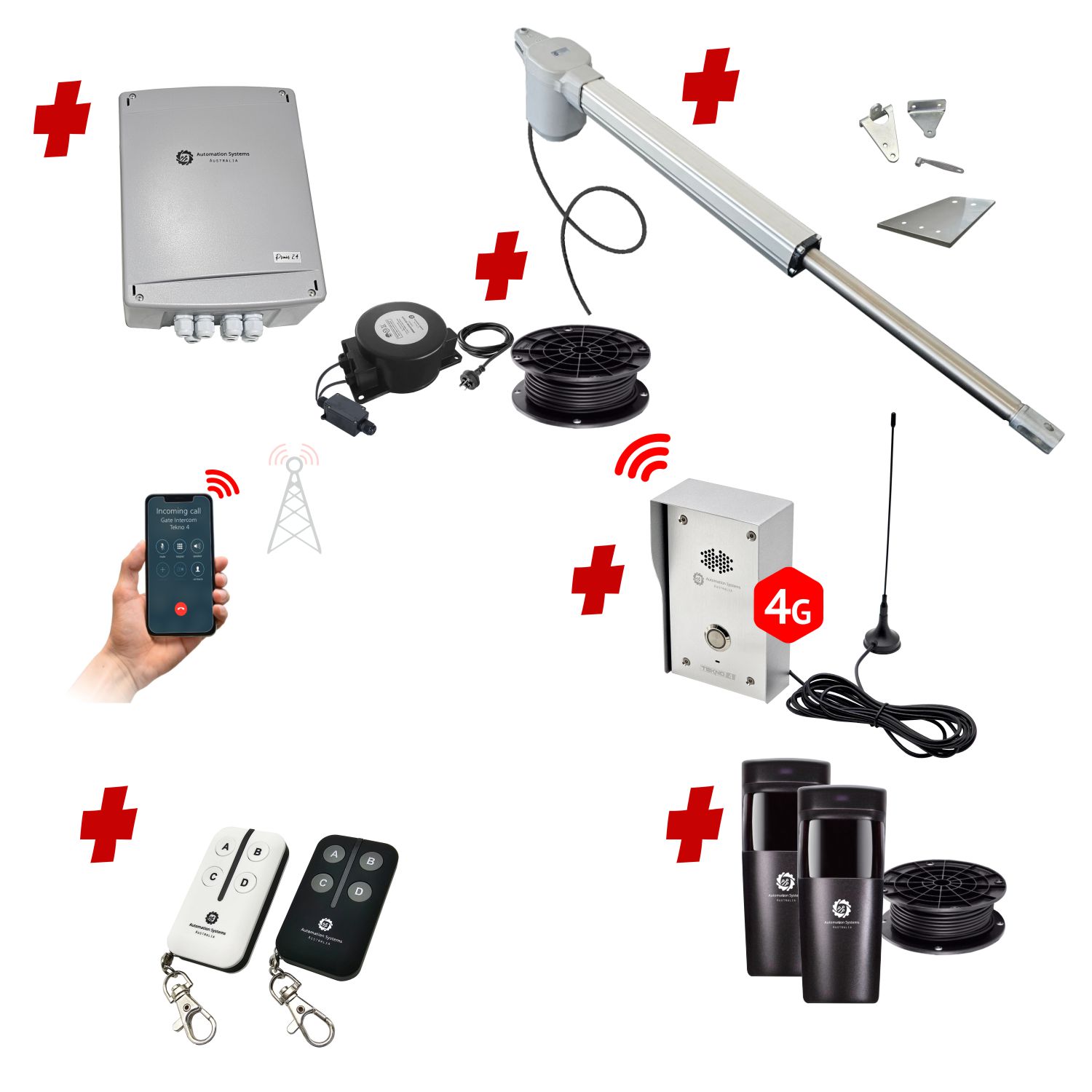

Kit Contents (See Description Tab for Full In-Depth Details)

•

  Description

  VIPER 524 Low Voltage 24 Volt Strong and Silent Linear Actuator



  The VIPER 524 Is a High-End ITALIAN 24 Volt Telescopic actuator in the Extra Heavy Duty Class, Strong and Silent this actuator can swing gate weights of up to 300KG and Gates up to 4.2m (14FT). Construction is solid and smooth from the die-cast inner structure connecting systems internals to the post bracket to the extruded aluminum housing, stainless steel piston, and robust 3/4″ Internal lead screw the actuator retains subtle and quiet characteristics but the drive to push gates of most sizes and weights.

  Operations are smooth and efficient using its 24 Volt DC motor system coupled to a 19mm (3/4″) lead screw driving the stainless steel “piston” in and out. The end positions are set using the easiest possible method of adjustable limit stops. Limit stops are slid forward/back to adjust both the maximum open and closed positions of the gate, being a mechanical system its a case of set and forget with no further adjustments being required. Typically the open and closed positions will not require and further stops unless higher wind loads are expected (cladded gates).

  The Viper series actuators are 100% Universal meaning one actuator could be installed on EITHER side of the driveway as the clever clutch release system (Emergency release) is available on both sides of the actuator.

  The laser cut steel brackets for the gate and post are constructed from 6mm steel (galvanized) ensuring they are rigid and static with no flexibility or movement. The actuator is suited for both pull to open inwards and also pushing outwards to open installations.

  The Viper 524 has 500mm of usable stroke without the use of included limit stoppers, or effectively a reduction of 30mm per limit stop used (MIN. 440mm/470mm) and has the ability to work with gates from as narrow as 850mm and as wide as 4.2m (14ft) with a maximum weight of 300kg.

  The prerequisite for a VIPER operator is a gate mounting rail or fitting point at 200mm or greater from the ground level. A 6mm thick Riser plate is included in the package contents to create a mounting point for the actuator if required.

  A 1 Metre flying lead is pre-connected to the actuator ready to connect to a junction of your choosing. Cable rolls and junction boxes are available as add on items.

  Key Features



  ✓ Designed and Manufactured in Italy
  ✓ Fast and Efficient 24 Volt Operation
  ✓ Metal Transfer Gear
  ✓ Aluminum Housing
  ✓ Quiet and discreet
  ✓ 19mm (3/4″) Actuator Lead Screw

  ✓ Stainless Steel Piston with embedded piston stopper
  ✓ Open and Closed Position ADJUSTABLE without the need for a gate stop (adjustable limit stops)
  ✓ Flexible and vast installation geometries

  Supplied Riser Plate

  The supplied riser plate allows for installation to the bottom rail when no others are available making it suitable for all gate mounting rail scenarios. Alternatively the gate mounting bracket (without the riser plate) can be installed to any horizontal rail greater than 200mm from ground level.


  Manual Release System

  Simply insert the supplied lever key and turn clockwise/counter-clockwise to lock and unlock


  A peak inside the VIPER Series





  Driveway Gate Motor Specifications

  Operating Voltage	24V DC
  Duty Cycle	90%
  Thrust	2000N
  Maximum Stroke Length	500mm (Minus 30mm Per limit Stop Used)
  Limit Stops	Yes, Open and Closed Positions (Removable)
  Gearing Structure	Transfer Gear, Irreversible
  Case Material	Extruded Aluminum Piston Housing, Die-Cast Inner Structure, ABS Fascia
  Piston	Die-Cast Alloy Gate End-Stainless Steel Piston
  Maximum Gate Weight	4.2 Meters (14 Ft)
  Maximum Gate Weight	300KG EACH





  “Pull to Open”/”Push to Open” Installation Geometry



  x

  Viper 524 Actuator Kit with Limit Stops

  • Maximum 4.2m (14FT) / 300KG Each
  • Metal Gear Actuator
  • Can swing Up To 100° (Adjustable)
  • Adjustable Open & Closed Limit Stops

  Show more

  • Maximum 4.2m (14FT) / 300KG Each
  • Metal Gear Actuator
  • Can swing Up To 100° (Adjustable)
  • Adjustable Open & Closed Limit Stops

  ×

  Out Of Stock

  Cable Options *

  Choose an option1m Lead (Pre-Wired)1m Lead + 7m Extension Cable and Junction Box1m Lead + 10m Extension Cable and Junction Box Clear Out Of Stock

•

  Description

  Please be aware this product is only compatible with Automation Systems Australia Control Boards and Remote Receivers, it will NOT work with other brand products.

  STX4K Keyring High Range Remote



  The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

  The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).



  Key Features

  ✓ Up to 100 metres distance in open air
  ✓ Keeloq rolling code security
  ✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
  ✓ Clear visibility red LED indicator which will illuminate upon a button press
  ✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
  ✓ Slimline and modern ergonomic design
  ✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

  x

  Four Button Keyring Remote Control (White)

  • Up to 100 Metre Open Air Distance
  • High Security Rolling Code
  • Slimline and Ergonomic

  Show more

  • Up to 100 Metre Open Air Distance
  • High Security Rolling Code
  • Slimline and Ergonomic

  ×

  Out Of Stock

  Provide a Sun Visor Clip? ($3) *

  Choose an optionNoYes Clear Out Of Stock

  Automatic Gate Remote Control Keyring Mounting STX4K White quantity

•

  Description

  Please be aware this product is only compatible with Automation Systems Australia Control Boards and Remote Receivers, it will NOT work with other brand products.

  STX4K Keyring High Range Remote



  The STX4K Keyring remote is a class leader in long range (up to 100 metres open air) and high security remote transmitters, using Keeloq rolling code technology provides the ultimate layer of security for your remote against over the air radio code thefts and copies of your remote which in-turn stops unwanted access or intrusions to your property.

  The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).



  Key Features

  ✓ Up to 100 metres distance in open air
  ✓ Keeloq rolling code security
  ✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
  ✓ Clear visibility red LED indicator which will illuminate upon a button press
  ✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
  ✓ Slimline and modern ergonomic design
  ✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module

  x

  Four Button Keyring Remote Control (Black)

  • Up to 100 Metre Open Air Distance
  • High Security Rolling Code
  • Slimline and Ergonomic

  Show more

  • Up to 100 Metre Open Air Distance
  • High Security Rolling Code
  • Slimline and Ergonomic

  ×

  Out Of Stock

  Provide a Sun Visor Clip? ($3) *

  Choose an optionNoYes Clear Out Of Stock

  Automatic Gate Remote Control Keyring Mounting STX4K Black quantity

•

  Description

  Dukie XR Retro-Reflective Sensor



  The Dukie XR series retro-reflective sensor kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Only the sensor requires wiring back to the gate controller as the sensor bounces its own beam back via the reflector installed on the far side of the driveway.

  Added benefits of the XR series photocell is its Anti Interference Infrared characteristics making it best suited for ultra high capacity electric motors.





  Key Features

  ✓ No wiring needed across the driveway (reflector)
  ✓ Narrow Sensor only 20mm width
  ✓ Flexible with multiple different mounting methods
  ✓ NO and NC Relay Options
  ✓ Excellent range characteristics of up to 11 meter distance in clear conditions (-40% in adverse conditions)

  x

  Photocell OR Reflective Safety Sensor

  Choose from Photocell wired to both sides OR a Reflective sensor Wired only on the one side (1.9m Pre-Connected)

  Show more

  Choose from Photocell wired to both sides OR a Reflective sensor Wired only on the one side (1.9m Pre-Connected)

  ×

  Out Of Stock

  Photocell Options *

  Choose an optionNo Photocell, No Cable (I have my own)Wired Both Sides with 7m Cable Roll (Dukie)Wired Both Sides with 10m Cable Roll (Dukie)Reflective Sensor- WIRELESS ACROSS DRIVEWAY (Dukie XR)Wired Both Sides, I already have cable (Dukie) Clear Out Of Stock

•

  Description

  Premier SW24 Advanced Digital Automatic Gate Controller



  The Premier SW24 Automatic gate system controller comes standard with a state of the art feature set catering for all types of installations, whether only requiring ordinary residential operation to all the way up to a full fledged setup requiring advanced logic principals taking advantage of the 70% duty cycle. The on-board display makes easy work of any settings changes if desired and is easily visible in the outdoors being the advantage of LED displays. With multiple Inputs and outputs just about any accessory is compatible with the Premier SW24 system (see the complete list below). Also boasting multiple safety inputs along with its precise on-board detection it allows safety to remain prioritized for any application. with the optional plug and play battery back-up system you will be sure not to ever be locked out of your property. The installation process is always kept in mind allowing up to 7 cable inputs into the outdoor weatherproof gate control box using IP68 cable glands, you will never run out of space or provisions for more. The genius automatic learning system, hold one key to enable and begin the automatic learning of the gate system and automatic definition of the ramp up and slow down points, its as easy as it gets suiting all skill levels from DIY once off installs to professional installers. All connections are Low Voltage and safe for all installers regardless of the skill level without the concern of electrical shock.



  Automatic Gate System Features



  Features as Standard

  ✓ Easy to use Single Button Mode of Opening-Stop-Closing including the "Stay open" feature ✓ Open one gate Pedestrian Mode Feature Double Swing Gates Only ✓ Automatic Closing Timer Adjustable in one second increments up to 5 minutes ✓ Automatic learning of the gate + Fine tunable operating Times ✓ Soft Start (Ramp UP) and Soft Stop/Slowdown (Ramp DOWN) ✓ Adjustable Slow Down Speed and Time ✓ Optional Plug and Play Battery Backup System ✓ Fortress Series Electric and Magnetic Lock Support ✓ Low Voltage Power for all accessories directly through the gate controller ✓ Warning Light Output

  Normal Modes allow for the "STAY Open" feature to cancel the automatic closing timer by remote Handy when expecting guest, backing in a trailer etc.



  Multiple Configurable Safety Inputs

  ✓ Obstacle Detection by load This feature is always running and detecting if the gate is stalled under load by an obstacle during its travel. ✓ Typical Photocell Input Terminal to prevent gate from closing on vehicle, reverts gate if a vehicle passes through during closing, restarts the Automatic closing timer after each interruption. ✓ Photostop Input, Same as the typical photocell input with an added feature of preventing the gate from opening if the photocell is blocked. Handy for short driveways and also opening outwards installations. ✓ Special Detector Input to tell the gate to close two seconds after the vehicle passes, perfect for higher security applications (and also escaping dogs). ✓ Safety Edge Input Installed on to the gate, safety edges allow for a return to open if the edge of gate is to touch an obstacle. ✓ Emergency Stop Button This feature allows for a manned button to immediately stop the system open pressing.

  Wired and Wireless Access Control Support

  ✓ Keypads Wired or Wireless Secure PIN Number access (Tekno K1/Dex4) ✓ Press Button Simple button operation ✓ Mobile APP Control Cloud based and operatable anywhere in the world (Tekno WF) ✓ Doorbell Intercom Systems ✓ Exit Wands and Induction Loops To automatically operate the gate upon vehicle presence ✓ GSM 4G Technology Operate the gate by phone call (or intercom phone call) (Tekno 4/Tekno S1) ✓ Weekly Schedule Timer To automatically operate the gate based on a programmed daily/weekly operating times

  Residential, Commercial and Complex Working Modes Options

  ✓ Normal Remote Operation (Open-Stop-Close) ✓ Normal Remote Operation (Open-Stop-Close) with Automatic Closing Timer and "Stay Open" feature (299 Seconds/5 Minutes) ✓ Typical Complex - Individual Open and Close Command Inputs ✓ Typical Complex - Individual Open and Close Command Inputs with Automatic Closing Timer "Stay Open" feature by wired input (299 Seconds/5 Minutes) ✓ Secure Complex - Open Only Command Inputs with Automatic Closing Timer (299 Seconds/5 Minutes) "Stay Open" feature by wired input

  OPTIONAL Uninterrupted Battery Backup System



  The optional uninterrupted battery backup system allows for continued use in the case of power loss without the need for any user intervention, it will continue to allow system operation including any system accessories for 24 hours OR until the power is restored. The batteries are automatically recharged when power is restored and trickle whilst power is available Directly fitting into the systems compartment there is no need for any additional storage boxes. If the optional battery system is not desired the system can still be manually release using the secure override system when applicable.

  Automatic Gate System Controller Specifications

  Operating Voltage	24V
  Duty Cycle	70%
  Standby Consumption	20mA
  Supports Battery Backup	Yes, 24V DC
  Automatic Gate Lock Support	Yes, 24V DC
  Light Support	Yes, 24V DC
  Accessories Voltage	Yes, 12V DC
  Safety Inputs	Photocells, Safety edges, Induction Loops, Edge Sensors, Emergency Stop Button
  Operating Temperature	-10°-60°C
  Maximum Remotes	192

  Control Box Dimensions





  x

  Premier 24V Weatherproof Swing Gate Control Box

  • Powered by 24V Low Voltage Line
  • Digital Display
  • Speed Control + Ramp Up + Slow Down
  • Automatic Close Timer
  • Automatic Lock Support
  • Supports Battery Backup

  Show more

  • Powered by 24V Low Voltage Line
  • Digital Display
  • Speed Control + Ramp Up + Slow Down
  • Automatic Close Timer
  • Automatic Lock Support
  • Supports Battery Backup

  ×

  Out Of Stock

•

  Description

  24V Low Voltage External Transformer



  The External 24V Transformer is designed to be installed outdoors or in a garage/carport. The transformer will plug into an ordinary power point and output a safe LOW VOLTAGE supply to the gate system. Being built to an uncompromised and higher specification unit it is capable of a low voltage run of up to 120 meters making it suitable for most installations that do not have a power point nearby to the gate.

  Key Features

  ✓ IP66 Outdoor Rated Design ✓ Can work up to 120 meters low voltage cabling distance ✓ Multiple cable roll options or use your own cable

  Specifications

  Input Power	240V AC
  Output Power	24V AC
  Rated Current	10A
  IP Rating	IP66

  x

  Weatherproof 24V Low Voltage Transformer

  Out Of Stock

  Cable Length *

  Choose an optionNo Cable (BYO)15m Cable (1.5mm)30m Cable (1.5mm)50m Cable (2.5mm) (+Battery Backup System)100m Cable (2.5mm) (+Battery Backup System) Clear Out Of Stock

•

  Description

  Tekno 4 4G VOLTE Intercom



  The Tekno 4V is the solution for gates and entry ways that are unable to have a hard wired or Wi-Fi intercom. It uses Voice over LTE (VOLTE) which is the required standard to use a 4G based device in Australia. It can be used in just about all locations with a 98% network coverage of Australia. The Tekno 4V is powered by 12V DC (adapted supplied) it will allow for a guest to press the call button, at this time the Tekno 4V will begin calling its enrolled admin users in sequence (can be a mobile or landline, individual person or an office). Once the call is answered the admin user and the guest have two-way handsfree communication at which point a command can be given by the admin user to operate the system. If a call was not answered by the admin user the Tekno 4V will call the second admin then the third admin. Cleverly designed the Tekno 4V has an adjustable maximum ringing time to avoid being answered by voice mails.

  Key Features

  ✓ No distance limitations unlike traditional intercom systems ✓ Communication with guest (Two-Way) using mobile network (4G VOLTE) ✓ Automatically chooses the best 4G VOLTE service connection based on mobile reception ✓ Can operate any access control system (Automatic gates, boom gates, garage doors, electric strikers, magnetic locks etc.) with ADJUSTABLE relay time ✓ Three admin users called in sequence til answered/end of list is reached ✓ Configurable Maximum ringing time (Avoids voice mails) and Configurable Maximum talking time ✓ Enable and Disable the LED ring around the call button ✓ Unlock during a call or anytime by SMS ✓ No computers or APPs needed, configured easily by SMS commands ✓ Nano Sim using any network provider with best coverage in your area

  Tekno 4V VOLTE Intercom Dimensions



  Specifications

  Operating Voltage	12V DC
  Power Consumption	45mA Standby/<130mA Initialization and calling
  IP Rating	IP54
  Sim Card Size	Nano Sim
  VOLTE	YES
  4G Network	TDD: 2300(B40)>FDD 2100(B1)/1800(B3)/2600(B7)/900(B8)/1900 (B2)/1700(B4)/850 (B5)/700APT(B28)
  3G Network	2100(B1)/1900(B2)/850(B5)/90038)

  Electric Striker (Fail-Safe and Fail-Secure)
