WIRED Automatic Vehicle Detection Sensor (Domestic) Surface/Recess Mount- Automatic Opening
$350.00
- Freight from $16.50 Calculate Freight
- 1 Year Warranty
- Brand : Automation Systems Australia
Same Day Dispatch (Order before 10AM)
In stock

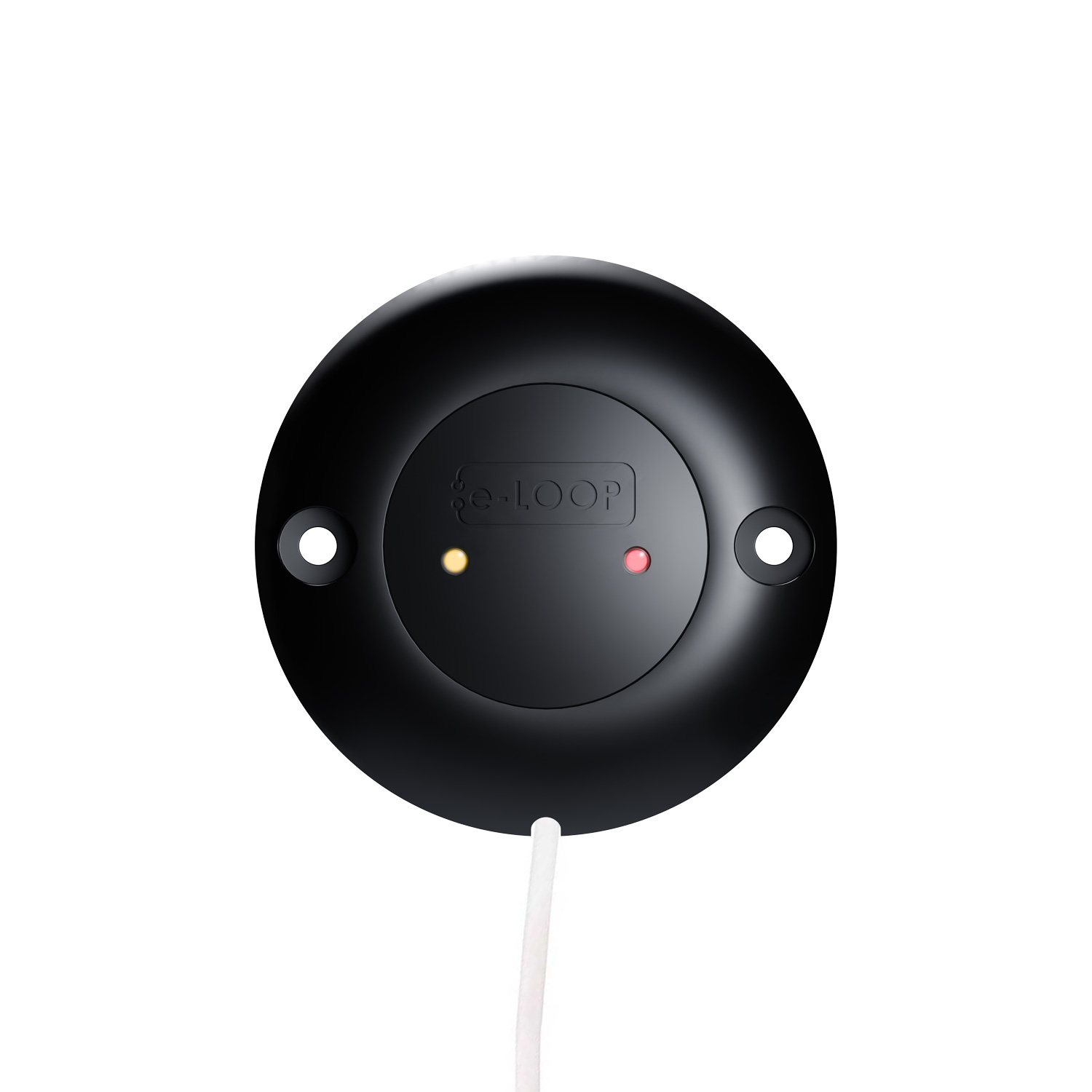

WIRED Automatic Vehicle Detection Sensor – for Automatic Opening of gate
An easy to install AUTOMATIC OPENING driveway vehicle detection system
Multiple hours saved, materials saved and frustrations gone
Long gone are the days of cutting concrete, chasing wires and configuring induction loop detectors (ground loop). Finally, a simple WIRED solution to streamline the installation process.
The WIRED loop detector SIMPLY BOLTS DOWN to a concrete driveway (or concrete pad in gravel driveways) and is wired back to the controller using the Pre-Connected Cable (10 Meters).
The wired exit “loop” is 100% maintenance free without a need for a battery replacement every 2-5 years like its wireless counterparts.
How does it work and what happens if I accidently drive over it?
The wired loop is designed for a vehicle to drive over and will detect the undercarriage of the vehicle, if its accidently driven over it presents no issue whatsoever as its casing carries a static load capacity of 2500kg.
How far can i have it from the gate?
Up to 10 Meters using the Pre-Connected Cable.
How big is it?
Its compact form factor allows for a discreet installation measuring only 120x120mm Length and Width and only 17mm in height.
Will it work with my system?
Typically, YES, it will work with any gate system that has an open command input and an accessories voltage output of 12-24V DC
Which installations does this suit?
Any domestic installations which fit the following criteria:
✓A concrete pad or driveway is available for the device to be installed on to
✓When a vehicle is parked it does not sit within 3 meters of the device
✓The device does not sit in a pool water, snow or any debris
✓Not nearby to high voltage cables
How is it installed?
1. Install to concrete using the supplied concrete screw bolts (can also be flush mounted).
2. Connect the wiring into the appropriate terminals on the gate controller.
3. Sikaflex any grooves and weatherproof all wiring.
4. Power on the gate controller and allow 3 minutes for calibration
Test to confirm operation, job done!
Supplied With
✓1x Wired Loop with 10m cable
✓2x Concrete Screw Bolts

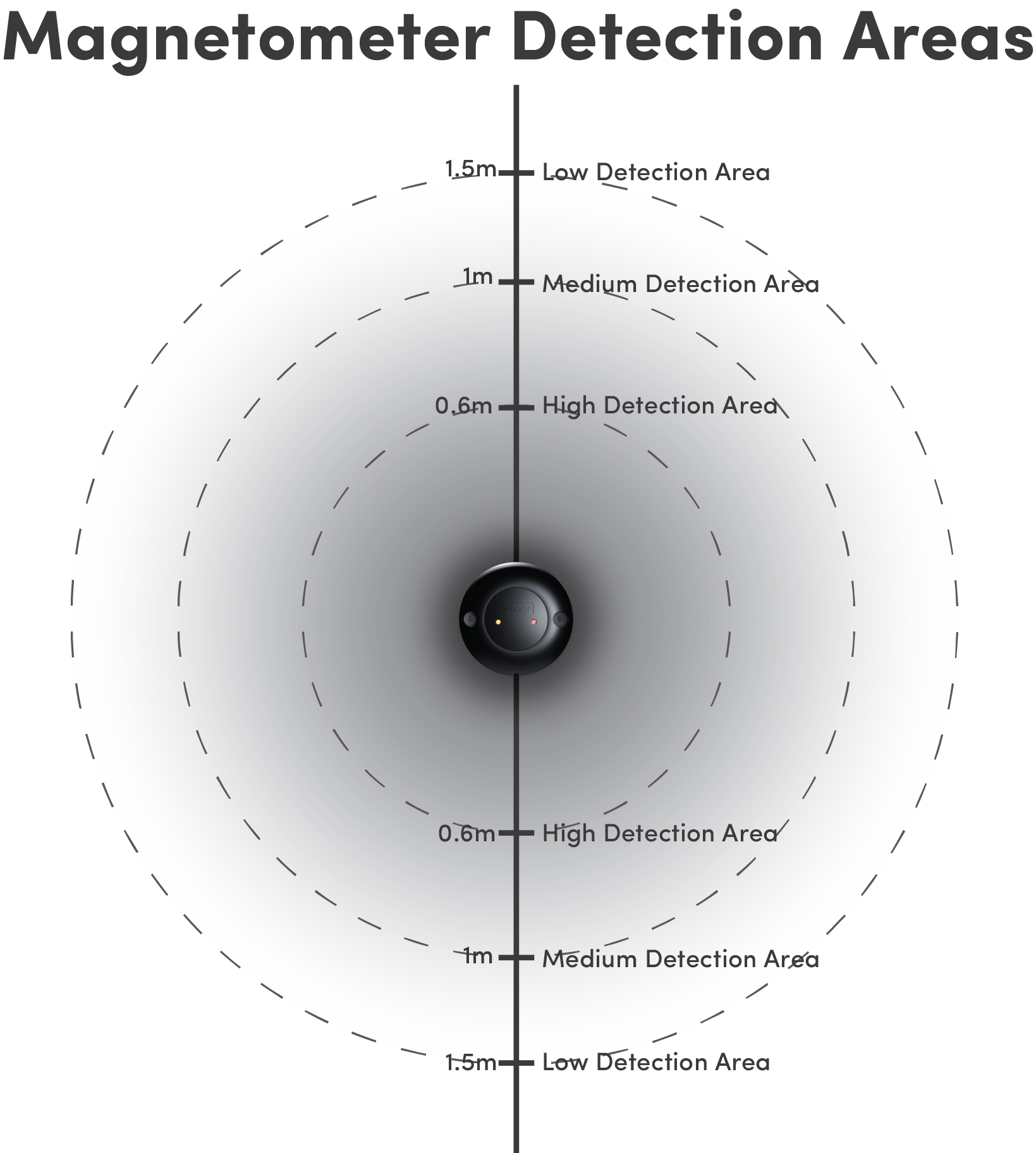

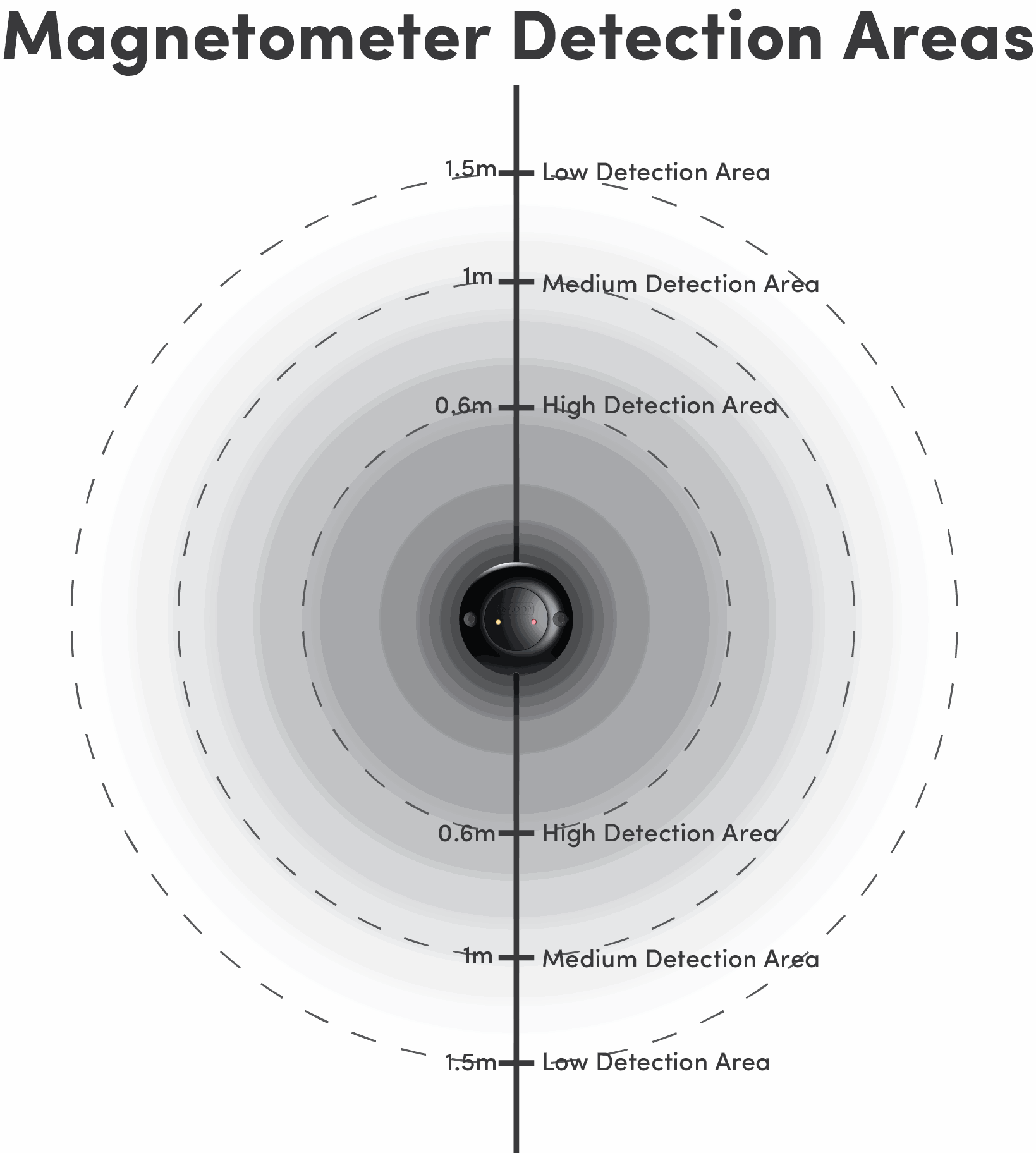

Detection Area
