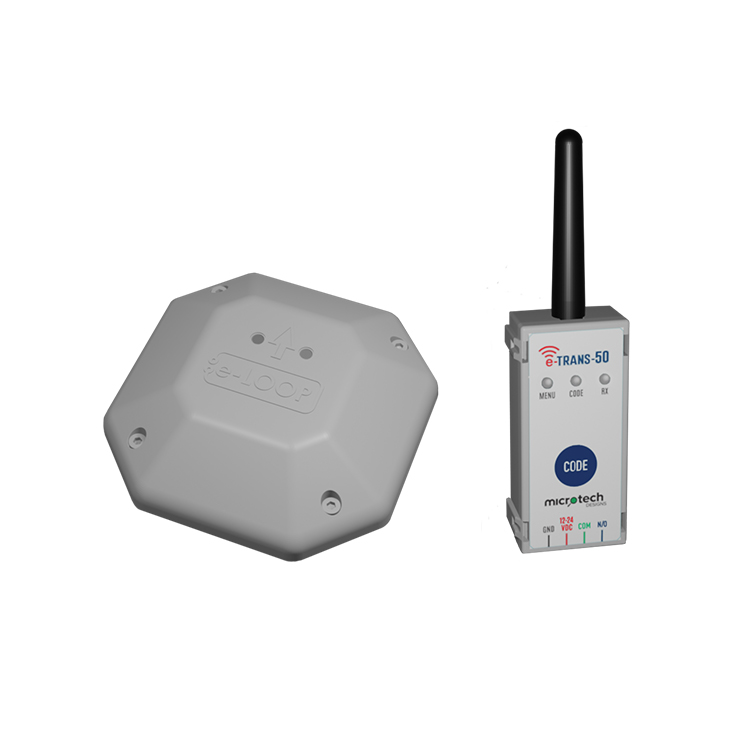

WIRELESS Automatic Vehicle Detection Sensor (Mini Version)- Automatic Opening (50mtrs Max. / 4 Year Replaceable Battery Life)

An easy to install WIRELESS AUTOMATIC OPENING driveway vehicle detection system

Multiple hours saved, materials saved and frustrations gone

Long gone are the days of cutting concrete, chasing wires and configuring induction loop detectors (ground loop). Finally, a simple WIRELESS solution to streamline the installation process.
The WIRELESS loop detector SIMPLY BOLT DOWN to a concrete driveway (or concrete pad in gravel driveways) and wirelessly communicate back with the gate system using the supplied high security (128 Bit) transceiver for two way communication between the New Generation wireless loops.

The wireless exit “loop” is maintenance free and installed with 2x AA Lithium batteries for a THREE YEAR use period before a battery replacement is required (regular usage), to replace the batteries simply remove the top cover and fit the new Lithium AA batteries.

How does it work and what happens if I accidently drive over it?
The wireless loop is designed for a vehicle to drive over and will detect the undercarriage of the vehicle, if its accidently driven over it presents no issue whatsoever as its casing carries a static load capacity of 2500kg.

How far can i have it from the gate?
Thanks to its high transmission range capabilities it has a maximum wireless operating distance of 50 meters.

How big is it?
Its compact form factor allows for a discreet installation measuring only 120x120mm Length and Width and only 30mm in height.

Will it work with my system?
Typically, YES, it will work with any gate system that has an open command input and an accessories voltage output of 12-24V DC

Which installations does this suit?
Any domestic installations which fit the following criteria:
✓A concrete pad or driveway is available for the device to be installed on to
✓When a vehicle is parked it does not sit within 3 meters of the device
✓The device does not sit in a recess and pool water, snow or any debris
✓Not nearby to high voltage cables

How is it installed?
1. Connect the transceiver to the gates control board, this must be installed within the gate controller or any enclosure
2. Power on the transceiver and have the loop touching the antenna of the transceiver.
3. Once the transceiver flashes its blue led and the loop flashes its yellow led they are now paired together.
4. Remove backing plate from the loop and install to concrete using the supplied concrete screw bolts, ensure the arrow faces the direction of travel for exit (faces towards the gate).
5. Install the wireless loop to the backing plate and allow 3 minutes for calibration
Test to confirm operation, job done!

Supplied With

✓1x Wireless Loop (with 2x AA Lithium Batteries Installed)
✓1x Transceiver
✓2x Concrete Screw Bolts

Detection Area

Replaceable Battery Life
